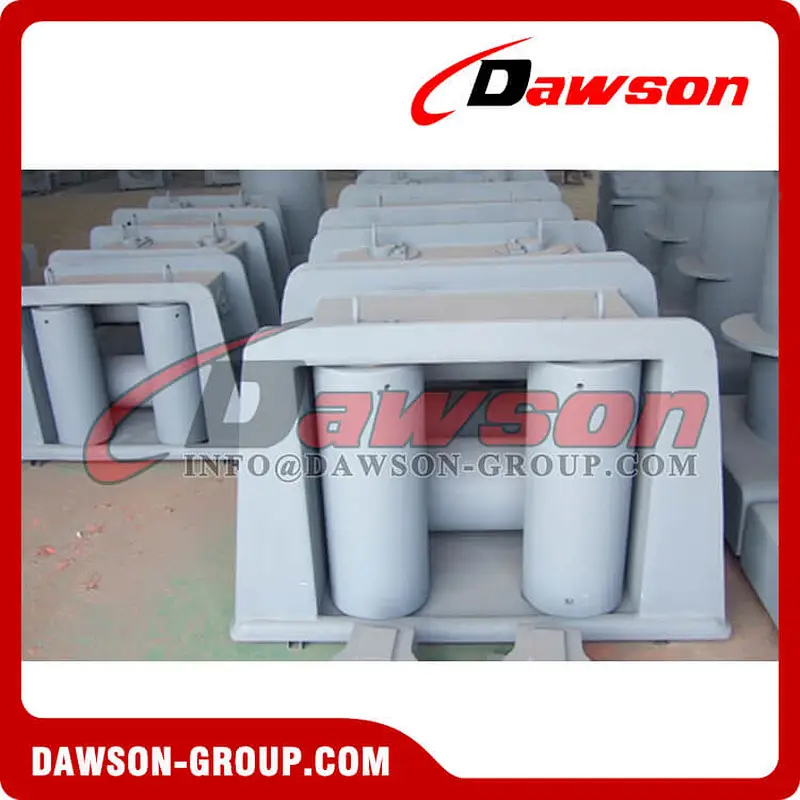

JIS F2026 Fairlead with Horizontal Roller
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Features of JIS F2026 Fairlead with Horizontal Roller
1. Strictly produced according to standard JIS F2026-80;
2. Nominal diameter 140mm to 315mm;
3. Four horizontal rollers;
4. Cast steel/iron;
5. Polished and galvanized surface;
6. Excellent wear and corrosion resistance;
7. Provide CCS, ABS,BV etc. certificate;
8. Produce fairlead according to customer ’ s drawing

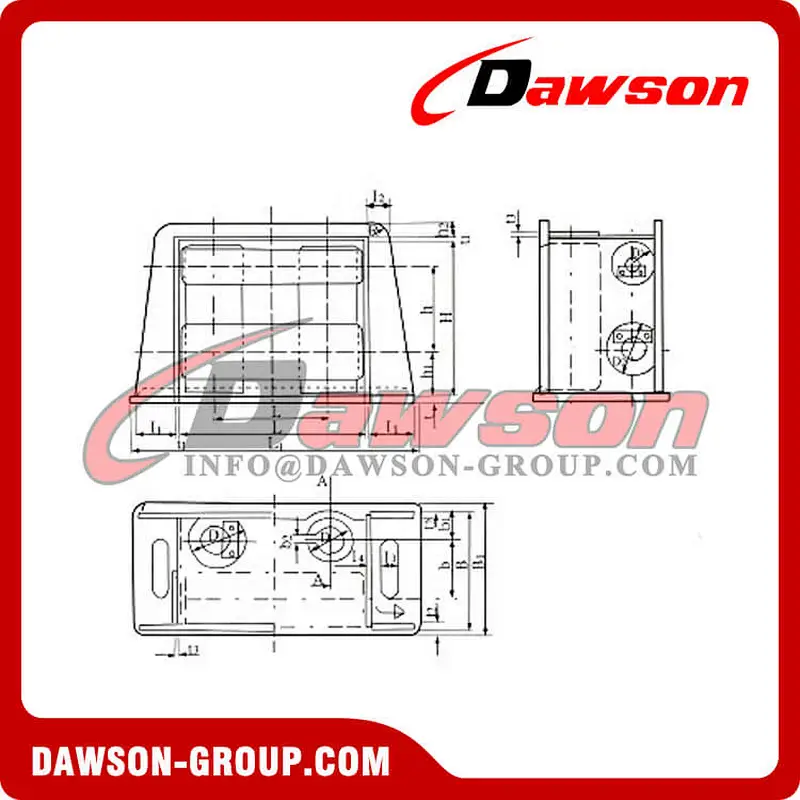

unit: mm
| Nominal Dia | Frame | ||||||||||||||||
| B | B1 | b | b1 | b2 | D | D1 | D2 | H | h | h1 | h2 | L | L1 | l | l1 | l2 | |
| 140 | 310 | 355 | 150 | 69 | 20 | 90 | 140 | 12 | 480 | 275 | 130 | 40 | 515 | 805 | 335 | 120 | 60 |
| 160 | 360 | 405 | 175 | 82 | 22 | 110 | 160 | 140 | 515 | 290 | 145 | 45 | 570 | 890 | 365 | 135 | 65 |
| 180 | 410 | 455 | 200 | 95 | 24 | 135 | 180 | 150 | 560 | 315 | 155 | 50 | 620 | 960 | 390 | 145 | 70 |
| 200 | 460 | 505 | 225 | 108 | 26 | 160 | 200 | 160 | 590 | 330 | 170 | 60 | 675 | 1049 | 420 | 160 | 80 |
| 250 | 565 | 610 | 280 | 133 | 30 | 200 | 250 | 200 | 715 | 415 | 195 | 75 | 825 | 1303 | 520 | 210 | 105 |
| 315 | 715 | 715 | 330 | 159 | 34 | 240 | 300 | 240 | 870 | 520 | 220 | 90 | 980 | 1562 | 620 | 260 | 130 |
| Nominal Dia. | Frame | Applicable wire rope dia | Opening dia (long×wide) | Weight (kg) | SWL | ||||||
| l3 | l4 | R | t | t1 | t2 | t3 | |||||
| 140 | 50 | 20 | 40 | 12 | 10 | 16 | 6 | 18 | 148×195 | 214 | 15T |
| 160 | 50 | 20 | 45 | 14 | 10 | 18 | 8 | 22.4 | 150×200 | 307 | 20T |
| 180 | 50 | 20 | 60 | 16 | 10 | 20 | 10 | 25 | 150×199 | 410 | 26T |
| 200 | 50 | 20 | 60 | 18 | 12 | 22 | 10 | 28 | 152×204 | 568 | 34T |
| 250 | 60 | 25 | 75 | 20 | 14 | 26 | 12 | 35.5 | 199×253 | 1000 | 46T |
| 315 | 60 | 25 | 90 | 22 | 16 | 30 | 14 | 42.5 | 253×302 | 1620 | 60T |
Product Show:

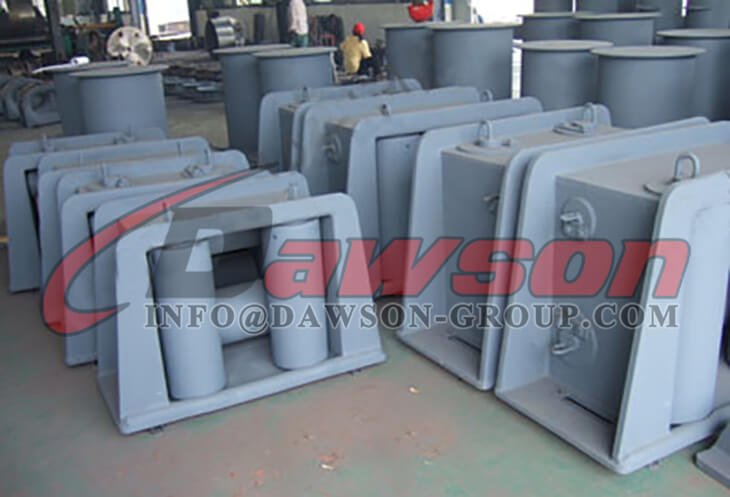

Factory & Package Show:
