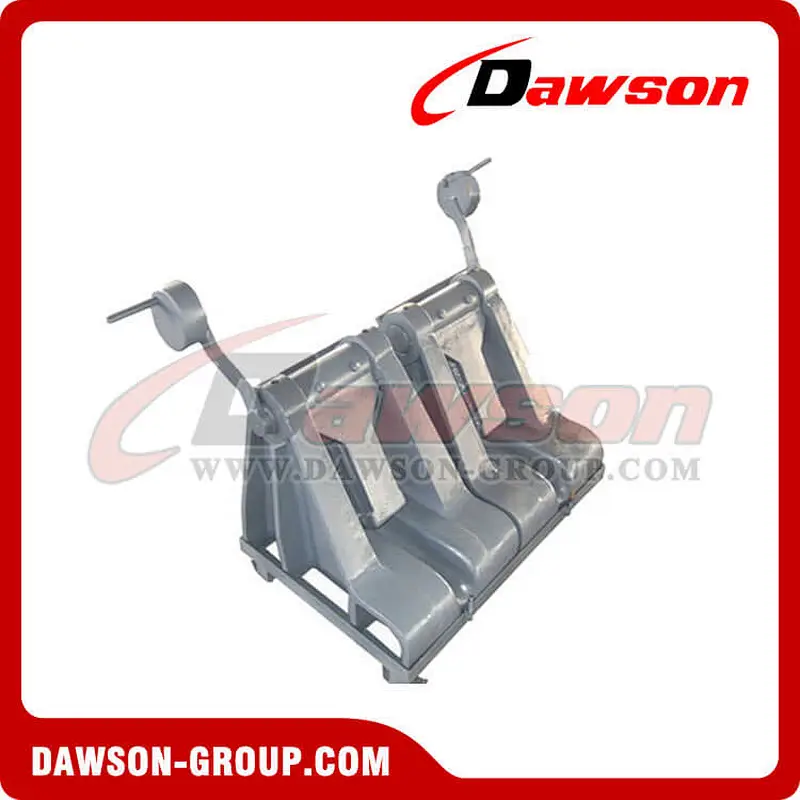

JIS F2031 Pawl Type Chain Cable Stopper
JIS F2031 Pawl Type Chain Cable Stopper is cast steel chain stopper applicable to Grade 3 Anchor Chain. Pawl type chain stopper is disposed between the connecting tube and anchor windlass to clamp the anchor chains and prevent the chain slipping out. When at anchor, anchor chain stopper transmits the pull strength from the chain to the hull and then reduce the working load on the windlass. JIS F2031 pawl type chain stopper is strictly produced complying with the shipbuilding standard JIS F2031. It can withstand 80% of chain cable’s minimum breaking load and never go to permanent deformation. We supply all type of chain stoppers and can design new types according to customer’s special requirements. For more information, please feel free to contact us.
Features of JIS F2031 Pawl Type Chain Cable Stopper
1. Model Type: pawl type chain cable stopper;
2. Material: cast steel;
3. Applicable to Grade 3 anchor chain (diameter 58mm to 122mm);
4. Weight: 495 to 3660kg;
5. Painted lubricating oil on friction surface, other part painted bitumen paint;
6. Red, black, grey or other color coating;
7. Withstand 80% of chain cable’s minimum breaking load;
8. No defects on surface to influence the strength of chain stopper;
9. Competitive price, prompt delivery, excellent service;
10. Certificate: ABS,CCS,BV,NK,LR etc.;
11. Can be customized

Factory & Package Show:
