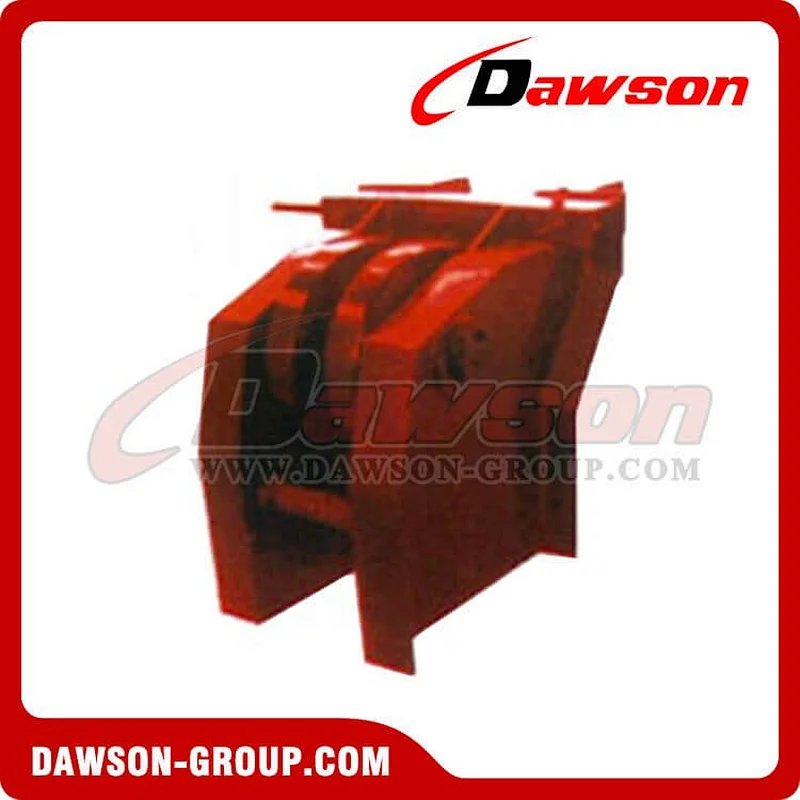

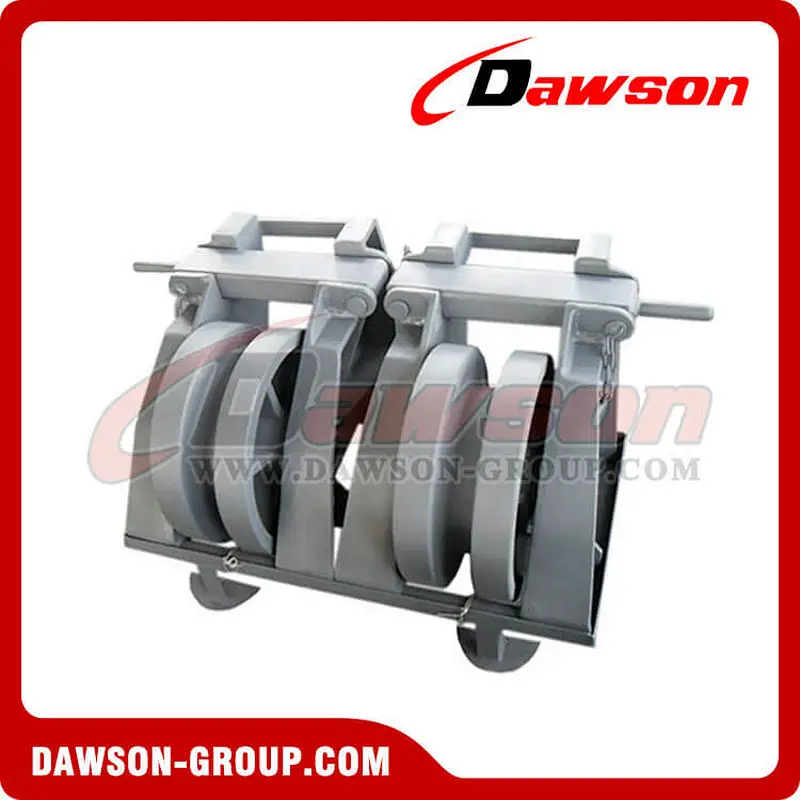

Jis F2033 Roller Bar Type Chain Stopper
Chain stopper is positioned between the windlass and the hawse pipe deck, used for clamping the chain. Anchor-handling, anchor chains tension can be transferred to the ship, the anchoring machine is not in the state of stress. When sailing, chain stopper bearing anchor and anchor chain part of gravity, and will receive the hawse pipe within the anchor stick to hull, without collision.
Features of JIS F2033 Roller Bar Type Chain Stopper
1. Model Type: Roller Bar Type Chain Stopper;
2. Standard: JIS F2033-1980;
3. Material: cast steel;
4. Applicable to grade 3 chain cable 70~132mm;
5. Weight: 1000~5080kg;
6. Grey epoxy primer, polished,galvanized or bitumen painted;
7. Withstand 80% of chain cable’s minimum breaking load;
8. Competitive price, short delivery, excellent service;
9. Certificate: ABS,CCS,LR,BV,NK etc.;
10. Customized service is available.

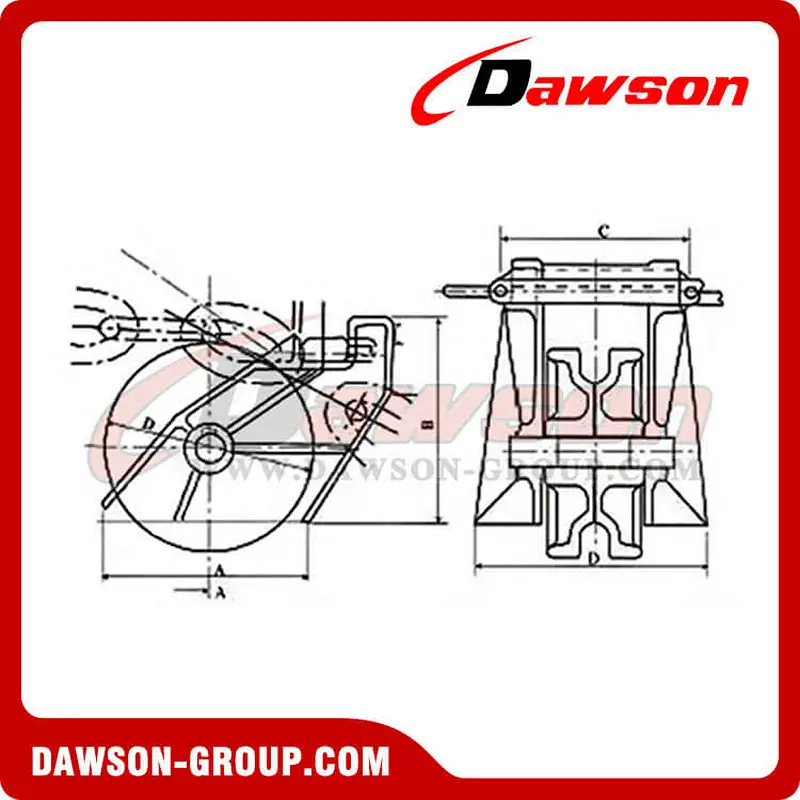

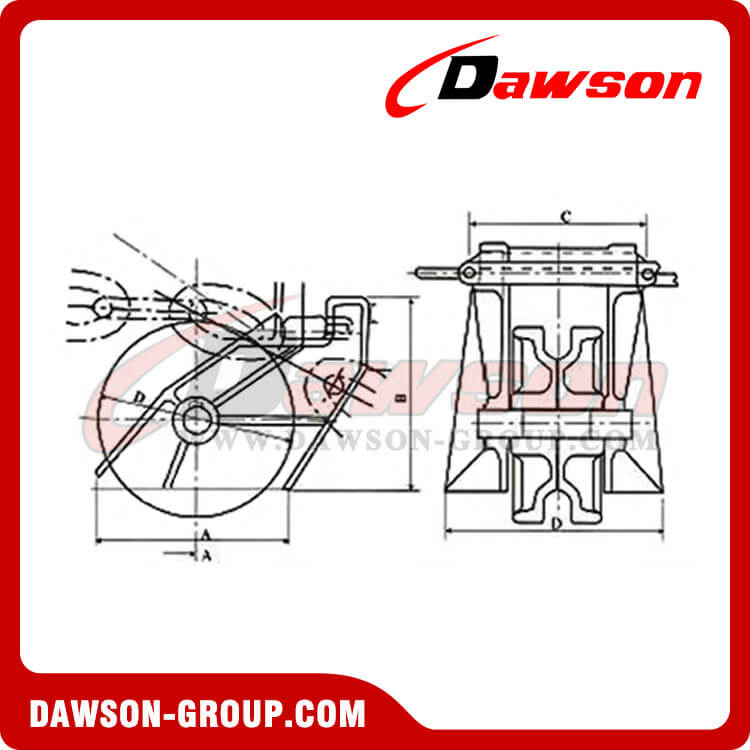

unit: mm
| Number | 73 | 78 | 84 | 90 | 95 | 102 | 107 | 114 | 122 | 132 |
| Diameter of Apply Anchor Chain | 70~73 | 76~78 | 81~84 | 87~90 | 92~95 | 97~102 | 105~107 | 111~114 | 117~122 | 127~132 |
| A | 730 | 780 | 840 | 900 | 950 | 1020 | 1070 | 1140 | 1220 | 1320 |
| B | 715 | 760 | 820 | 890 | 945 | 1005 | 1070 | 1140 | 1220 | 1315 |
| C | 700 | 730 | 780 | 840 | 880 | 940 | 990 | 1040 | 1140 | 1170 |
| D | 730 | 780 | 840 | 900 | 950 | 1020 | 1070 | 1140 | 1220 | 1320 |
| Weight(kg) | 1000 | 1180 | 1470 | 1780 | 2110 | 2380 | 2900 | 3440 | 4100 | 5080 |
