JIS F2033 Roller Chain Stopper

JIS F2033 Roller Chain Stopper
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

JIS F2033-1980 rollered bar type anchor chain cable stopper is applicable to grade 3 anchor chain cable. It can withstand 80% of chain cable’s breaking load and avoid being permanently deformed. When a ship is sailing or casting anchor, this chain cable stopper is an important device to clamp the anchor chain and help reduce the working load of windlass. Except roller bar type chain stopper, we also supply all other types of chain stoppers such as screw type chain stopper, cast lever chain stopper, pawl type chain stopper, OCIMF type chain stopper. For more information, please feel free to contact us.

Features of JIS F2033 Roller Chain Stopper
1. Model Type: Rollered Bar Type Chain Stopper;
2. Standard: JIS F2033-1980;
3. Material: cast steel;
4. Applicable to grade 3 chain cable 70~132mm;
5. Weight: 1000~5080kg;
6. Color: red, black, grey or others as customer required;
7. Grey epoxy primer, polished,galvanized or bitumen painted;
8. Durable, long life time;
9. Competitive price, prompt delivery;
10. Certificate: ABS,CCS,LR,BV,NK etc.;

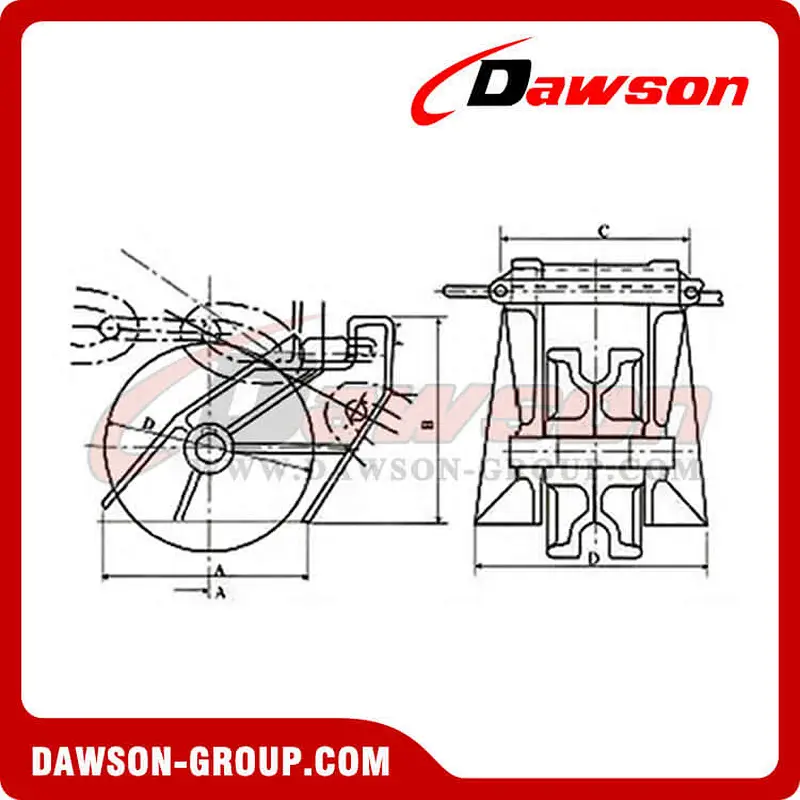

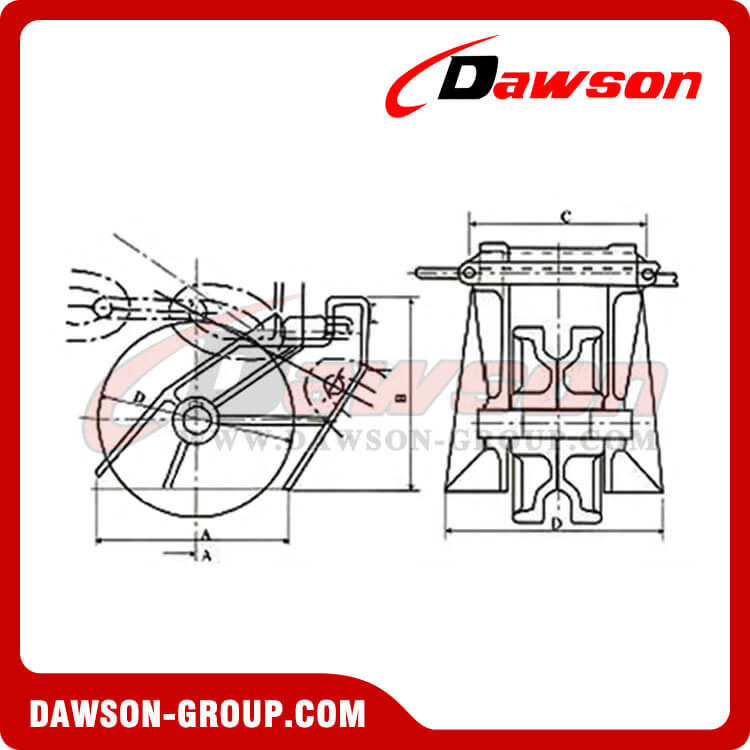

11. Can be customized according to customer’s drawing.Unit:mm
