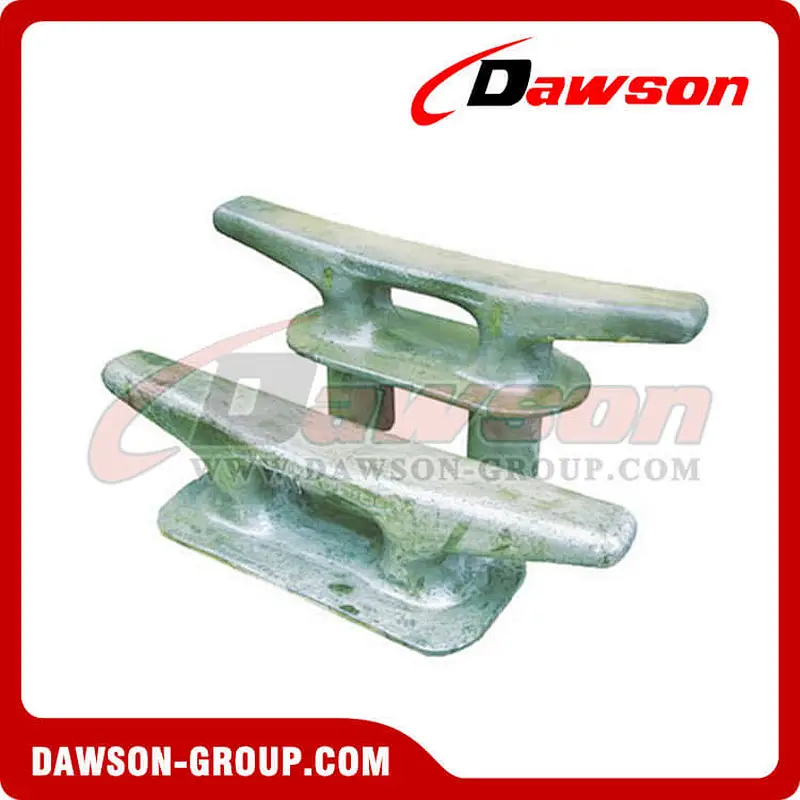

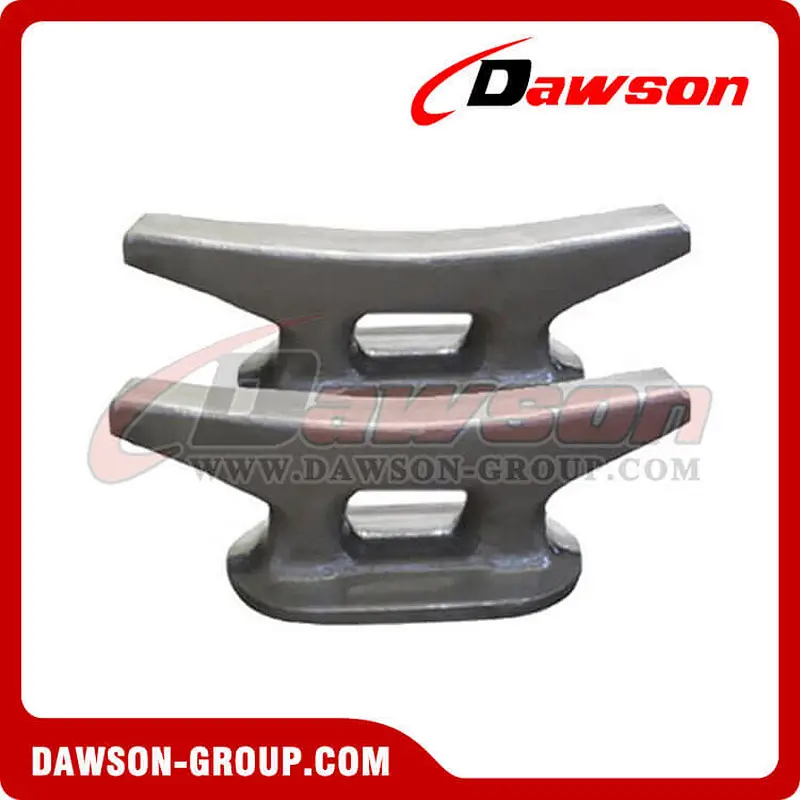

Kevel chock
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Specification :
Model Type: Kevel chock
Dimensions(inches):24’’ 30’’ 36’’ 42’’ 48’’
Material: Cast Iron
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

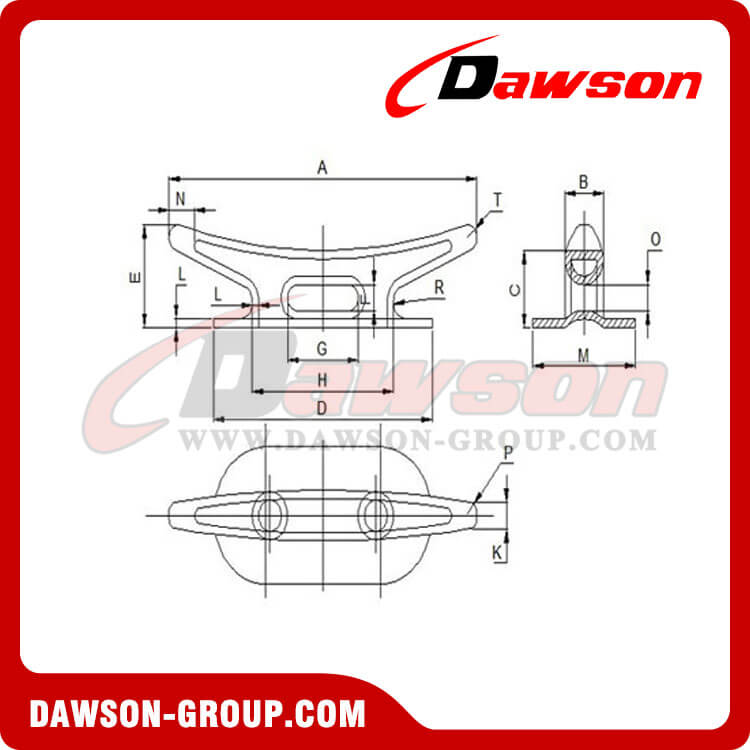

| Dimension(in) | |||||||||||||||
| A | B | C | D | E | F | G | H | K | L | M | N | O | P | R | T |
| 24’’ | 3 | 4-1/2 | 17 | 6 | 1-1/2 | 5-1/2 | 11 | 1-1/2 | 1/2 | 8 | 2 | 1-1/2 | 9/16 | 1 | 3/4 |
| 30’’ | 4 | 5-5/5 | 20-1/4 | 7 | 2-3/8 | 6-7/8 | 14 | 3-1/4 | 1/2 | 9-1/2 | 2 | 2-3/8 | 1-1/4 | 1-3/8 | 7/8 |
| 36’’ | 5 | 6-3/4 | 23-1/2 | 8 | 3-1/4 | 8-1/4 | 17 | 4 | 9/16 | 11 | 2-1/2 | 3-1/4 | 1-1/2 | 1-3/4 | 1 |
| 42’’ | 6 | 7-7/8 | 26-3/4 | 9 | 4-1/8 | 9-5/8 | 20 | 4-3/4 | 5/8 | 12-1/2 | 2-3/4 | 4-1/8 | 1-7/8 | 2-1/8 | 1-1/8 |
| 48’’ | 7 | 9 | 30 | 10 | 10 | 11 | 23 | 5-1/2 | 3/4 | 14 | 4 | 5 | 2 | 2-1/2 | 1-1/4 |
Factory & Package Show:
