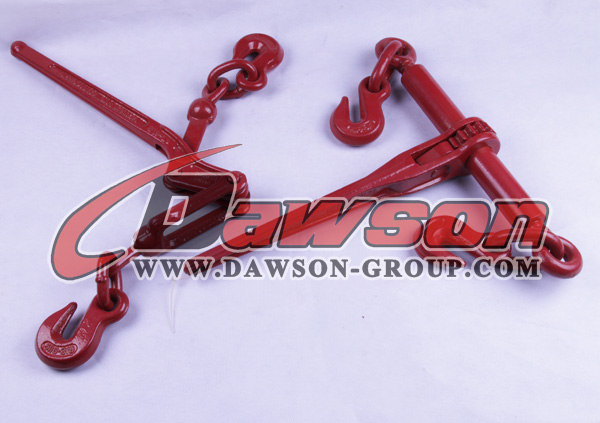

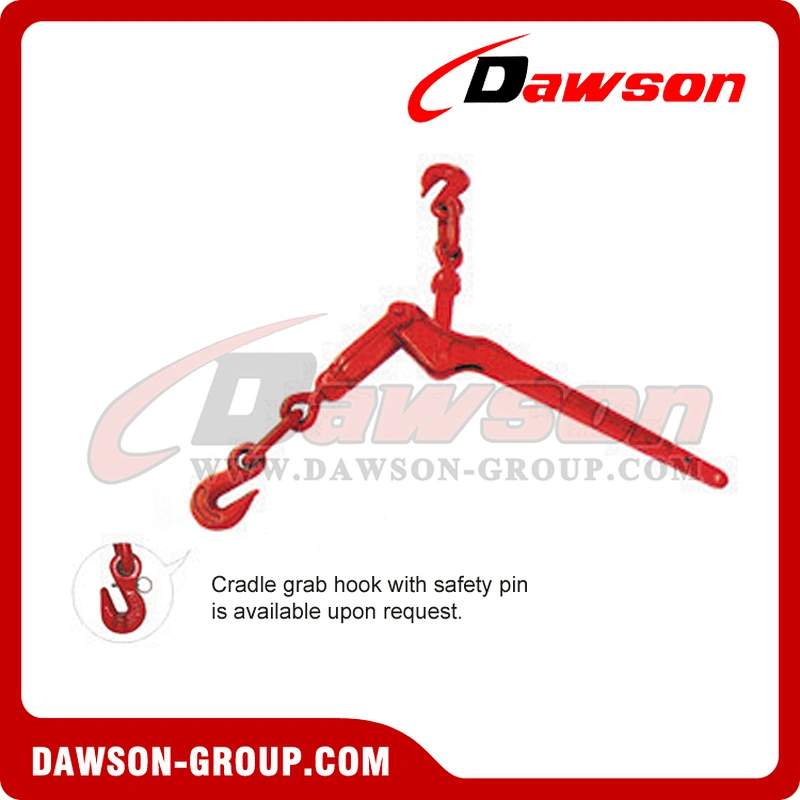

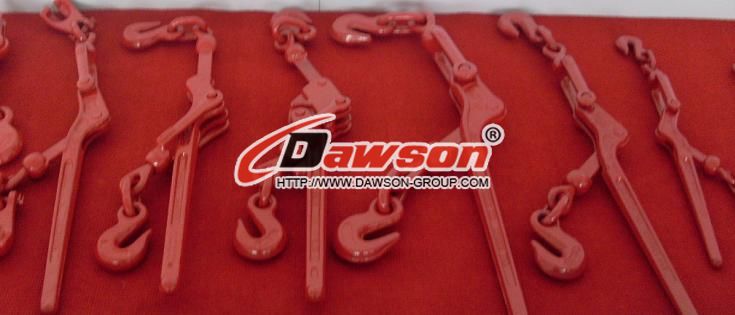

Lever Type Load Binder With Grab Hook, Forged Steel Lever Load Binder
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

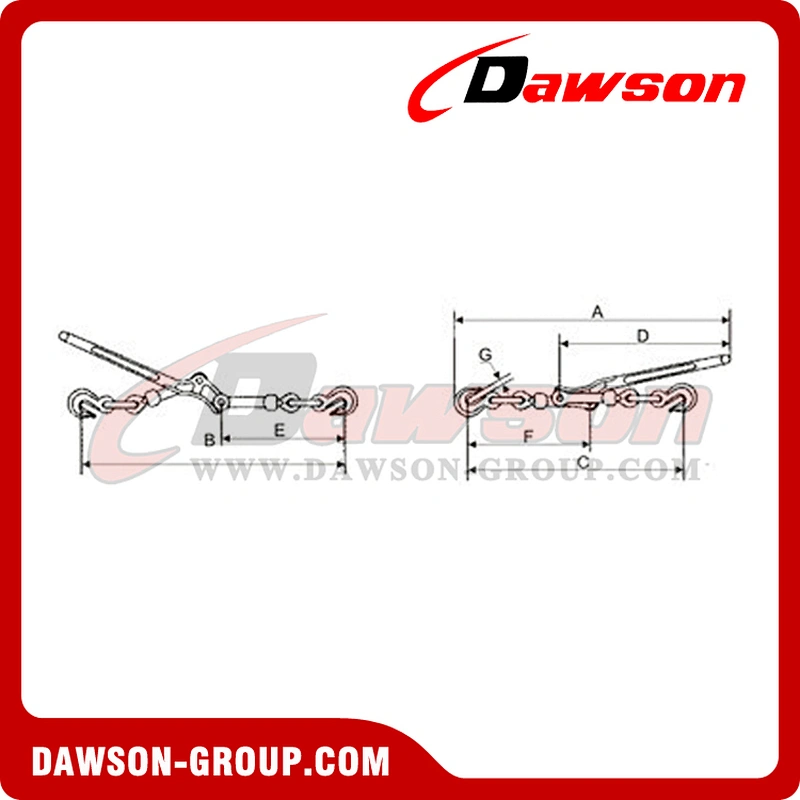

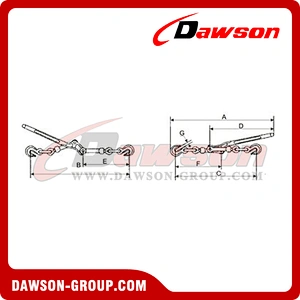

| Size | WLL(LBS) | MBS(LBS) | A | B | C | D | E |
| 1/4-5/16 | 2600 | 9100 | 468 | 440 | 373 | 297 | 9.7 |
| 1/4-5/16 | 3150 | 12600 | 468 | 440 | 373 | 297 | 9.7 |
| 5/16-3/8 | 5400 | 18900 | 620 | 605 | 505 | 384 | 12.4 |
| 5/16-3/8 | 6600 | 26400 | 620 | 605 | 505 | 384 | 12.4 |
| 3/8-1/2 | 9200 | 32200 | 697 | 675 | 550 | 427 | 15.00 |
| 1/2-5/8 | 13000 | 45500 | 800 | 777 | 645 | 497 | 19.00 |

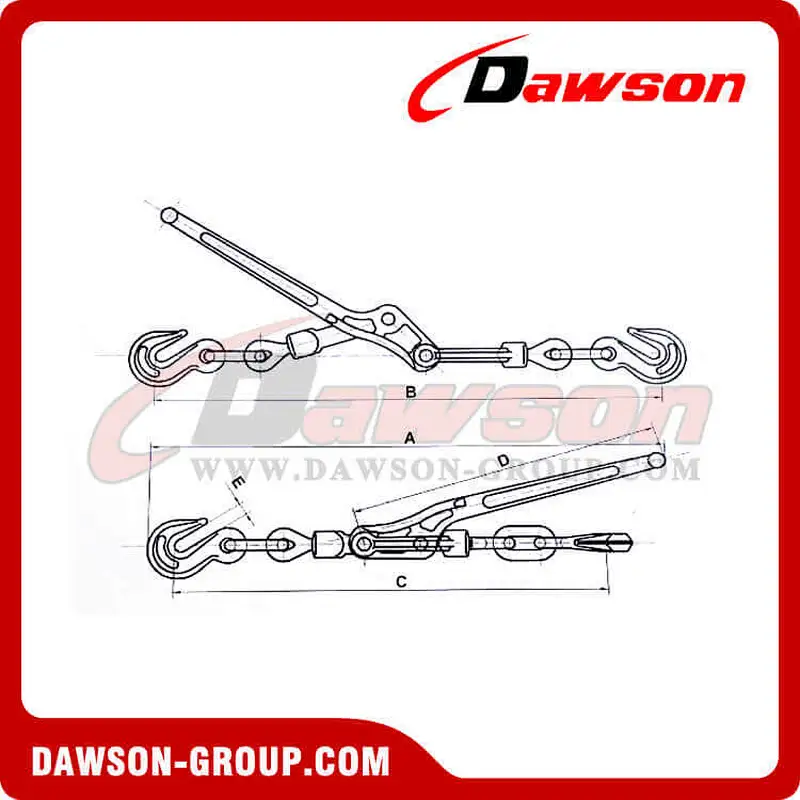

| Item | DSLLGH08 | DSLLGH10 | DSLLGH13 | DSLLGH16 | ||
| Min.-Max. Chain Size | Inch | 1/4-5/16 | 5/16-3/8 | 3/8-1/2 | 1/2-5/8 | |
| Working Load Limit | lbs | 2600 | 5400 | 9200 | 11000 | |
| Proof Load | lbs | 5200 | 10800 | 18400 | 22000 | |
| Minimum Ultimate Load | lbs | 7800 | 19000 | 28000 | 33000 | 44000 |
| Weight/Each | lbs | 3.52 | 8.37 | 12.11 | 12.20 | 19.7 |
| Handle Length | Inch | 11.42 | 15.43 | 17.24 | 17.24 | 21.00 |
| Dimensions(Inch) | A | 18.5 | 25.2 | 28.5 | 28.5 | 33.86 |
| B | 17.3 | 23.2 | 26.38 | 26.38 | 30.12 | |
| C | 14.17 | 19.49 | 22.05 | 22.05 | 25.78 | |
| D | 11.42 | 15.55 | 17.64 | 17.64 | 20.87 | |
| E | 8.27 | 11.22 | 12.99 | 12.99 | 14.37 | |
| F | 8.07 | 11.22 | 12.20 | 12.20 | 14.37 | |
| G | 0.35 | 0.51 | 0.59 | 0.59 | 0.74 | |
Welcome to buy the newest and competitive price DAWSON Lever Type Load Binder With Grab Hook, Forged Steel Lever Chain Binder from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
-Safety, durability designed for all heavy duty transport use.(Take up slack and apply tension to a tie down system)
-Drop forged steel, high strength.
-Free 360 degree swivel hooks for easier handling.
-Heat-treated for extra strength.
-Each binder individually proof tested.
-No requirement for locking of handle than lever type load binders
-High quality drop forged construction.
-End fittings for each end to suit your application.(only for ratchet type load binder without links of hooks)
-Material: Carbon Steel, Alloy Steel
-Handle: Drop forged, casting
Size: 1/4-5/16, 5/16-3/8, 3/8-1/2, 1/2-5/8 inches.
Finish: Painted.
Fitting for chain
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: bulk lever type load binder, low price lever ratchet binder, high quality ratchet load binder, wholesale drop forged load binder, buy discount load binder with hot sale grab hook, customized ratchet load binder, cheap price walking load binder, lever load binder with pawl hook China supplier, lever chain binder China manufacturer, chain binder China factory, lever binder China exporter, lever binder in stock, lever binder free sample, lever chain load binder dawson brands, lever binder OEM
Other Products:
Supply only on special request.Not for recommendation.
For further information,please contact us. Email: info@dawson-group.com.
|
|
|
Dawson has the load binders you need to tie down heavy cargo
From chain binders and ratchet binders to binder chains, you’ll find them here
Snap binders
Chain binders
Ratchet binders
Lever binders
Grade binders
Ancra binders
Cargo binders
Coil binders
Easy chain binders
Flatbed binders
Grab hook binders
Grade 7 binders
Grade 70 binders
High test binders
Load binders
Ratchet load binders
Snap binders
Tie down binders
Transport binders
Walking Load binder
Truck binders
Working load binders
The chain binders for trucking offered at DAWSON meet DOT and CVSA specifications. Versatile and adjustable, these load binders offer heavy-duty security when transporting a heavy load.
Ratchet style and lever style chain binders can be used interchangeably and the selection of either style depends primarily on driver preference. Consider the “weakest link” effect to maximize your tie down working load limit. Choose a WLL (Working Load Limit) equal-to or greater-than the chain you will use it with. For example, if you have a 3/8"chain rated at 6,600 pounds WLL and select a binder rated at 5,400 pounds, your chain will be effectively de-rated to 5,400 pounds (the weakest component). This may or may not be important depending on the load you are hauling.
Ratchet binders offer effortless tightening and easier fine adjustment without the snap-back or recoil effect of a snap binder.
Lever binders, also called snap binders, have less moving parts and are quicker to install. Recoil-less and EZ-Over styles are available to minimize snap-back effect associated with this binder type. Every recoilless lever chain binder has an anti-kickback handle that allows for quick and easy use. Because of its improved design, this lever chain binder can be easily handled by one person safely. Our recoilless lever chain binders also make use of a swiveling hook that can rotate 360 degrees for easier handling.
Trust the experienced professionals at DAWSON for all of your chain binder and ratchet binder needs. We have all of the sizes that will meet your specific requirements. We can also answer any questions you may have about the wide variety of binders and their uses. Email us or give us a call today.
Application of Ratchet Type Load Binder:

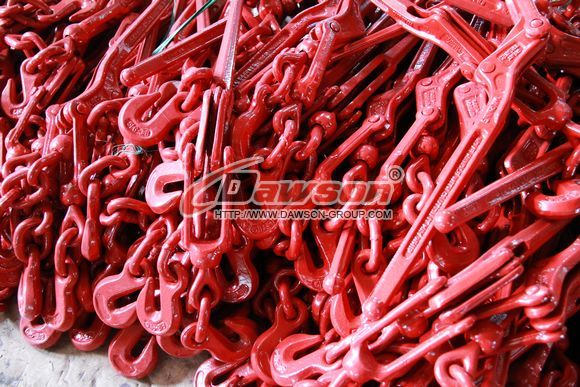

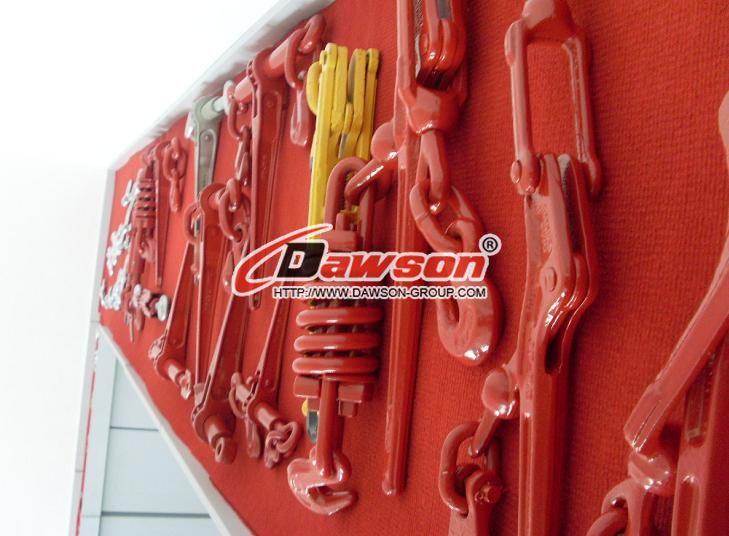

Factory & Package Show:
