DS292 Grade 80 / G80 Lifting Eye Screw with Omega Link
G80 Eye Nuts, G80 / Grade 80 Lifting Anchor Eye Bolt
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel - Quenched and Tempered.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003

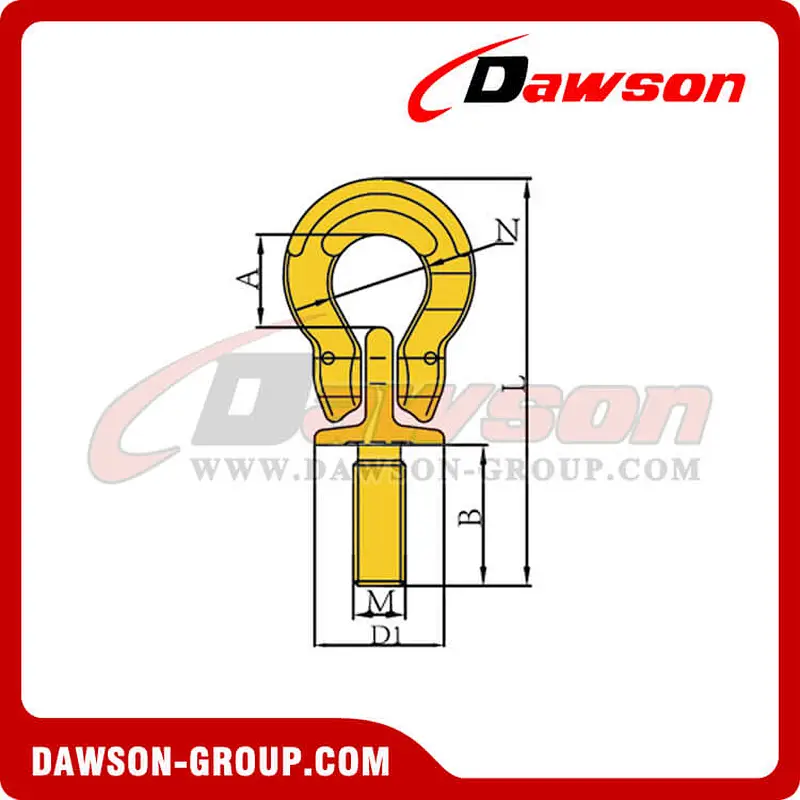

| Item No. | Weight/kg | WLL/T | B.L/T | A±1 | B±1 | N | M | D | L±2 |
| DS292-M12 | 0.23 | 1.25 | 5 | 24.8 | 35 | 23.6 | 12 | 34 | 112 |
| DS292-M14 | 0.24 | 1.5 | 6 | 24.8 | 35 | 23.6 | 14 | 34 | 112 |
| DS292-M16 | 0.31 | 1.87 | 7.48 | 24.8 | 35 | 23.6 | 16 | 34 | 112 |
| DS292-M18 | 0.5 | 2.5 | 10 | 30.4 | 44 | 31.5 | 18 | 40 | 130 |
| DS292-M20 | 0.5 | 3.12 | 12.48 | 30.4 | 43 | 31.5 | 20 | 40 | 129 |
| DS292-M24 | 2.11 | 3.15 | 12.6 | 48 | 130 | 49.5 | 24 | 67 | 268 |
| DS292-M27 | 2.00 | 6.25 | 25 | 48 | 73 | 49.5 | 27 | 67 | 211 |
| DS292-M30 | 2.11 | 7.5 | 30 | 48 | 73 | 49.5 | 30 | 67 | 211 |
Ultimate load is 4 times the Working Load Limit.
Welcome to buy the newest and cheap DAWSON Grade 80 / G80 Lifting Eye Screw with Omega Link from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
Other related products:
Production Equipment:

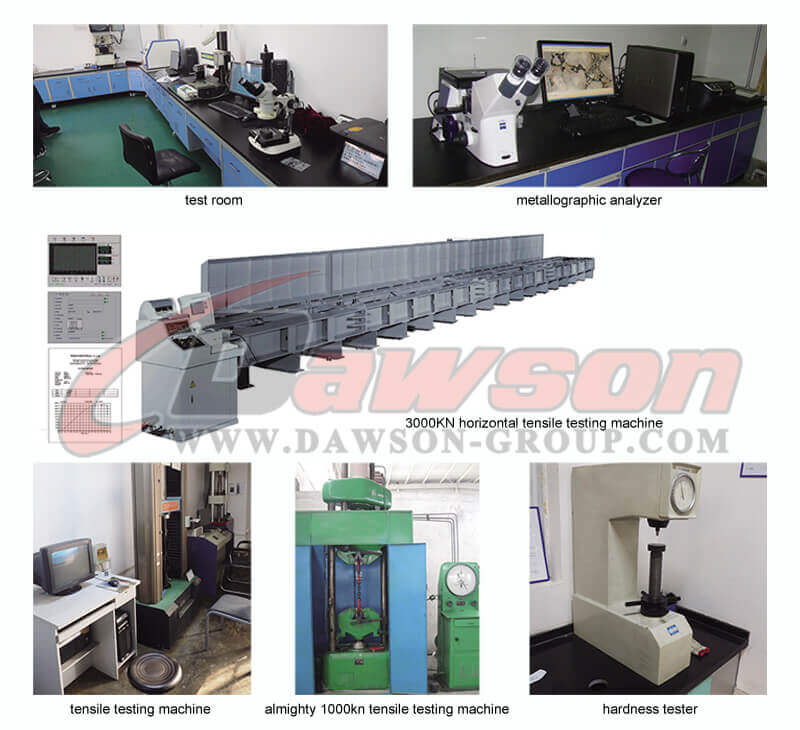

Test Equipment:
