Marine Cross Bollard

Model NO.: DS-ME(A)

Quantity:

Product Description

Marine Cross Collard

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

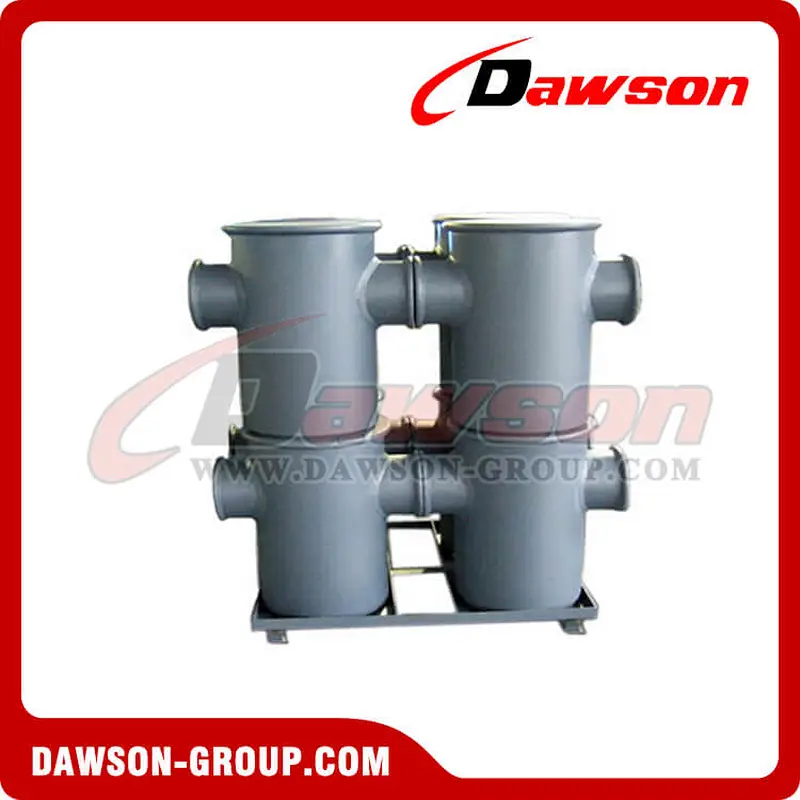

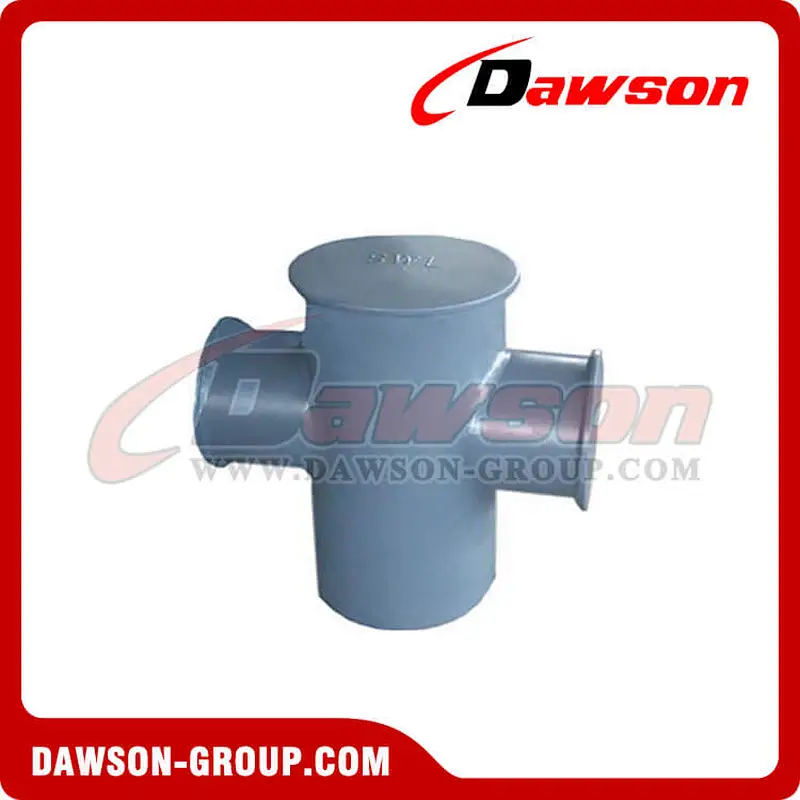

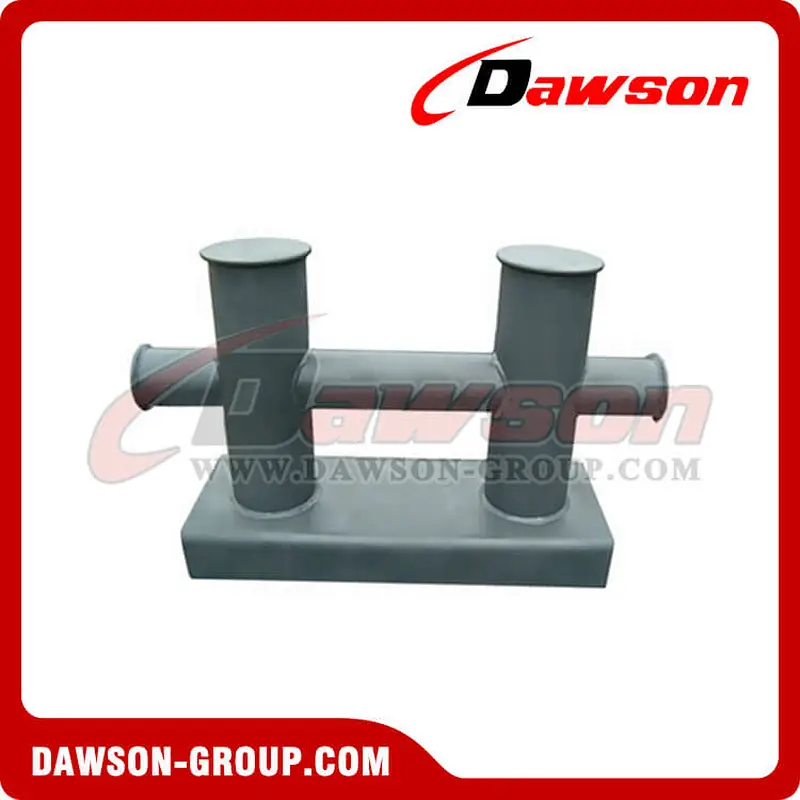

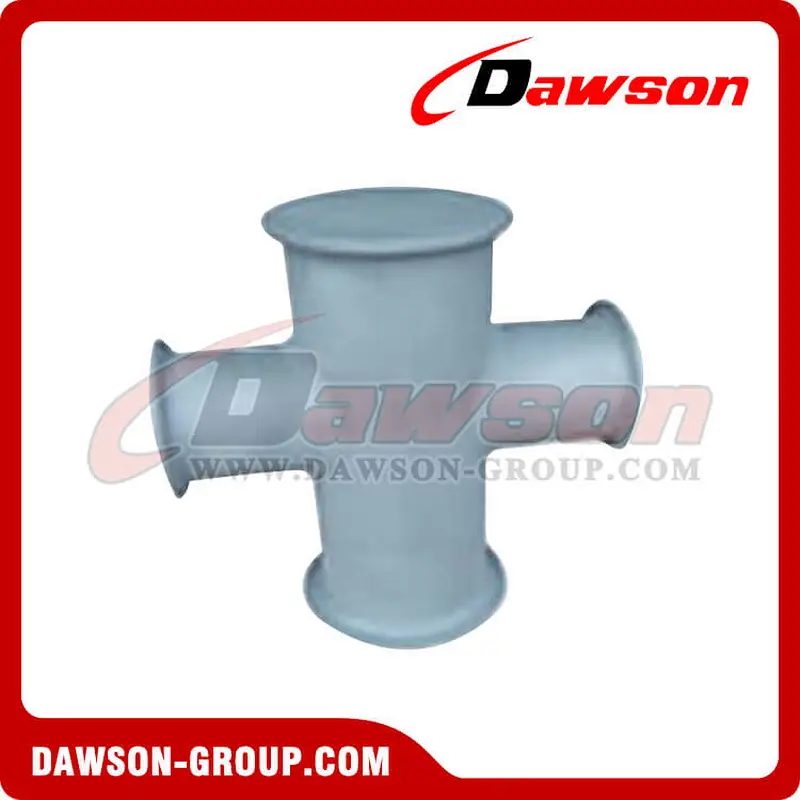

Marine cross bollards are marine bollards that have cross piles. They are divided into two types: single bitt cross bollard and double cross bitt bollard. Marine cross bollard are widely used for vessels of mooring ropes. We supply different standard types cross bollards: GB554-96 single cross and double cross bollard, GB10106-88 ship’s cross bitts type A and Type B or other types of cross bollard. For more information, please feel free to contact us.

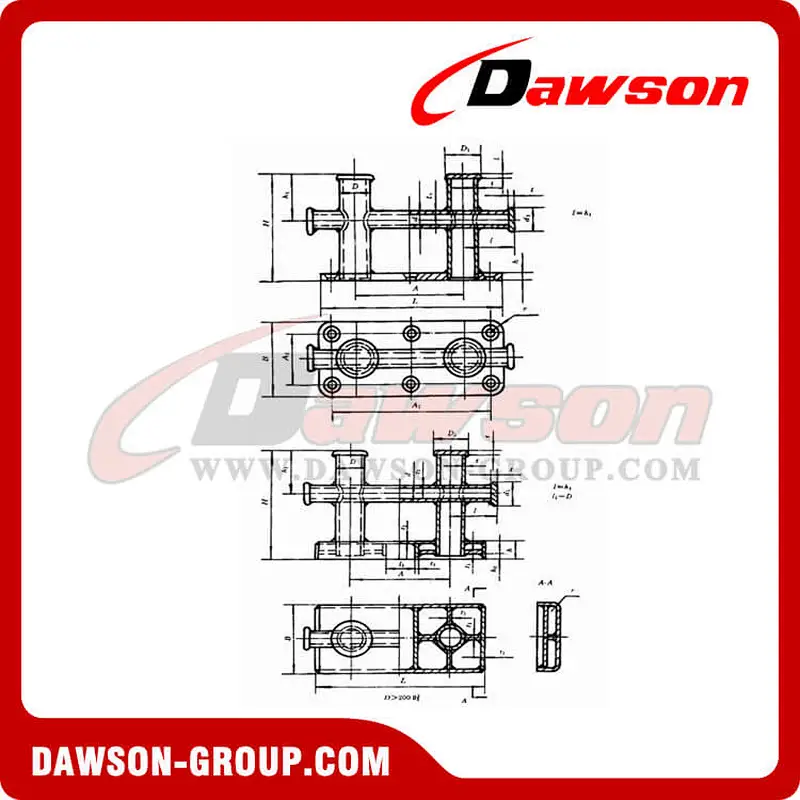

Nominal DIa.	Max. dia. Of steel rope	Max. dia. Of Hemp rope	Max. dia. Of synthetic carbon fiber rope	D	D1	L	B	H	h	h1	h2	t	t1	d	d1	r	A	A1	A2			Weight (kg)
Nominal DIa.	Max. dia. Of steel rope	Max. dia. Of Hemp rope	Max. dia. Of synthetic carbon fiber rope	D	D1	L	B	H	h	h1	h2	t	t1	d	d1	r	A	A1	A2	Screw thread dia.	Quantity (piece)	Weight (kg)
50	8.7	75	16	50	65	310	130	190	8	85	-	6	4	32	40	20	180	270	90	M12	6	7
75	11.5	90	20	75	95	450	170	290	10	130	-	7	5	48	56	25	275	400	400	M16	6	16
100	13.5	100	24	100	120	550	200	350	12	160	-	7	5	65	75	28	350	494	494	M18	6	27
125	15.5	125	28	125	145	660	240	425	14	195	-	9	7	80	95	35	425	590	590	M22	6	49
150	17.5	150	30	150	170	770	270	500	16	210	-	9	7	90	110	35	500	700	700	M22	6	71
175	19.5	175	36	180	200	850	320	550	18	240	-	10	8	110	125	38	530	774	774	M24	6	103
200	22.5	200	40	203	225	960	360	795	145	275	60	12	9	135	145	20	600	-	-	-	-	181
250	26.0	225	48	245	280	1200	450	855	155	350	60	14	12	159	180	25	750	-	-	-	-	310
300	30.5	250	56	290	330	1440	540	1160	180	420	73	16	14	194	215	30	900	-	-	-	-	576
Note: tje value of H, h,h1 and weight when D=200~300mm only apply to steel deck. If bollard needs installing on the wood deck, the value of H, h,h2 each increased 50mm, and the weight increases correspondingly.

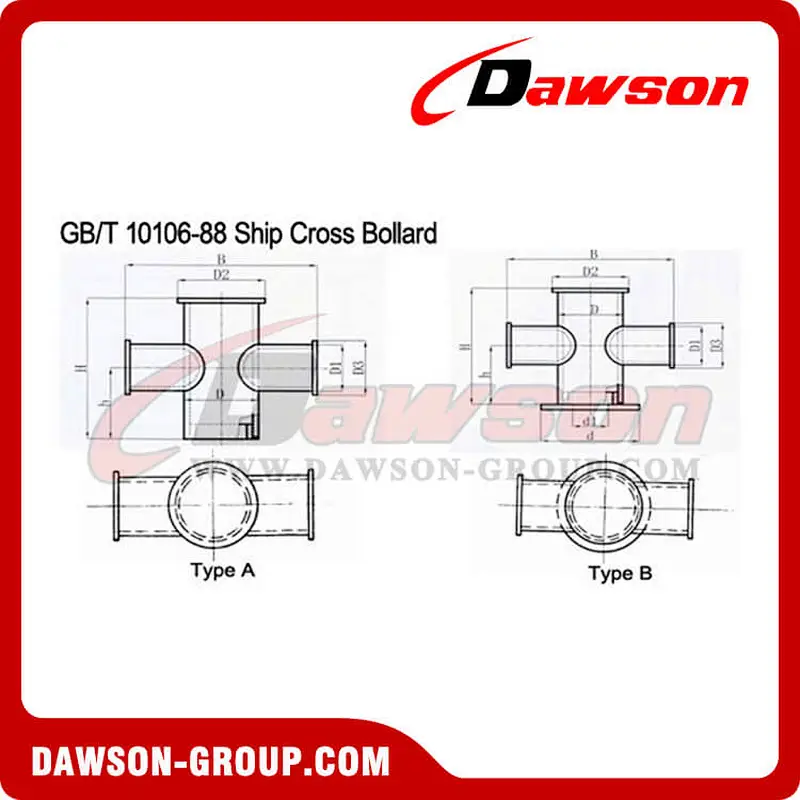

Nominal Dia.	Max. Breaking load of application wire KN(tf)	Max. Dia. Of application rope			H	B	h	D	D1	D2	D3	d	Weight (kg)
		steel rope	Synthetic carbon fiber rope	Hemp rope
150	117(12)	13.0	30	44	480	460	280	168	114	206	158	240	A	31
													B	33
200	225(26)	19.5	45	64	560	520	320	219	168	260	210	280	A	62
													B	66
250	382(39)	26.0	56	80	640	610	360	273	219	310	260	340	A	98
													B	105
300	549(56)	30.0	70	104	680	660	380	326	273	360	310	400	A	143
													B	153
350	686(70)	34.5	77	120	720	720	420	351	273	400	314	440	A	192
													B	204
