Marine deck mounted chock

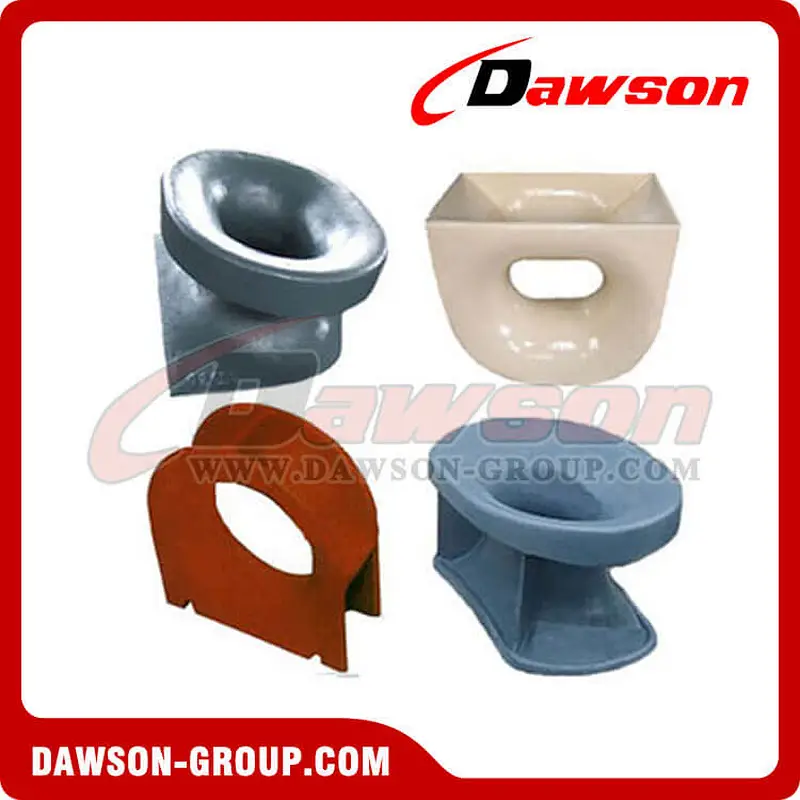

Mooring chocks are used to guide the ropes. It has multiple forms such as closed chock, open chock, no~roller chock, roller chock etc. According to the different welded positions, mooring chocks can be divided into two categories: deck mounted chock and bulwark mounted chock. Mooring chocks welded to deck include JIS F~2005, JIS F~2017 type AC, DIN81915 type C, EU type, CB 34~76 mooring chocks etc. While bulwark mounted chocks include JIS F~2007 type A, JIS F~2007 type B, JIS F~2017 type BC, JIS F~2030 type A, DIN81915 type A etc. We can provide not only the nominal size chocks but also produce the specific types of chocks as you required. If you’re interested in our mooring chocks, please feel free to contact us.

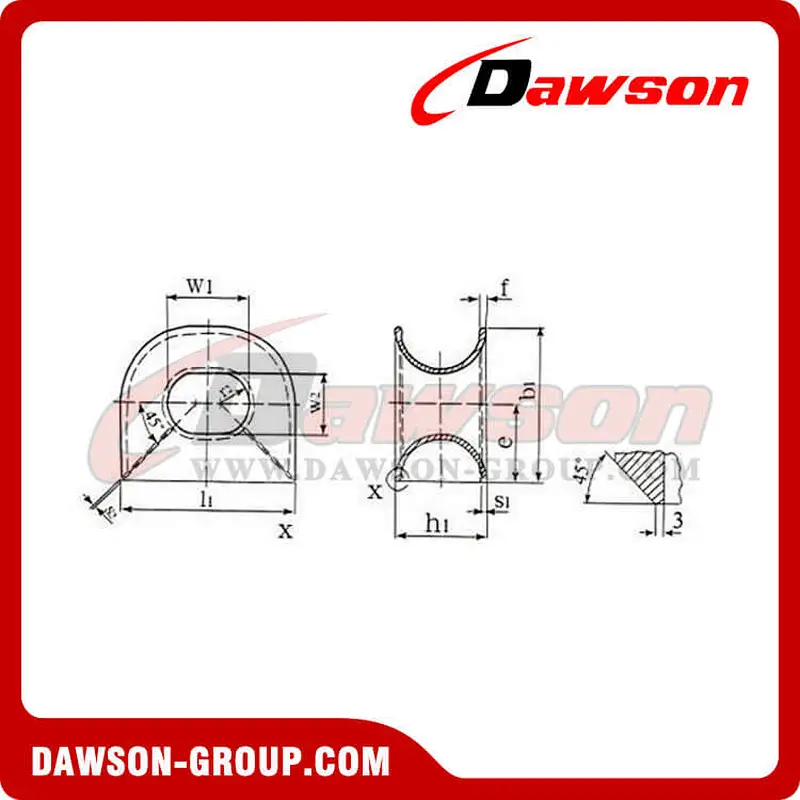

| Type | Max. Proof load(kn) | b1 | e | f | h1 | l1 | w1 | w2 | Weight(kg) |
| 1 | 10 | 250 | 125 | 15 | 160 | 285 | 125 | 90 | 18 |
| 2 | 20 | 315 | 157.5 | 18 | 200 | 360 | 160 | 115 | 26 |
| 3 | 30 | 390 | 195 | 21 | 250 | 450 | 200 | 140 | 42 |
| 5 | 50 | 480 | 240 | 24 | 300 | 550 | 250 | 180 | 74 |
| 8 | 80 | 585 | 292.5 | 27 | 360 | 680 | 320 | 225 | 120 |
| 12 | 120 | 710 | 355 | 30 | 440 | 840 | 400 | 270 | 185 |
| 20 | 200 | 840 | 420 | 33 | 520 | 1020 | 500 | 320 | 285 |
| 32 | 320 | 1100 | 550 | ~ | 700 | 1300 | 600 | 400 | 795 |

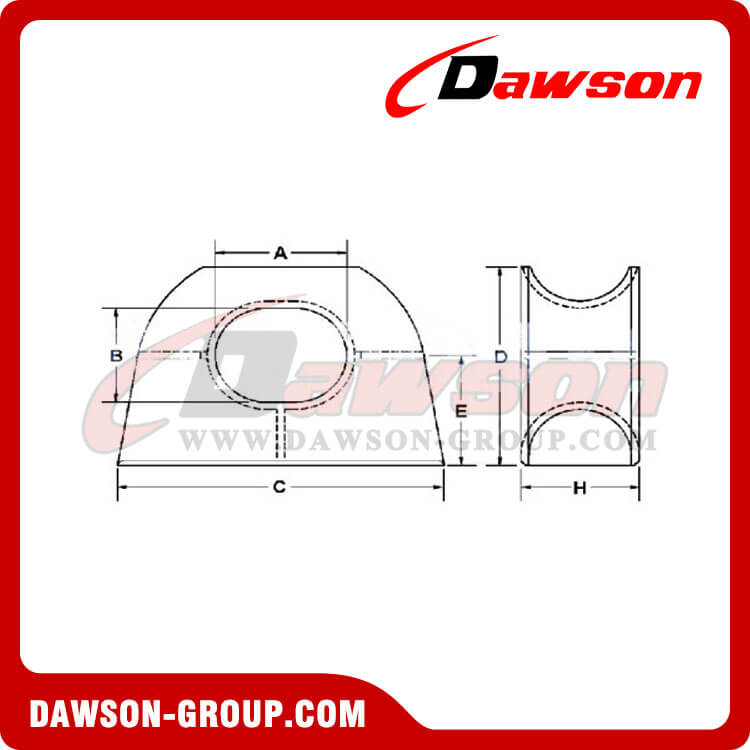

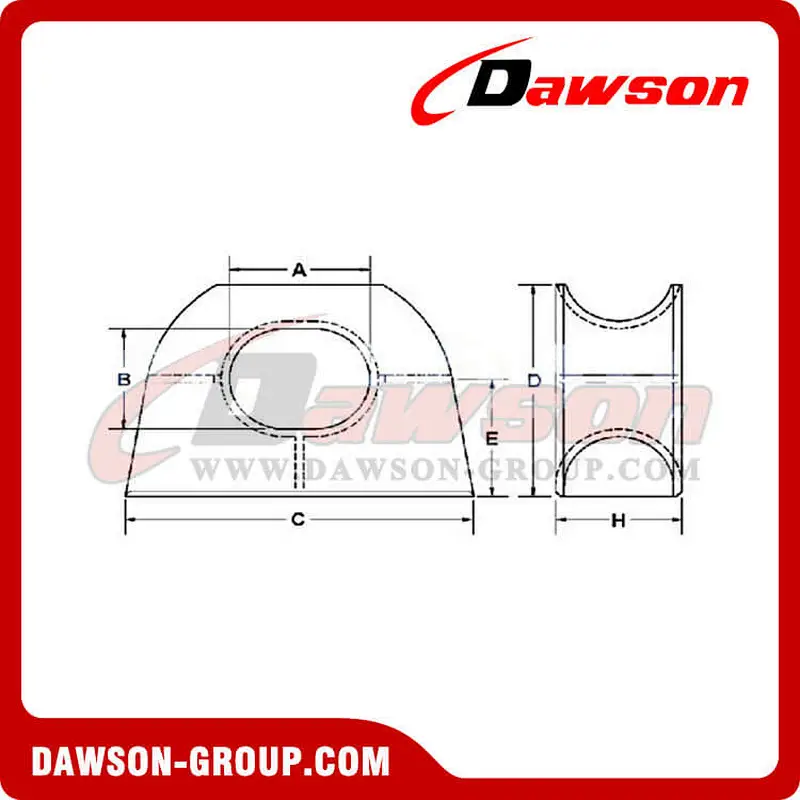

| Nominal size(mm) | Dimensions(mm) | Mass(kg) | |||||
| A | B | C | D | E | H | ||
| 315x250 | 315 | 250 | 815 | 620 | 365 | 380 | 230 |
| 425x20 | 425 | 280 | 1075 | 785 | 450 | 500 | 378 |
| 500x400 | 500 | 400 | 1340 | 900 | 506 | 560 | 608 |
| 500x400(L) | 500 | 400 | 1238 | 840 | 467 | 450 | 500 |
| 600x315 | 600 | 315 | 1360 | 865 | 507 | 560 | 598 |
| 600x450 | 600 | 450 | 1360 | 1000 | 575 | 560 | 800 |
| *600x450(L) | 600 | 450 | 1560 | 1200 | 675 | 760 | 1200 |
| *800x450 | 800 | 600 | 1700 | 1160 | 640 | 580 | 1430 |
