Mooring Chock CB 34-76 Type A
Mooring chock, welded on deck or bulwark, is used to guide and control the mooring ropes to a certain direction. Its surface is polished smoothly in order to reduce the friction of the rope. CB*34-76 marine mooring chocks have four types: CB34-76 type A, type B, type C, type D. If you’re interested in our mooring chocks, please feel free to contact us.
Specification :
Model Type: CB*34-76 Type A
Material: Cast Steel
Weight: 16.4kg~171kg
Standard: CB*34-76
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

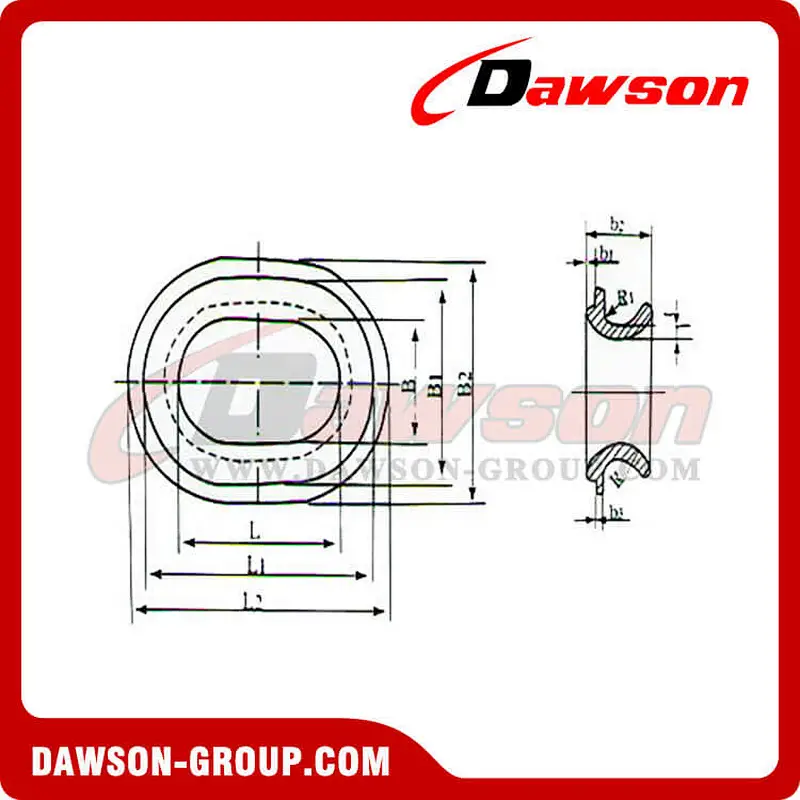

Unit:mm
| Max. Steel Rope Dia | Hemp Rope C | Nylon Rope Dia | L | L1 | L2 | B | B1 | B2 | t | b1 | b2 | b3 | R | R1 | Bulwarks Opening Size L3×B3 | Weight (kg)≈ |
| 18.5 | 160 | 35 | 200 | 300 | 340 | 130 | 230 | 270 | 18 | 18 | 110 | 9 | 58 | 20 | 310×240 | 16.4 |
| 22.5 | 200 | 45 | 260 | 400 | 450 | 170 | 310 | 360 | 22 | 25 | 160 | 10 | 84 | 30 | 415×325 | 40.4 |
| 28.0 | 230 | 55 | 320 | 465 | 515 | 200 | 345 | 395 | 25 | 28 | 175 | 12 | 95 | 30 | 480×360 | 57.0 |
| 33.5 | 270 | 70 | 400 | 572 | 632 | 260 | 430 | 490 | 30 | 32 | 200 | 15 | 108 | 35 | 592×450 | 95.6 |
| 43.5 | 325 | 90 | 480 | 685 | 755 | 310 | 525 | 595 | 35 | 35 | 240 | 18 | 126 | 45 | 705×545 | 171.0 |

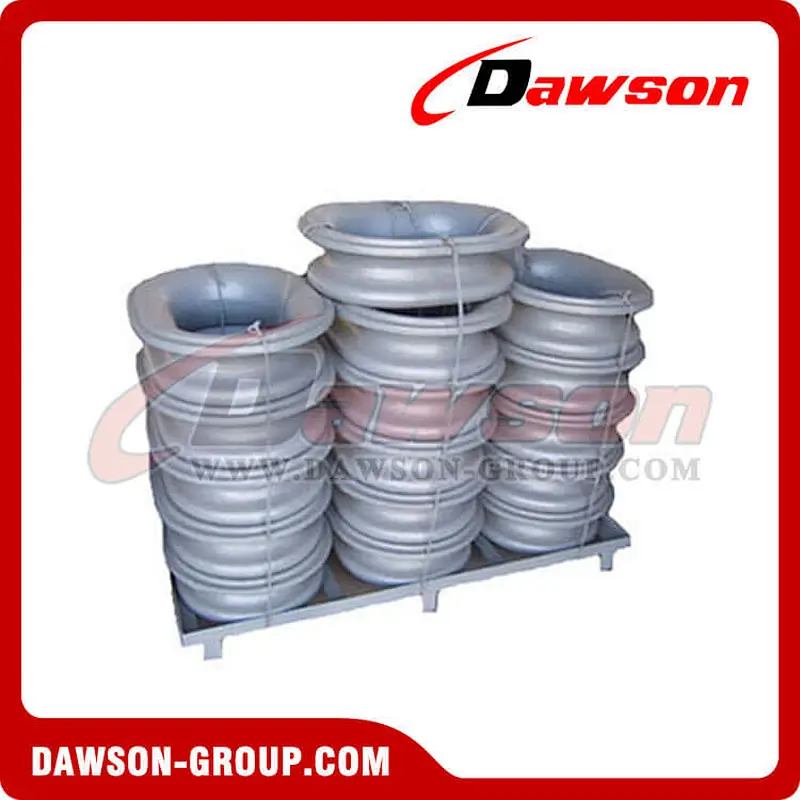

Factory & Package Show:
