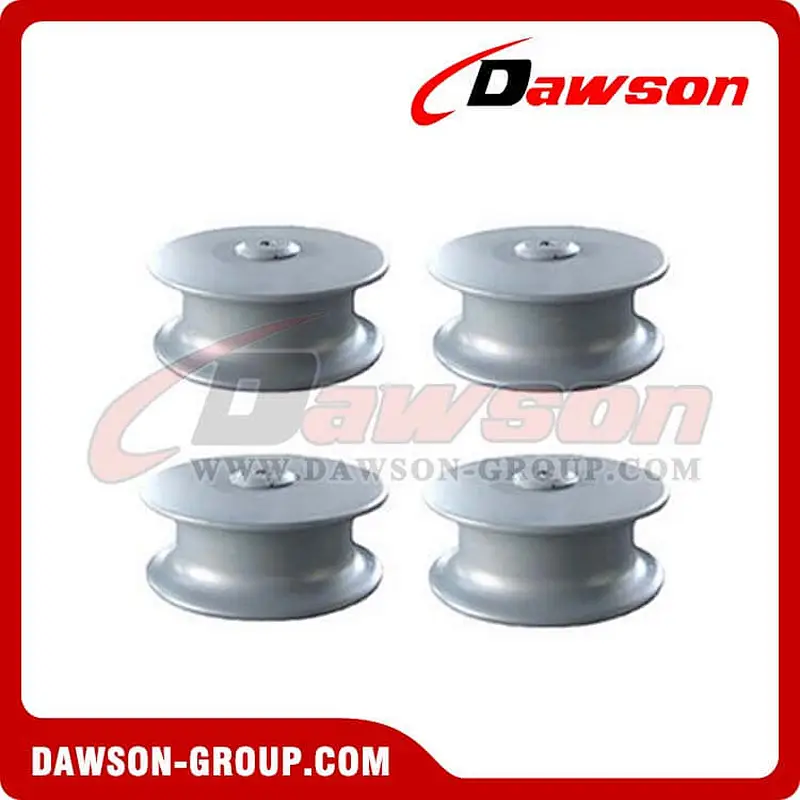

NS2585 Fairlead Roller
NS 2585 fairlead roller is one kind marine roller for fairlead. It is used to lead the direction of mooring ropes for marine ships. NS2585 fairlead roller has high breaking load of tightwire. Compact structure, smooth surface, standard production and stable performance is the features of marine fairlead roller. We can provide both standard fairlead roller and the customized one for customer’s special requirement. If you’re interested in our marine roller, please feel free to contact us.
Specification:
Model Type:NS2585 Fairlead Roller
Material: Cast Iron
Standard: NS2585
Roller Diameter:150mm~450mm
Applicable Rope Diameter:32mm~85mm
Certificate:CCS,ABS,BV,LR,NK,RINA

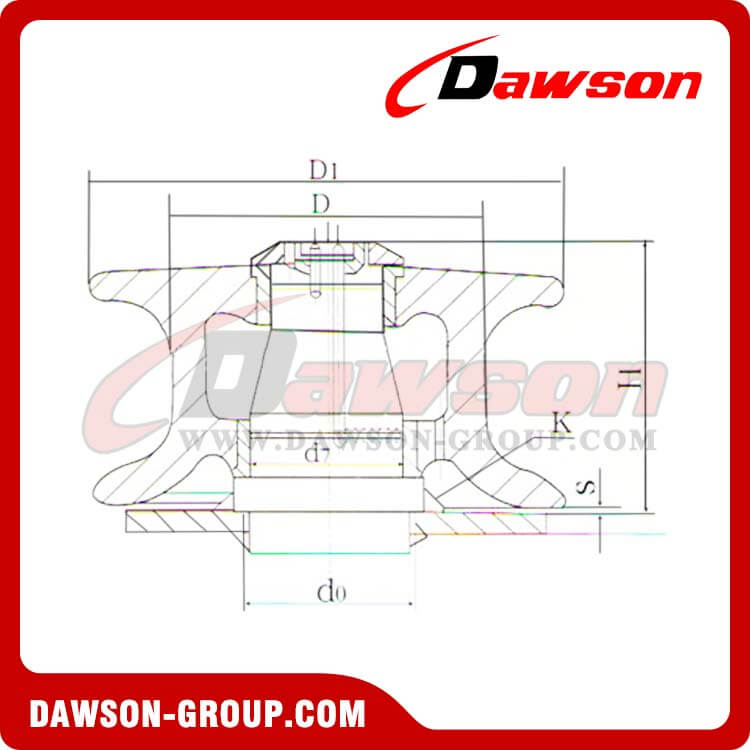

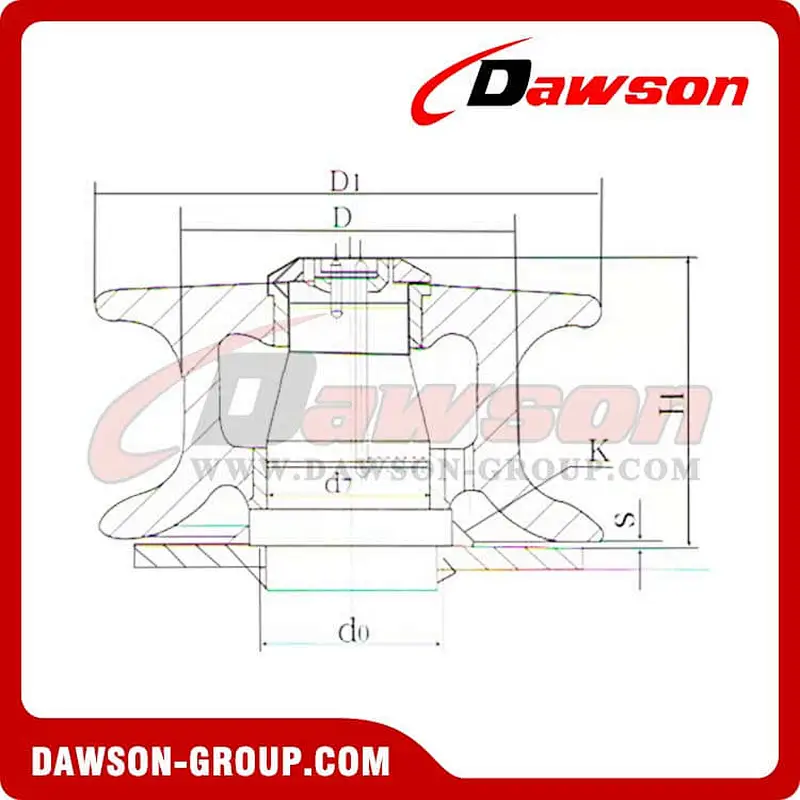

| Diameter of Roller(D) | Max. Diameter of Applicable Rope | Size | Weight(kg) | |||||||||
| Synthetic Fiber Rope | Hemp Rope | Steel(GB1102) Rope Stress Length 1550N/mm2 | D1 | d0 | d7 | H | s | t | k | |||
| 6×24 | 6×37 | |||||||||||
| 150 | 32 | 45 | 17.0 | 15.0 | 240 | 90 | 79 | 154 | 5 | 12 | 9 | 24.8 |
| 200 | 40 | 55 | 22.5 | 19.5 | 310 | 115 | 99 | 186 | 5 | 14 | 10 | 49.3 |
| 250 | 45 | 65 | 24.0 | 24.0 | 380 | 135 | 119 | 230 | 6 | 14 | 10 | 92.0 |
| 300 | 50 | 70 | 30.0 | 28.0 | 440 | 155 | 129 | 255 | 7 | 16 | 12 | 127.0 |
| 350 | 55 | 75 | 37.5 | 34.5 | 500 | 175 | 149 | 271 | 7 | 18 | 13 | 168.0 |
| 400 | 65 | 85 | 41.0 | 39.0 | 560 | 185 | 159 | 307 | 7 | 20 | 14 | 252.5 |
| 450 | 80 | - | 44.5 | 43 | 630 | 210 | 178 | 316 | 7 | 20 | 14 | 310.0 |
