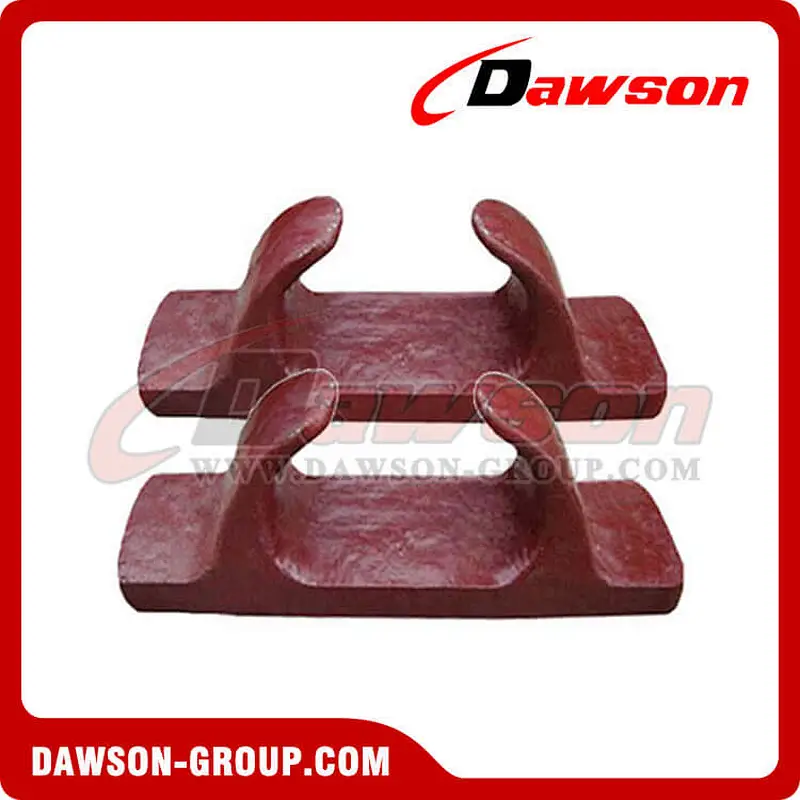

Open chock JIS F-2006
Open chocks have two types: JIS F-2006 type SC and JIS F-2006 type FC. Type SC is casted steel.Type FC is casted iron. Both types are deck mounted. We provide various mooring chocks.If you ’ re inter e sted in our chocks, please feel free to contact us.
Specification :
Model Type: JIS F-2006 Type SC
Material: Cast Steel
Nominal Size: 150mm~400mm
Weight: 11kg~98kg
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

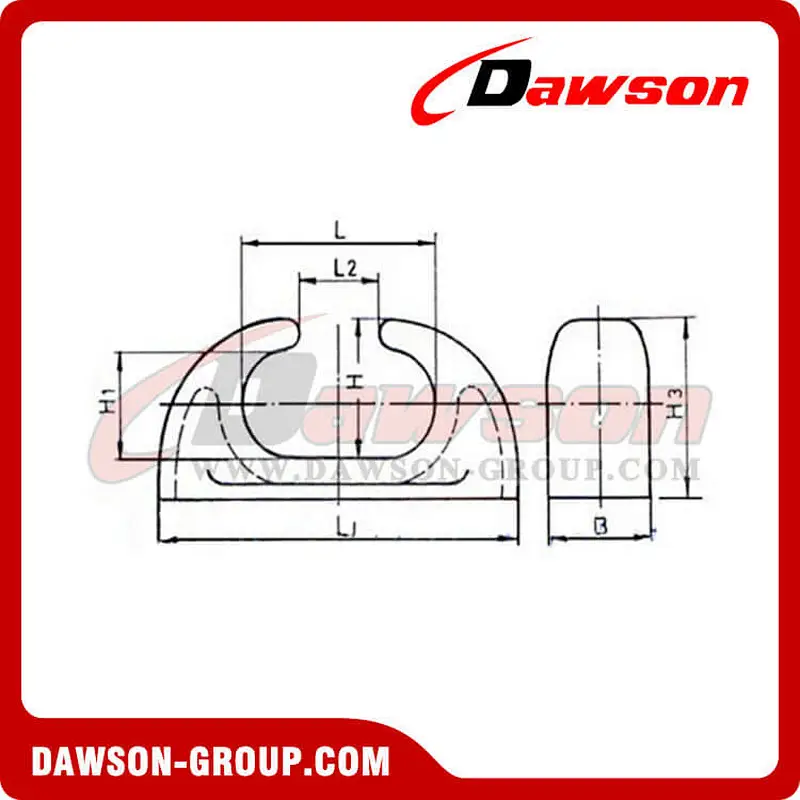

| Nominal size(mm) | Dimension(mm) | Mass(kgs) | Dia. Of Rope | ||||||||
| L | L1 | L2 | B | H | H1 | H3 | Wire 6*24 | Hemp | P.P | ||
| 150 | 150 | 280 | 60 | 80 | 90 | 70 | 118 | 11 | 12 | 32 | 20 |
| 200 | 200 | 380 | 84 | 110 | 116 | 92 | 151 | 18 | 14 | 38 | 24 |
| 250 | 250 | 460 | 114 | 130 | 136 | 108 | 178 | 30 | 16 | 42 | 28 |
| 300 | 300 | 540 | 140 | 150 | 160 | 124 | 209 | 44 | 18 | 50 | 32 |
| 350 | 350 | 620 | 170 | 170 | 180 | 140 | 235 | 64 | 20 | 55 | 36 |
| 400 | 400 | 700 | 200 | 200 | 200 | 160 | 263 | 98 | 22 | 60 | 42 |
Factory & Package Show:
