Panama Chock
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

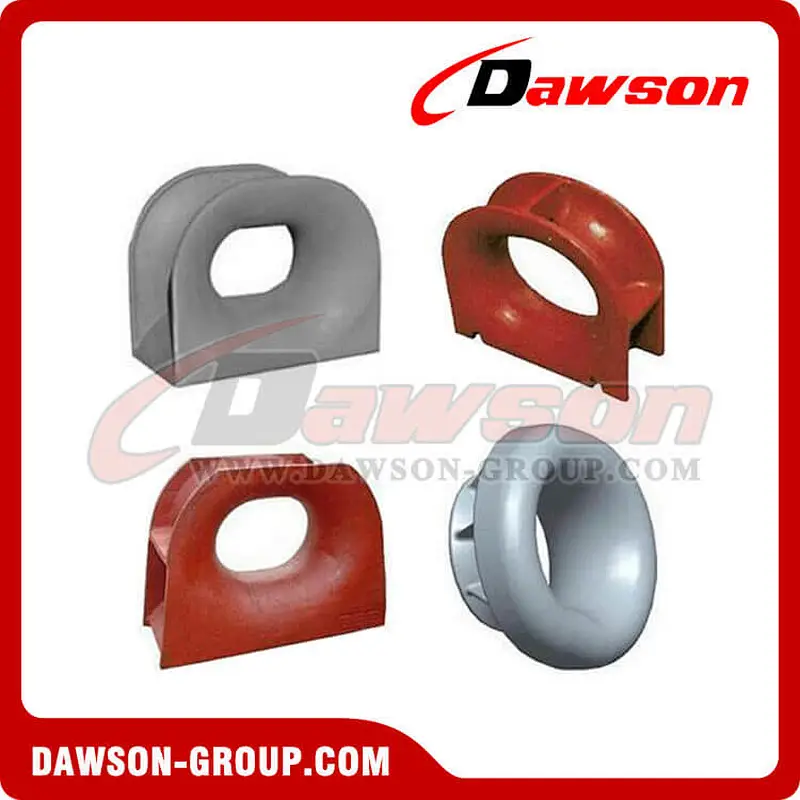

Panama chocks is one important form of mooring chocks for marine ship mooring. There are mainly five types of Panama chocks: Panama chock type AC, type AP, type BC, type BP, type U.S. Panama chock. Panama chock is made according to the Japanese standard JIS F 2007~1982. Panama chock can be mounted on both deck and bulwark. It is of high performance and quality. Its material is available in steel, steel stainless, aluminum. Different types has different features. We can also produce the customized chocks for you according to your detailed requirements. If you’re interested in our chocks, please feel free to contact us.

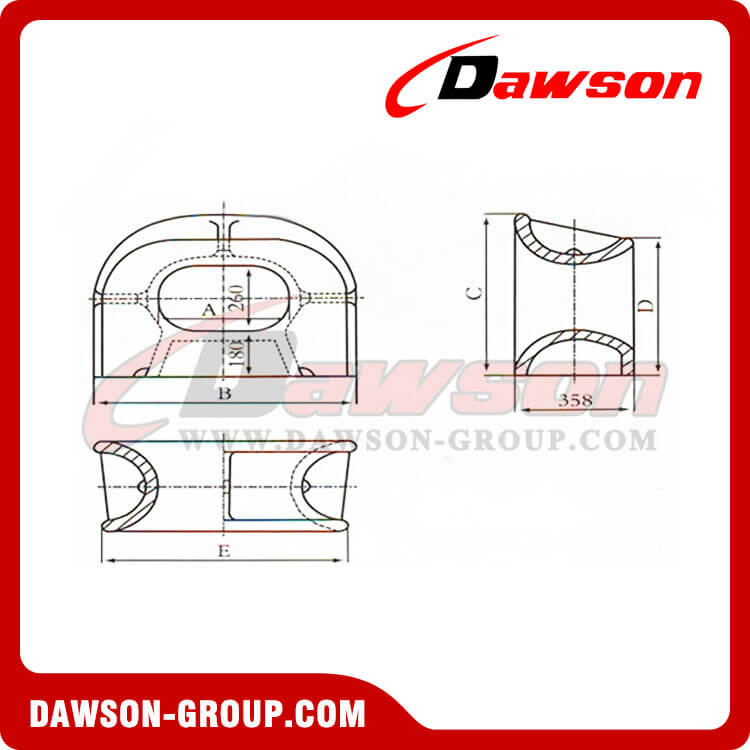

Type AC:
| Weight(kg) | Model No. | Size(mm) | ||||
| A | B | C | D | E | ||
| 235 | 310 | 310 | 708 | 639 | 541 | 652 |
| 289 | 360 | 360 | 760 | 640 | 542 | 704 |
| 323 | 400 | 400 | 804 | 642 | 545 | 750 |
| 351 | 450 | 450 | 856 | 643 | 547 | 802 |
| 395 | 500 | 500 | 908 | 644 | 549 | 854 |

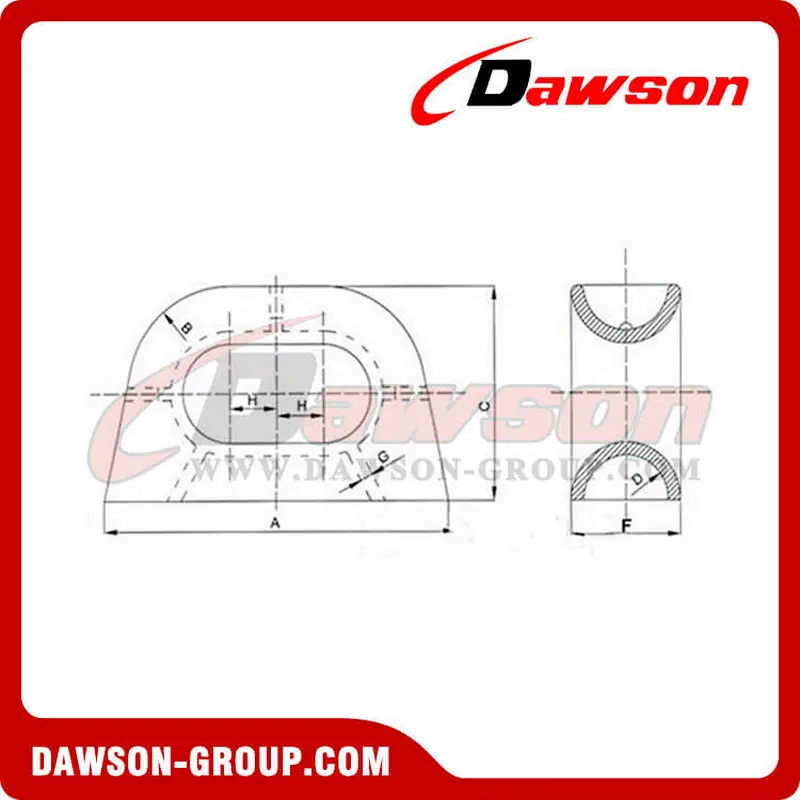

Type U.S. Panama Chock:
| Nominal Dia | Model | Size(mm) | Weight(kg) | ||||||
| A | B | C | D | F | G | H | |||
| 6”x12” | S~1097 | 558 | 165 | 330 | 61 | 178 | 20 | 76 | 71 |
| 7”x14” | S~1098 | 610 | 187 | 374 | 68 | 196 | 22 | 89 | 93 |
| 8”x16” | S~1105 | 626 | 257 | 414 | 80 | 242 | 25 | 101 | 52 |
| 9”x18” | S~1106 | 762 | 235 | 470 | 83 | 260 | 28 | 114 | 180 |
| 10”x20” | S~1101 | 812 | 257 | 514 | 90 | 260 | 30 | 127 | 225 |
Type BC:
| Weight(kg) | Model No. | Size(mm) | ||||
| A | B | C | D | E | ||
| 276 | 310 | 310 | 374 | 684 | 462 | 652 |
| 305 | 360 | 360 | 788 | 688 | 464 | 704 |
| 344 | 400 | 400 | 832 | 692 | 470 | 750 |
| 385 | 450 | 450 | 886 | 686 | 474 | 802 |
| 422 | 500 | 500 | 940 | 700 | 478 | 854 |
