Panama Chocks JIS F-2017 Type AP
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Panama chocks
Panama chocks are very important mooring equipment. It bears tremendous loads when mooring the vessels. We provide deck mounted Panama chocks (JIS F 2017-1982 type AC,AP),bulwark mounted Panama chocks (JIS F 2017-1982 type BC,BP) and Type U.S. Panama chocks. If you’re interested in our chocks, please feel free to contact us.
Specification :

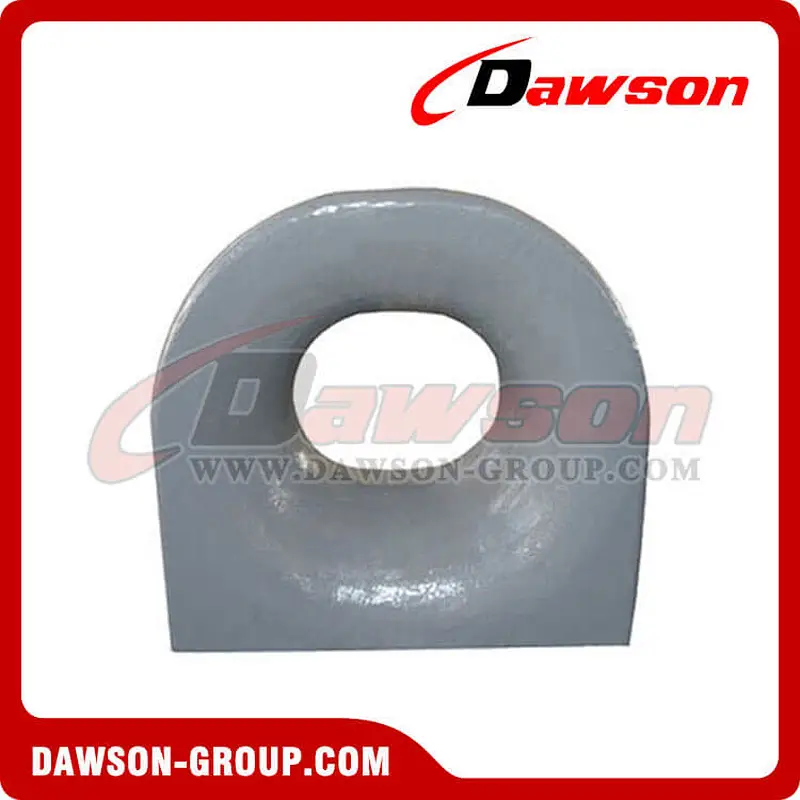

Model Type: Panama chock JIS F-2017 TYPE AP
Material: Cast Steel
Nominal Size: 310mm,360mm
Weight: 190kg~207kg
Welded position:Deck
Standard: JIS F 2017-1982
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

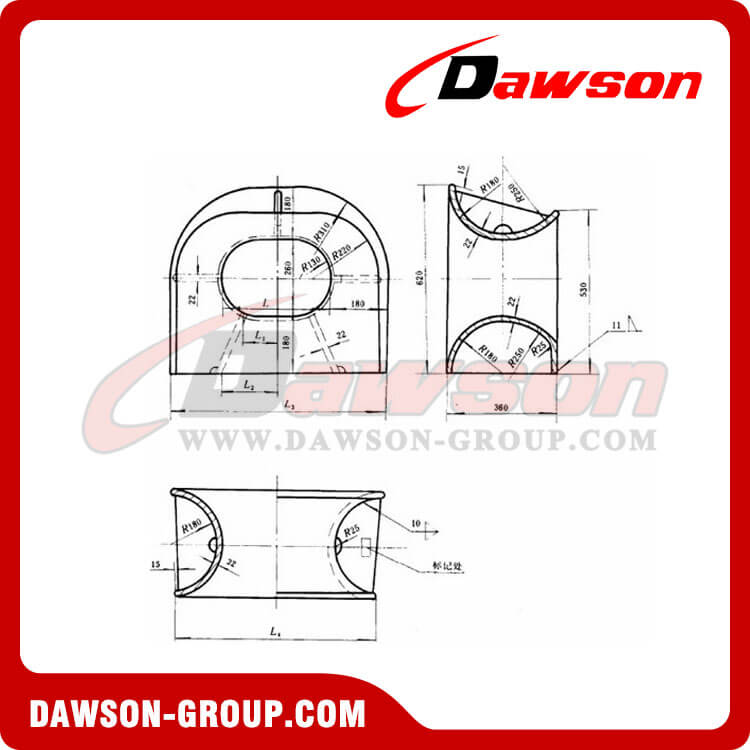

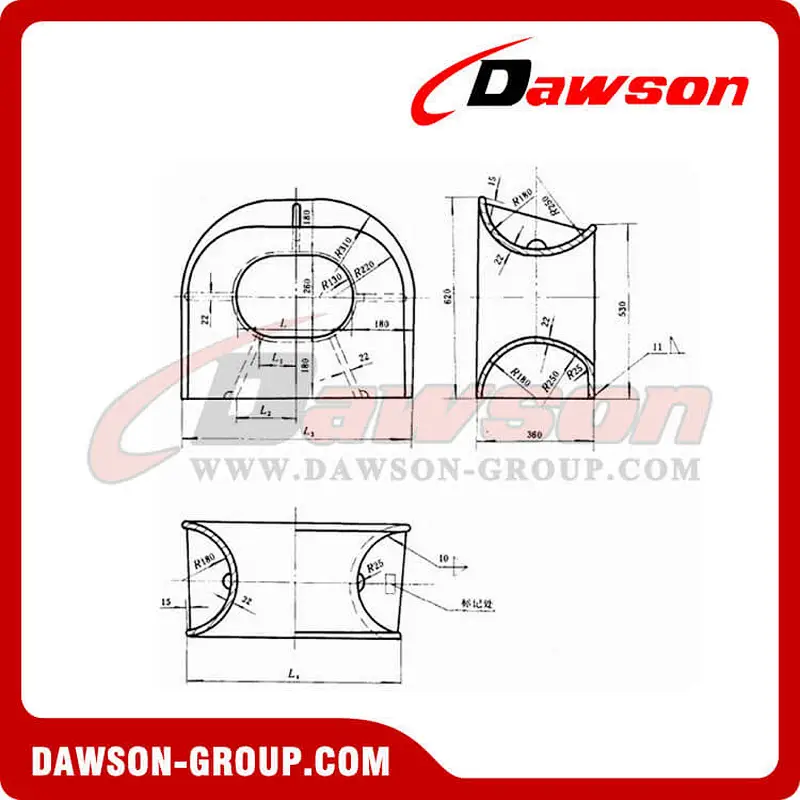

| Size(mm)L | L1 | L2 | L3 | L4 | Weight(kg) |
| 310 | 85 | 155 | 670 | 620 | 190 |
| 360 | 110 | 180 | 720 | 670 | 207 |
Factory & Package Show:
