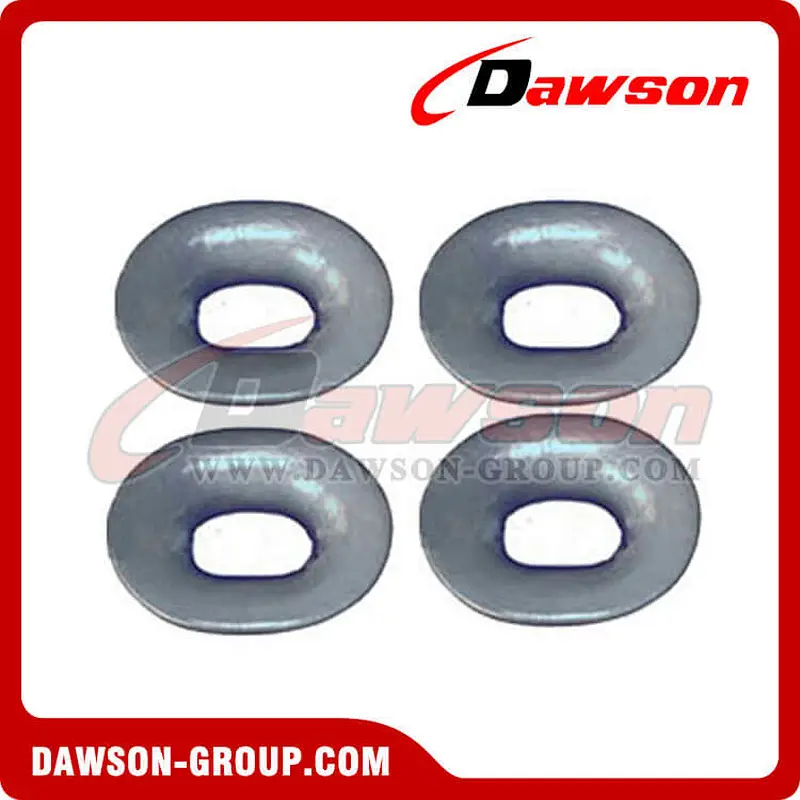

Panama chocks
Panama chocks are very important mooring equipment. It bears tremendous loads when mooring the vessels. We provide deck mounted Panama chocks (JIS F 2017-1982 type AC,AP),bulwark mounted Panama chocks (JIS F 2017-1982 type BC,BP) and Type U.S. Panama chocks. If you ’ re interested in our chocks, please feel free to contact us.
Specification :
Model Type: Panama chock JIS F-2017 TYPE BP
Material: Cast Steel
Nominal Size: 310mm,360mm
Weight: 184 kg~ 193 kg
Welded position:Bulwark
Standard: JIS F 20 17 -19 82
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

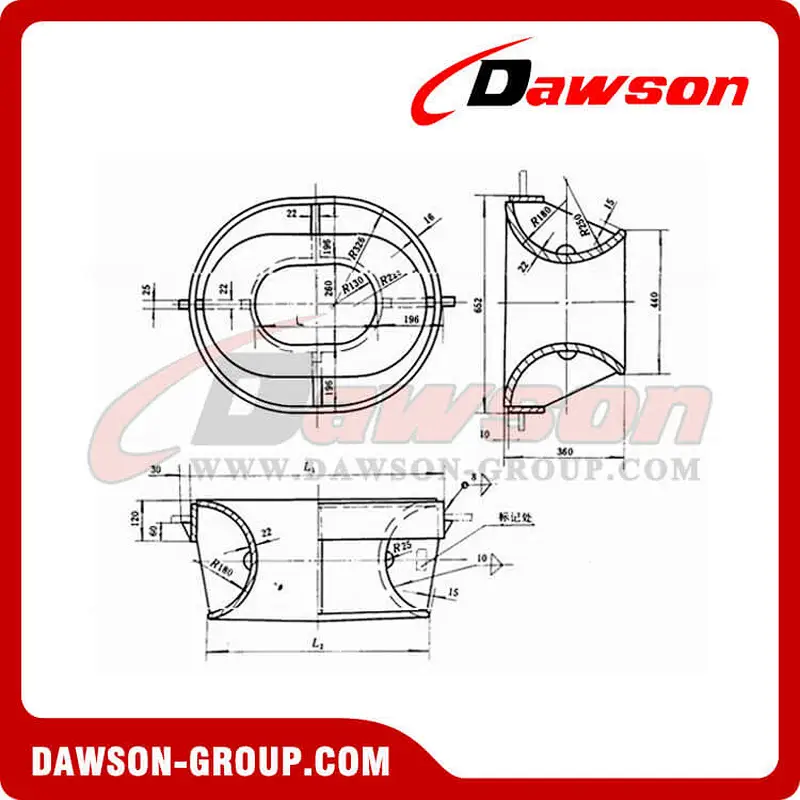

| Size(mm) | L1 | L2 | Weight(kg) |
| 310 | 702 | 620 | 184 |
| 360 | 752 | 670 | 193 |
