Pawl type anchor chain stopper

Model NO.: DS-PL

Quantity:

Product Description

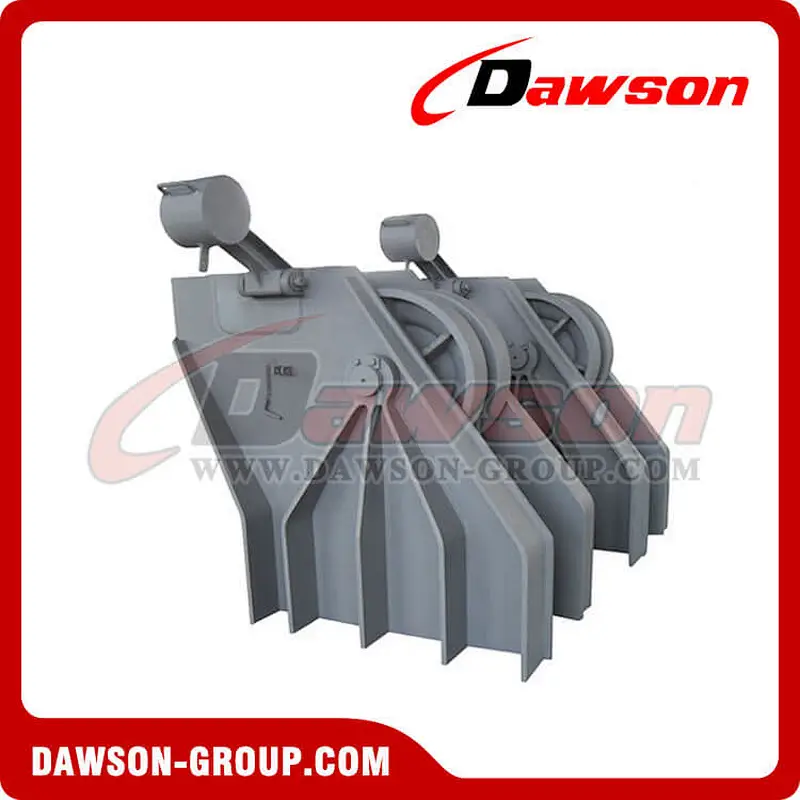

Pawl type anchor chain stopper
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

Chain stopper can fix the anchor chain and prevent it slip out. It also has the function to transfer the pull strength of anchor and chain to the vessel and then reduce the working load of windlass. Chain stoppers should withstand 80% of chain cable’s minimum breaking load.
We supply different standard pawl type chain stoppers: JIS F 2016~1987 cast steel pawl type chain stopper for Grade 2 and Grade 3 anchor chains; JIS F2031 pawl type chain stopper, JIS F2032 roller pawl type chain stopper or other pawl type chain stoppers.

We also supply the following types of chain stoppers:
1. JIS F2002~1976 cast iron bar type chain stopper;
2. JIS F2015~1987 cast steel bar type chain stopper;
3. JIS F2023~1976 cast steel bar type chain stopper;
4. JIS F2033 roller bar type chain stopper for Grade 3 chain cable
5. CB*286~84 cast lever chain stopper;
6. GB/T 3844~2000 marine roller lever chain stopper;
7. GB/T178~96 screw type chain stopper;
8. OCIMF Type single point mooring chain stopper;
9. Non~standard chain stopper that we customize it according to customer’s drawing

Reason for choosing us:
1. Seven~Year Golden Seller of Mooring Equipment;
2. High Quality;
3. Competitive Price;
4. Excellent One~stop Service;
5. Short Delivery;
6. Customized Service is Available;
7. Supply CCS,ABS,DNV,LR,NK Certificate etc.
If you’re interested in our products, please feel to contact us. We’re looking forward to having cooperation with you.

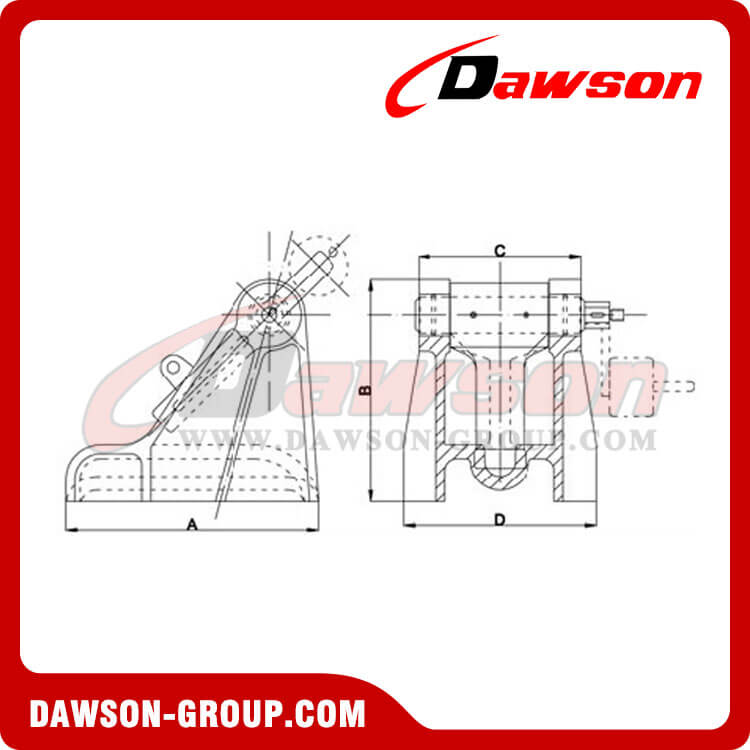

Nominal No.	Nominal diameter of anchor chain	Size(mm)				Weight (kg)
Nominal No.	Nominal diameter of anchor chain	A	B	C	D	Weight (kg)
60	58~60	780	670	506	600	306
64	62~64	935	710	538	630	385
68	66~68	885	750	568	660	464
73	70~73	900	801	604	700	549
48	76~78	1015	852	641	750	674
84	81~84	1095	911	686	800	806
90	87~90	1170	969	732	850	1002
95	92~95	1235	1021	768	900	1165
102	97~102	1350	1090	816	950	1443
107	105~107	1400	1148	857	1000	1636
114	111~114	1480	1207	902	1050	1933
120	117~120	1585	1280	956	1120	2239

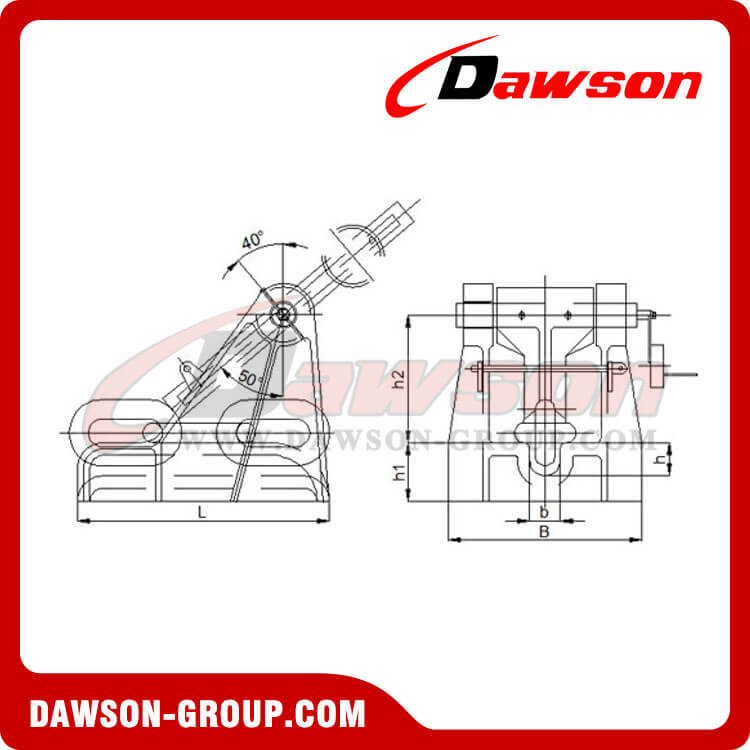

Normal chain diameter	Dimensions(mm)						Weight (kg)
Normal chain diameter	B	b	L	h	h1	h2	Weight (kg)
58~60	600	95	780	102	182	394	495
62~64	630	101	835	109	191	421	582
66~68	660	107	885	116	200	446	701
70~73	700	115	950	125	212	478	846
76~78	750	123	1015	133	222	511	1014
81~84	800	134	1095	143	235	550	1268
87~90	850	143	1170	153	248	588	1798
92~95	900	151	1235	162	260	530	1769
97~102	950	161	1350	175	276	665	2277
105~107	1000	170	1400	185	289	703	2664
111~114	1050	180	1480	195	302	742	6054
117~122	1120	191	1585	207	318	790	3660

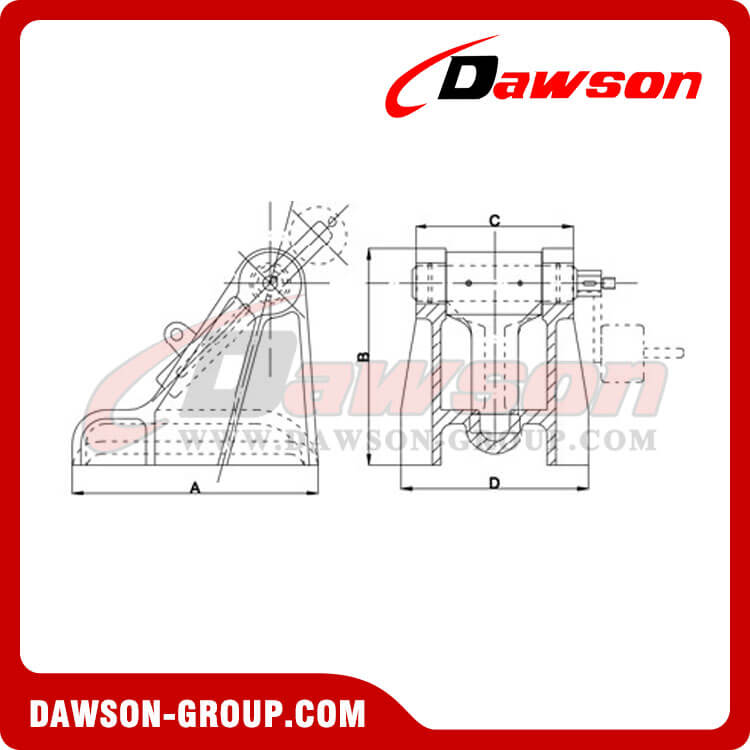

Nominal No.	Nominal diameter of anchor chain	Size(mm)				Weight (kg)
Nominal No.	Nominal diameter of anchor chain	A	B	C	D	Weight (kg)
42	36~42	530	494	357	422	210
46	42~46	620	538	404	480	396
51	48~51	680	599	438	520	429
56	52~56	730	638	472	560	465
60	58~60	780	670	506	600	480
64	62~64	835	710	538	630	500
68	66~68	885	750	568	660	567
73	70~73	950	801	604	700	682
78	76~78	1015	852	641	750	818
84	81~84	1095	911	686	800	1030
90	87~90	1170	969	732	850	1200
95	92~95	1235	1021	768	900	1420
102	97,100,102	1350	1090	816	950	1830
107	105~107	1400	1148	857	1000	2130
114	111~114	1480	1207	902	1050	2410
122	117~122	1585	1280	956	1120	2900

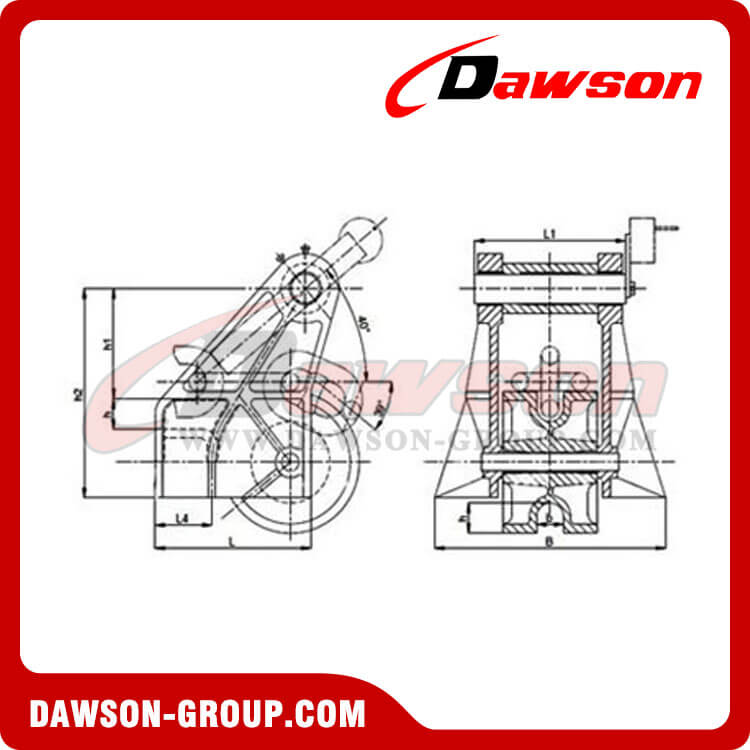

Dimensions(mm)
Nominal chain dia.	h	h1	h2	L	L1	L4	B	b	D	Weight(kg)
70~73	125	422	860	660	640	241	980	115	584	1096
76~78	133	450	918	700	680	254	1046	123	624	1316
81~84	143	483	983	760	720	279	1110	134	672	1608
87~90	153	515	1055	810	770	295	1190	143	720	1938
92~95	162	545	1115	860	810	317	1250	151	760	2286
97~102	175	584	1195	920	860	337	1320	161	816	2787
105~107	185	617	1265	981	900	364	1390	170	864	3275
111~114	195	651	1335	1026	940	376	1460	180	912	3874
117~122	208	695	1427	1100	995	408	1550	191	976	4600
127~132	225	750	1542	1190	1060	441	1660	207	1056	5750
