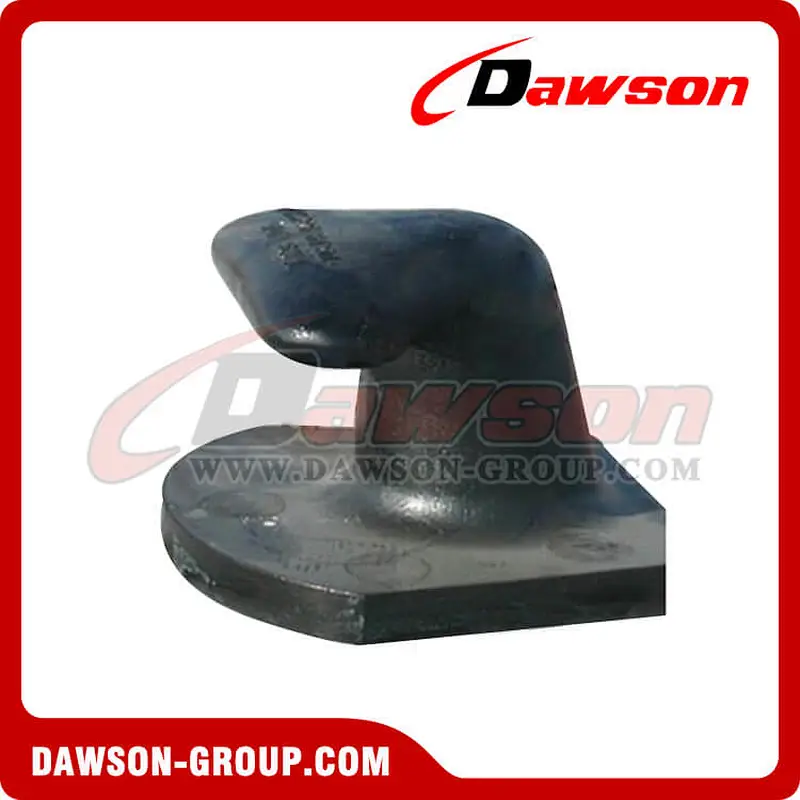

R CVI Type Bollard
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
1. 8 Specifications: 10’ ,20’ ,30’ ,50’ ,75’ ,100’ ,150’ ,200’;
2. Safe Working Load: 10T to 200T;
3. Material: cast steel;
4. Epoxy primer surface treatment;
5. 10 to 15 working years;
6. Quality controlled, approved by ISO9001,CCS,ABS etc.;
7. Prompt delivery, competitive price and excellent after-sale service;
8. Customized.
R CVI Type Bollard

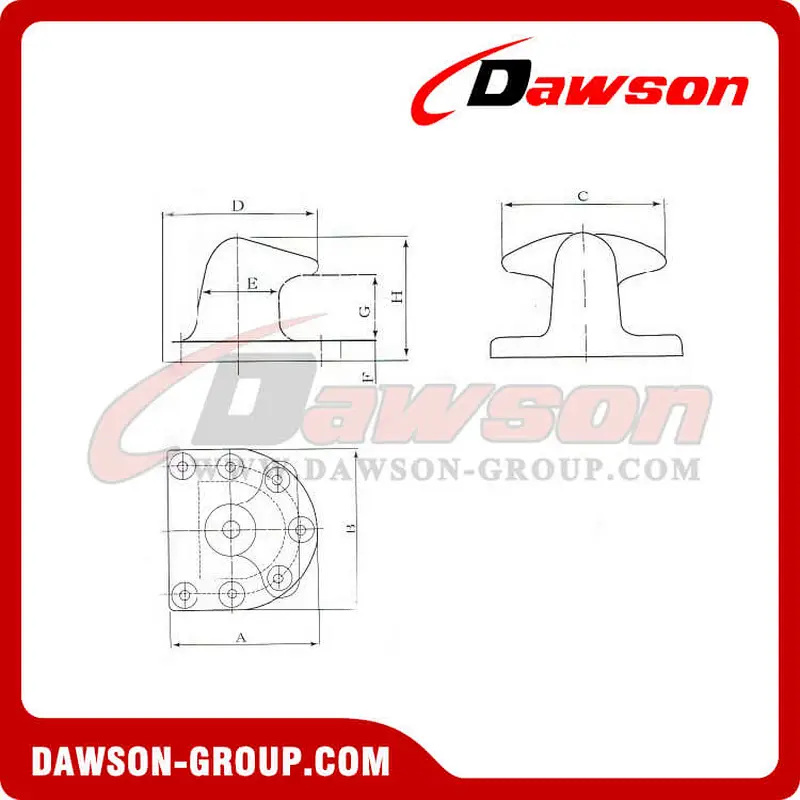

| Type | S.WL(T) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
| CVI-10 | 10 | 540 | 600 | 460 | 475 | 250 | 40 | 190 | 360 |
| CVI-20 | 20 | 540 | 600 | 460 | 475 | 250 | 50 | 190 | 370 |
| CVI-30 | 30 | 540 | 600 | 460 | 475 | 250 | 60 | 190 | 380 |
| CVI-50 | 50 | 650 | 700 | 600 | 570 | 300 | 80 | 230 | 450 |
| CVI-75 | 75 | 670 | 800 | 650 | 620 | 340 | 90 | 260 | 510 |
| CVI-100 | 100 | 810 | 1000 | 750 | 710 | 381 | 100 | 300 | 560 |
| CVI-150 | 150 | 810 | 1000 | 750 | 710 | 381 | 100 | 306 | 600 |
| CVI-200 | 200 | 800 | 1080 | 800 | 700 | 430 | 110 | 396 | 600 |
