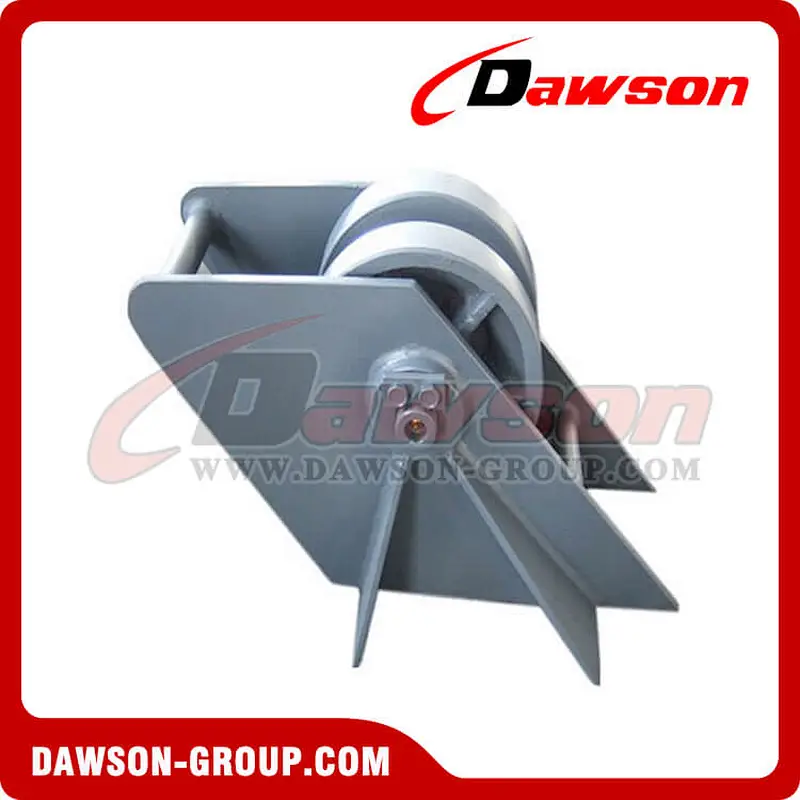

Roller Chain Stopper
Roller chain stopper is disposed between the windlass and hawsepipe, used to clamp the anchor chains and help reduce the pull tension from the chain to the windlass. Chain stopper can withstand 80% of the chain minimum breaking load and does not experience permanent deformation under that circumstance.
We supply all types of chain cable stoppers: knife-type chain stopper, spiral type chain stopper, roller type chain stopper, adjustable chain stopper and other types. If you’re interested in our products, please feel free to contact us.
Features of Roller Pawl Type Chain Stopper
1. Cast Steel Material;
2. Nominal Chain Diameter: 30~64mm;
3. Withstand 80% of Chain Cable’s Breaking Load;
4. High Quality, Durable, With Stable Performance;
5. Competitive Price, Short Delivery, Excellent Service;
6. Certificate: ABS,CCS,BV,NK,LR etc.;
7. Customized Service is Available

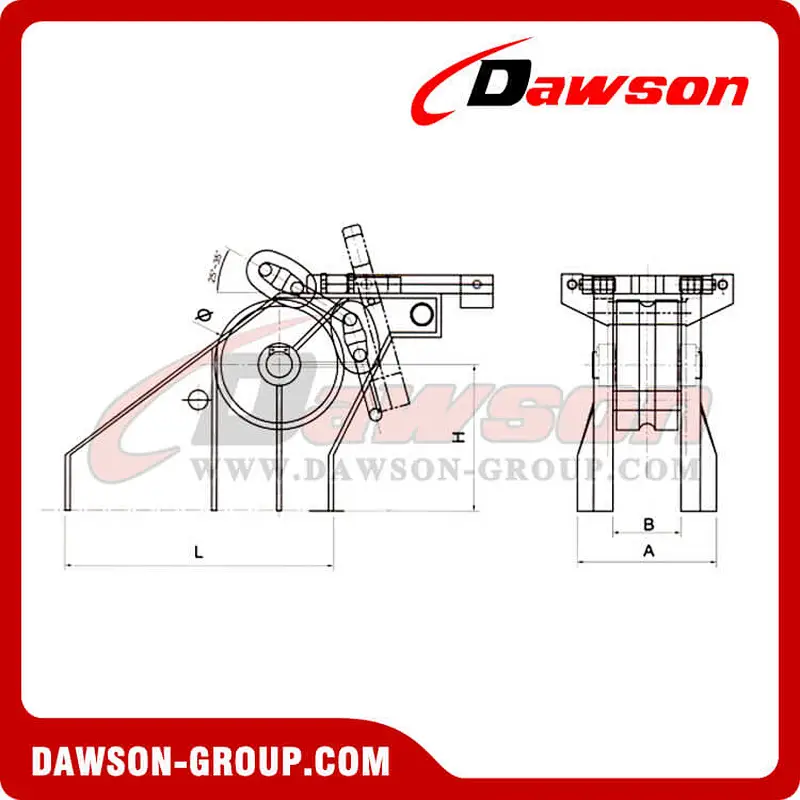

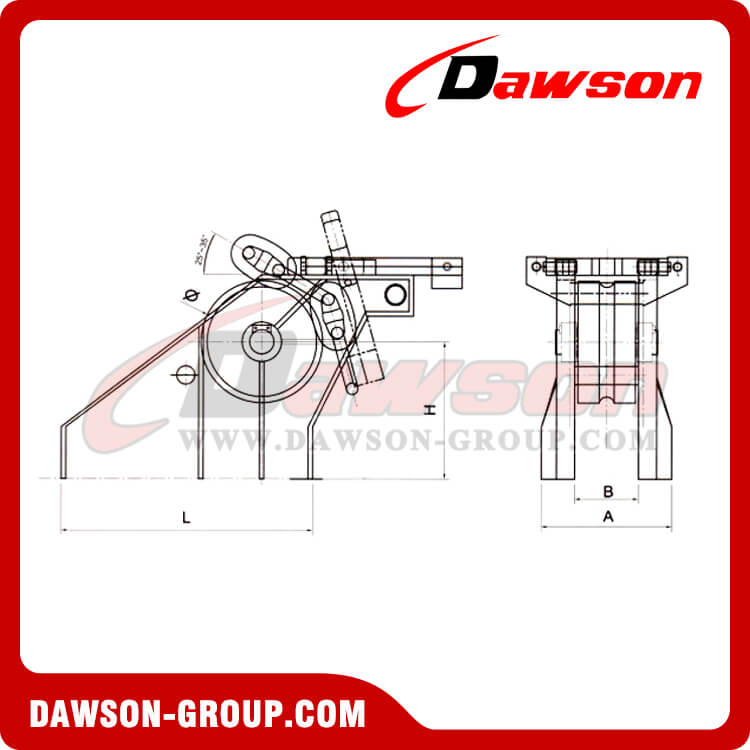

| Nominal Chain Size (mm) | A (mm) | B (mm) | H (mm) | Φ (mm) | L (mm) |
| 30-32 | 320 | 158 | 310 | 320 | 620 |
| 34-36 | 360 | 178 | 360 | 360 | 680 |
| 38-40 | 430 | 204 | 390 | 400 | 750 |
| 42-44 | 460 | 224 | 430 | 440 | 810 |
| 46-48 | 490 | 242 | 470 | 480 | 920 |
| 50-52 | 510 | 260 | 510 | 520 | 1010 |
| 54-56 | 540 | 280 | 540 | 560 | 1100 |
| 58-60 | 550 | 298 | 580 | 600 | 1150 |
| 62-64 | 590 | 316 | 620 | 640 | 1210 |
