Single point mooring pipe JIS F-2030 type B
Marine chocks, mounted on deck or bulwark, are closed chocks which are used to control the position of mooring rope. It is casted to be round or oval shapes. Single Point Mooring Pipes has two types.Both are made according to the JIS F 2030-1978 (Japanese Industrial Standards F). Different types have different specifications. If you’re interested in our chocks, please feel free to contact us.
Specification :
Model Type: JIS F 2030 Type B
Nominal Size: 400mm~800mm
Weight: 190kg~830kg
Material: Cast Steel
Standard: JIS F 2030-1978
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

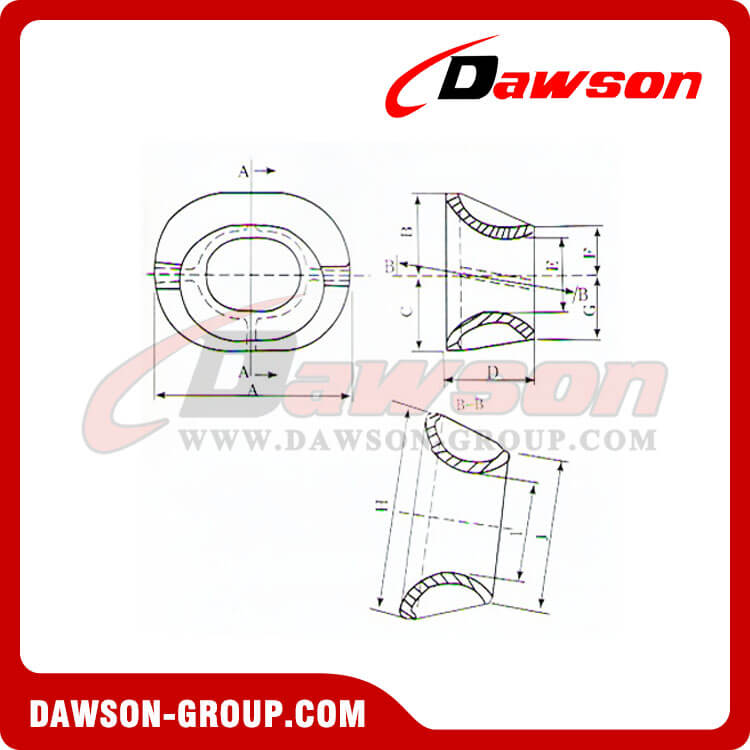

| Nominal Size(mm) | A | B | C | D | E | H | I | Weight(kg) |
| 400 | 800 | 320 | 300 | 350 | 300 | 800 | 400 | 190 |
| 500 | 960 | 370 | 350 | 400 | 400 | 960 | 500 | 310 |
| 600 | 1120 | 420 | 400 | 450 | 450 | 1120 | 600 | 460 |
| 700 | 1280 | 470 | 450 | 500 | 500 | 1280 | 700 | 660 |
| 800 | 1440 | 520 | 500 | 550 | 600 | 1440 | 800 | 830 |

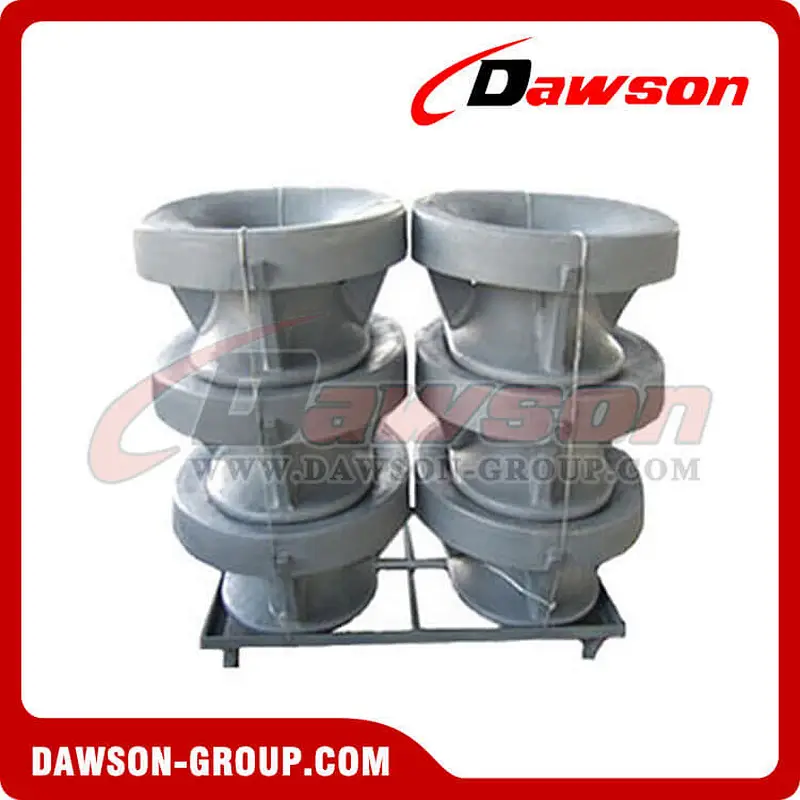

Factory & Package Show:
