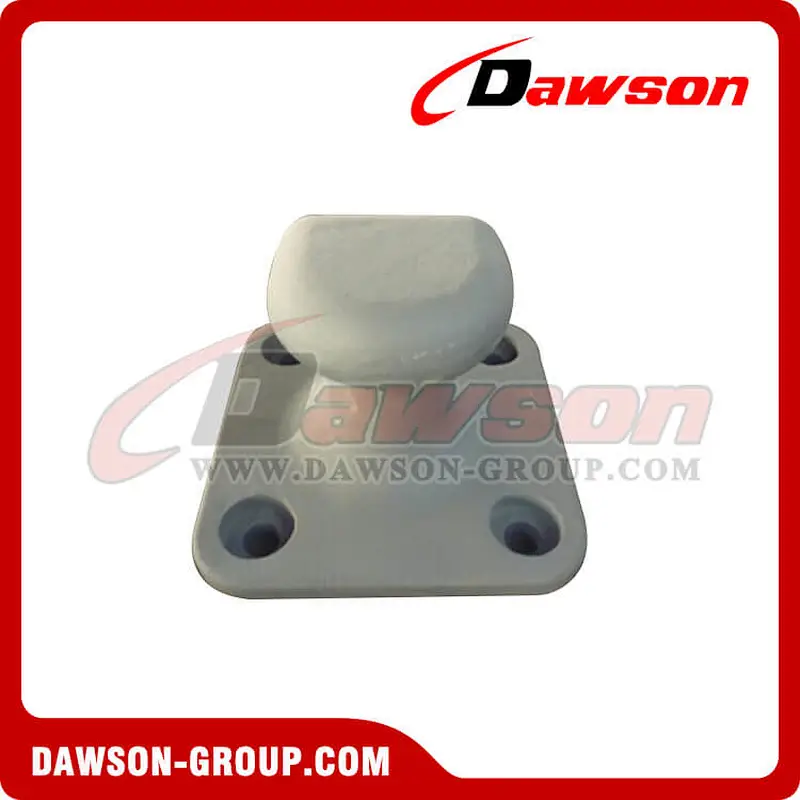

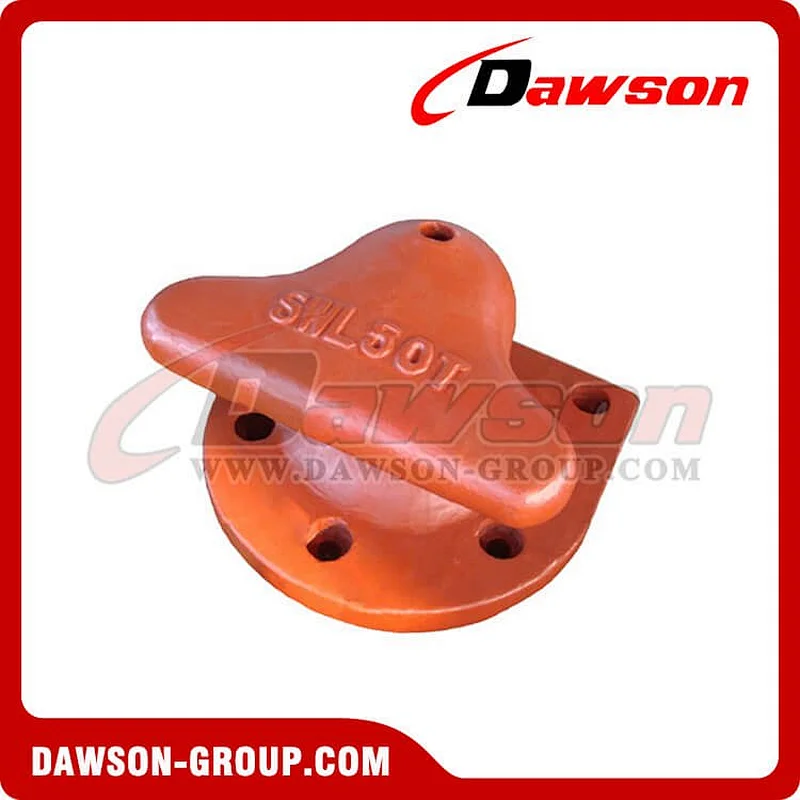

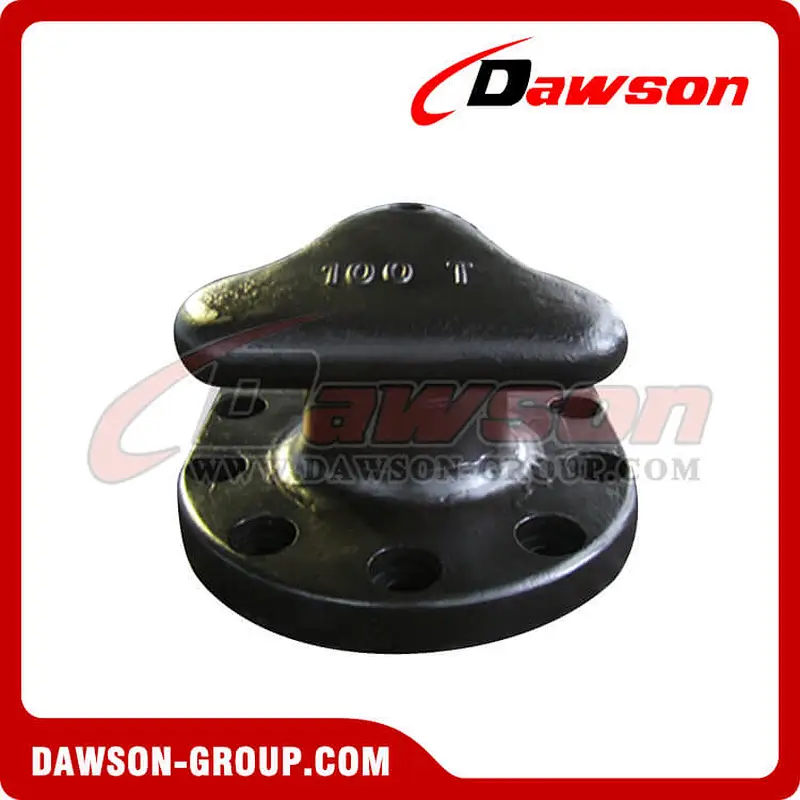

T-Head Bollard
T-head bollard can handle higher line load angles than single bitt and kidney shaped bollards. It is used in various shipyards, docks and marine applications all over the America and Europe seaboards. Except T-head bollard, we also supply other types of marine security bollards: single bitt bollard, double bitt bollard, staghorn shaped bollard, R type bollard, kidney shaped bollard, other standard bollards. Customized products according to customer’s drawings are allowed as well. For more specific information, please email us.
Features of T-head Bollard
1. T-head shaped dock bollard;
2. Bollard Capacity: 10 to 200 tonnes;
3. Recommended Line Angle: 0° to 50 °
4. Allowable Line Angle: 160°
5. Material Type: Cast steel, cast iron, cast SG iron;
6. Surface Treatment: Epoxy coating, anti-corrosion;
7. Bolts Quantity: 4 to 7;
8. Certificate: CCS, ABS, BV,GL etc.
9. Can be customized.

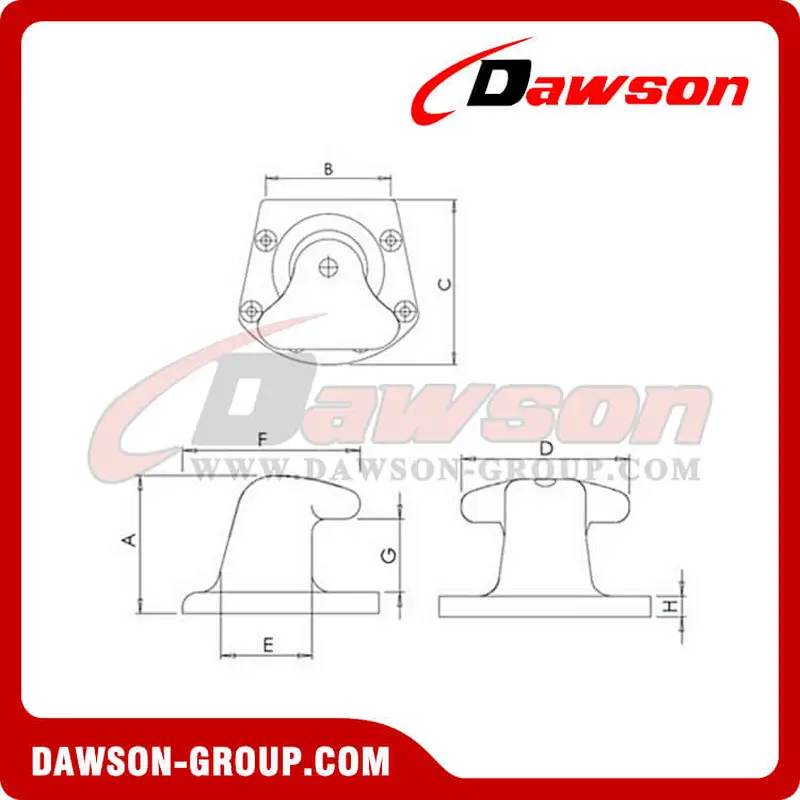

| Product No. | Bolts Quantity | Capacity (tonnes) | Dimensions(mm) | |||||||
| A | B | C | D | E | F | G | H | |||
| DST-001 | 4 | 10 | 200 | 216 | 236 | 160 | 106 | 218 | 120 | 32 |
| DST-002 | 4 | 25 | 245 | 350 | 305 | 250 | 150 | 285 | 127 | 45 |
| DST-003 | 5 | 30 | 290 | 430 | 410 | 360 | 190 | 360 | 150 | 45 |
| DST-004 | 5 | 50 | 365 | 550 | 540 | 430 | 250 | 475 | 200 | 50 |
| DST-005 | 5 | 75 | 430 | 650 | 650 | 520 | 300 | 570 | 235 | 70 |
| DST-006 | 5 | 80 | 415 | 518 | 540 | 430 | 250 | 430 | 245 | 55 |
| DST-007 | 7 | 120 | 490 | 678 | 642 | 600 | 330 | 584 | 290 | 65 |
| DST-008 | 7 | 200 | 520 | 950 | 780 | 680 | 360 | 670 | 306 | 80 |
| DST-009 | 7 | 200 | 600 | 950 | 780 | 680 | 360 | 670 | 386 | 80 |
| DST-010 | 6 | 200 | 656 | 1020 | 930 | 800 | 460 | 830 | 349 | 100 |

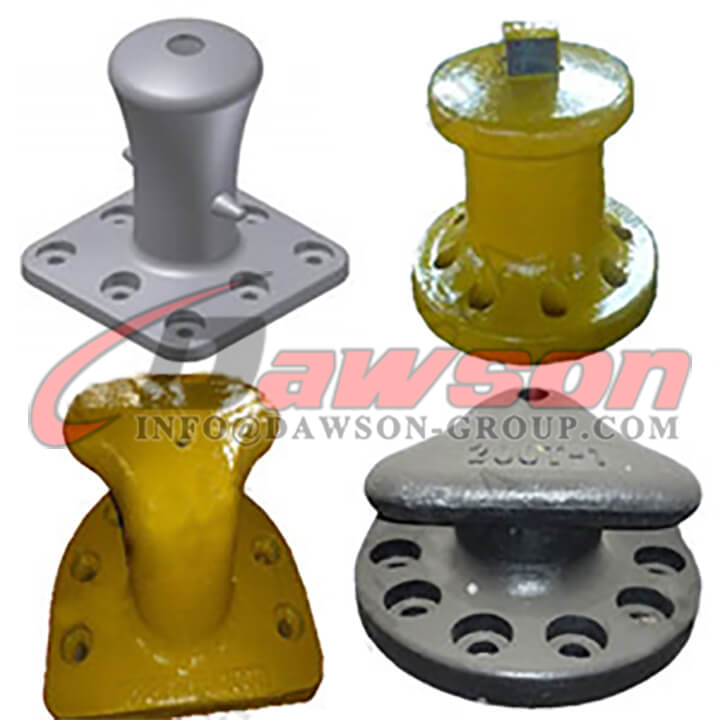

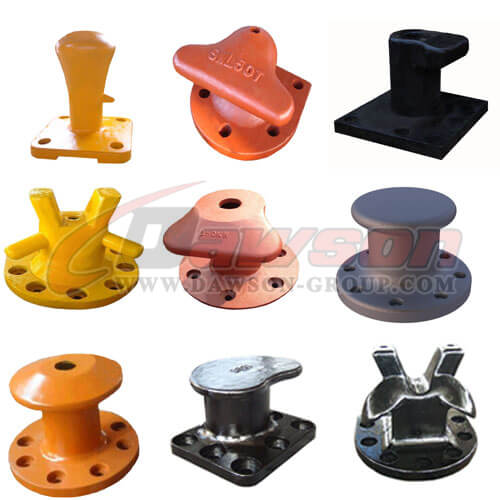

Other related products show:
