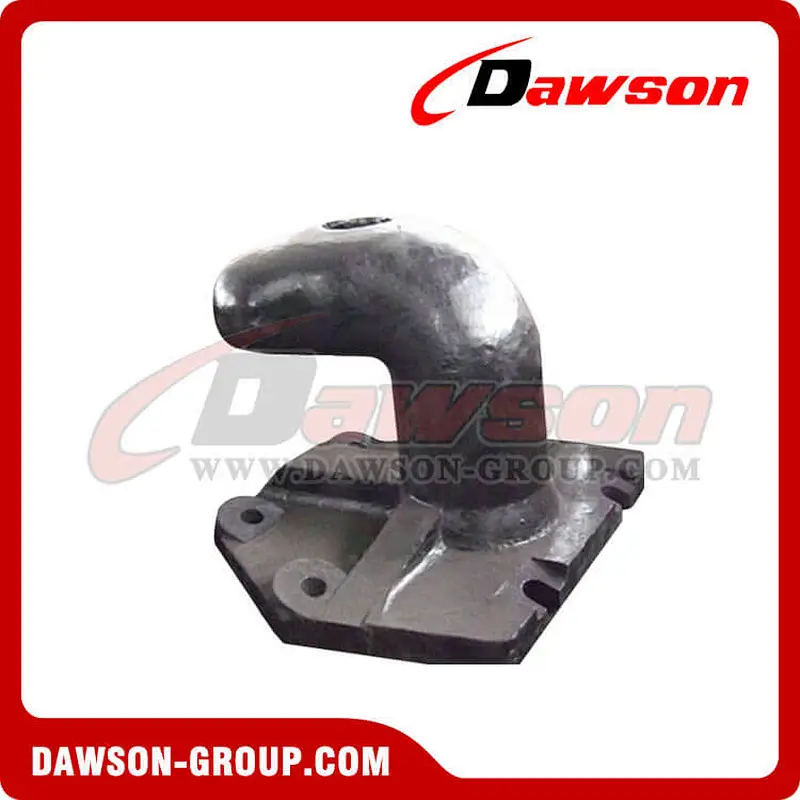

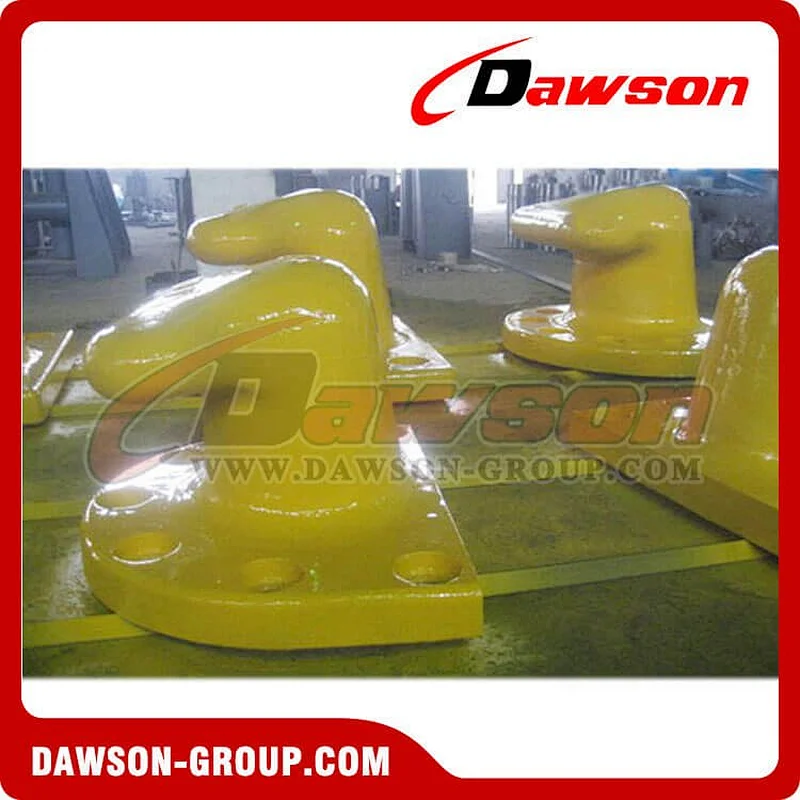

Tee Head Type Single Dock Bollard
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
T head type dock bollard can handle 10 to 200 tonnes bollard capacity. Its allowable line angle is up to 160 degree. Recommended line angle is 0 to 50 degree. T head dock bollard is of high quality and has stable performance. It is widely used in various shipyards, docks etc. We can offer certificate CCS,ABS,BV or other certificates for our bollards. For more information, please feel free to contact us.
Tee Head Type Single Dock Bollard

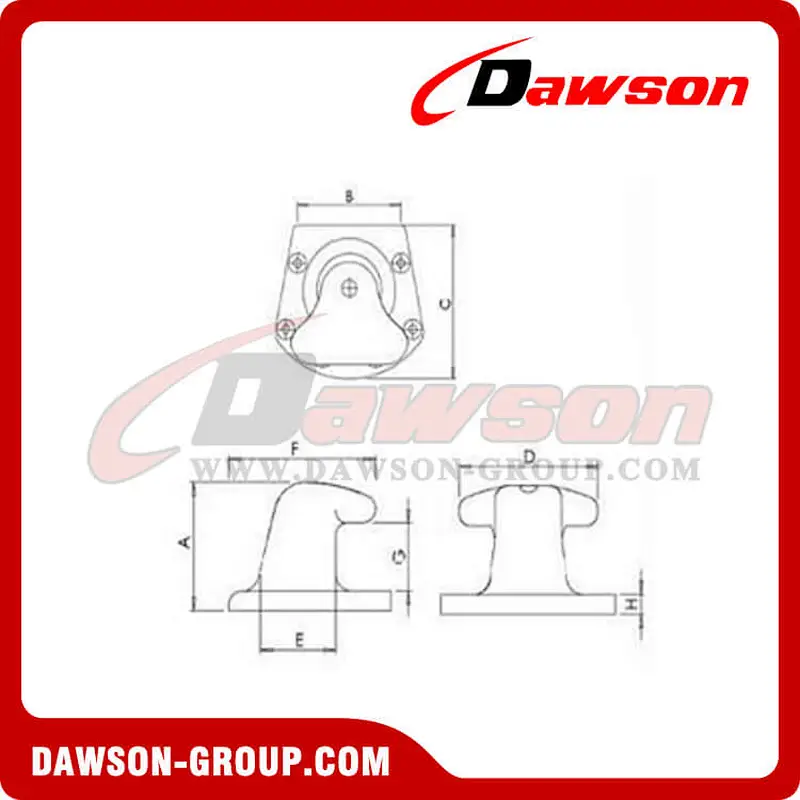

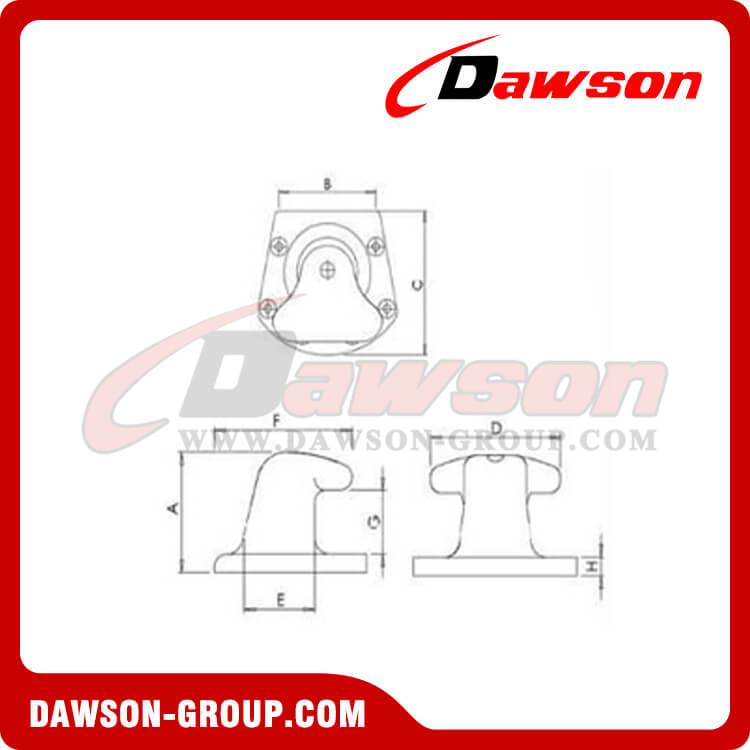

| Type | Bolts Qty | Capacity (Tonnes) | Dimensions | |||||||
| A | B | C | D | E | F | G | H | |||
| RT5-10 | 4 | 10 | 200 | 216 | 236 | 160 | 106 | 218 | 120 | 32 |
| RT10-25 | 4 | 25 | 245 | 350 | 305 | 250 | 150 | 285 | 127 | 45 |
| RT15-30 | 5 | 30 | 290 | 430 | 410 | 360 | 190 | 360 | 150 | 45 |
| RT30-50 | 5 | 50 | 365 | 550 | 540 | 430 | 250 | 475 | 200 | 50 |
| RT50-75 | 5 | 75 | 430 | 650 | 650 | 520 | 300 | 570 | 235 | 70 |
| RT50N-80 | 5 | 80 | 415 | 518 | 540 | 430 | 250 | 430 | 245 | 55 |
| RT80-120 | 7 | 120 | 490 | 678 | 642 | 600 | 330 | 584 | 290 | 65 |
| RT100-200 | 7 | 200 | 520 | 950 | 780 | 680 | 360 | 670 | 306 | 80 |
| RTC100-120 | 7 | 200 | 600 | 950 | 780 | 680 | 360 | 670 | 386 | 80 |
| RT150-200 | 6 | 200 | 656 | 1020 | 930 | 800 | 460 | 830 | 349 | 100 |
