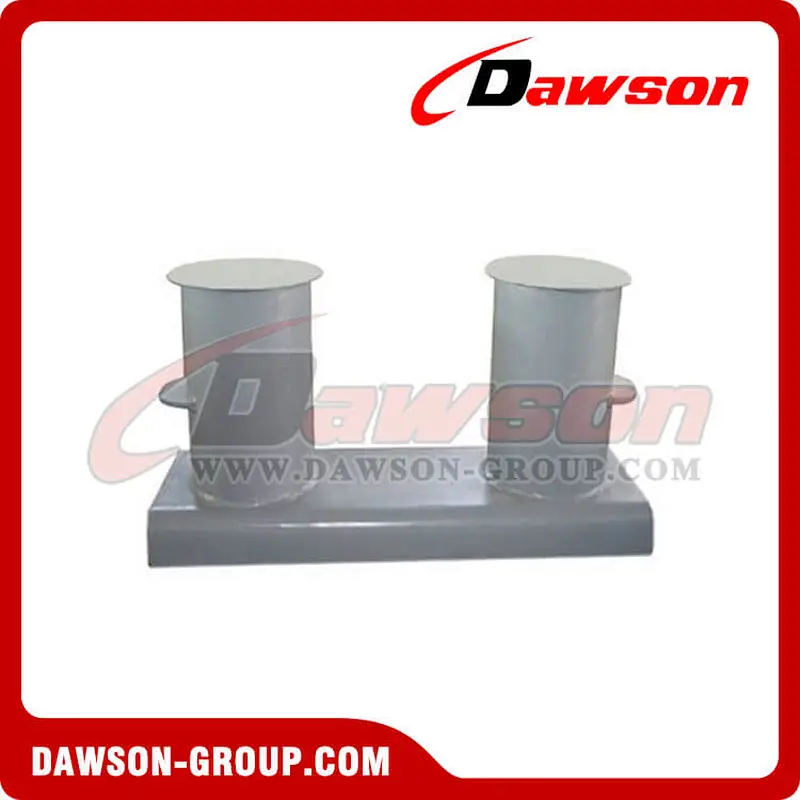

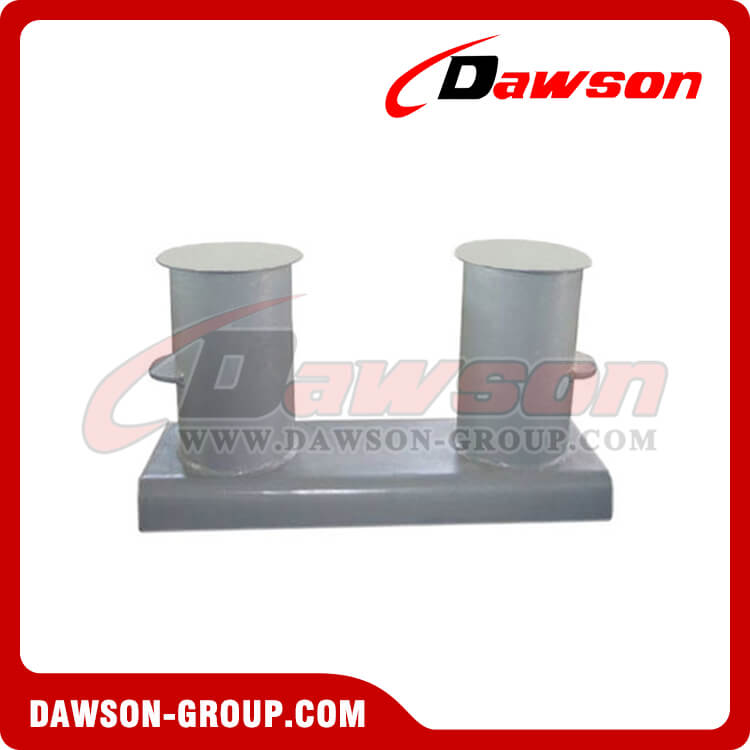

Type B Inserted Bollard
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
GB/T 554-96 bollards have five different types bollard. We supply all type of GB/T 554-96 bollard and other standard bollards such as GB/T10106-88 bollard, DIN82607 bollards and so on. Every bollard we produced are of high quality and get the approval of quality inspection center. If you’re interested in our bollards, please feel free to contact us.
Features of GB T554-96 Type B Inserted Bollard
1. Inserted bollard;
2. Standard: GB/T 554-96;
3. Nominal Diameter: 160mm to 500mm;
4. Applicable Ropes: wire rope, hemp rope, synthetic fiber rope;
5. Wire rope standard: GB1102-74, tensile strength is 1520N/mm²;
6.1 year warranty;
7. Durable, long lifetime;
8. Certificate: CCS,ABS etc.
9. Can be customized

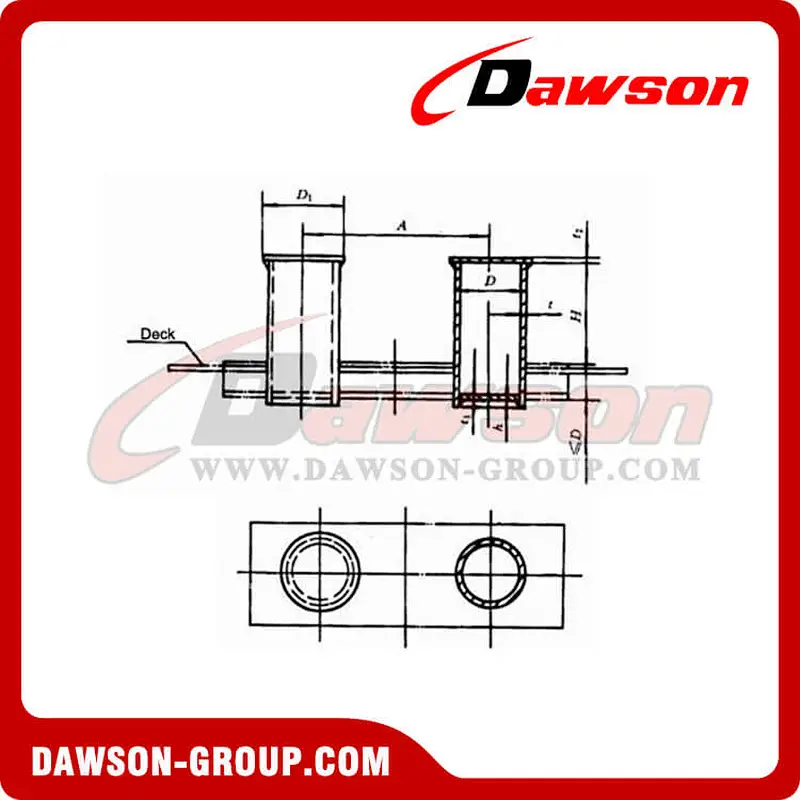

Unit:mm
| Nominal Dia. | Max. Breaking Load KN | Max. Dia. Of Applicable Rope | D | D1 | A | tmin | t1min | t2 | h | H | |||||
| Steel Rope | Hemp Rope | Synthetic Carbon Fiber Rope | |||||||||||||
| 6x24 | 6x30 | 6x37 | Deck without Plywood | Deck with Plywood | |||||||||||
| 160 | 49 | 9.3 | 11.0 | 8.7 | 90 | 20 | 168 | 210 | 400 | 10 | 6 | 9 | 8 | 250 | 310 |
| 200 | 78 | 13.0 | 13.0 | 13.0 | 110 | 110 | 219 | 170 | 500 | 10 | 8 | 9 | 8 | 300 | 360 |
| 250 | 118 | 15.0 | 17.5 | 15.0 | 130 | 130 | 273 | 335 | 630 | 11 | 10 | 9 | 8 | 380 | 440 |
| 315 | 196 | 20.5 | 21.5 | 19.5 | 170 | 170 | 325 | 390 | 800 | 15 | 12 | 9 | 10 | 480 | 540 |
| 355 | 255 | 24.0 | 24.0 | 21.5 | 200 | 200 | 351 | 420 | 890 | 17 | 13 | 12 | 10 | 530 | 590 |
| 400 | 314 | 26.0 | 28.0 | 24.0 | 235 | 235 | 402 | 480 | 1000 | 18 | 14 | 12 | 10 | 600 | 660 |
| 450 | 382 | 30.0 | 30.0 | 28.0 | 250 | 250 | 450 | 545 | 1130 | 19 | 16 | 12 | 10 | 680 | 740 |
| 500 | 451 | 32.0 | 32.5 | 30.0 | 280 | 280 | 500 | 500 | 1250 | 20 | 18 | 12 | 12 | 750 | 810 |
Note: Steel Rope Standard GB1102-74, Tensil Strength 1520N/mm2

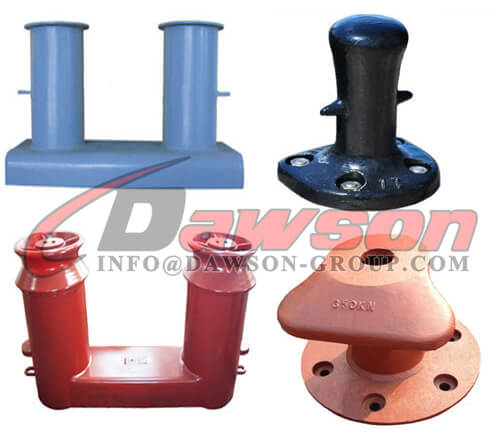

Other related products show:
