GB T554-96 type D single cross bollard
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

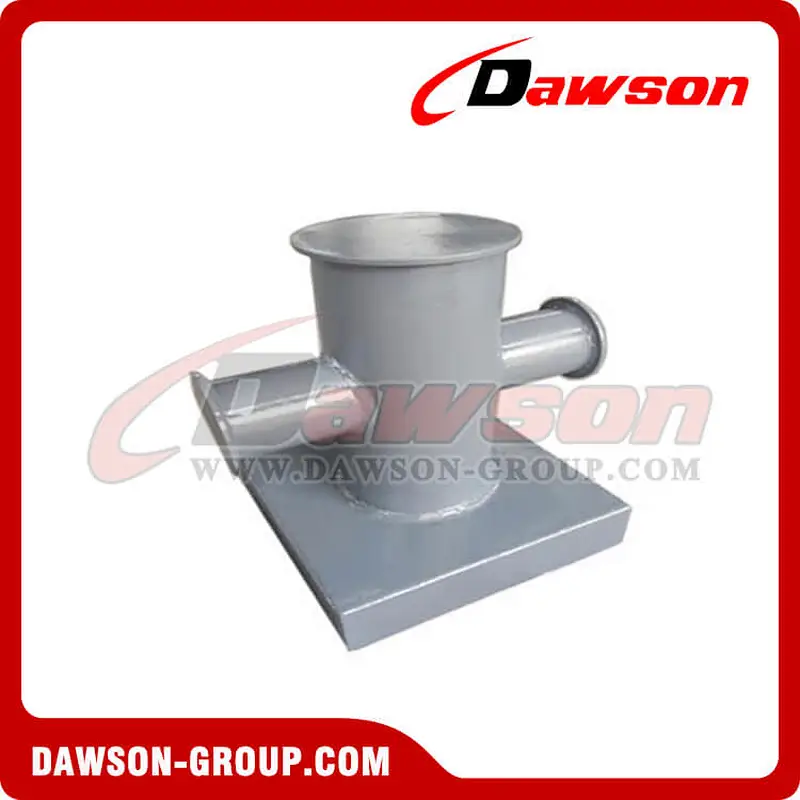

Our type D single cross bollard is strictly designed according to national industrial standard GB/T 554-96. It has three nominal size: 50mm, 75mm, 100mm. We also supply other types of GB/T 554-96 bollards and customized products to meet customer’s special application. For more information, please feel free to contact us.
Features of GB T554-96 Type D Single Cross Bollard
1. Type: single cross bollard
2. Standard: GB/T 554-96;
3. Nominal Diameter: 50mm,75mm,100mm;
4. Weight: 2.8kg, 8.0kg, 15kg;
5. Bolts Quantity: 4;
6. Material: cast steel, cast iron, ductile iron;
7. Applicable Ropes: wire rope, hemp rope, synthetic fiber rope;
8. Certificate: CCS,ABS, BV, LR etc.

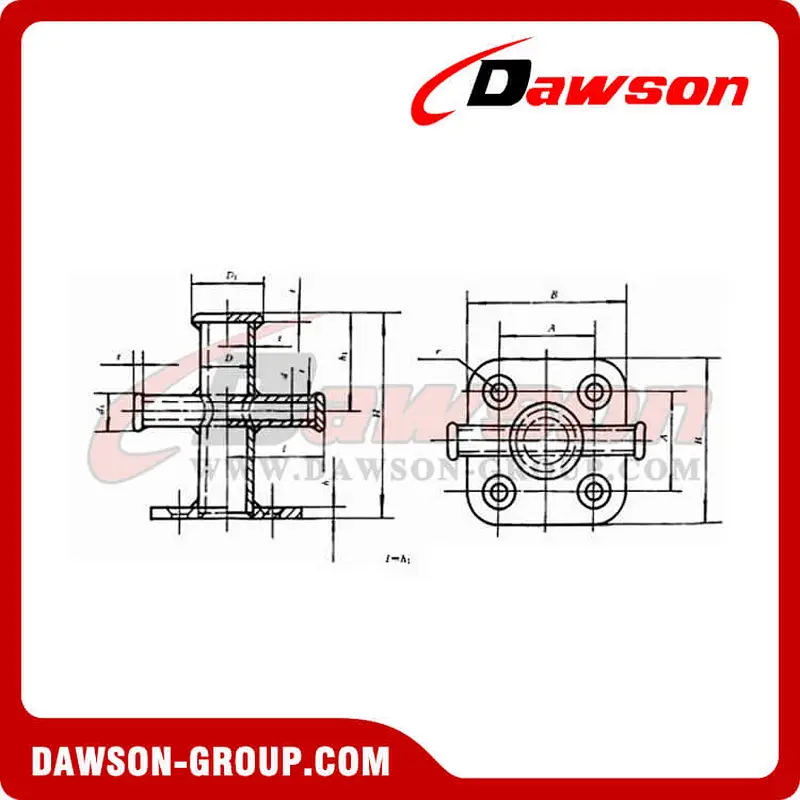

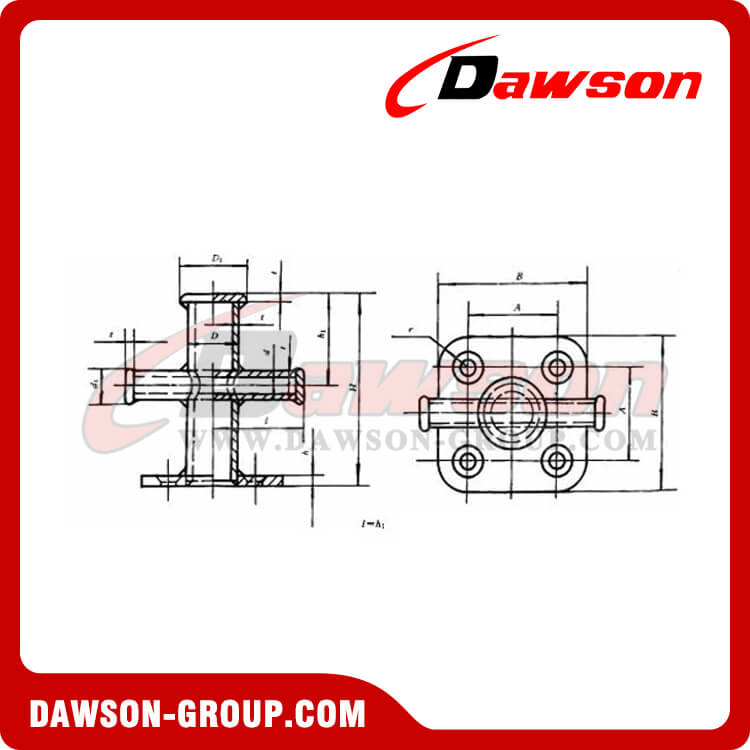

| Nominal DIa. | Max. dia. Of steel rope | Max. dia. Of Hemp rope | Max. dia. Of synthetic carbon fiber rope | D | D1 | B | H | h | h1 | t | d | d1 | r | A | Weight (kg) | ||
| Screw thread dia. | Quantity (piece) | ||||||||||||||||
| 50 | 8.7 | 75 | 16 | 50 | 65 | 135 | 190 | 8 | 85 | 6 | 25 | 35 | 25 | 85 | M16 | 4 | 2.8 |
| 75 | 11.5 | 90 | 20 | 75 | 95 | 185 | 290 | 12 | 135 | 7 | 42 | 52 | 35 | 115 | M22 | 4 | 8.0 |
| 100 | 13.5 | 100 | 24 | 100 | 120 | 235 | 350 | 18 | 160 | 7 | 50 | 65 | 40 | 155 | M27 | 4 | 15 |
