Type U.S. Panama Chocks
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Panama Chocks
Panama chocks are very important mooring equipment. It bears tremendous loads when mooring the vessels. We provide deck mounted Panama chocks (JIS F 2017-1982 type AC,AP),bulwark mounted Panama chocks (JIS F 2017-1982 type BC,BP) and Type U.S. Panama chocks. If you’re interested in our chocks, please feel free to contact us.
Specification :

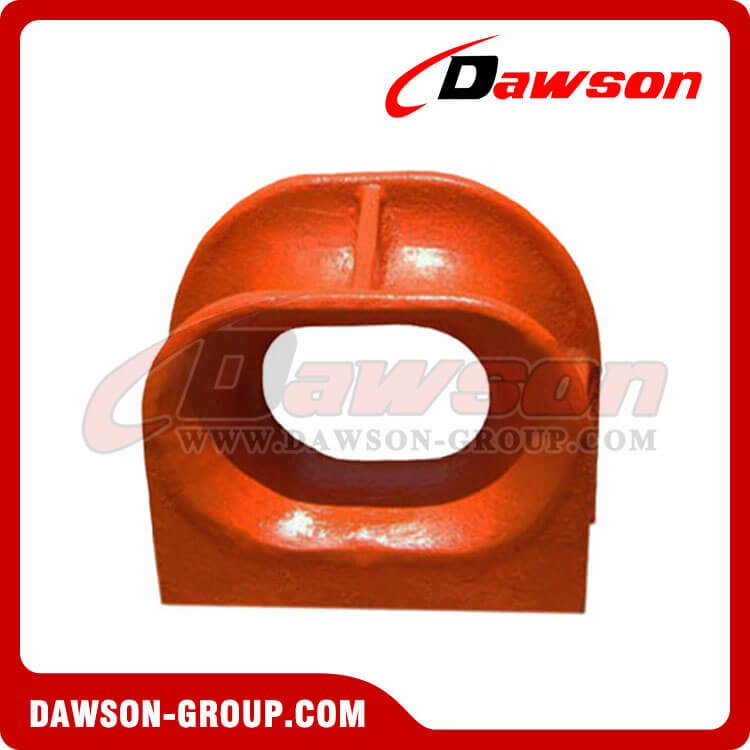

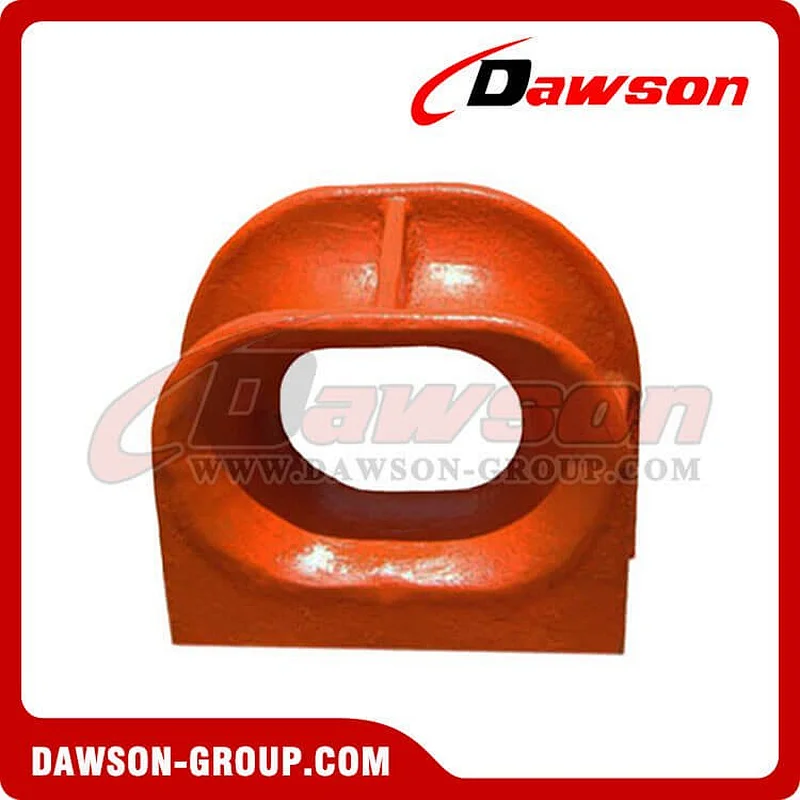

Model Type: Type U.S. panama chock
Material: Cast Steel
Nominal Dia: 6’’×12’’, 7’’×14’’, 8’’×16’’, 9’’×18’’, 10’’×20’’
Weight: 71kg~225kg
Certificate: CCS,DNV,ABS,BV,LR,RS,KR

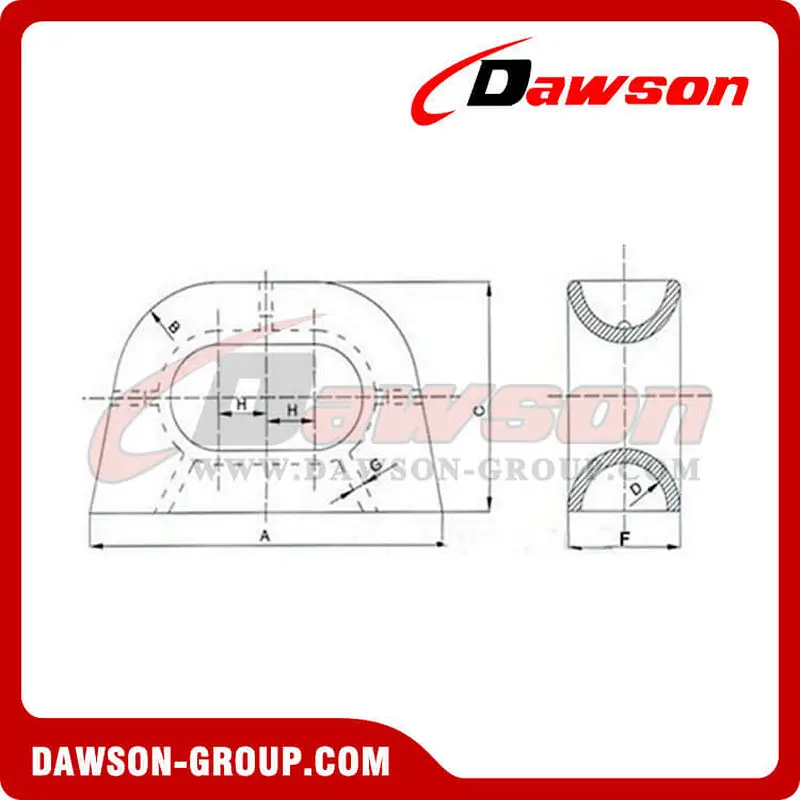

| Nominal Dia | Model No. | Size(mm) | Weight(kg) | ||||||
| A | B | C | D | F | G | H | |||
| 6’’x12’’ | S-1097 | 558 | 165 | 330 | 61 | 178 | 20 | 76 | 71 |
| 7’’x14’’ | S-1098 | 610 | 187 | 374 | 68 | 196 | 22 | 89 | 93 |
| 8’’x16’’ | S-1105 | 626 | 257 | 414 | 80 | 242 | 25 | 101 | 152 |
| 9’’x18’’ | S-1106 | 762 | 235 | 470 | 83 | 260 | 28 | 114 | 180 |
| 10’’x20’’ | S-1101 | 812 | 257 | 514 | 90 | 260 | 30 | 127 | 225 |
