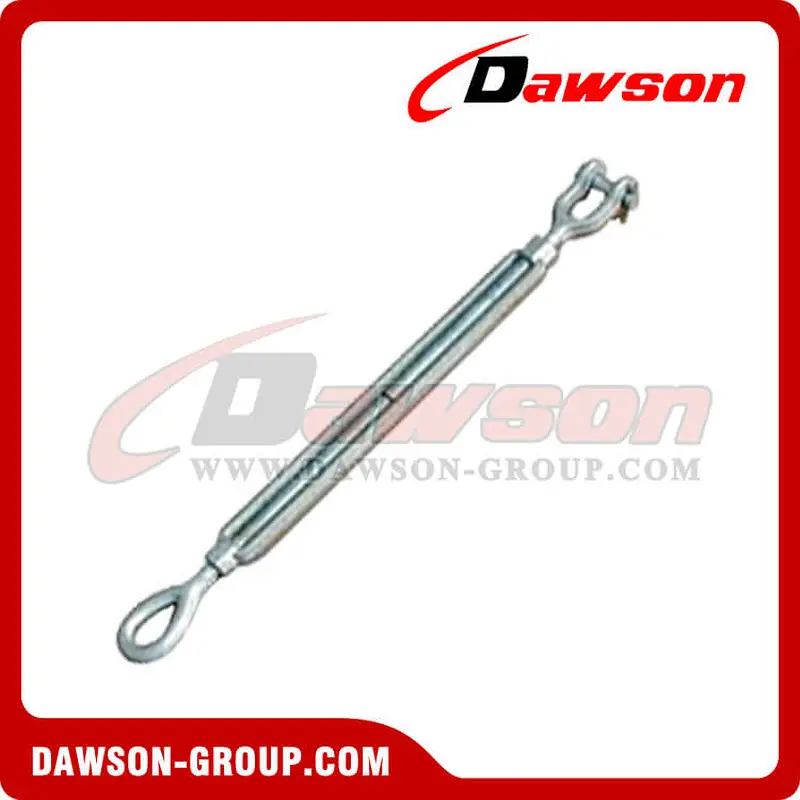

US Type Drop Forged Turnbuckle Jaw & Eye

US Type Drop Forged Turnbuckle Jaw & Eye

Model NO.: DS-FTJE

Quantity:

Product Description

US Type Drop Forged Turnbuckle Jaw & Eye
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Conforms To Federal Specification FF-T-791b, Type 1, Form 1 - Class 8

Material: Forged Steel, bodies are normalized. End Fittings are quenched and tempered.

Loading: Proof load is 2.5 times working load limited.

Ultimate load is 5 times working load limited.

Finished: Hot Dipped Galvanized.

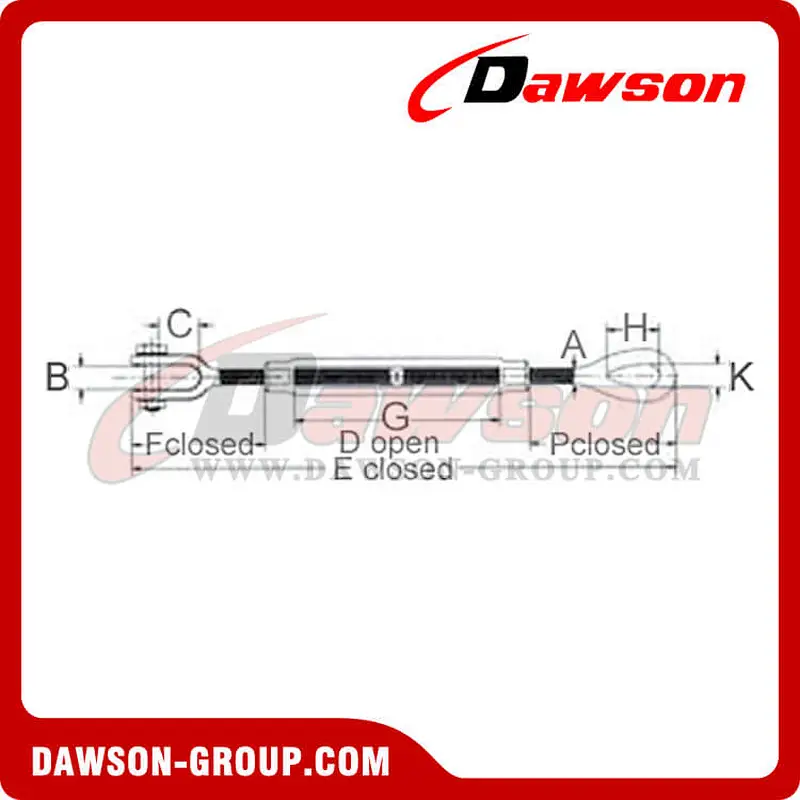

Item No.	Working Load Limit(lbs)	Weight Each (lbs)	Dimensions (in)
Item No.	Working Load Limit(lbs)	Weight Each (lbs)	A	B	C	D Open	E Closed	F Closed	G	H	K	P Closed
DS-FTJE0404	500	0.32	0.25	0.41	0.62	12.07	8.07	1.58	4.00	0.78	0.34	1.75
DS-FTJE0505	800	0.47	0.31	0.47	0.87	14.01	9.51	1.98	4.50	0.94	0.44	2.09
DS-FTJE0606	1200	0.76	0.38	0.50	0.87	17.77	11.77	2.12	6.00	1.12	0.53	2.52
DS-FTJE0806	2200	1.53	0.50	0.63	1.06	19.48	13.48	2.75	6.00	1.44	0.72	3.23
DS-FTJE0809	2200	1.71	0.50	0.63	1.06	25.48	16.48	2.75	9.00	1.44	0.72	3.23
DS-FTJE0812	2200	2.06	0.50	0.63	1.06	31.48	19.48	2.75	12.00	1.44	0.72	3.23
DS-FTJE1006	3500	2.35	0.63	0.75	1.31	21.28	15.28	3.50	6.00	1.75	0.88	3.90
DS-FTJE1009	3500	3.06	0.63	0.75	1.31	27.28	18.28	3.50	9.00	1.75	0.88	3.90
DS-FTJE1012	3500	3.78	0.63	0.75	1.31	33.28	21.28	3.50	12.00	1.75	0.88	3.90
DS-FTJE1206	5200	4.00	0.75	0.94	1.50	23.11	17.11	4.18	6.00	2.09	1.00	4.69
DS-FTJE1209	5200	4.75	0.75	0.94	1.50	29.11	20.11	4.18	9.00	2.09	1.00	4.69
DS-FTJE1212	5200	5.36	0.75	0.94	1.50	35.11	23.11	4.18	12.00	2.09	1.00	4.69
DS-FTJE1218	5200	7.00	0.75	0.94	1.50	47.11	29.11	4.18	18.00	2.09	1.00	4.69
DS-FTJE1412	7200	8.00	0.88	1.13	1.75	36.57	24.57	4.85	12.00	2.38	1.25	5.10
DS-FTJE1418	7200	9.75	0.88	1.13	1.75	48.57	30.57	4.85	18.00	2.38	1.25	5.10
DS-FTJE1606	10000	8.92	1.00	1.19	2.06	26.89	20.89	5.53	6.00	3.00	1.44	6.36
DS-FTJE1612	10000	11.20	1.00	1.19	2.06	38.89	26.89	5.53	12.00	3.00	1.44	6.36
DS-FTJE1618	10000	13.30	1.00	1.19	2.06	50.89	32.89	5.53	18.00	3.00	1.44	6.36
DS-FTJE1624	10000	17.00	1.00	1.19	2.06	62.89	38.89	5.53	24.00	3.00	1.44	6.36
DS-FTJE2012	15200	20.00	1.25	1.75	2.81	42.05	30.05	7.21	12.00	3.56	1.81	7.72
DS-FTJE2018	15200	24.18	1.25	1.75	2.81	54.05	36.05	7.21	18.00	3.56	1.81	7.72
DS-FTJE2024	15200	28.50	1.25	1.75	2.81	66.05	42.05	7.21	24.00	3.56	1.81	7.72
DS-FTJE2412	21400	28.99	1.50	2.06	2.81	44.25	32.23	7.88	12.00	4.06	2.12	8.62
DS-FTJE2418	21400	35.00	1.50	2.06	2.81	56.25	38.25	7.88	18.00	4.06	2.12	8.62
DS-FTJE2424	21400	39.18	1.50	2.06	2.81	68.25	44.25	7.88	24.00	4.06	2.12	8.62

Welcome to buy the newest and competitive price DAWSON US Type Drop Forged Turnbuckle Jaw & Eye from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

For further information, please contact us. Email:info@dawson-group.com
