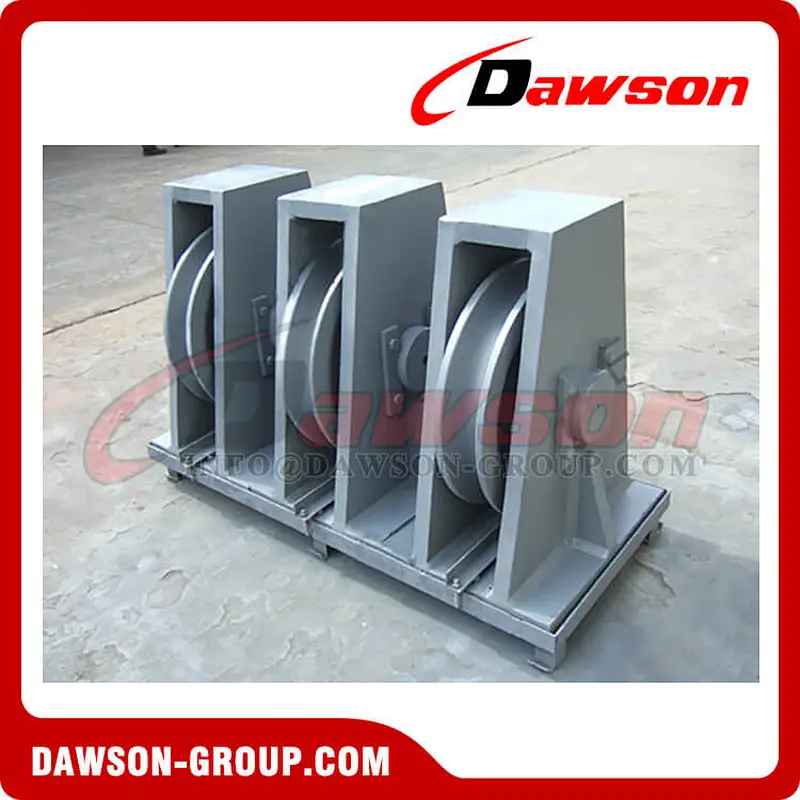

Vertical Sheave
Features of Vertical Sheave
1. Applicable max wire diameters 20mm~76mm
2. Material: Cast Iron/Steel
3. Good wear and corrosion resistance
4. Self-lubrication
5. Vibration-absorption
6. Breaking strength of wire with 90 degree warp on sheave
7. Bolt or welded base
8. Paint according to customer ’ s specification
9. Produce according to customers ’ special design
Optional load monitoring system

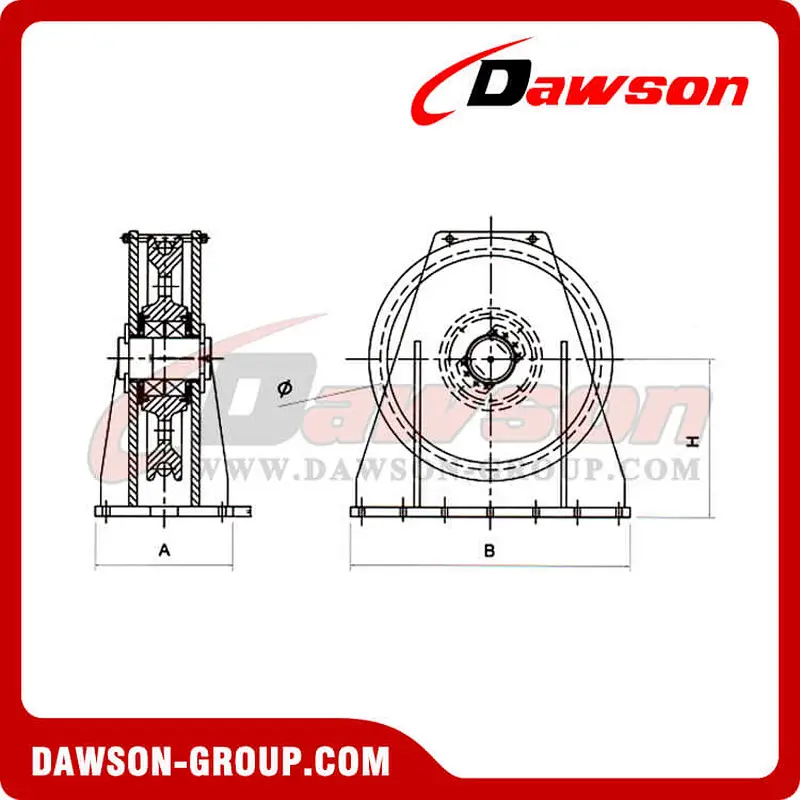

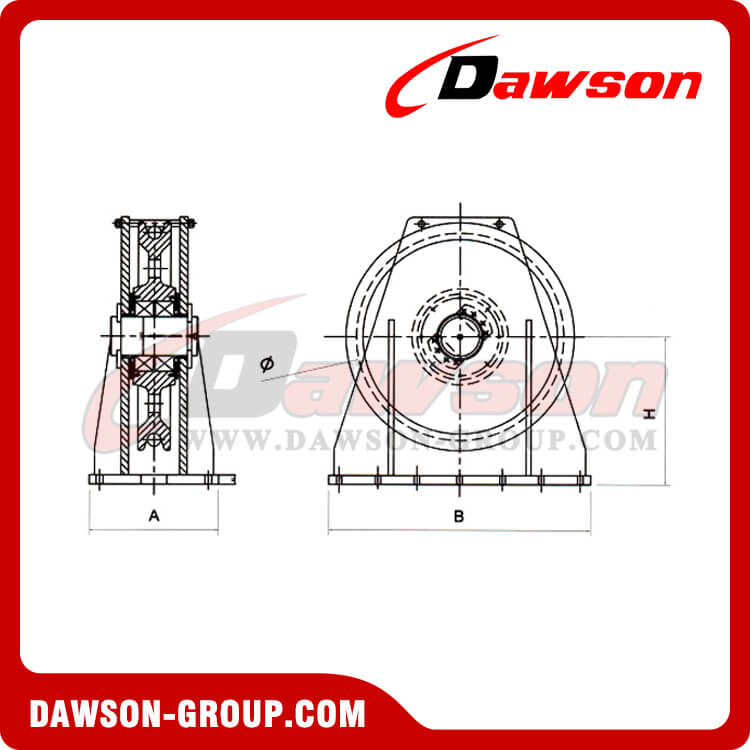

| MAX WIRE DIA (mm) | A (mm) | B (mm) | H (mm) | Φ (mm) |
| 20 | 280 | 390 | 220 | 340 |
| 25 | 330 | 480 | 265 | 425 |
| 32 | 406 | 590 | 340 | 520 |
| 38 | 362 | 690 | 380 | 600 |
| 44 | 560 | 815 | 450 | 710 |
| 52 | 610 | 1010 | 570 | 880 |
| 60 | 760 | 1100 | 600 | 930 |
| 68 | 920 | 1150 | 650 | 956 |
| 76 | 1350 | 1250 | 720 | 1120 |
