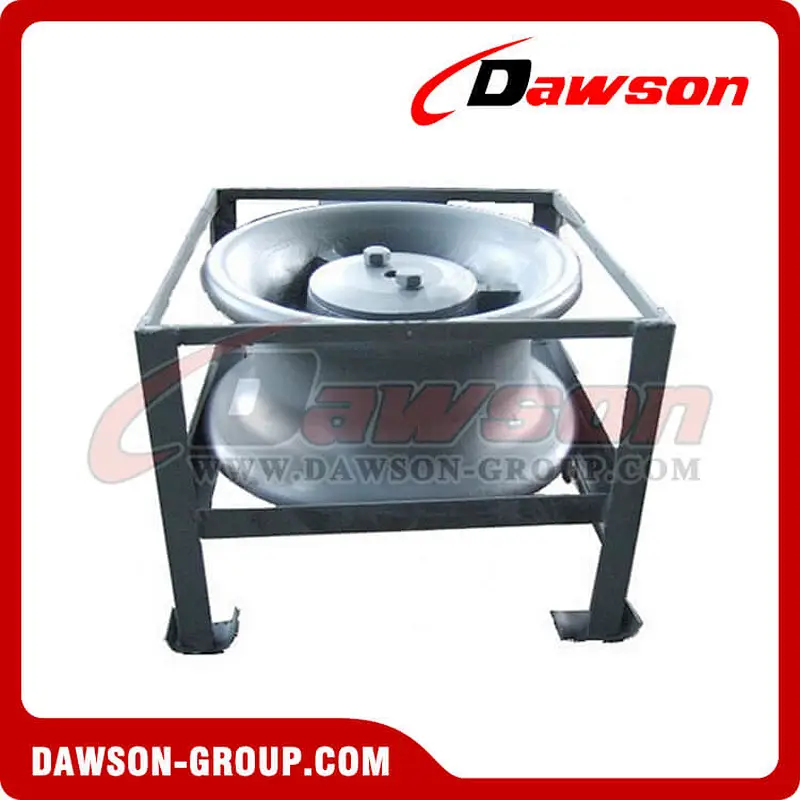

Warping Roller(Korean Type)
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter
Features of Warping Roller (Korean Type)
1. Korean type warping fairlead roller;
2. Used for bollard cable leading of ships;
3. High breaking strength load;
4. Cast iron/ cast steel roller;
5. Combination type: double/three or more warping roller with plate;
6. Compact design, precision machined,smooth surface;
7. High abrasion resistance;
8. Grey,black,red colors for customer’s choice;
9. Certificate: CCS,ABS, BV etc.;
10. Provide customized fairlead rollers according to customer’s drawings

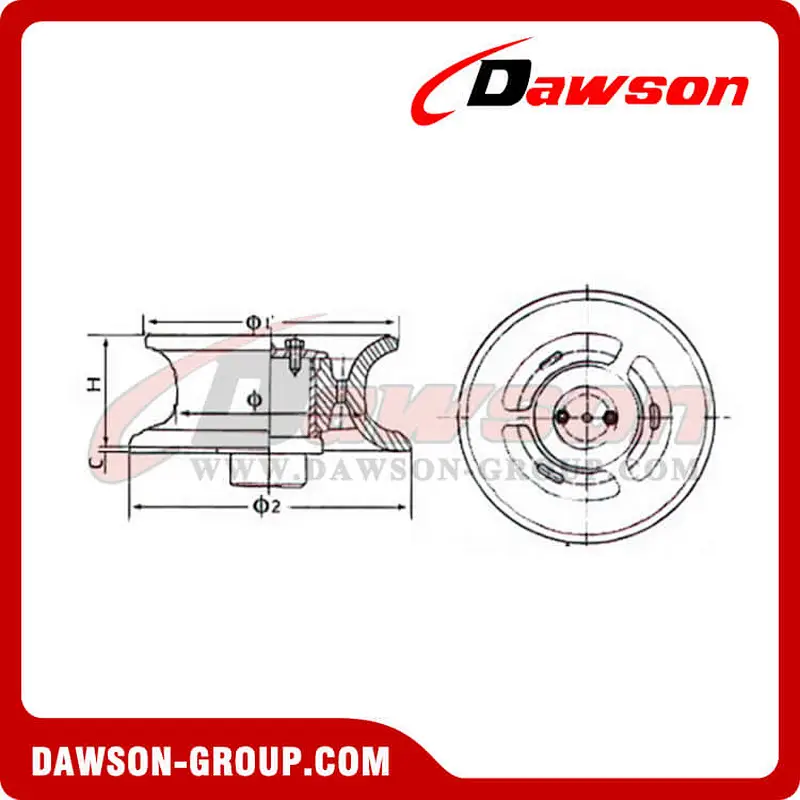

| Nominal Dla(mm) | Φ(mm) | Φ1(mm) | Φ2(mm) | H(mm) | C(mm) |
| 150 | 150 | 216 | 240 | 137 | 5 |
| 200 | 200 | 280 | 310 | 157 | 5 |
| 250 | 250 | 350 | 380 | 177 | 6 |
| 300 | 300 | 400 | 440 | 197 | 7 |
| 350 | 350 | 460 | 500 | 217 | 7 |
| 400 | 400 | 520 | 560 | 237 | 7 |
| 450 | 450 | 590 | 630 | 257 | 7 |
| 500 | 500 | 660 | 700 | 277 | 7 |
