Welded Bollard
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory, Exporter

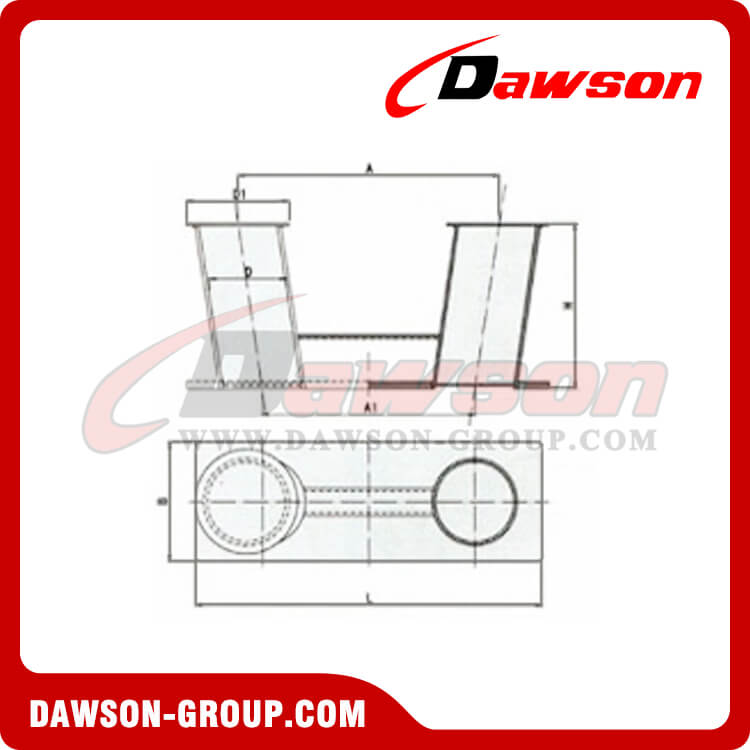

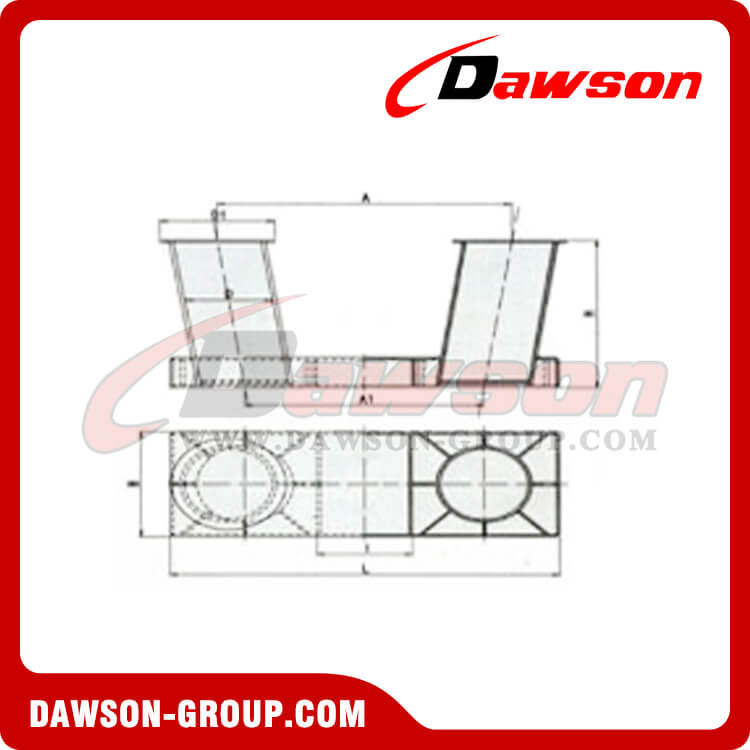

We supply GB/T 556-65 welded bollard DH type and SH type. Welded inclined bollards apply to berthing warping and mooring of ships. Column pile of this product is inclined to the base plate, so that it helps to prevent hawser from release when the ship sways. For more information, please feel free to contact us.
| Max. Diameter of light wire | Max. Rope girth | D | L | B | H | A | A1 | Weight Kg |
| 8.7 | 75 | 50 | 310 | 100 | 170 | 205 | 166 | 5.0 |
| 11.5 | 90 | 75 | 430 | 125 | 215 | 296 | 238 | 11.5 |
| 13.5 | 100 | 100 | 540 | 160 | 240 | 264 | 290 | 19.2 |
| Max. Diameter of light wire | Max. Rope girth | D | L | B | H | A | A1 | Weight Kg |
| 15.5 | 125 | 125 | 660 | 170 | 295 | 450 | 380 | 25.2 |
| 17.5 | 150 | 150 | 750 | 200 | 268 | 525 | 432 | 33.3 |
| 19.5 | 170 | 185 | 850 | 235 | 394 | 630 | 524 | 49.2 |
| 22.5 | 200 | 200 | 950 | 270 | 436 | 676 | 564 | 68.8 |
| 26.0 | 225 | 250 | 1150 | 340 | 540 | 795 | 640 | 95.7 |
Note: value H in the sheet applies only to steel deck and should be increased by 50mm if it is used on wooden decks.
Example of designation:
Single base plate welded oblique post bollard with column piles in diameter of 75mm.
Bollard bitt DH75 GB556-65.

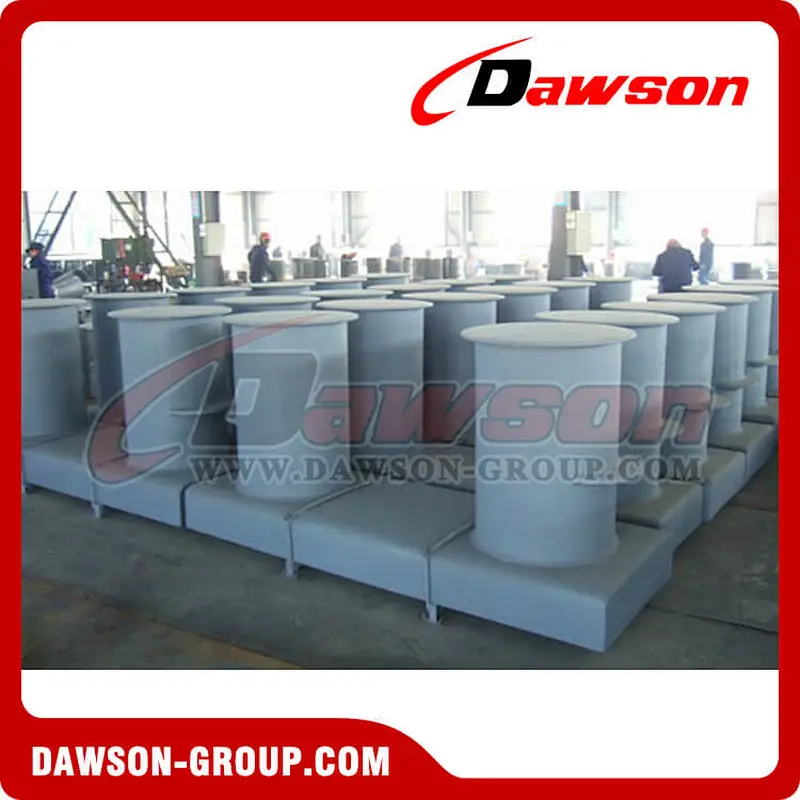

| Welded Bollard |
