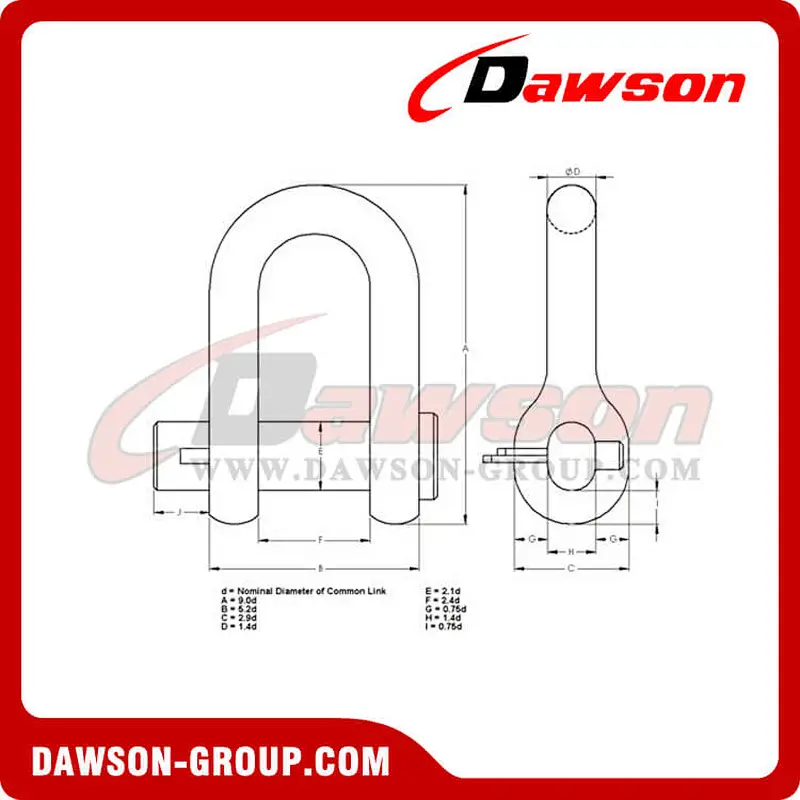

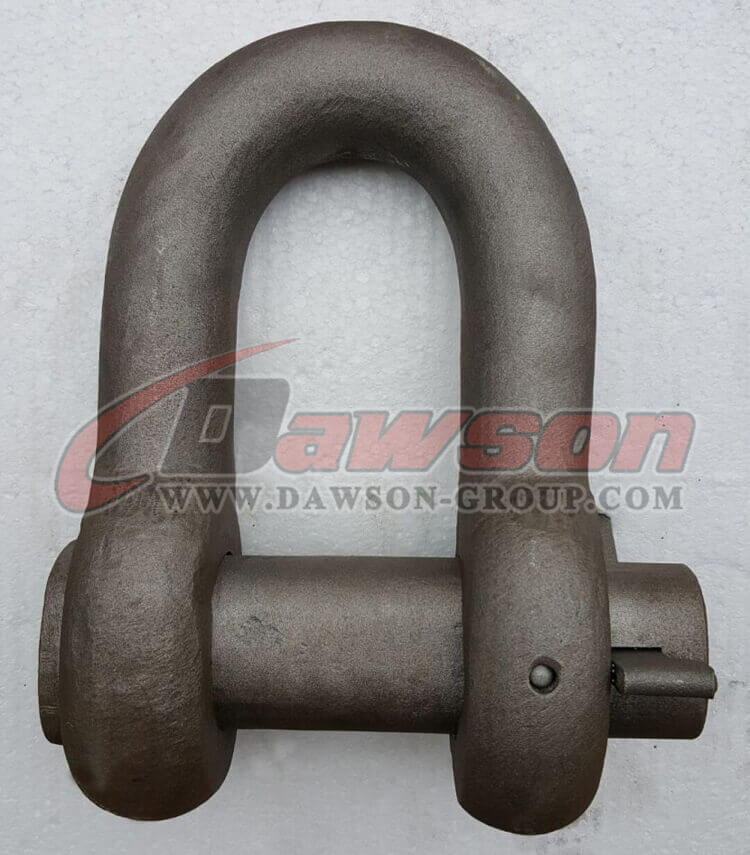

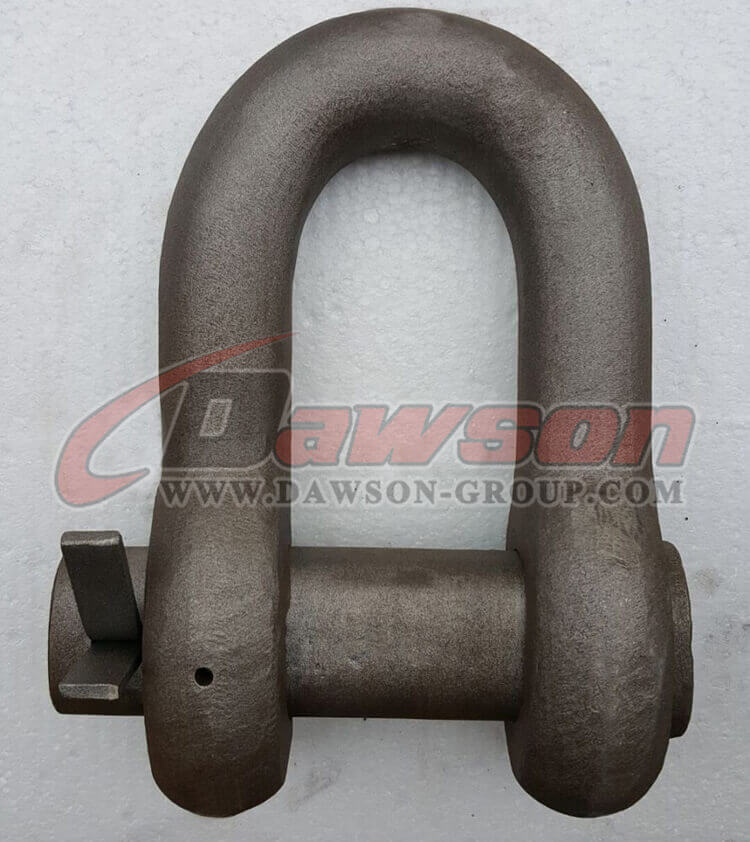

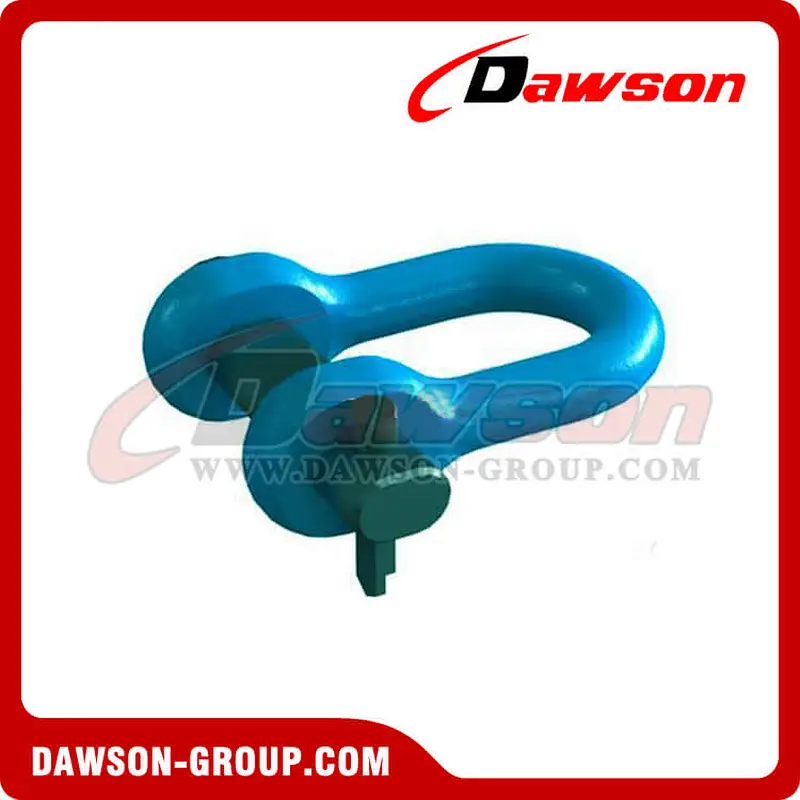

Alloy Steel Forelock End Shackle
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Main Specification
Material: Alloy Steel
Size:19mm to 87mm
Finish: Black Painting or as request
| Chain Dia. (mm) | Grade U2 | Grade U3 | ||
| SWL(kn) | MBL(kn) | SWL(kn) | MBL(kn) | |
| 19 | 45 | 223 | 67 | 335 |
| 20.5 | 52 | 260 | 78 | 389 |
| 22 | 60 | 299 | 90 | 449 |
| 24 | 71 | 356 | 107 | 534 |
| 26 | 84 | 418 | 125 | 626 |
| 28 | 97 | 484 | 145 | 726 |
| 30 | 111 | 556 | 167 | 834 |
| 32 | 127 | 633 | 190 | 949 |
| 34 | 143 | 714 | 214 | 1071 |
| 36 | 160 | 801 | 240 | 1201 |
| 38 | 178 | 892 | 268 | 1338 |
| 40 | 198 | 988 | 297 | 1483 |
| 42 | 218 | 1090 | 327 | 1635 |
| 44 | 239 | 1196 | 359 | 1794 |
| 46 | 261 | 1307 | 392 | 1961 |
| 48 | 285 | 1423 | 427 | 2135 |
| 50 | 309 | 1544 | 463 | 2317 |
| 52 | 334 | 1670 | 501 | 2506 |
| 54 | 360 | 1801 | 540 | 2702 |
| 56 | 387 | 1937 | 581 | 2906 |
| 58 | 416 | 2078 | 623 | 3117 |
| 60 | 445 | 2224 | 667 | 3336 |
| 62 | 475 | 2375 | 712 | 3562 |
| 64 | 506 | 2530 | 759 | 3796 |
| 66 | 538 | 2691 | 8017 | 4037 |
| 68 | 571 | 2857 | 857 | 4285 |
| 70 | 605 | 3027 | 908 | 4541 |
| 73 | 658 | 3292 | 988 | 4938 |
| 76 | 714 | 3568 | 1070 | 5352 |
| 78 | 752 | 3759 | 1128 | 5638 |
| 81 | 811 | 4053 | 1216 | 6080 |
| 84 | 872 | 4359 | 1308 | 6538 |
| 87 | 935 | 4676 | 1403 | 7014 |
Other related products:

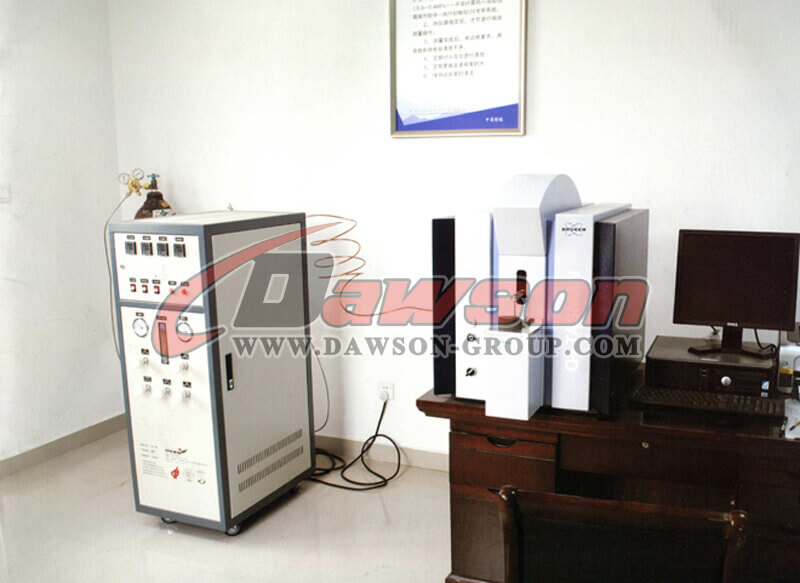

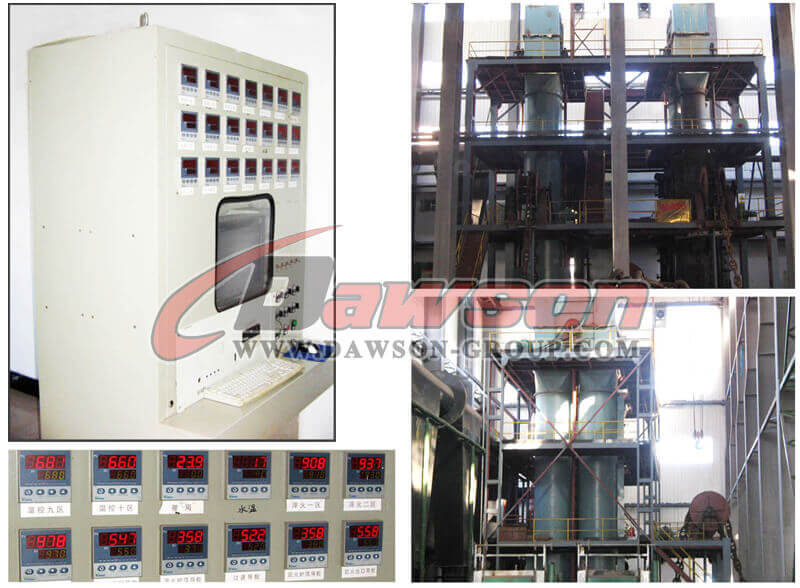

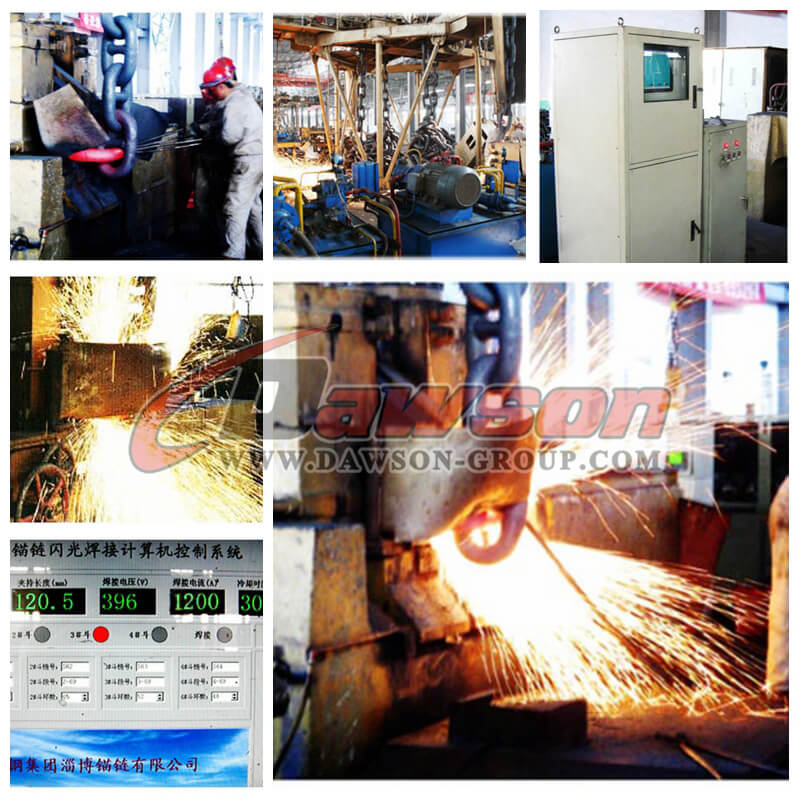

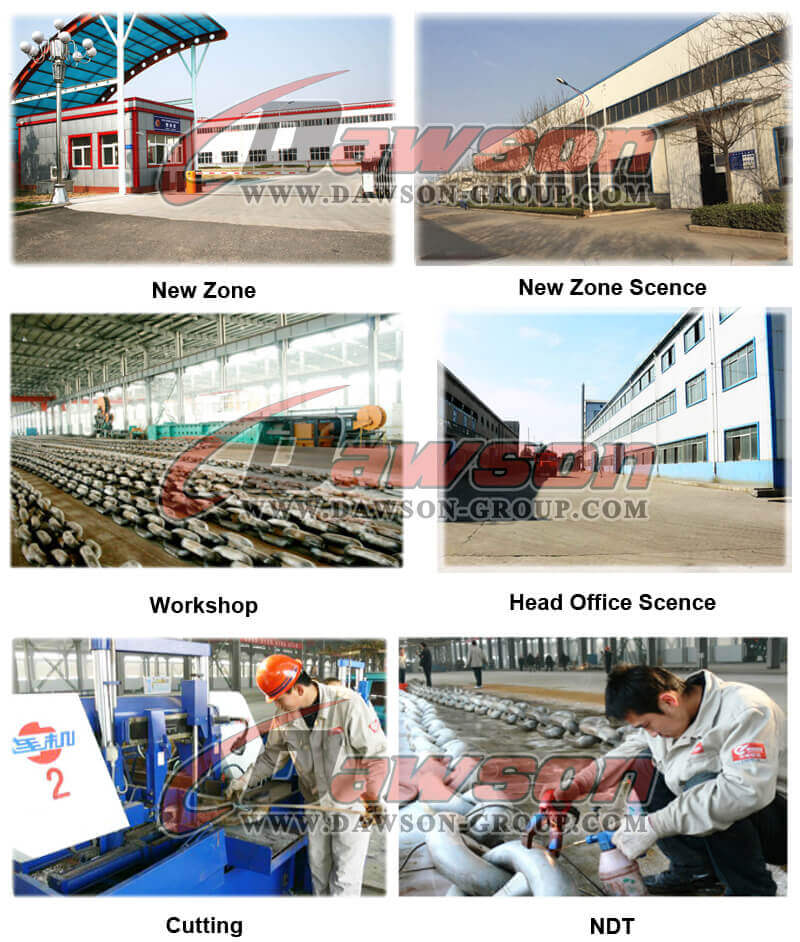

Factory & Test Show:

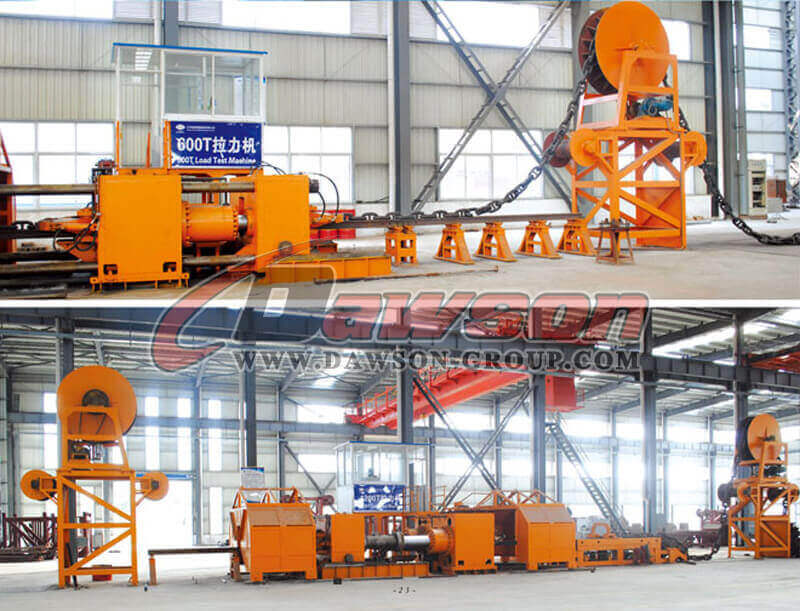

Load Test Machine:
