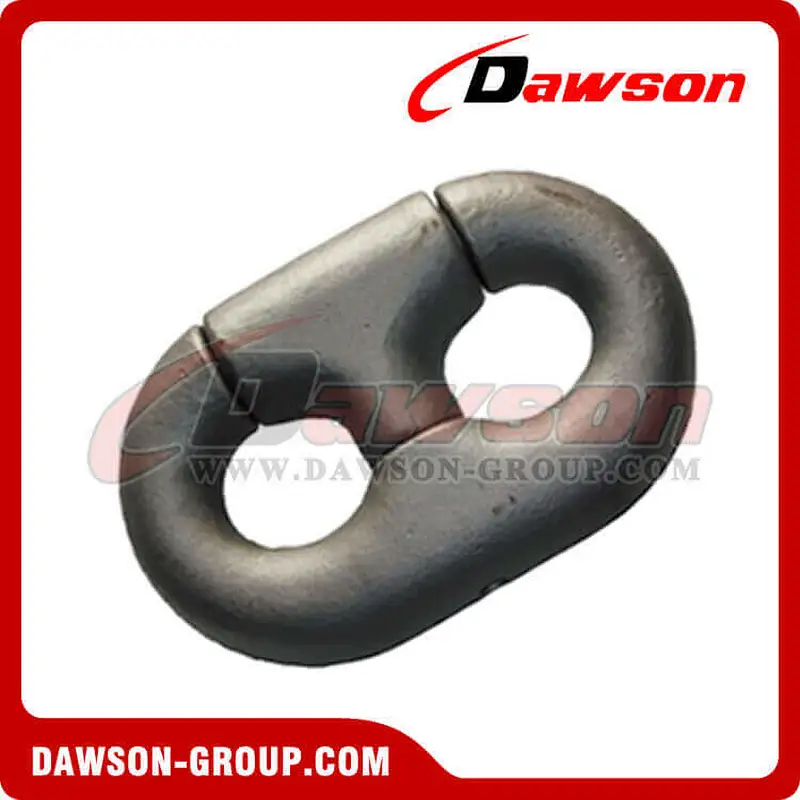

C Shaped Detachable Chain Connecting Link for Oil Platform Mooring Chain
- Dawson Group Ltd. - China Manufacturer Supplier, Factory

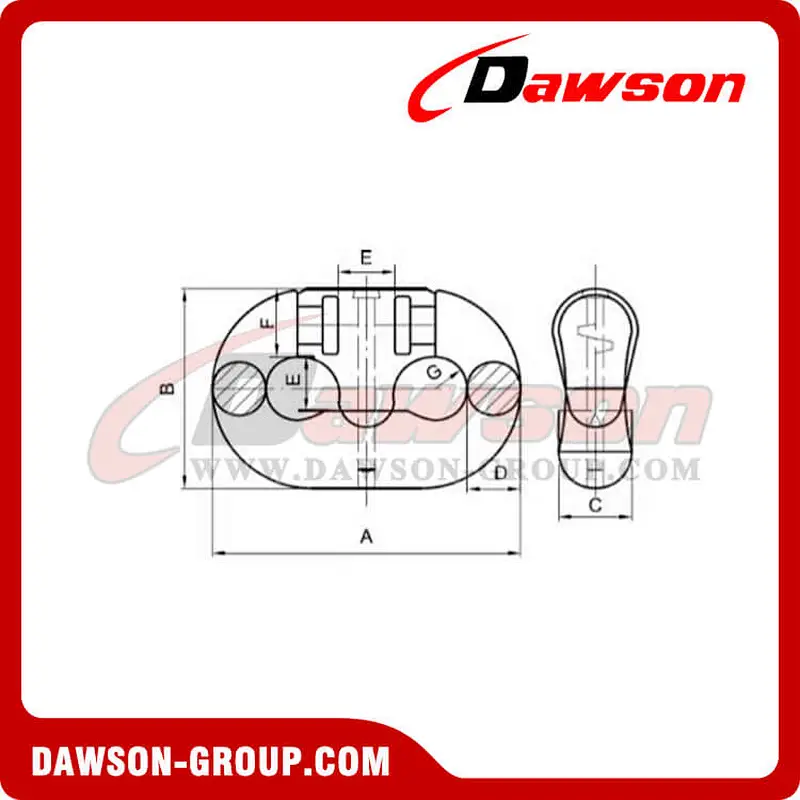

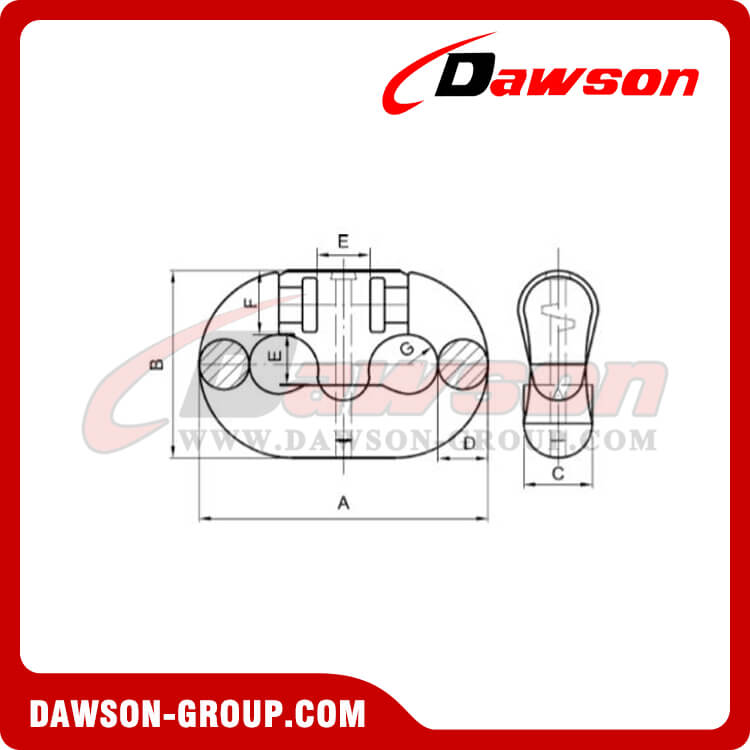

| Chain size | A | B | C | D | E | F | G | Weight(kg) |
| 30-32 | 190.5 | 127 | 44 | 32 | 35 | 39 | 21 | 4.5 |
| 33-35 | 210 | 140 | 49 | 35 | 39 | 42 | 23 | 6.0 |
| 36-38 | 229 | 152 | 53 | 38 | 43 | 46 | 25 | 7.8 |
| 40-42 | 248 | 165 | 57 | 41 | 50 | 50 | 27 | 10.0 |
| 43-44 | 267 | 190 | 62 | 44 | 51 | 56 | 30 | 12.5 |
| 46-48 | 286 | 194 | 64 | 48 | 55 | 60 | 31 | 14.5 |
| 50-51 | 305 | 197 | 64 | 51 | 59 | 64 | 33 | 16.5 |
| 52-54 | 324 | 210 | 67 | 54 | 64 | 67 | 36 | 20.0 |
| 56-58 | 343 | 221 | 71 | 57 | 67 | 71 | 38 | 23.5 |
| 59-60 | 362 | 234 | 78 | 60 | 70 | 75 | 40 | 27.5 |
| 62-64 | 381 | 246 | 79 | 64 | 73 | 78 | 42 | 32.0 |
| 66-67 | 400 | 246 | 83 | 67 | 78 | 79 | 44 | 37.0 |
| 68-70 | 419 | 275 | 92 | 73 | 83 | 90 | 46 | 45.5 |
| 71-73 | 438 | 283 | 94 | 73 | 85 | 93 | 48 | 48.5 |
| 74-76 | 457 | 308 | 95 | 76 | 90 | 94 | 50 | 54.5 |
| 78-79 | 476 | 309 | 102 | 79 | 92 | 96 | 82 | 62.5 |
| 81-83 | 495 | 320 | 103 | 83 | 92 | 103 | 55 | 73.0 |
| 84-86 | 514 | 392 | 107 | 86 | 100 | 107 | 57 | 80.5 |
| 87-89 | 537 | 350 | 116 | 92 | 105 | 114 | 59 | 93.5 |
| 90-92 | 552 | 356 | 119 | 92 | 106 | 116 | 61 | 97.5 |
| 94-95 | 571 | 368 | 122 | 95 | 114 | 119 | 62 | 116 |
| 97-98 | 590 | 381 | 127 | 98 | 117 | 121 | 67 | 123.0 |
| 100-102 | 607 | 394 | 132 | 102 | 119 | 122 | 68 | 130.0 |

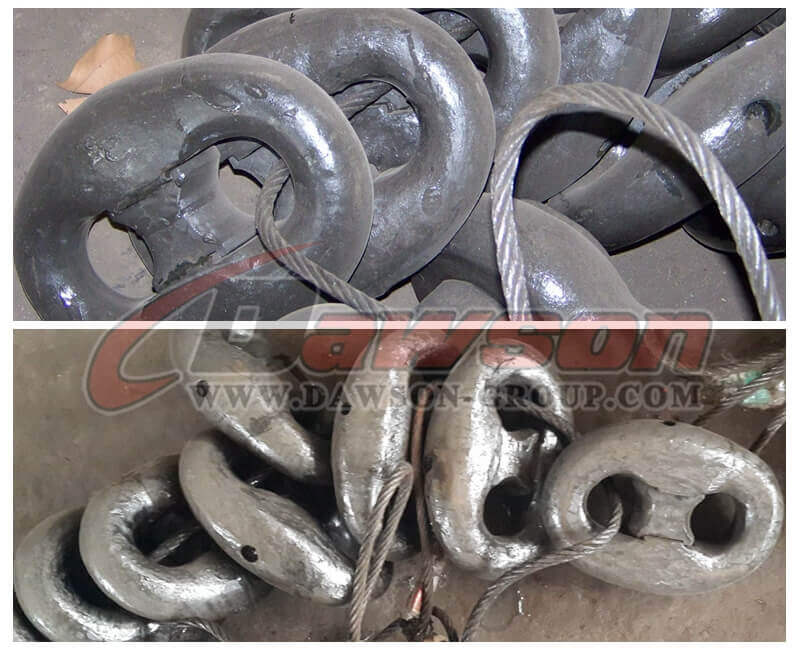

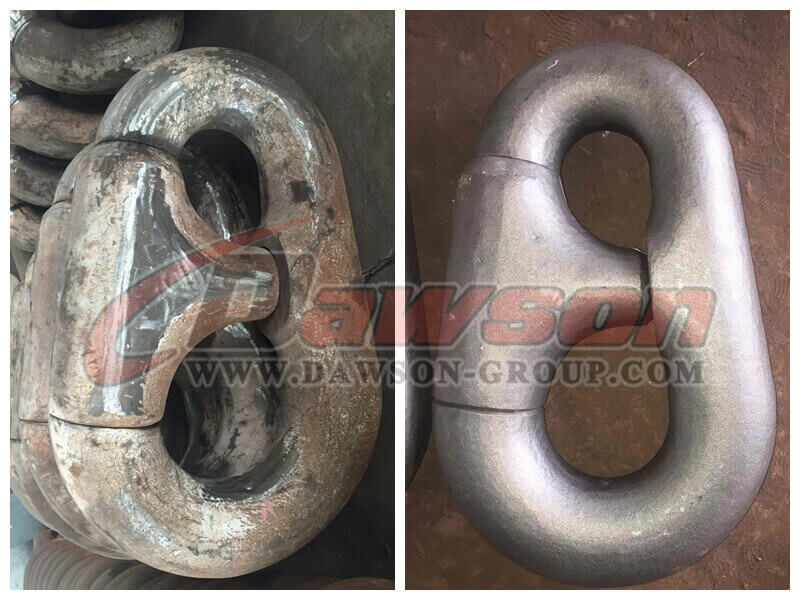

China Detachable Chain Connecting Link C type:
Connecting Link C type is used for connecting the mooring lines for the same size, widely used for mooring chains.
For more information, please feel free to contact us. info@dawson-group.com!
The measurement / size may be different between the table and goods delivered, please check with us when order placed.
Other related products:

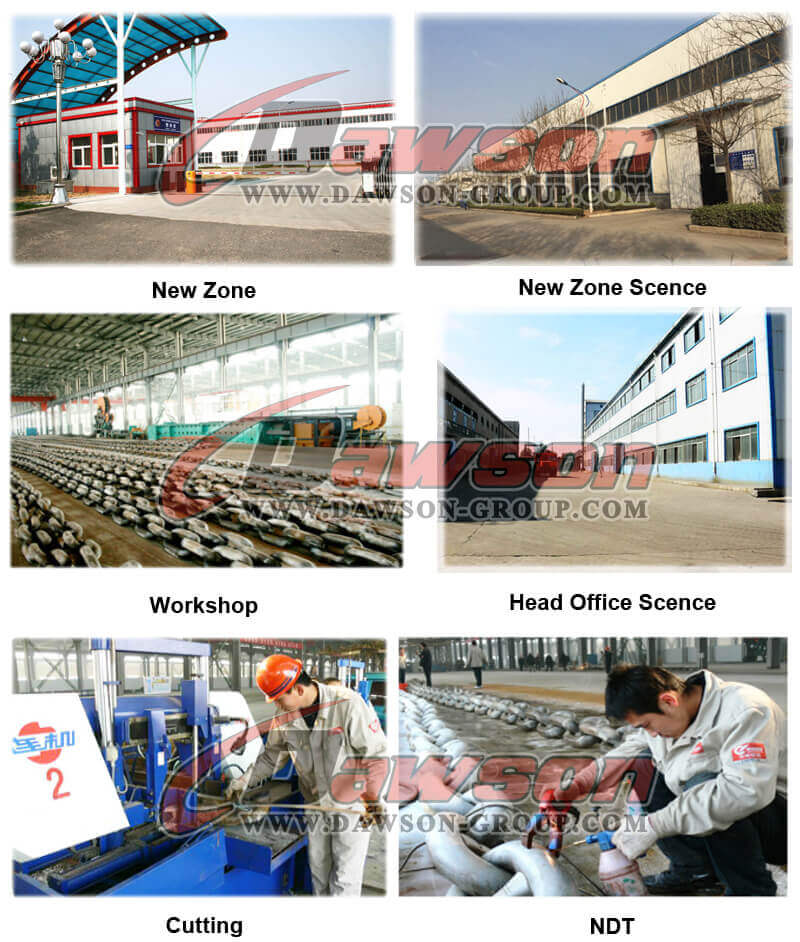

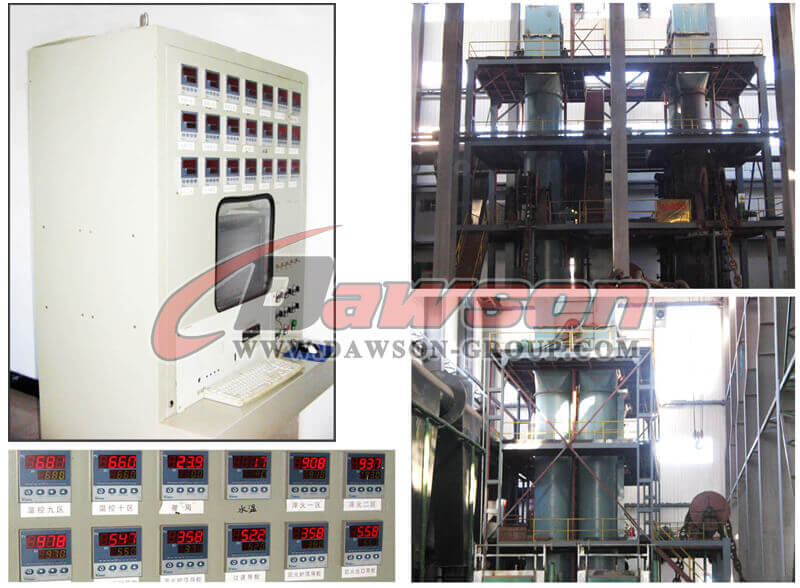

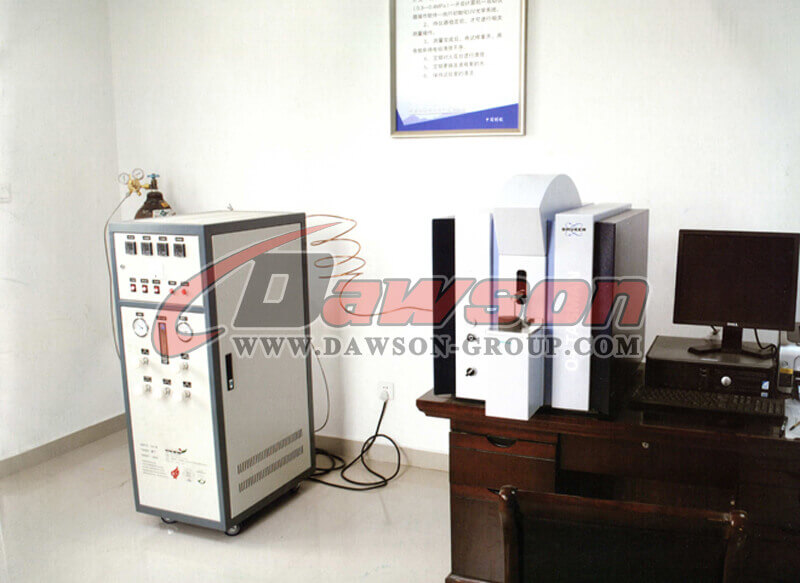

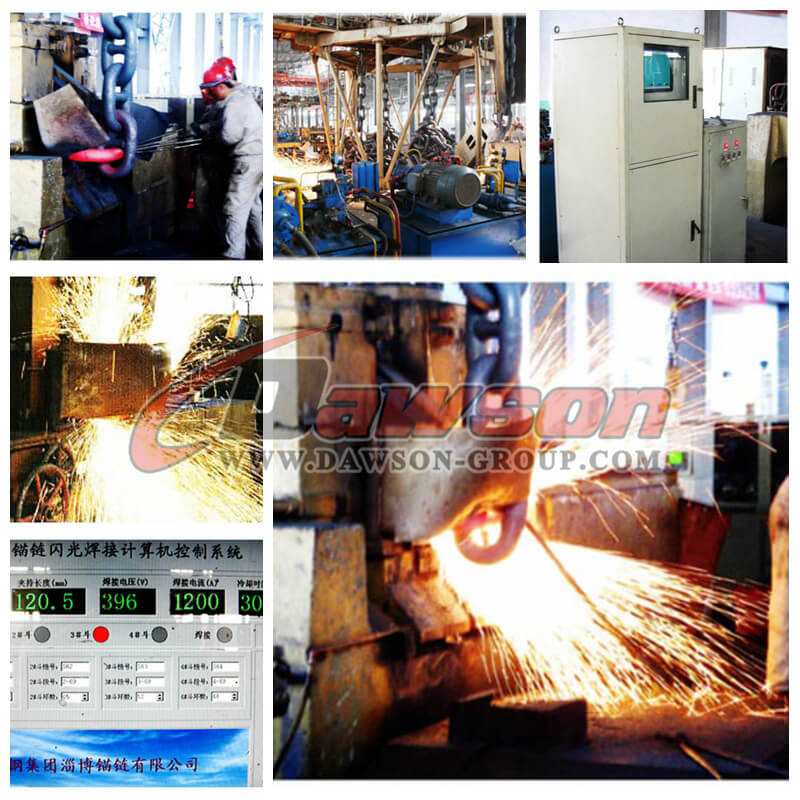

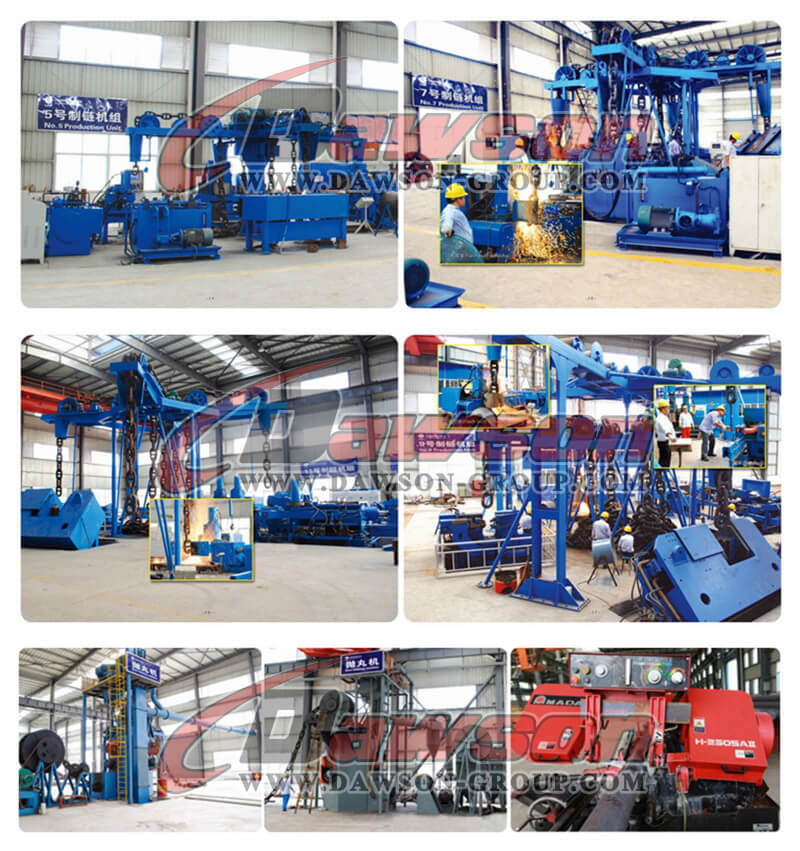

Factory & Test Show:

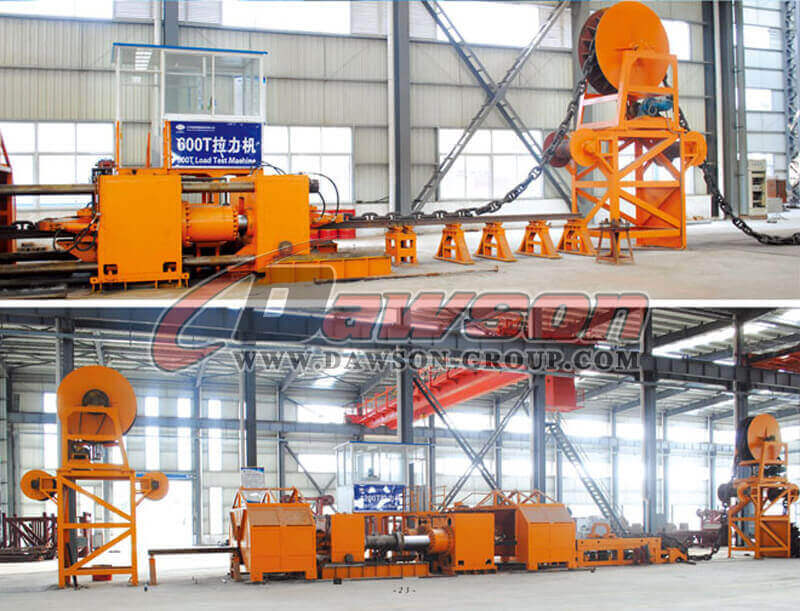

Load Test Machine Show:
