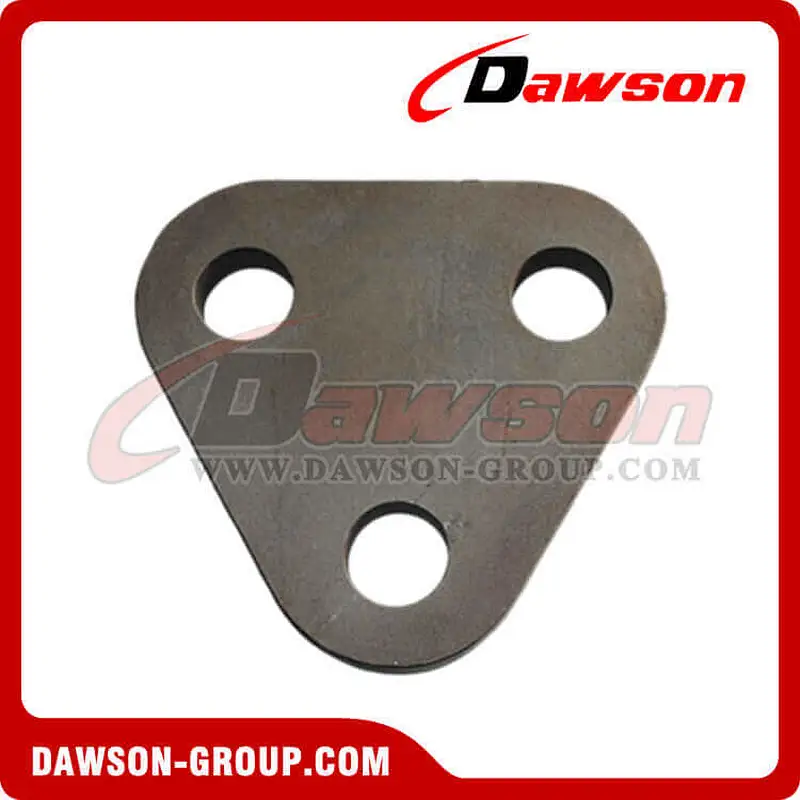

High Tensile Steel Three Hole Triangle Plate, Mooring Plate
- Dawson Group Ltd. - China Manufacturer Supplier, Factory

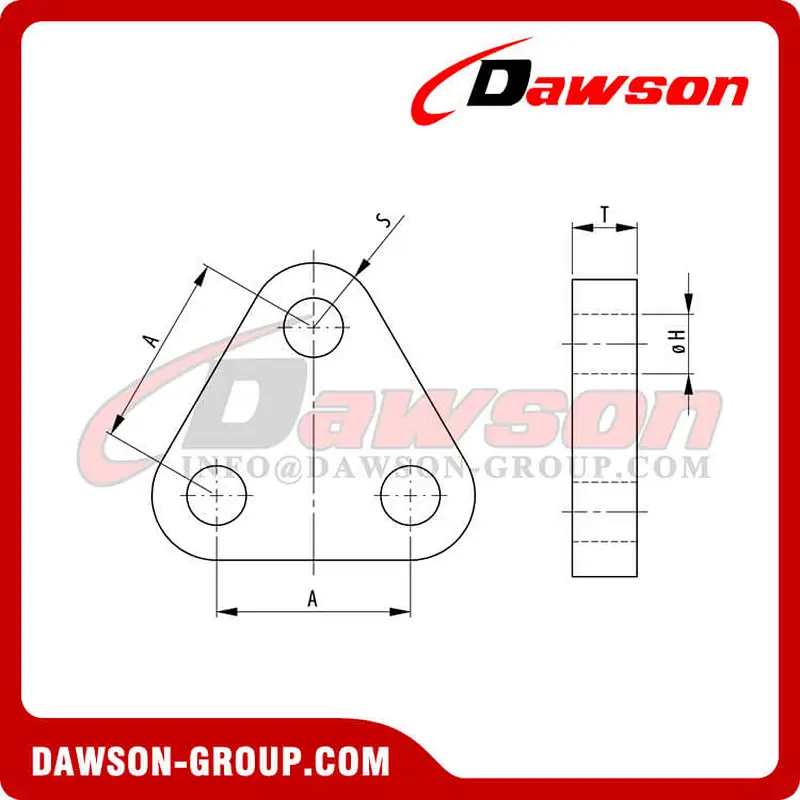

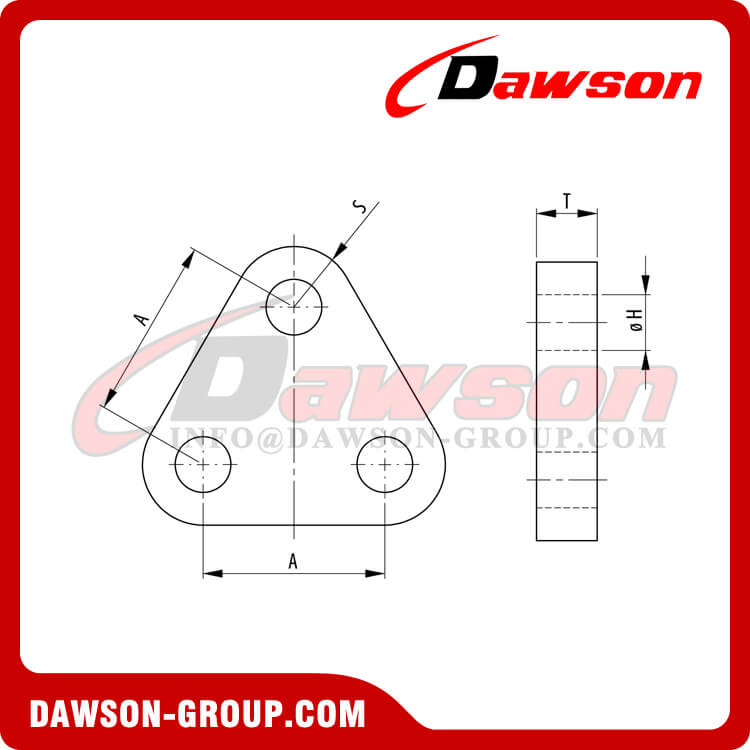

| Model No. | WLL(t) | MBL(t) | Dimensions(mm) | Weight(kg) | |||
| A | ΦH | T | S | ||||
| DS-TP 40,35,9.5 | 9.5 | 47.5 | 100 | 35 | 40 | 35 | 5 |
| DS-TP 40,40,12 | 12 | 60 | 110 | 40 | 40 | 40 | 6.5 |
| DS-TP 45,42,13.5 | 13.5 | 67.5 | 120 | 42 | 45 | 42.5 | 8.5 |
| DS-TP 45,45,17 | 17 | 85 | 130 | 45 | 45 | 50 | 9.5 |
| DS-TP 50,55,25 | 25 | 125 | 140 | 55 | 50 | 65 | 13.5 |
| DS-TP 60,60,35 | 35 | 175 | 150 | 60 | 60 | 70 | 19 |
| DS-TP 80,75,55 | 55 | 275 | 180 | 75 | 80 | 85 | 37.5 |
| DS-TP 90,90,85 | 85 | 425 | 220 | 90 | 90 | 110 | 62 |
| DS-TP 110,105,120 | 120 | 600 | 240 | 105 | 110 | 130 | 95 |
| DS-TP 130,115,150 | 150 | 750 | 260 | 115 | 130 | 135 | 133 |
| DS-TP 140,115,175 | 175 | 875 | 290 | 115 | 140 | 145 | 163 |
| DS-TP 150,140,200 | 200 | 1000 | 380 | 140 | 150 | 160 | 282 |
| DS-TP 170,150,250 | 250 | 1250 | 450 | 150 | 170 | 175 | 413 |
| DS-TP 170,160,300 | 300 | 1500 | 400 | 160 | 170 | 230 | 606 |
| DS-TP 200,180,400 | 400 | 2000 | 480 | 180 | 200 | 260 | 964 |
| DS-TP 200,200,500 | 500 | 2500 | 500 | 200 | 200 | 310 | 1234 |
| DS-TP 250,220,600 | 600 | 3000 | 550 | 220 | 250 | 310 | 1640 |
| DS-TP 250,230,700 | 700 | 3500 | 580 | 230 | 250 | 340 | 1927 |
| DS-TP 250,235,800 | 800 | 4000 | 590 | 235 | 250 | 380 | 2265 |
| DS-TP 280,245,900 | 900 | 4500 | 620 | 245 | 280 | 410 | 2910 |
| DS-TP 300,255,1000 | 1000 | 5000 | 650 | 255 | 300 | 430 | 3434 |
| DS-TP 320,285,1250 | 1250 | 6250 | 730 | 285 | 320 | 490 | 4719 |
| DS-TP 320,305,1500 | 1500 | 7500 | 780 | 305 | 320 | 570 | 6064 |
Minimum Ultimate Strength=5*WLL
Other sizes possible.

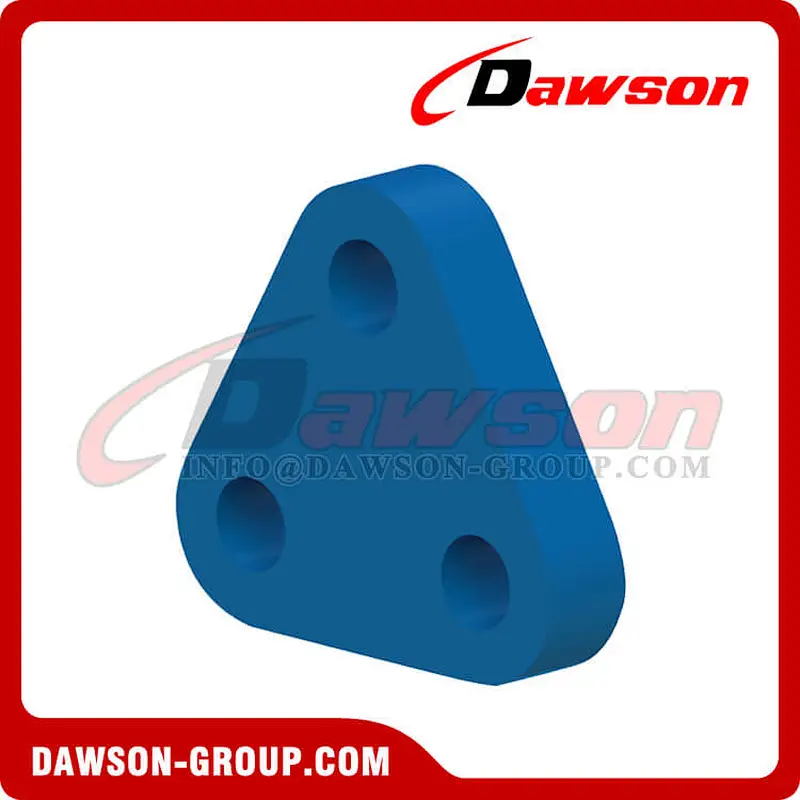

Painted blue(RAL 5017).
Material certificate according EN 10204 3.1 included.
Proof Load certificate included.
China Triangle plate: Triangle plate is widely used for mooring system in the offshore field. We can supply according to your requirement. For more information, please contact us, info@dawson-group.com!
