Marine Open Link Anchor Chain for Offshore Mooring
- Dawson Group Ltd. - China Manufacturer Supplier, Factory

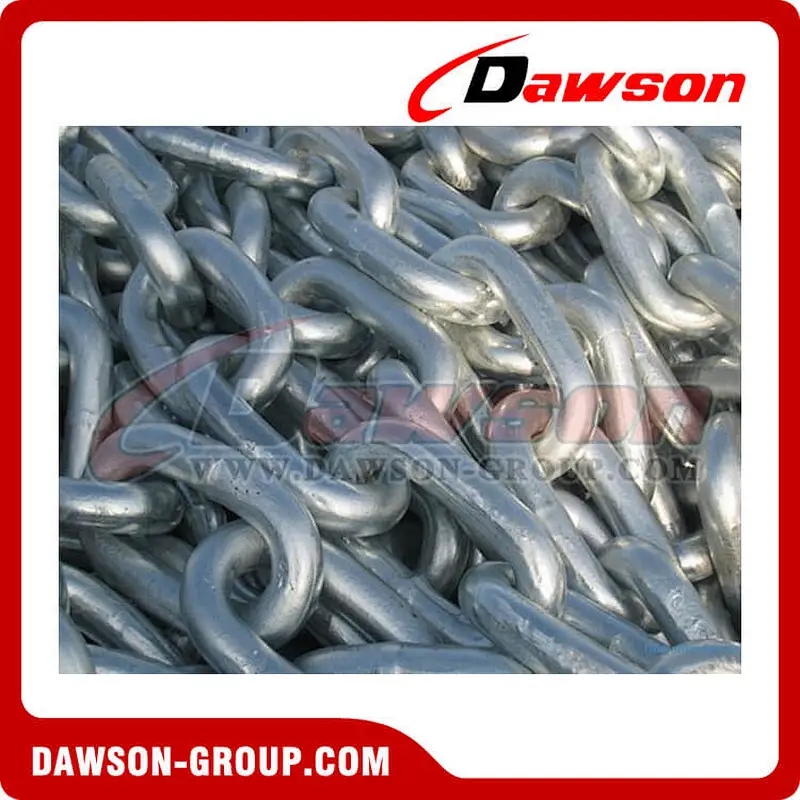

Marine open link anchor chains are also called studless link anchor chains. It is often used for offshore moorings.
Product Detail
1. Chain Diameter: 16mm to 70mm
2. Grade: U1/U2/U3
3. Material: CM370, CM490, CM690
4. Surface: Self-colored, hot dip galvanized, painted black or as required
5. Certificate: CCS, ABS, LR, BV, NK, GL,DNV,RS, IRS etc.
6. Application: offshore moorings
Specification

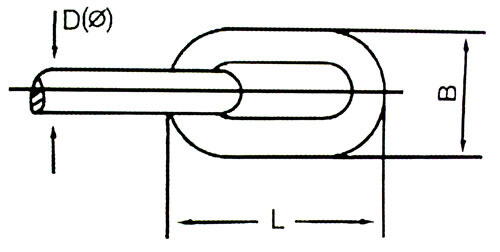

Open Link Anchor Chain/Studless Anchor Chain, Link Size (6*3.6D), Test Load and Weight | |||||||||

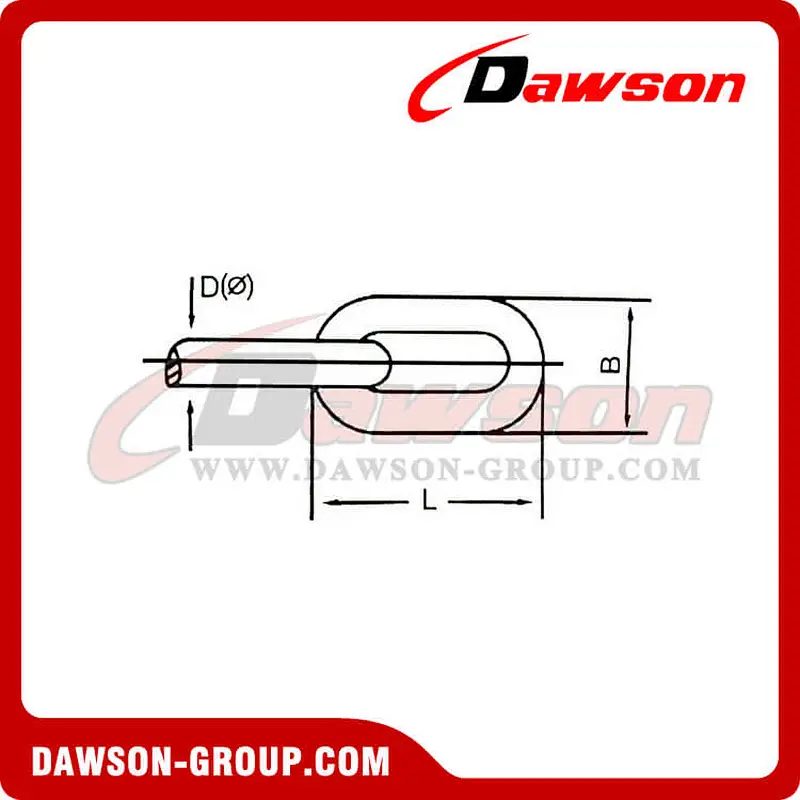

Diameter D(Φ) | Chain Link Size | BM1/U1 Open Link Chain | BM2/U2 Open Link Chain | BM3/U3 Open Link Chain | Approx Weight | ||||
Outside Length(L) | Outside Width(B) | Proof Load | Breaking Load | Proof Load | Breaking Load | Proof Load | Breaking Load | 27.5m | |
MM | MM | MM | KN | KN | KN | KN | KN | KN | KG |
16 | 96 | 57.6 | 47.10 | 94.72 | 66.20 | 132.30 | 92.42 | 184.83 | 139.43 |
17.5 | 105 | 63 | 56.35 | 113.31 | 78.89 | 157.78 | 110.55 | 221.10 | 178.35 |
19 | 114 | 68.4 | 66.42 | 133.57 | 93.60 | 187.20 | 130.32 | 260.64 | 217.68 |
20.5 | 123 | 73.8 | 77.33 | 155.49 | 108.64 | 217.27 | 151.70 | 303.42 | 229.14 |
22 | 132 | 79.2 | 89.06 | 179.08 | 125.40 | 250.90 | 174.40 | 349.40 | 264.49 |
24 | 144 | 86.4 | 105.98 | 213.25 | 149.90 | 298.90 | 207.90 | 415.80 | 341.82 |
26 | 156 | 93.6 | 124.38 | 250.12 | 175.40 | 350.80 | 244.00 | 488.00 | 369.94 |
28 | 168 | 100.8 | 144.26 | 290.08 | 203.80 | 406.70 | 283.00 | 566.00 | 427.98 |
30 | 180 | 108 | 165.60 | 333.00 | 234.20 | 467.50 | 324.00 | 649.80 | 490.98 |
32 | 192 | 115.2 | 188.42 | 378.88 | 265.60 | 531.20 | 369.60 | 739.30 | 559.65 |
34 | 204 | 122.4 | 212.70 | 427.72 | 299.90 | 599.80 | 417.30 | 834.60 | 671.52 |
36 | 216 | 129.6 | 238.46 | 479.52 | 336.10 | 672.30 | 467.80 | 935.70 | 707.85 |
38 | 228 | 136.8 | 265.70 | 534.28 | 374.40 | 748.70 | 521.30 | 1042.50 | 788.98 |
40 | 240 | 144 | 294.40 | 592.00 | 414.50 | 829.10 | 577.60 | 1155.20 | 869.36 |
42 | 252 | 151.2 | 324.58 | 652.68 | 457.70 | 915.30 | 636.80 | 1273.60 | 959.30 |
44 | 264 | 158.4 | 356.22 | 716.32 | 502.70 | 999.60 | 698.90 | 1398.00 | 1111.25 |
46 | 276 | 165.6 | 389.34 | 782.92 | 548.80 | 1097.60 | 763.90 | 1527.80 | 1152.07 |
48 | 288 | 172.8 | 423.94 | 852.48 | 597.80 | 1195.60 | 831.70 | 1663.50 | 1256.26 |
50 | 300 | 180 | 460.00 | 926.09 | 648.80 | 1293.60 | 902.50 | 1805.00 | 1360.41 |
52 | 312 | 187.2 | 497.54 | 1000.48 | 697.63 | 1395.26 | 976.14 | 1952.28 | 1485.61 |
54 | 324 | 194.4 | 536.54 | 1078.92 | 752.33 | 1504.66 | 1052.68 | 2105.36 | 1648.08 |
56 | 336 | 201.6 | 577.02 | 1160.32 | 809.09 | 1618.18 | 1132.10 | 2264.20 | 1715.97 |
58 | 348 | 208.8 | 618.98 | 1244.68 | 867.91 | 1735.82 | 1214.40 | 2428.80 | 1844.50 |
60 | 360 | 216 | 662.40 | 1332.00 | 928.80 | 1857.60 | 1299.60 | 2599.20 | 1973.29 |
62 | 372 | 223.2 | 707.30 | 1422.28 | 991.75 | 1983.50 | 1387.68 | 2775.36 | 2101.56 |
64 | 384 | 230.4 | 753.66 | 1515.52 | 1056.77 | 2113.54 | 1478.66 | 2957.32 | 2298.10 |
66 | 396 | 237.6 | 801.50 | 1611.72 | 1123.85 | 2247.70 | 1572.52 | 3145.04 | 2398.10 |
68 | 408 | 244.8 | 850.82 | 1710.88 | 1192.99 | 2385.98 | 1669.26 | 3338.52 | 2522.88 |
70 | 420 | 252 | 901.60 | 1813.00 | 1264.20 | 2528.40 | 1768.90 | 3537.80 | 2697.65 |
If you need other anchor chains or mooring chains, please contact us!!!
GENERAL INFORMATION OF ANCHOR CHAIN
● The inside length (grip or pitch) of one link is 4 wire diameters.
● The outside length of one link is 6 wire diameters.
● The outside width of one link is 3.56 wire diameters.
● The gauge-test length is the outside length over 6 links and equals 26 wire diameters.
● The weight of one links is about 3-1/3 times its wire diameter cubed.
● Doubling the wire diameter of one link multiplies its weight by 8.
● The weight of 1 linear foot of chain is 10 times its wire diameter squared.
● The length of a standard 'shot' = 15 fathoms = 90ft.= 1080'.
● The weight of a 90ft. shot = 900 times its wire diameter squared.
● Doubling the wire diameter of a 90ft. shot multiplies its weight by 4.
● Doubling the size of chain theoretically multiplies its strength by 4, in practice, by a trifle less than 4.
● The safe working load of chain is ordinarily assumed as one half the proof test.
How to order anchor chain ?
● Chain Diameter & Grade
●Length: 27.5m or 25m
● Finish: H. D. Galvanized or Black-tarred.
● Quantity of Lengths
● Quantity of Fittings
● Class Certifications: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Mill Certificate
Other related products:

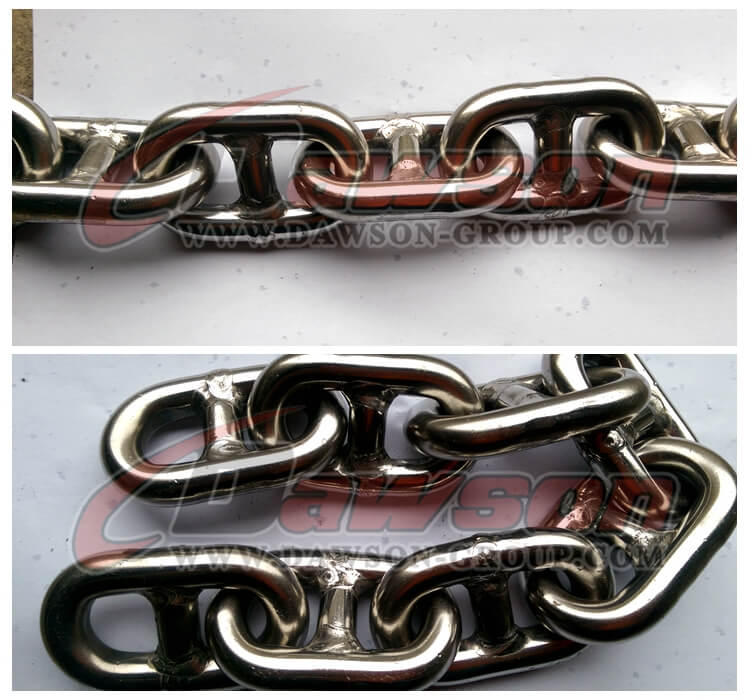

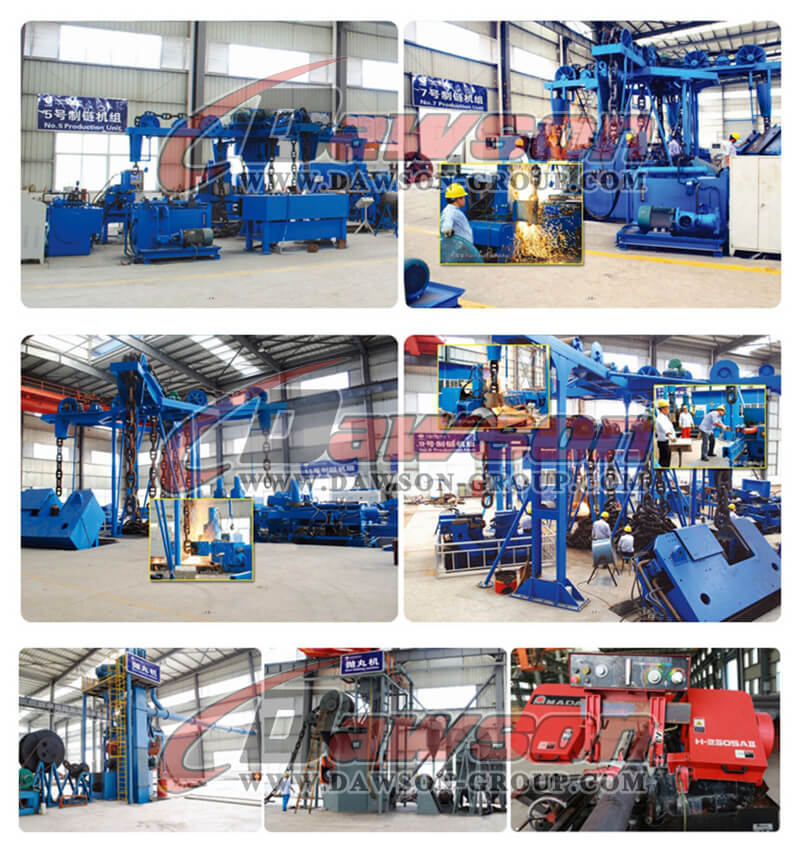

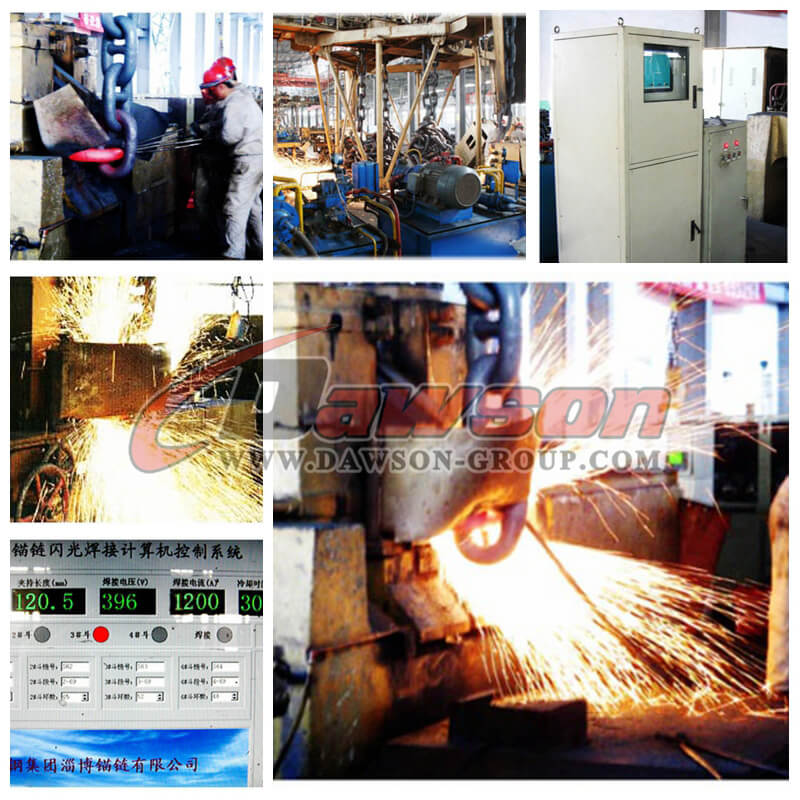

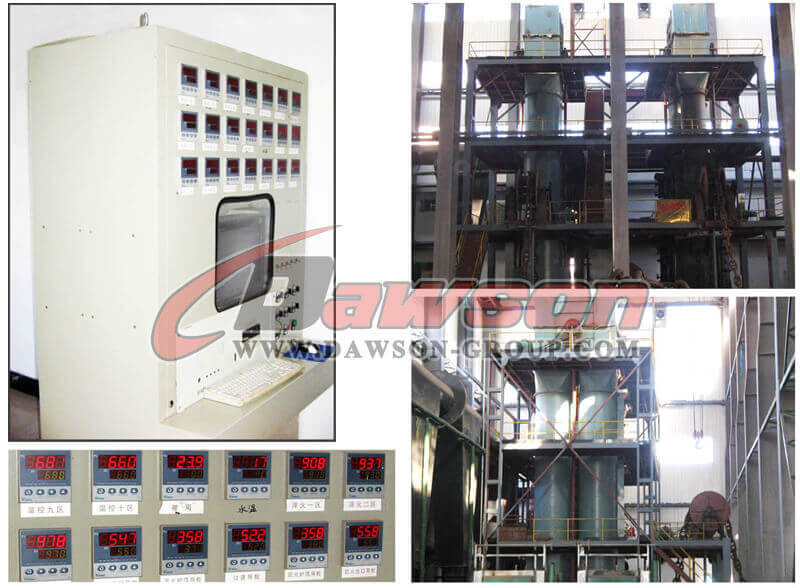

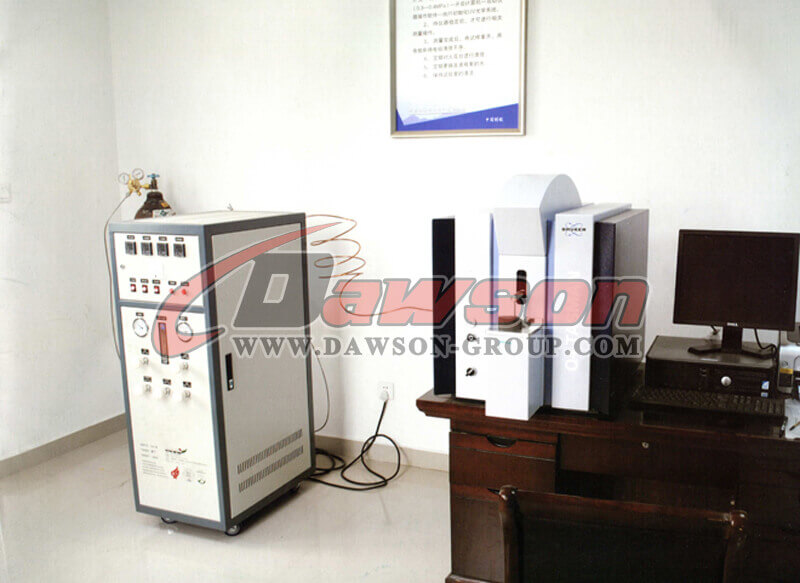

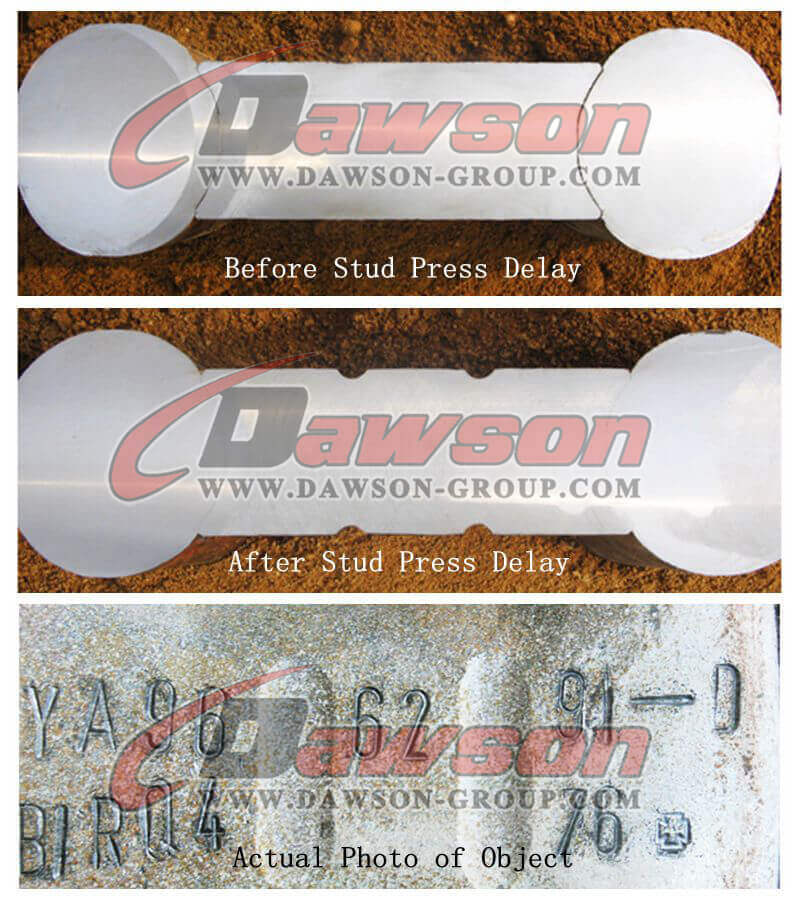

Factory & Test Show:

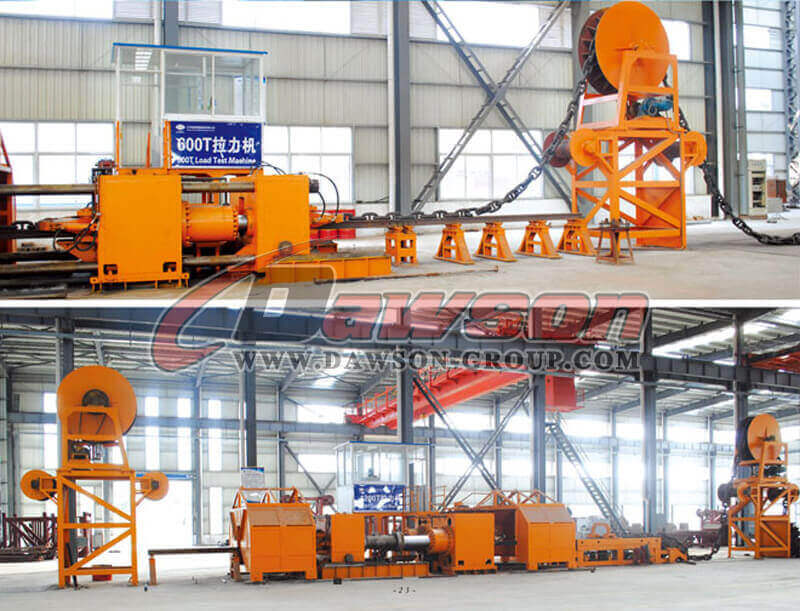

Load Test Machine:

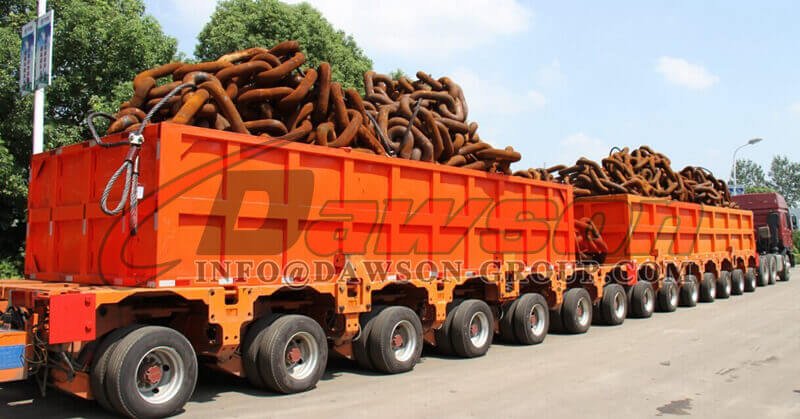

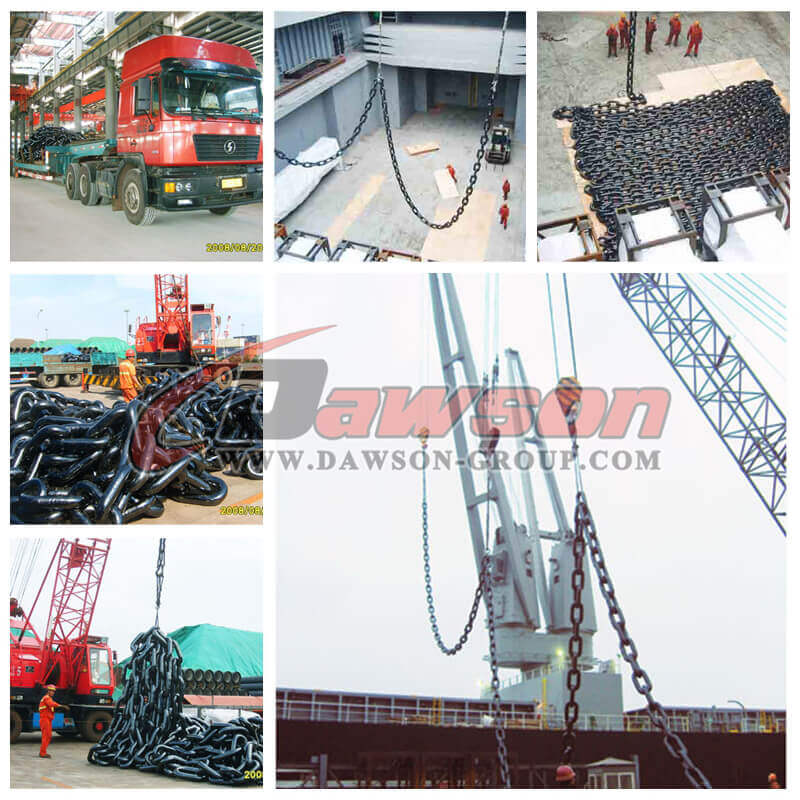

Transport：

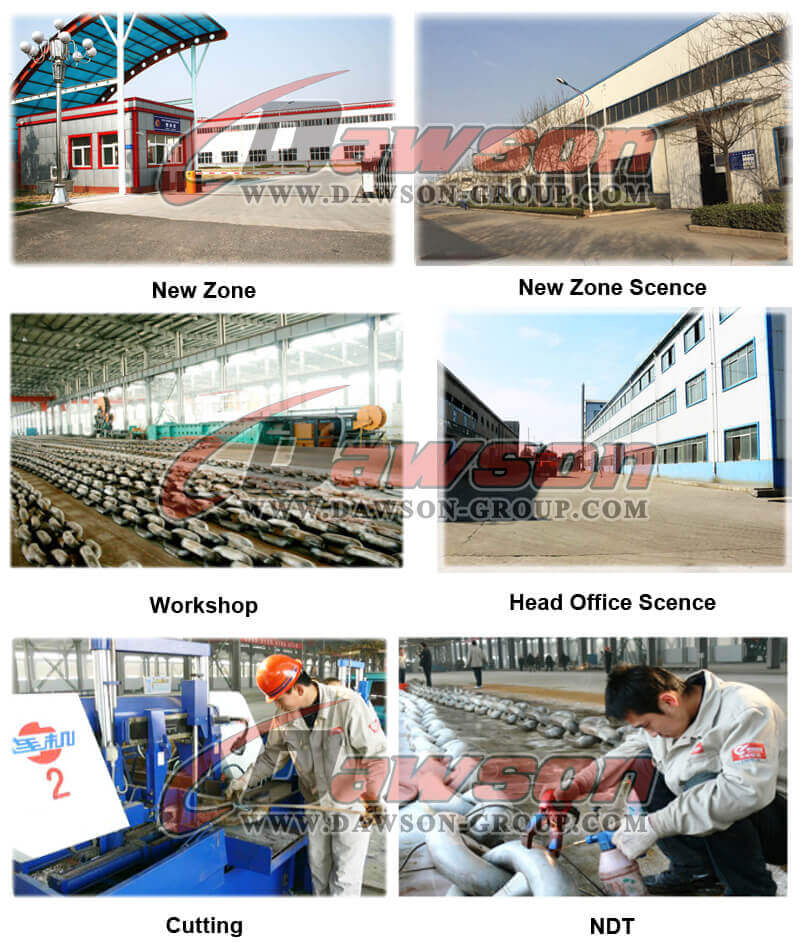

Factory & Package Show:
