Pear Shaped Connecting Shackle for Oil Platform Mooring Chain
Pear Shaped Connecting link Shackles for Swivel to Anchor Shackles or Chain to Anchor Shackles
- Dawson Group Ltd. - China Manufacturer Supplier, Factory

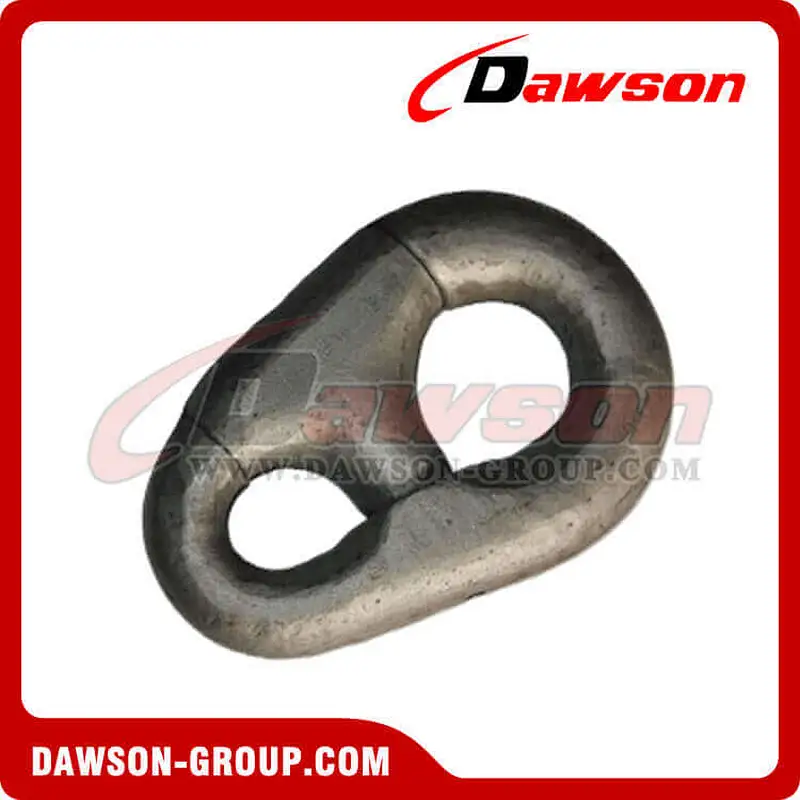

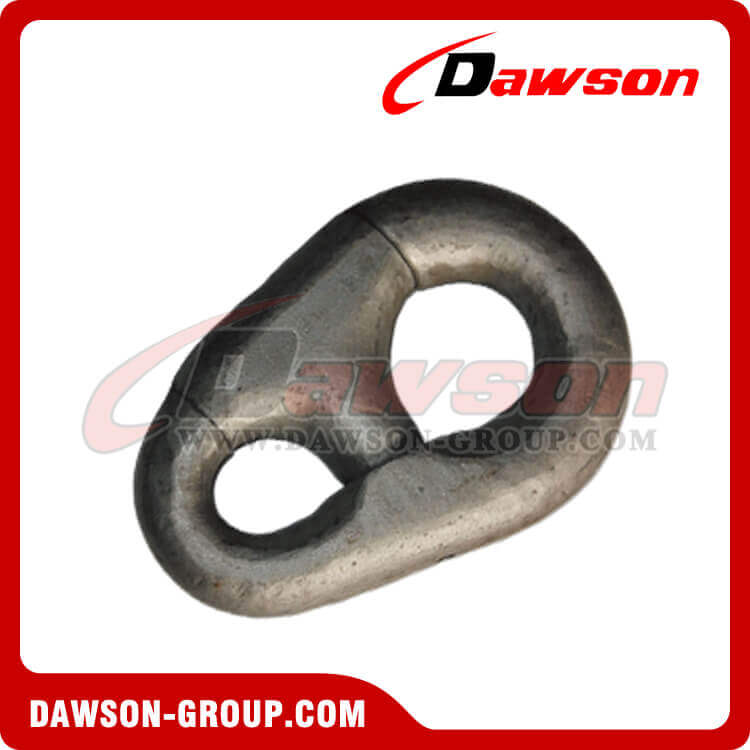

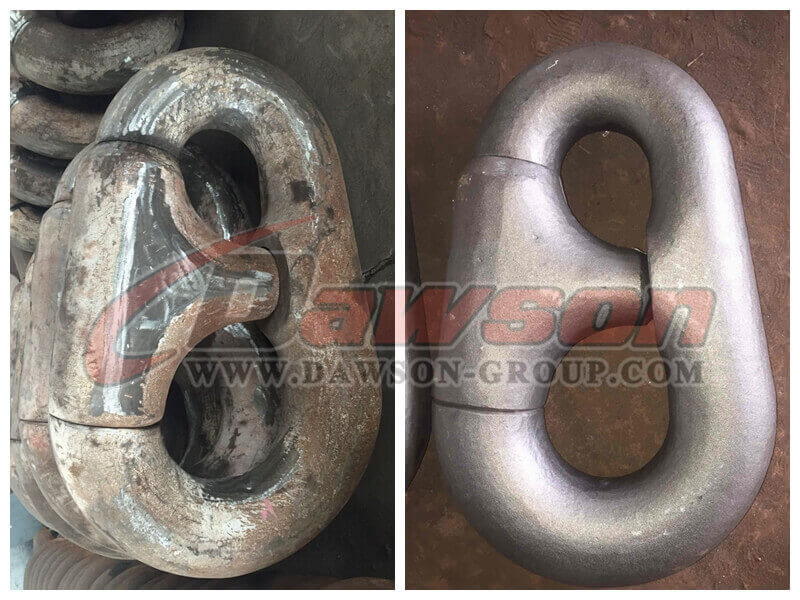

Anchor Joining Link(Pear Link)
Connects Swivel to Anchor Shackle or Chain to Anchor Shackle

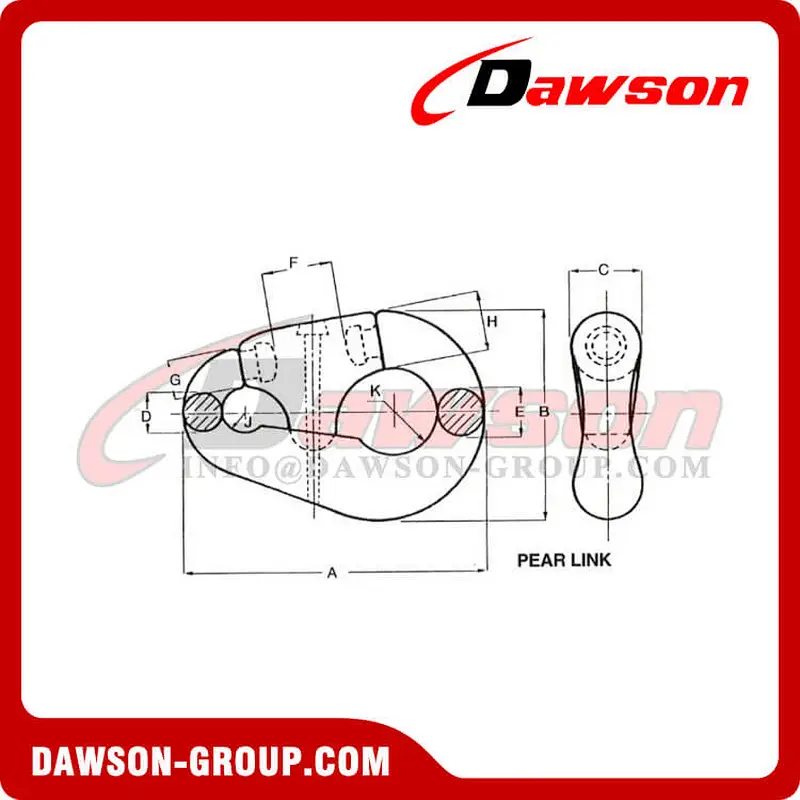

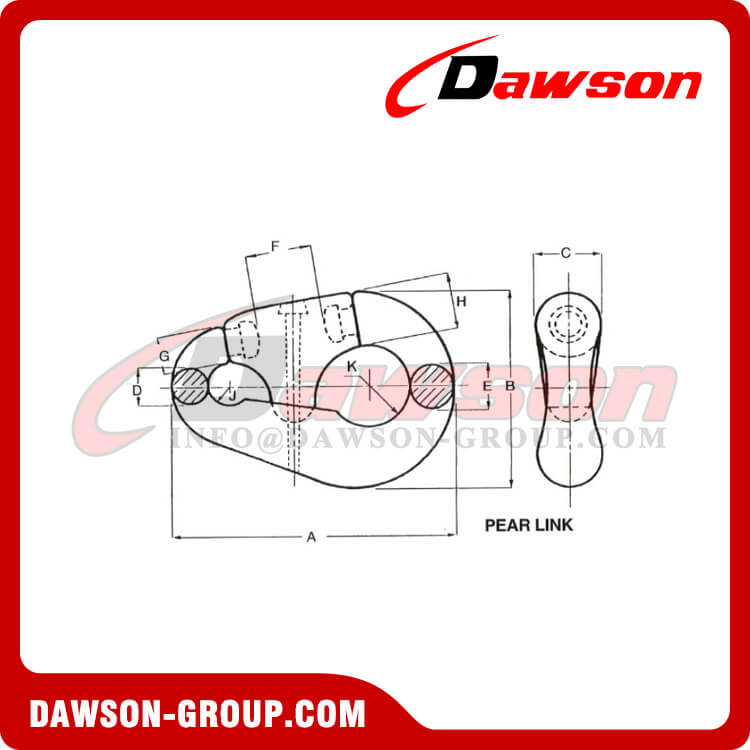

| N° | CHAIN SIZE | A | B | C | D | E | F | G | H | J | k | WEIGHT(*) | PROOF TEST KGF | BREAK TEST KGF | ||
| mm | inches | mm | mm | mm | mm | mm | mm | mm | mm | kg | lbs | |||||
| 2 | 19-24 | 3/4 - 15/16 | 194 | 132 | 38 | 24 | 32 | 57 | 24 | 35 | 17 | 30 | 3.6 | 8.0 | 34000 | 48500 |
| 3 | 25-30 | 1 - 1-3/16 | 238 | 167 | 46 | 30 | 38 | 66 | 33 | 45 | 19 | 35 | 6.5 | 14.0 | 53000 | 75700 |
| 4 | 32-40 | 1-1/4 - 1-9/16 | 299 | 206 | 59 | 40 | 48 | 83 | 40x45 | 56 | 26 | 43 | 14.5 | 32.0 | 91400 | 131000 |
| 5 | 42-51 | 1-5/8 - 2 | 378 | 260 | 76 | 51 | 64 | 100 | 51x60 | 74 | 32 | 52 | 27.0 | 60.0 | 145400 | 207700 |
| 6 | 52-60 | 2-1/16 - 2-3/8 | 454 | 313 | 92 | 60 | 76 | 121 | 62x73 | 88 | 37 | 64 | 49.0 | 107.0 | 199600 | 285200 |
| 7 | 62-79 | 2-7/16 - 3-1/8 | 562 | 376 | 121 | 79 | 95 | 149 | 86x79 | 111 | 48 | 76 | 92.0 | 203.0 | 332100 | 474500 |
| 8 | 81-92 | 3-3/16 - 3-5/8 | 654 | 419 | 133 | 92 | 124 | 149 | 111x102 | 130x133 | 54 | 79 | 149.0 | 328.0 | 434800 | 621200 |
| 9 | 94-95 | 3-11/16 - 3-3/4 | 692 | 435 | 146 | 98 | 130 | 159 | 124x137 | 141 | 57 | 83 | 236.0 | 520.0 | 462300 | 660100 |
| 10 | 97-102 | 3-13/16 - 4 | 889 | 572 | 191 | 121 | 165 | 191 | 130x148 | 181 | 73 | 108 | 386.0 | 850.0 | 522100 | 746000 |
| 11 | 103-108 | 4-1/16 - 4-1/4 | 940 | 610 | 203 | 127 | 175 | 203 | 156 | 200 | 76 | 111 | 418.0 | 920.0 | 577000 | 825000 |
| 12 | 110-114 | 4-5/16 - 4-1/2 | 991 | 648 | 216 | 133 | 184 | 216 | 165x167 | 210x200 | 105 | 114 | 459.0 | 1010.0 | 637300 | 910900 |
China Pear Link:
The Pear connecting link is similar to the connecting link kenter type, the difference is that the pear shape connecting link connect two pieces of mooring line, which have different size.
The measurement / size may be different between the table and goods delivered, please check with us when order placed. info@dawson-group.com!
Certificate:ABS, LR, BV, GL, RINA, DNV, NK, KR, CCS
Other related products:

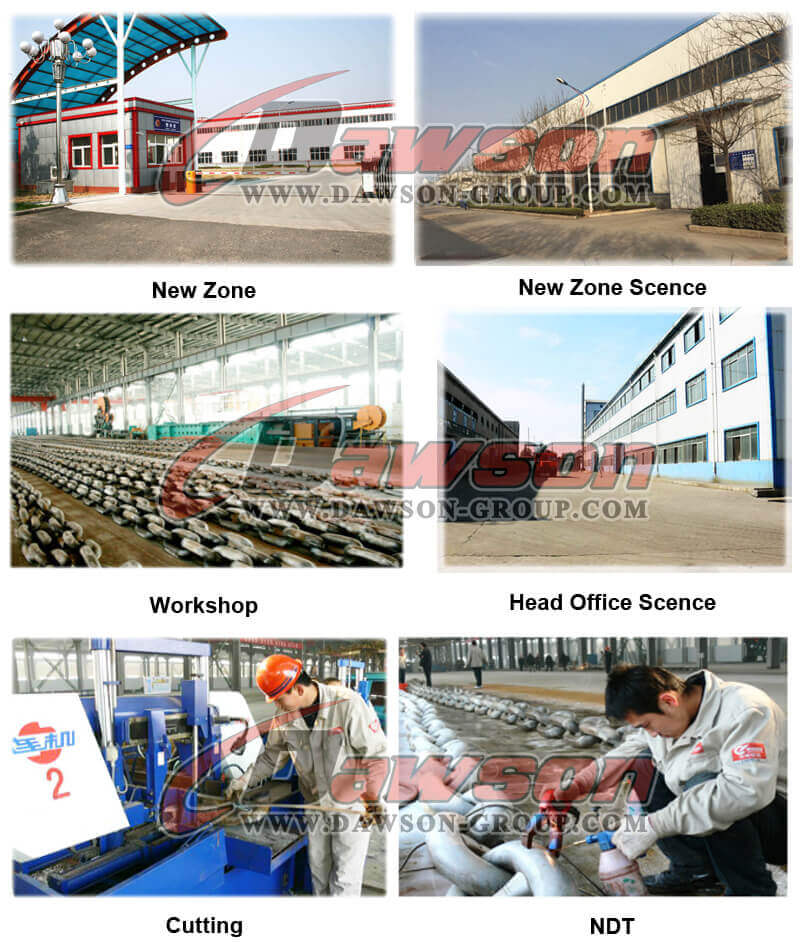

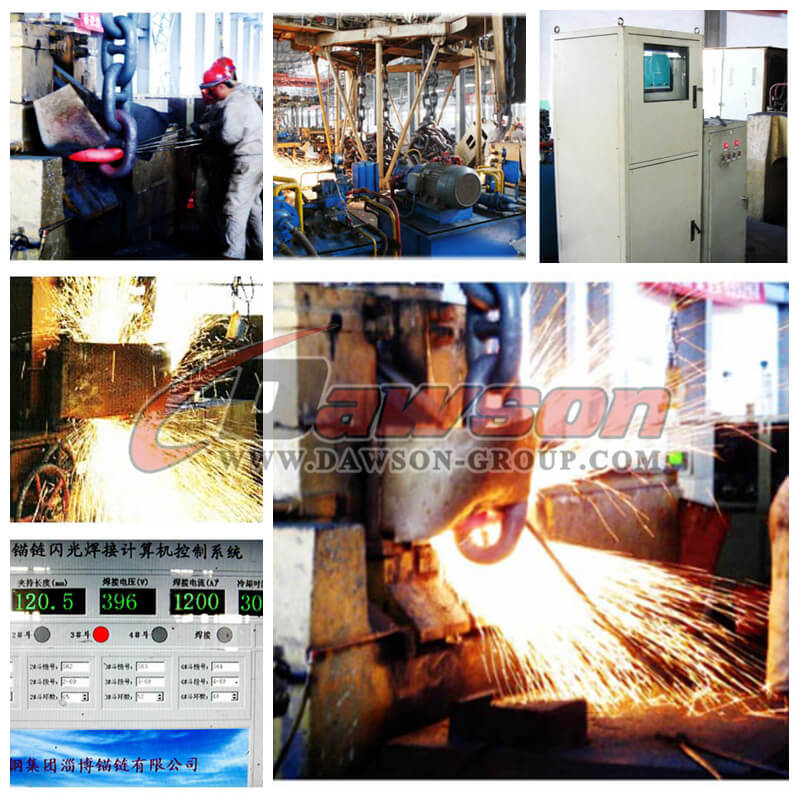

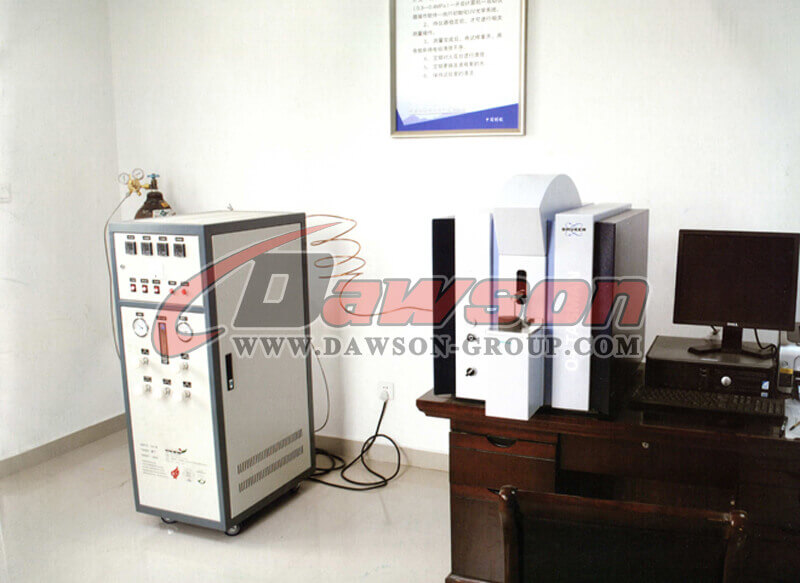

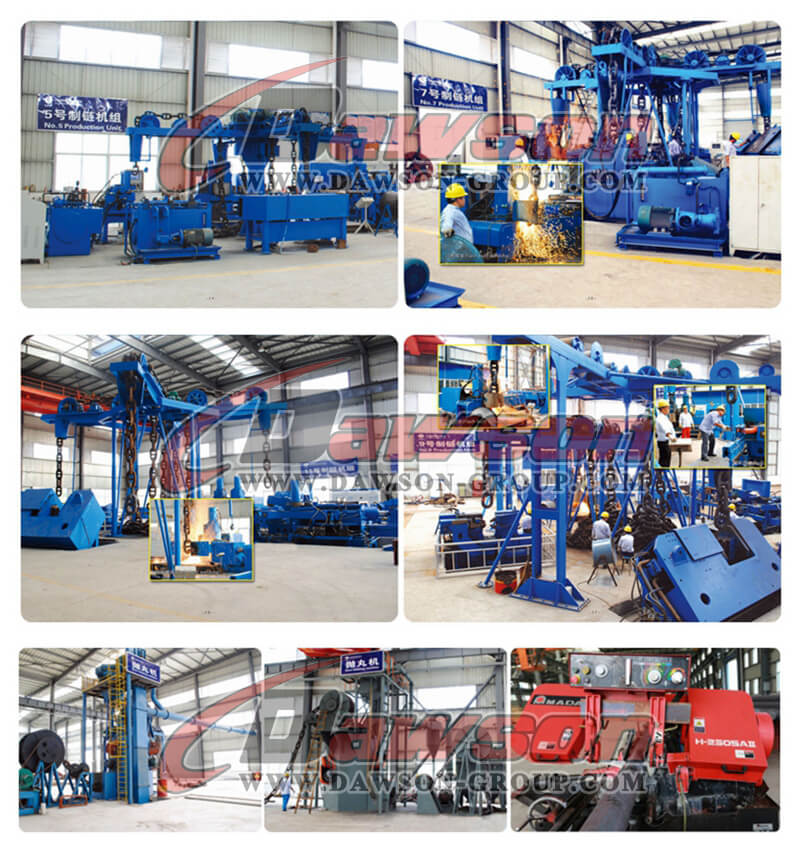

Factory & Test Show:

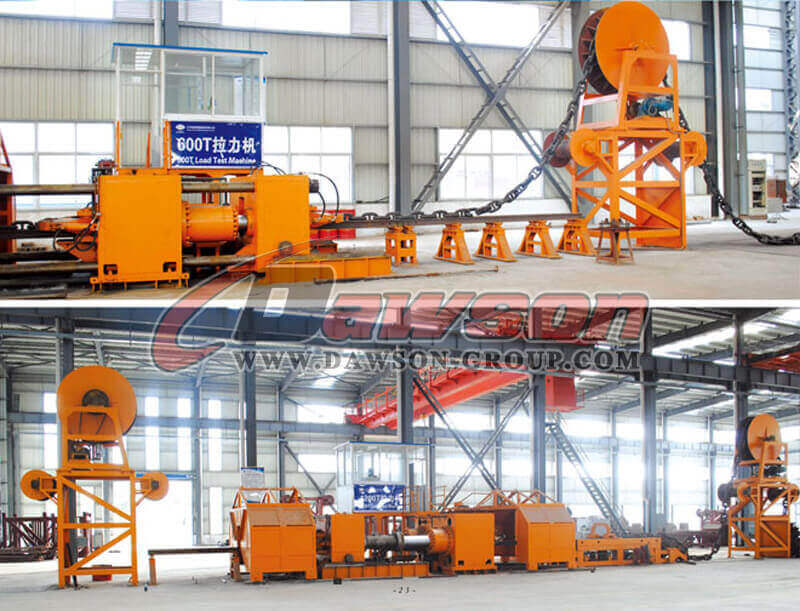

Load Test Machine:
