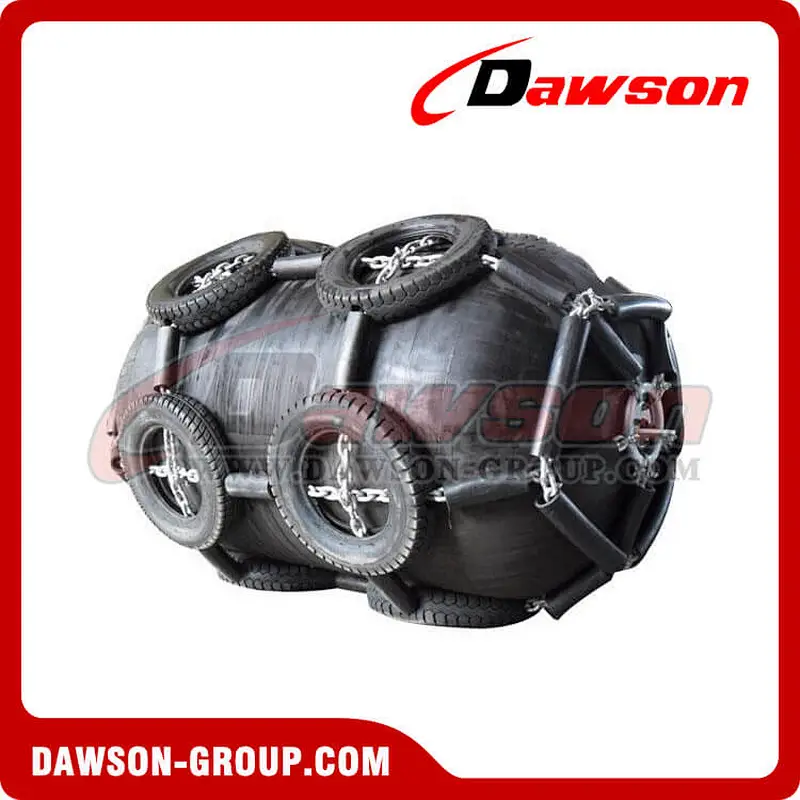

DS-CQ Pneumatic Type Rubber Fender
- Dawson Group Ltd. - China Manufacturer Supplier, Factory
Feature
1. Pneumatic rubber fender make use of inside condensed air as buffer medium, absorb ship attack energy, good resilience, large energy absorb, low reaction force, little surface pressure.
2. Slant compression performance doesn’t lowing down.

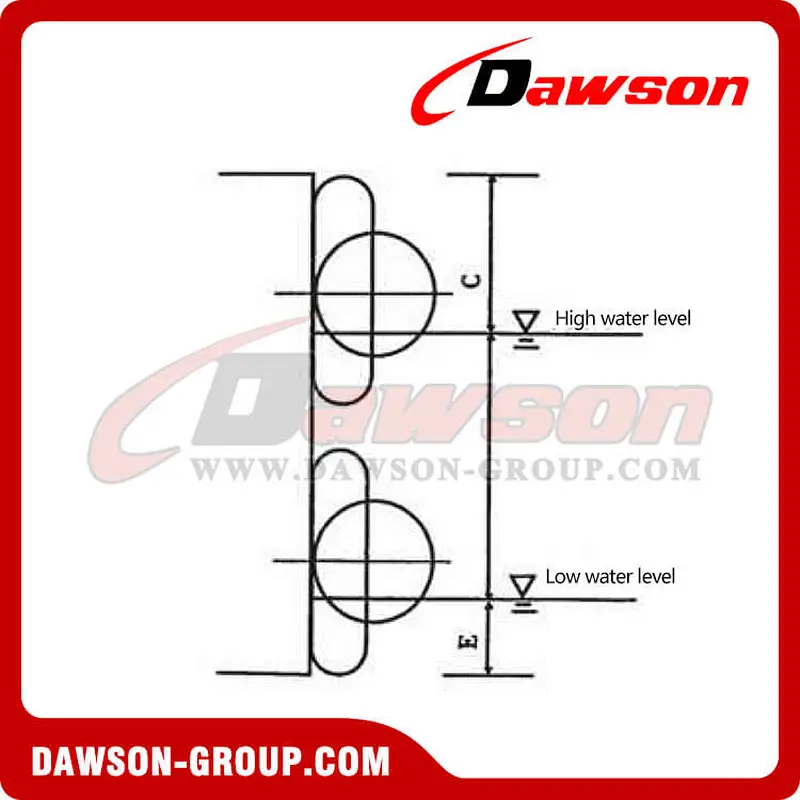

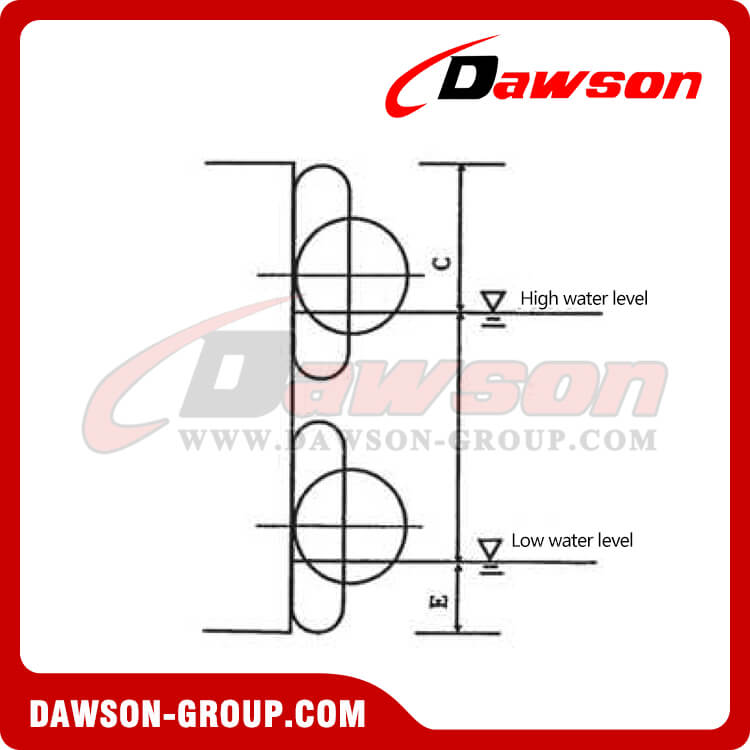

3. Good floating performance doesn’t effect by tide scope, fender can be kept at an ideal waterline.
4. Installation and taking convenient, it widely used all kinds of vessel, barge, large scale dock and dock with large tide scope.
| Specification (mm) | compression | Safety Valve(Kpa) | Testing pressure(kg) | Fender reference weight | Suspending Fender Weight reference(kg) | ||||
| Reaction force (KN) | Energy absorb (KN-M) | Buffer weight(kg) | Net weight | ||||||
| chain(kg) | Steel Thread(kg) | Compound Fiber(kg) | |||||||
| 300x500 | 14 | 1 | - | - | 8 | - | - | - | - |
| 400x800 | 30 | 3 | - | - | 20 | - | - | - | - |
| 500x1000 | 54 | 5 | - | 145 | 25 | - | 30 | 20 | 32 |
| 6000x1000 | 65 | 7 | - | 145 | 28 | - | 30 | 22 | 36 |
| 700x1500 | 115 | 14 | - | 145 | 64 | 150 | 40 | 37 | 55 |
| 1000x1500 | 156 | 28 | - | 145 | 125 | 190 | 80 | 51 | 105 |
| 1000x2000 | 217 | 38 | - | 145 | 175 | 230 | 140 | 68 | 120 |
| 1200x2000 | 253 | 54 | - | 145 | 208 | 300 | 190 | - | 140 |
| 1200x2400 | 303 | 64 | - | 145 | 248 | 320 | 198 | - | - |
| 1350x2500 | 410 | 104 | - | 145 | 270 | 330 | 200 | - | 210 |
| 1500x3000 | 486 | 128 | - | 145 | 225 | 490 | 350 | - | 265 |
| 1700x3000 | 542 | 163 | - | 145 | 365 | 580 | 440 | - | 290 |
| 2000x3500 | 743 | 263 | - | 145 | 585 | -80 | 640 | - | 450 |
| 2200x4500 | 1078 | 417 | - | 145 | 1080 | 1090 | 820 | - | - |
| 2500x4000 | 1049 | 464 | 175.0 | 195 | 1560 | 1260 | 910 | - | 1080 |
Note
(1)、tolerance：±10%
(2)、Other specification performance fender can be manufactured upon users’ request.

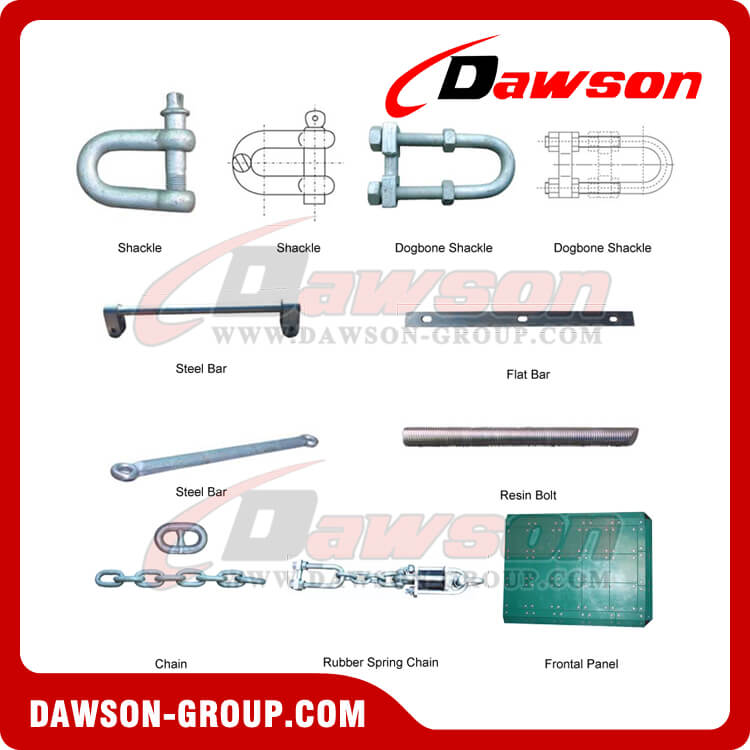

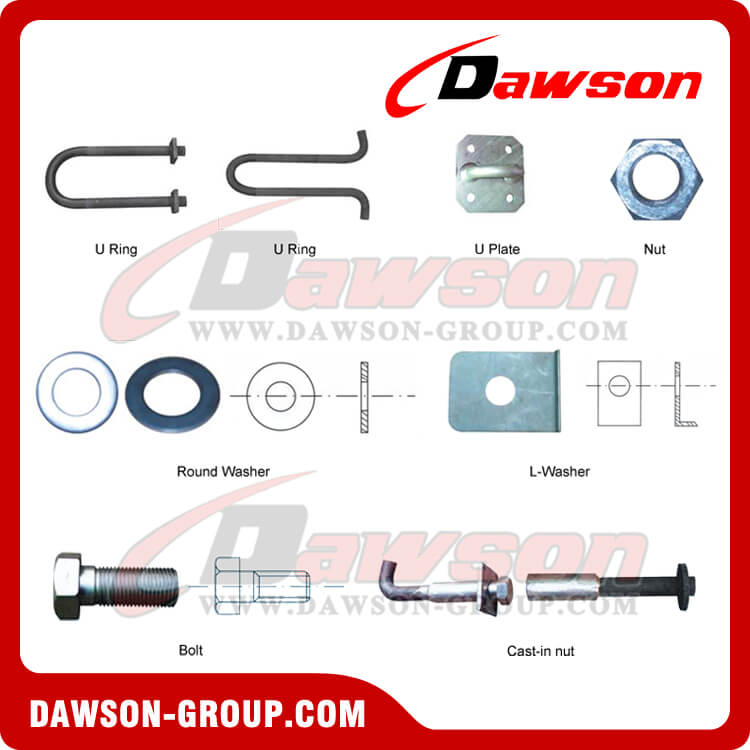

Accessories for Rubber Fenders:

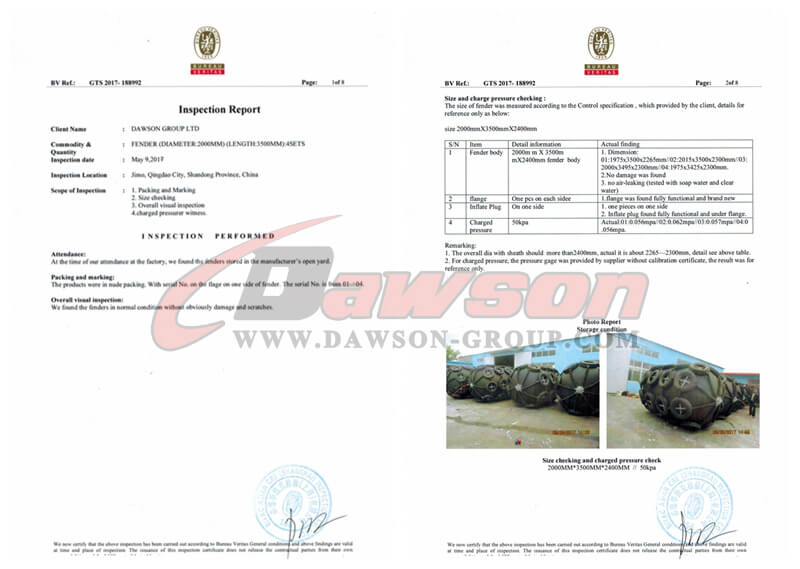

BV Test Report about Marine Rubber Fenders:

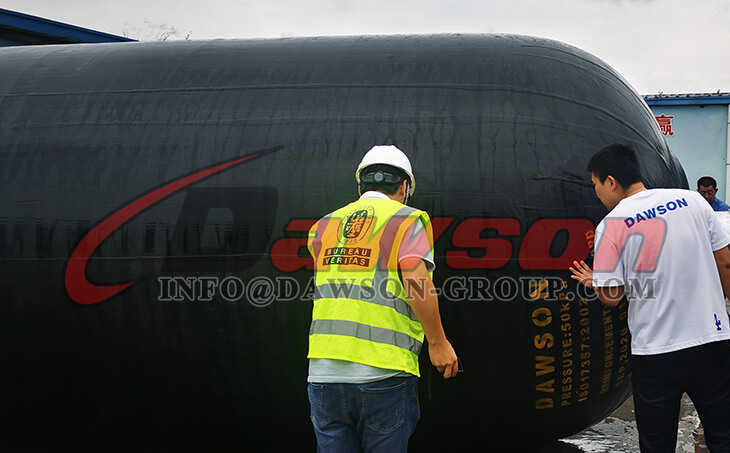

BV Testing:

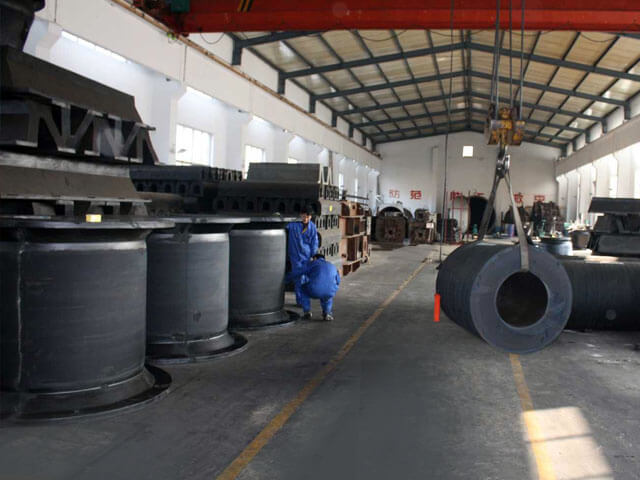

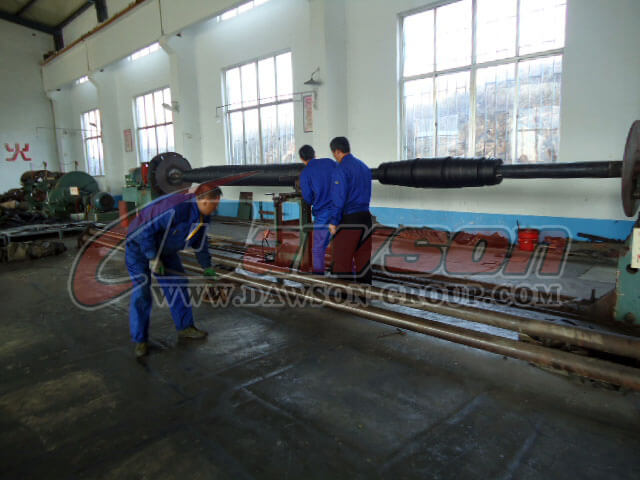

Equipments:

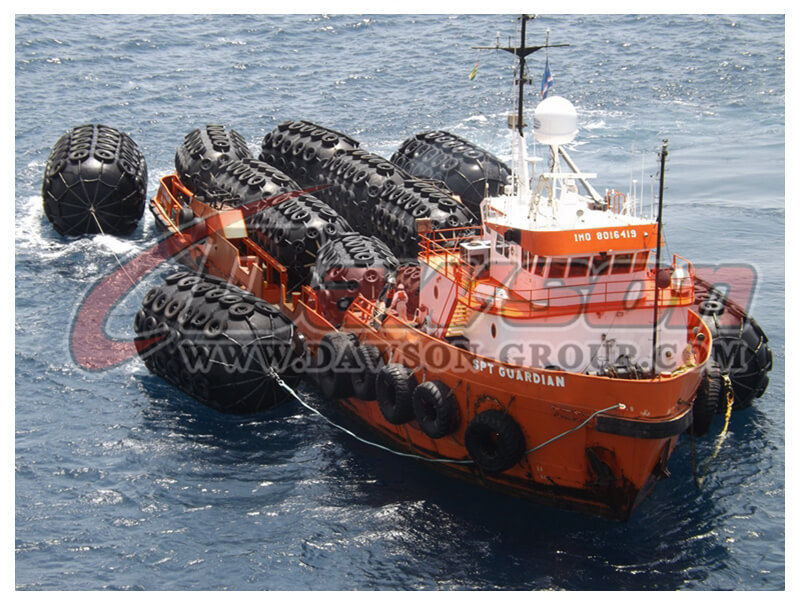

Application of Pneumatic Type Rubber Fender:
