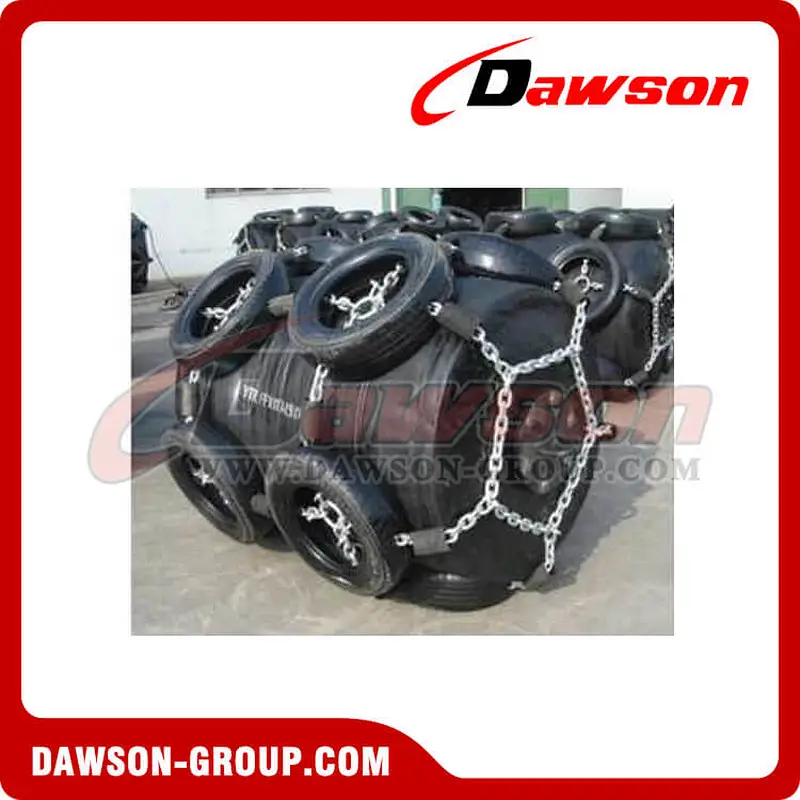

DS-P Floating Type Rubber Fender
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Feature
1. DS-P floating type rubber fender has good floating performance, it can’t be affected by the tide, the fender can be kept at ideal waterline.
2. Installation and repairmen convenient, safety and reliable.
3. Applicable for pier and dock with large tide scope, ships and emergency purpose.
| No. | 1 | 2 | 3 | 4 | 5 |
| Name | Buffer | Steel bar | Flange | Suspending ring | socket |
| Specification | D | L | Compression 60% | Weight reference(kg) | |
| Reaction force(KN) | Energy absorb(KN-M) | ||||
| Φ300x500 | 300 | 500 | 13 | 0.49 | 11 |
| Φ400x600 | 400 | 600 | 18 | 1.05 | 19 |
| Φ500x1000 | 500 | 10000 | 38 | 2.18 | 42 |
| Φ600x1000 | 600 | 1000 | 49 | 3.4 | 63 |
| Φ1000x1000 | 1000 | 1000 | 137 | 33 | 275 |
| Φ1000x1500 | 1000 | 1500 | 206 | 49 | 410 |
| Φ1000x2000 | 1000 | 2000 | 273 | 65 | 553 |
| Φ1200x1500 | 1200 | 1500 | 256 | 70 | 615 |
| Φ1200x2000 | 1200 | 2000 | 336 | 93 | 815 |
| Φ1500x2500 | 1500 | 2500 | 520 | 180 | 1550 |
| Φ1500x3000 | 1500 | 3000 | 626 | 217 | 1863 |
| Φ1600x3000 | 1600 | 3000 | 860 | 270 | 2110 |
| Φ2000x3500 | 2000 | 3500 | 992 | 458 | 3850 |
| Φ2000x4000 | 2000 | 4000 | 1120 | 506 | 4590 |
| Φ2200x4500 | 2200 | 4500 | 1402 | 682 | 6000 |
| Φ2500x4000 | 2500 | 4000 | 1415 | 778 | 6860 |
| Φ2500x5000 | 2500 | 5000 | 1735 | 992 | 8555 |
| Φ2000x5000 | 3000 | 5000 | 2060 | 1422 | 12850 |
| Φ3000x6000 | 3000 | 6000 | 2470 | 1702 | 15400 |
| Φ3300x6500 | 3000 | 6500 | 2956 | 2248 | 16690 |
| Φ4300x8500 | 4200 | 8500 | 19012 | 7398 | 32000 |
| Φ4500x9000 | 4500 | 9000 | 21520 | 6732 | 38000 |
Note
(1)Tolerance:±10%
(2)Other specification fender can be manufactured upon users’ request.
(3)Large model DS-P floating fender need to be add socket and suspending chain.
(4)It can adopt polyurethane, rubber, special; plastic etc material, and also can adjust resilience modulus, to meet the requirement of different design.

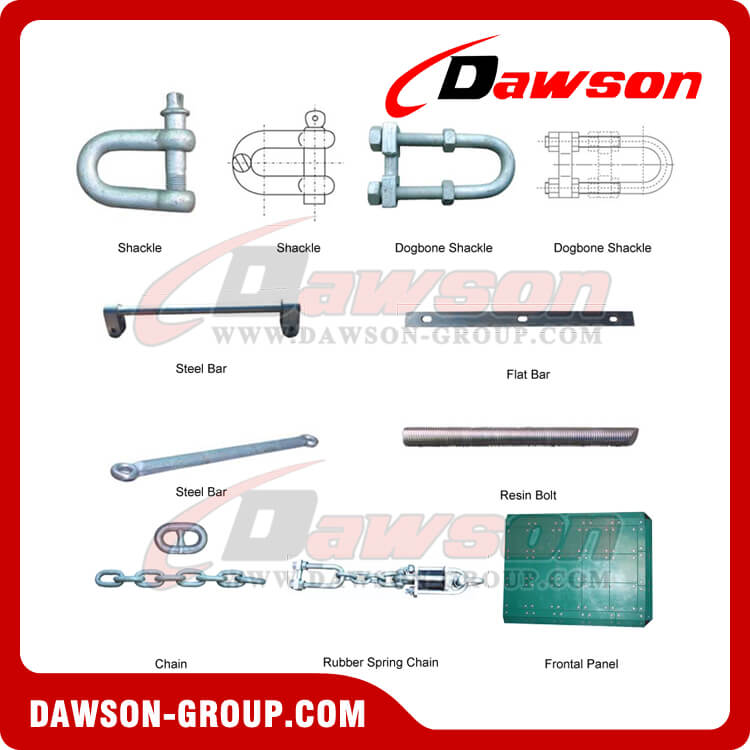

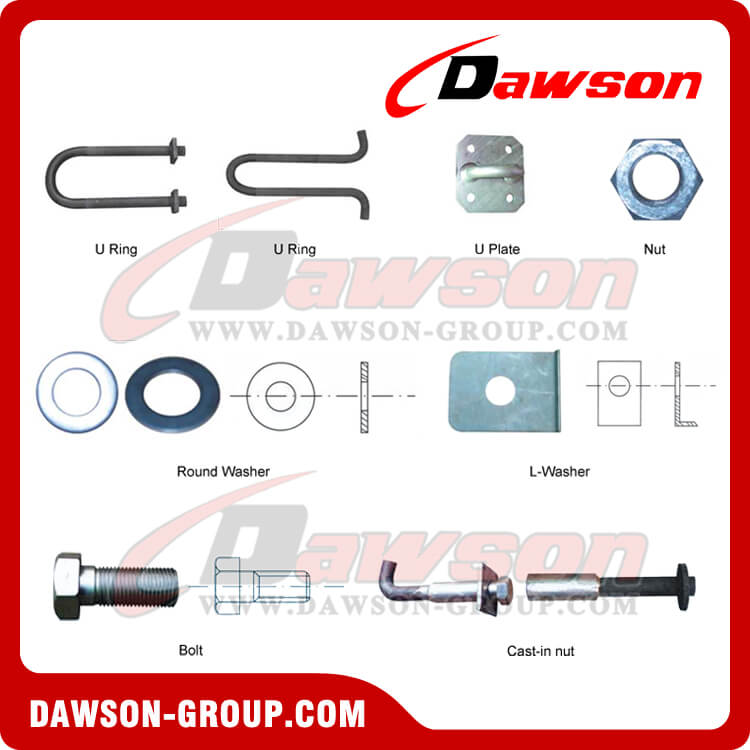

Accessories for Rubber Fenders:

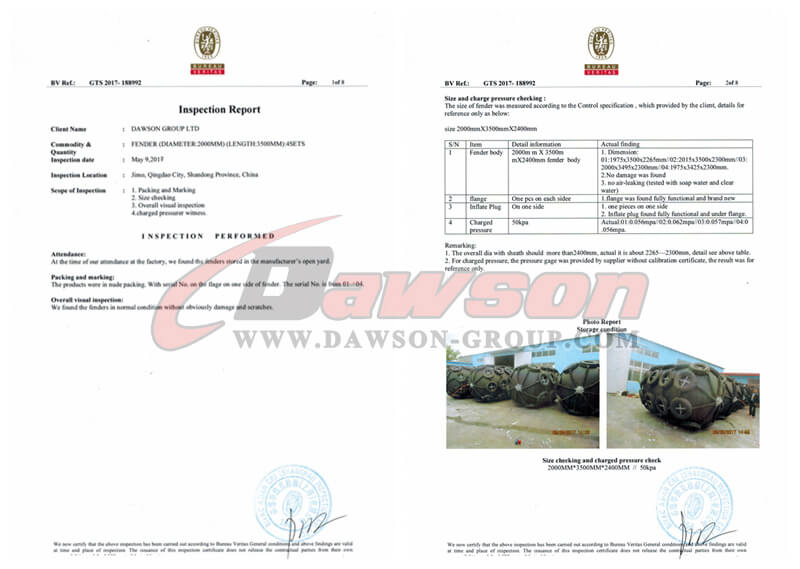

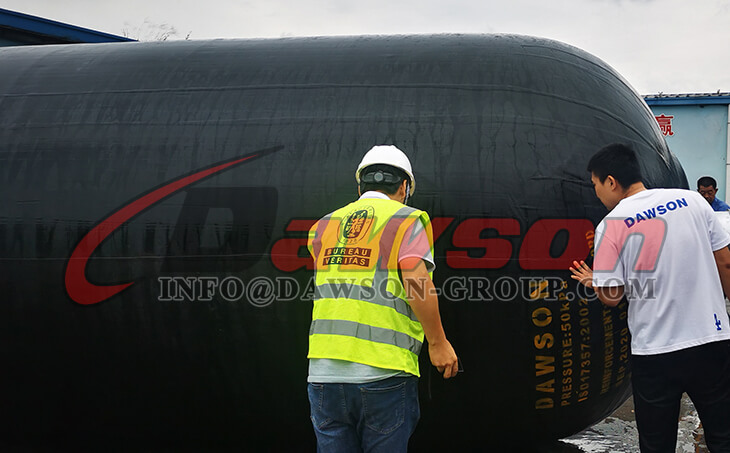

BV Test Report about Marine Rubber Fenders:

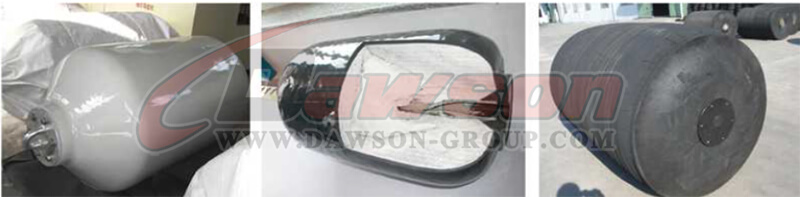

BV Testing:

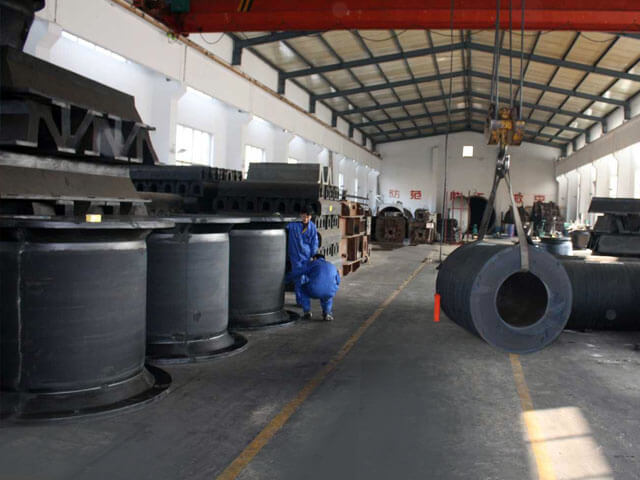

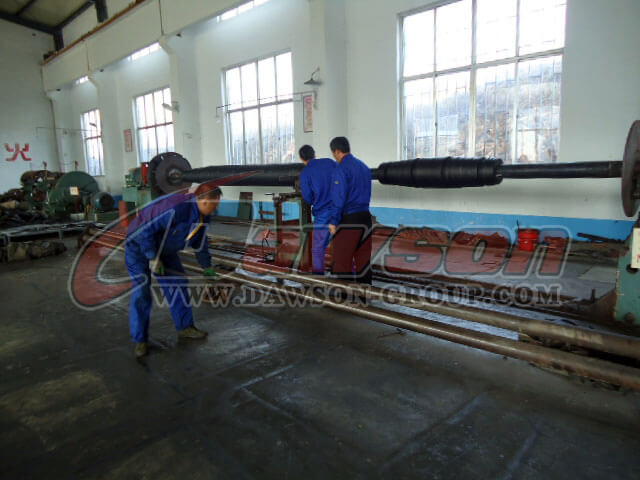

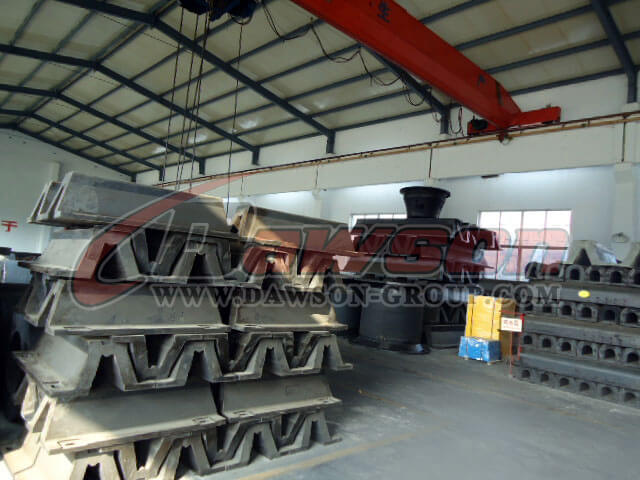

Equipments of Marine Rubber Fenders:

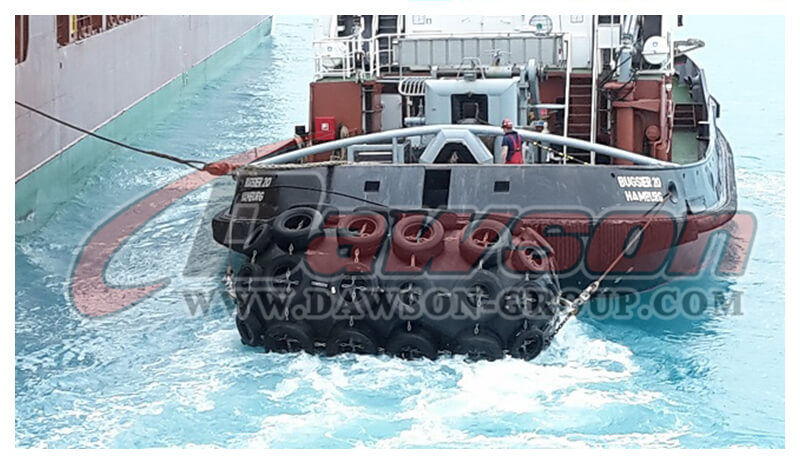

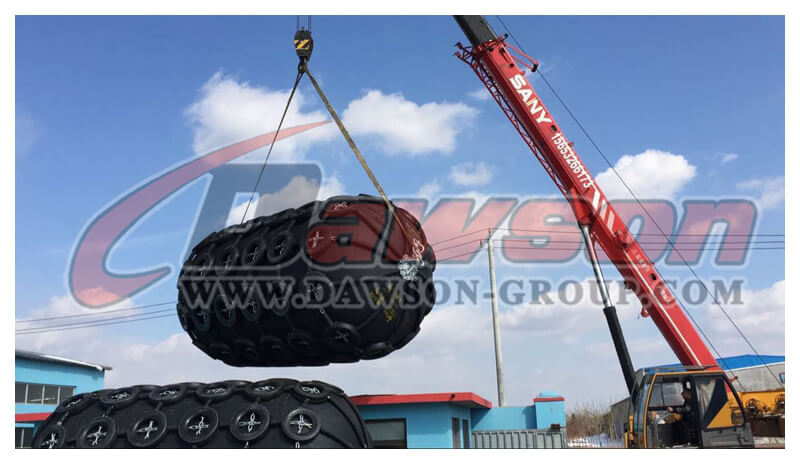

Application of Floating Rubber Fenders:
