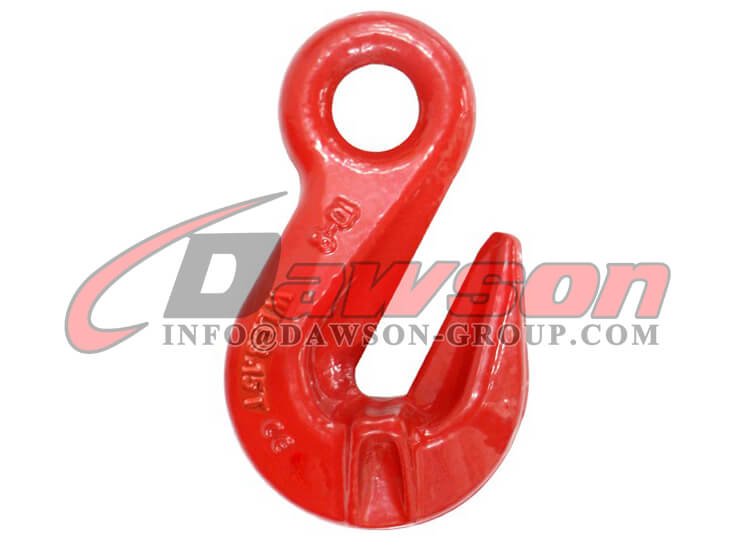

DS065 G80 / Grade 80 Italian Type Eye Shortening Grab Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
Surface finish: Power plastified
Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.

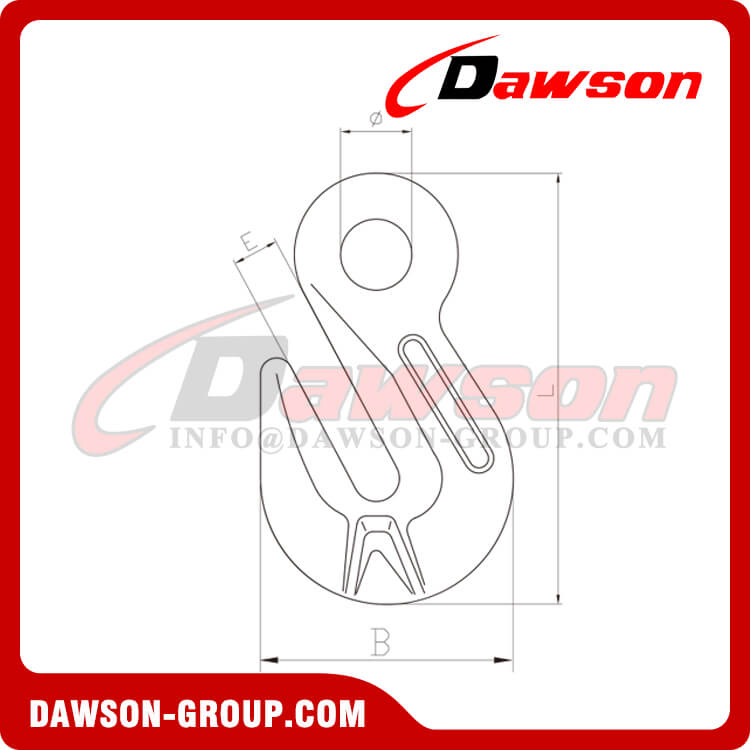

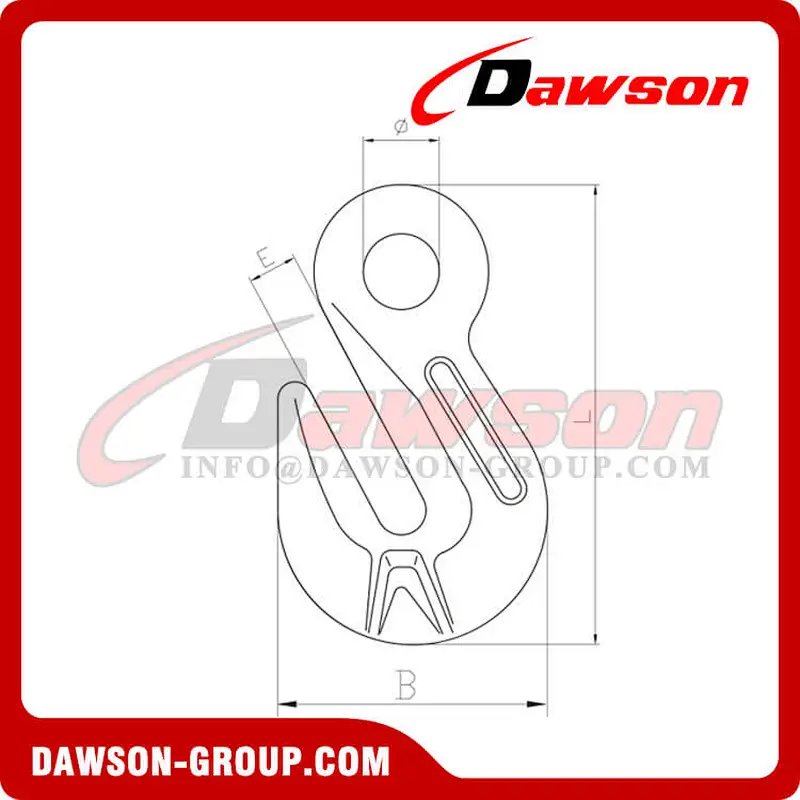

| ITEM NO. | WEIGHT/KG | WLL/T | B.L/T | Φ±1 | B±1.5 | E±0.5 | L±2 |
| 8-DS065-06 | 0.18 | 1.12 | 4.48 | 13.5 | 44 | 8 | 75.5 |
| 8-DS065-07 | 0.307 | 2 | 8 | 15 | 48.5 | 9 | 88 |
| 8-DS065-10 | 0.68 | 3.15 | 12.6 | 20 | 72 | 13 | 125 |
| 8-DS065-13 | 1.34 | 5.3 | 21.2 | 25 | 91 | 17 | 159 |
| 8-DS065-16 | 2.09 | 8 | 32 | 30 | 110 | 21 | 180 |
| 8-DS065-20 | 3.84 | 12.5 | 50 | 35 | 133.5 | 25 | 211 |
Ultimate load id 4 times the Working Load Limit.
Above Working Load Limit is based on side pull.
Welcome to buy the newest and cheap DAWSON DS065 G80 / Grade 80 Italian Type Eye Shortening Grab Hook from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
G80 GRAB HOOK & CLUTCH
Supply only on special request. Not for recommendation.
For further information,please contact us. Email:info@dawson-group.com
|
|
|
|
|
|
|
|
 DS338 |  DS301 |
Other Related Products Show:
Hot Tags: Eye Shortening Grab Hook, G80 Shortening Cradle Grab Hook China, Grade 80 Shortening Grab Hook Factory, Forged Steel Shortening Grab Hook Supplier, Alloy Steel Eye Grab Hook with Wings Manufacturer, Low Price Italian Type Eye Grab Hook, Italian Type Shortening Grab Hook for lifting Chains, Cheap Price Cradle Grab Hook, Buy Discount Eye Grab Hook with Wings, Bulk Eye Shortening Grab Hook, Eye Grab Hook for Chain Slings in Stock, Wholesale Eye Grab Hook, Hot Sale Eye Grab Hook, Customized Eye Grab Hook, EyeGrab Hook OEM, Eye Grab Hook Free Sample, Dawson Brands Eye Grab Hook with Wings, Eye Grab Hook for Adjust Chain Length
Application of G80 Grab Hook and Clutch:

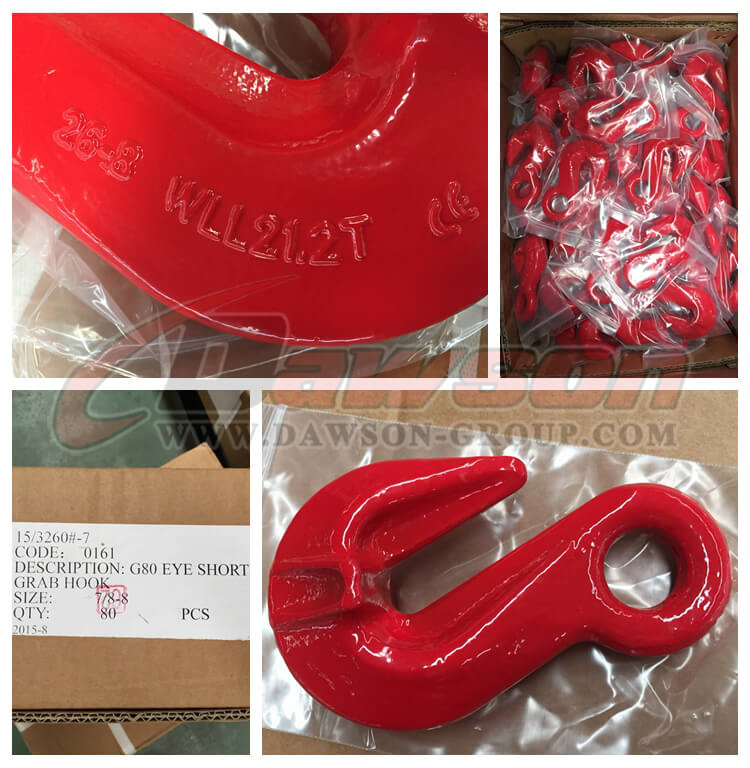

Factory & Package Show:
