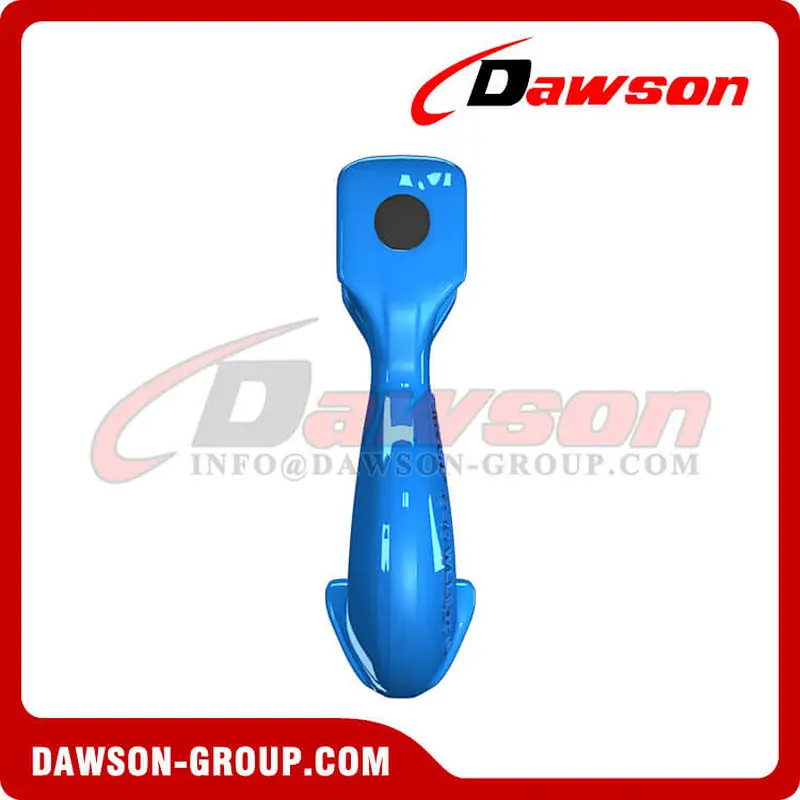

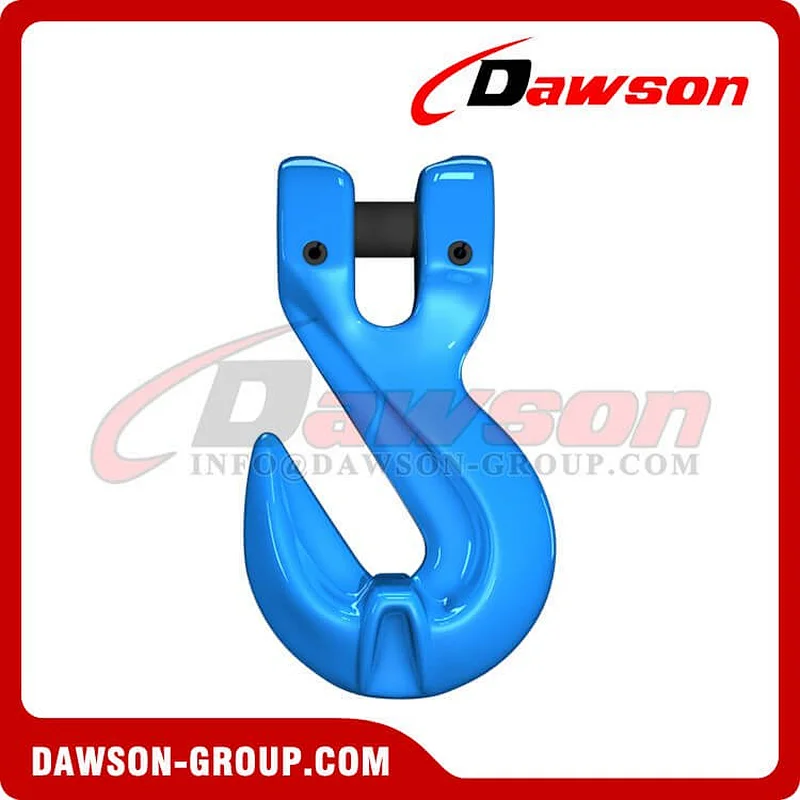

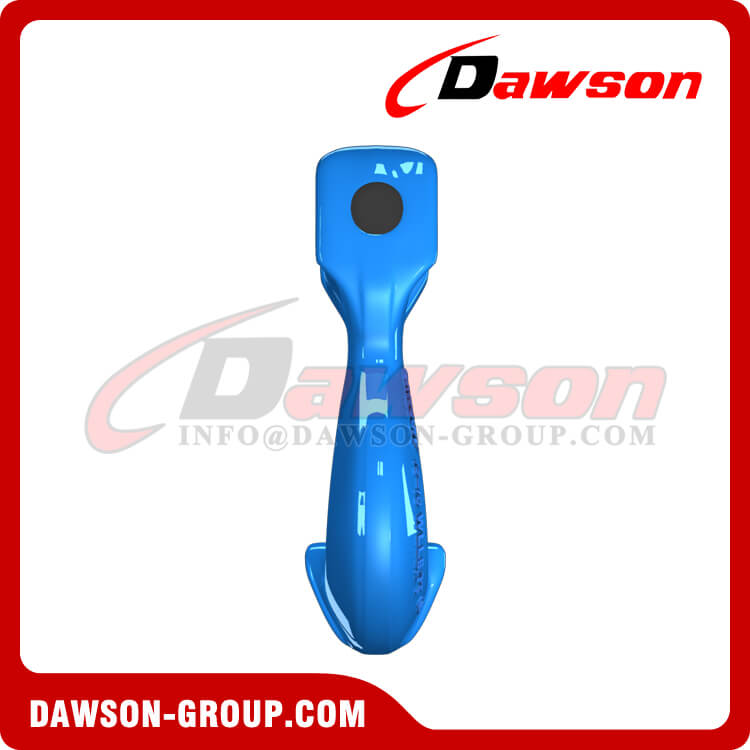

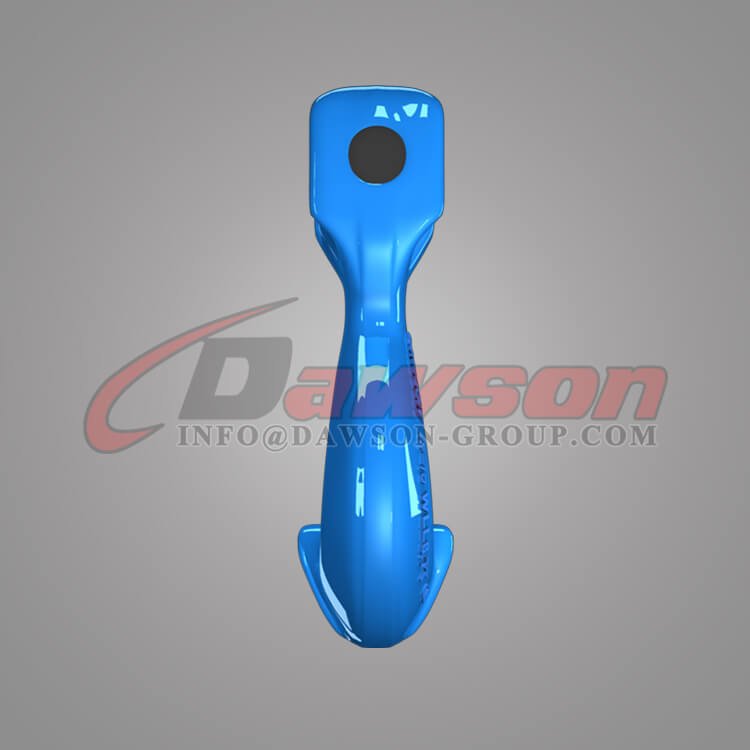

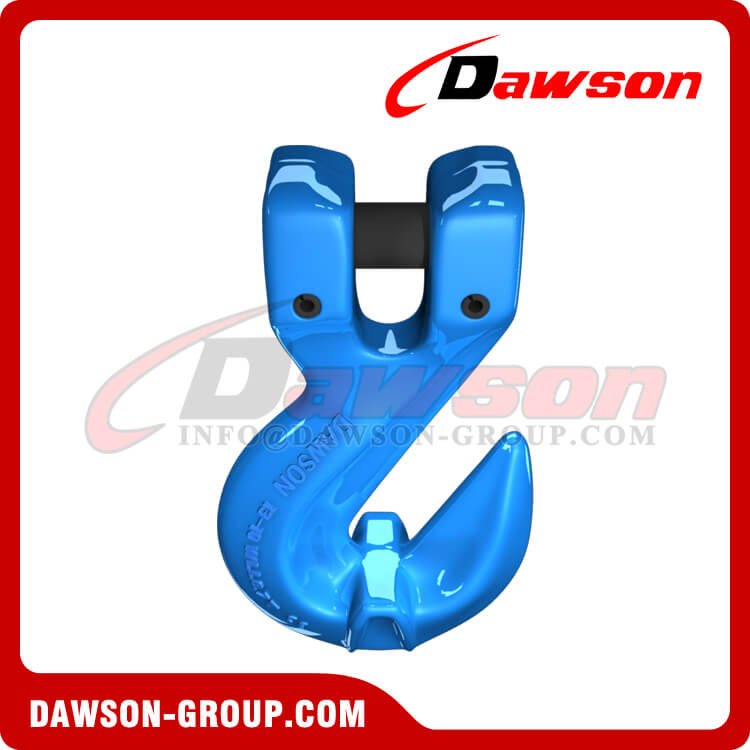

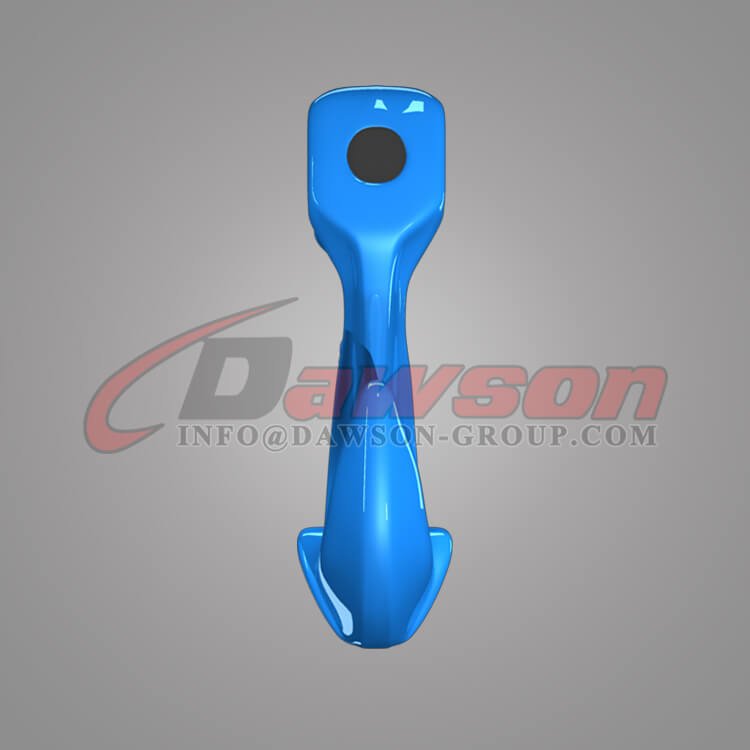

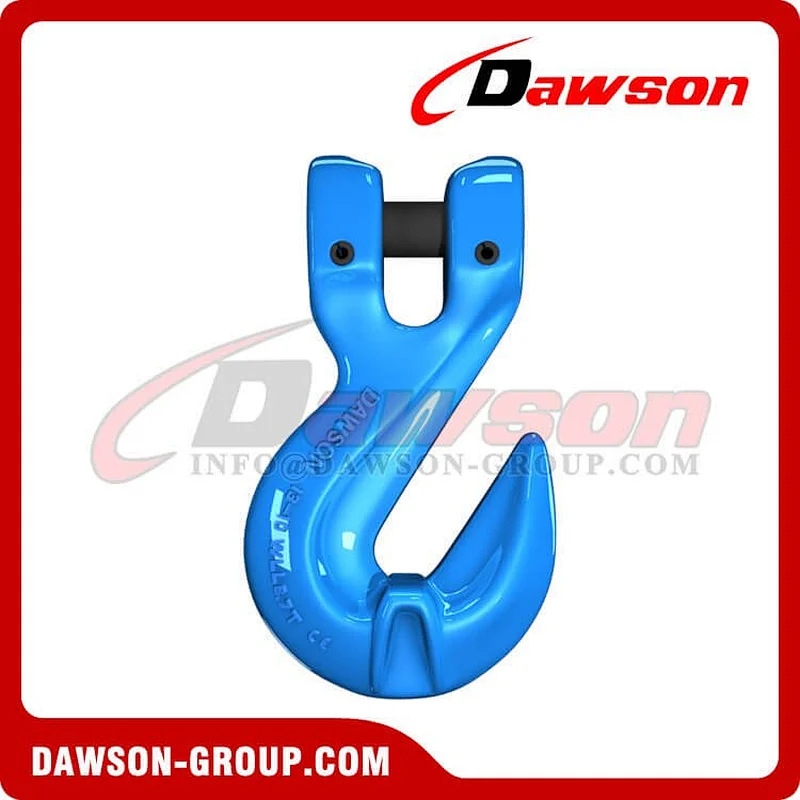

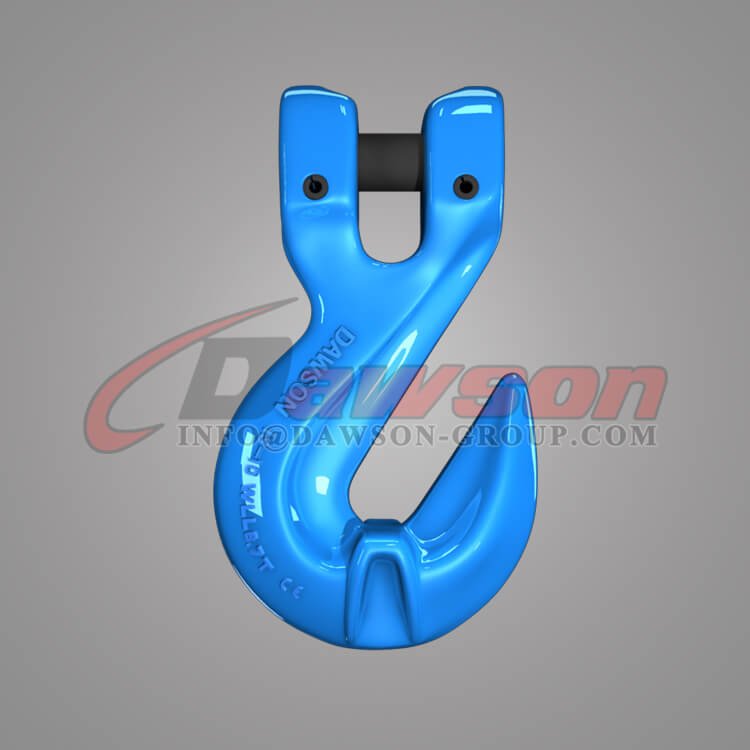

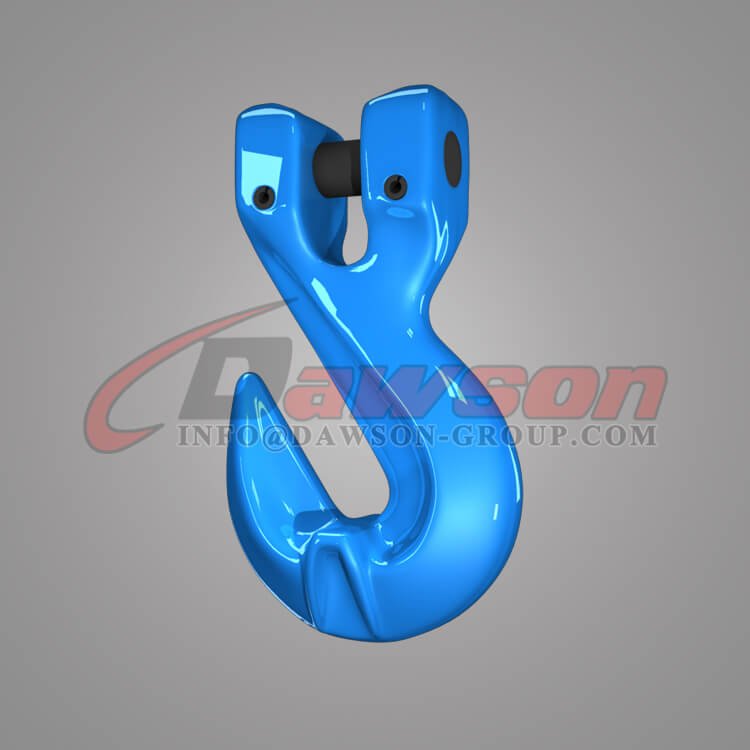

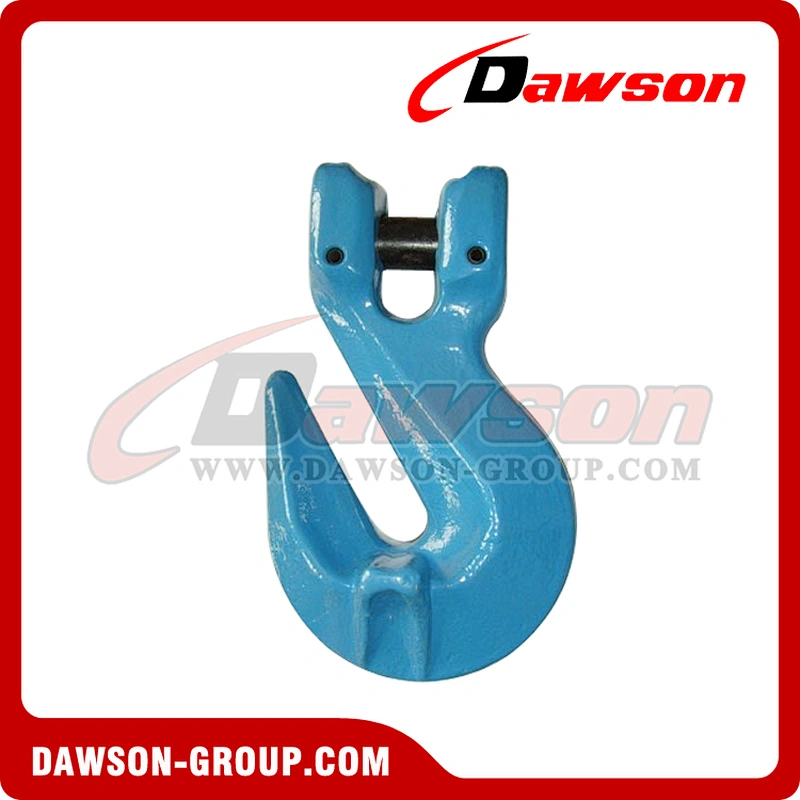

DS1009 G100 Clevis Shortening Cradle Grab Hook with Wings

DS1009 G100 Clevis Shortening Cradle Grab Hook with Wings

Model NO.: DS1009

Quantity:

Product Description

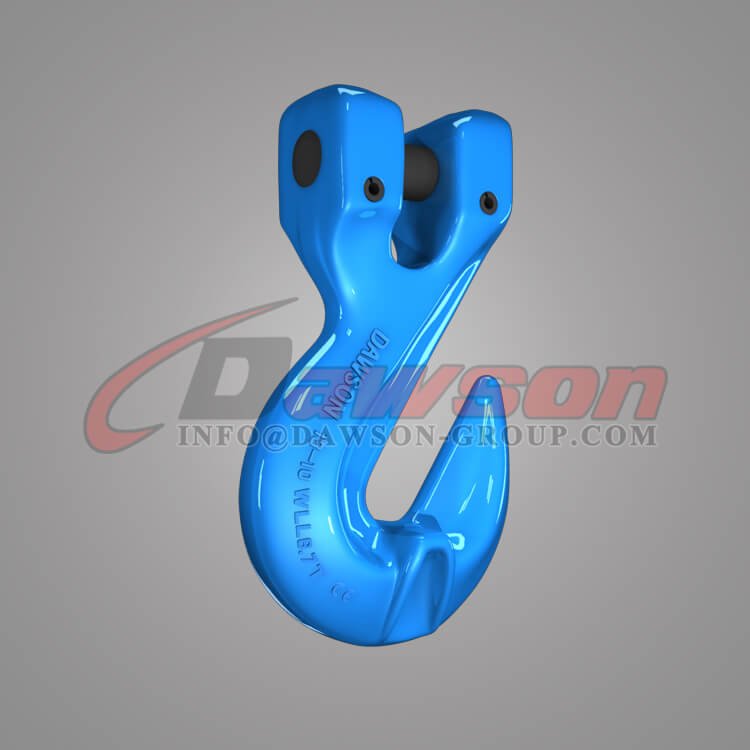

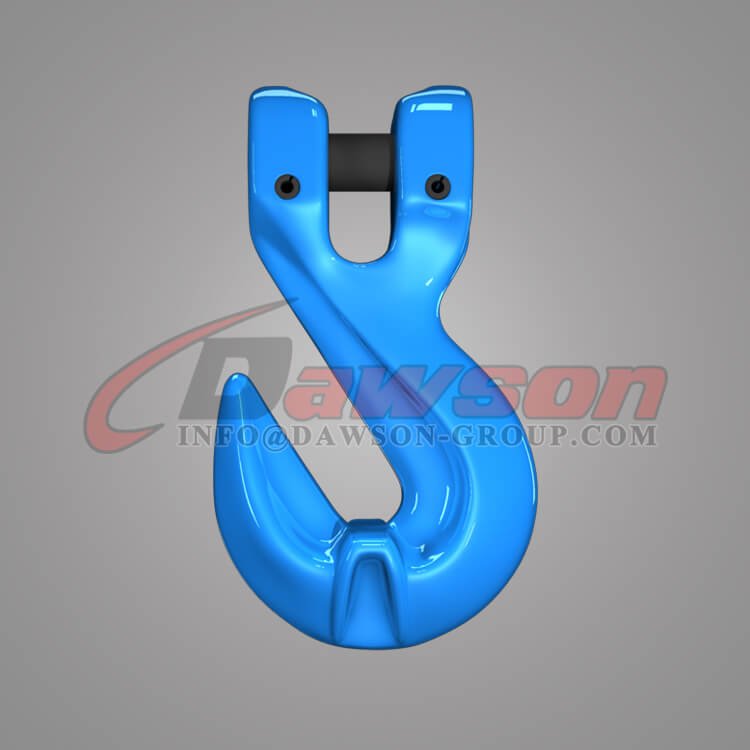

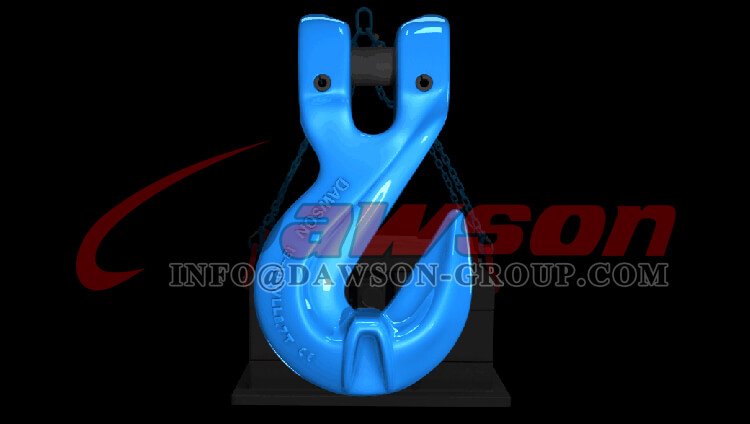

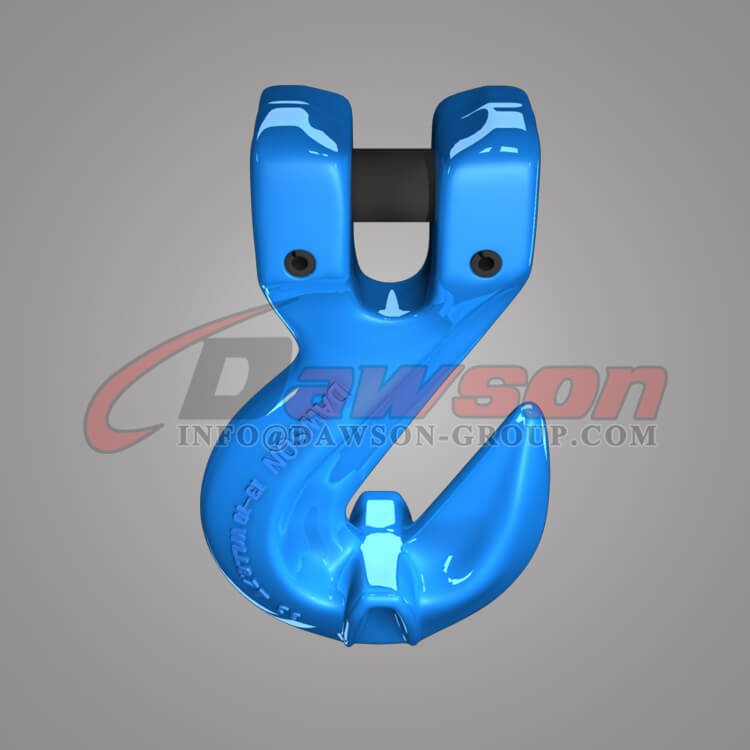

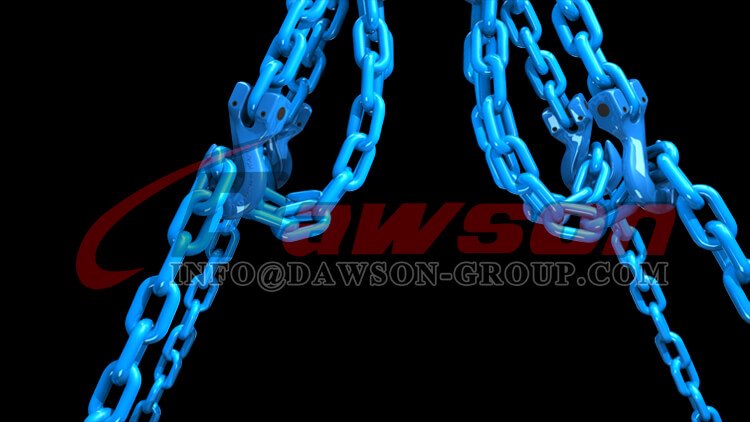

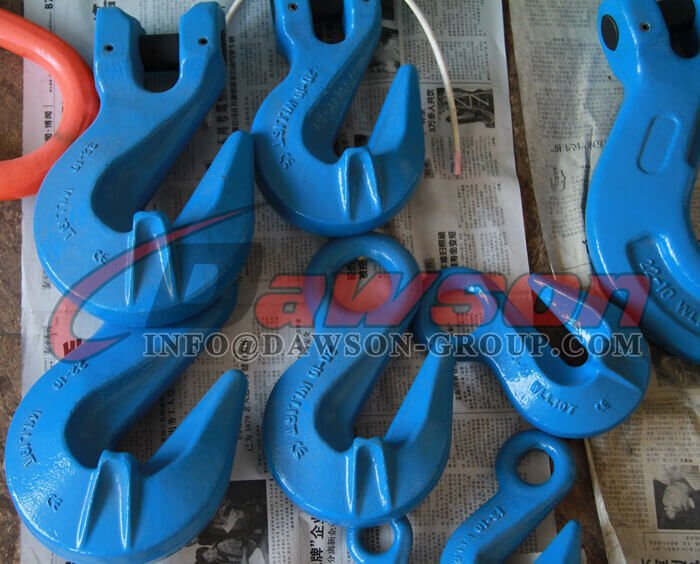

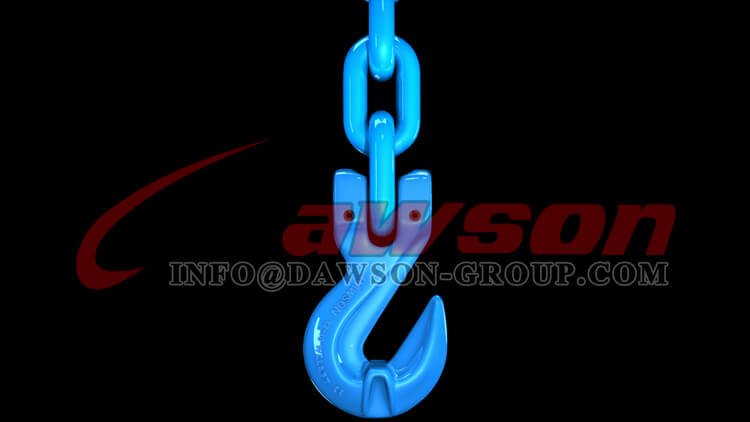

G100 / Grade 100 Clevis Shortening Cradle Grab Hook with Wings for Adjust Chain Length

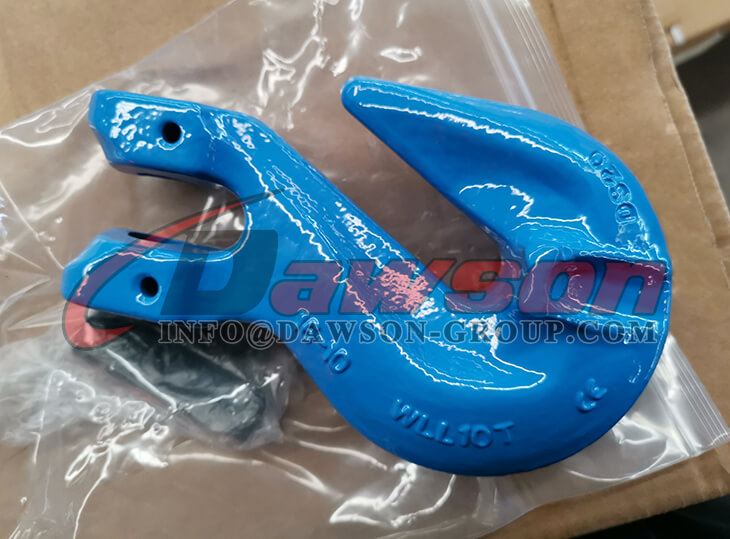

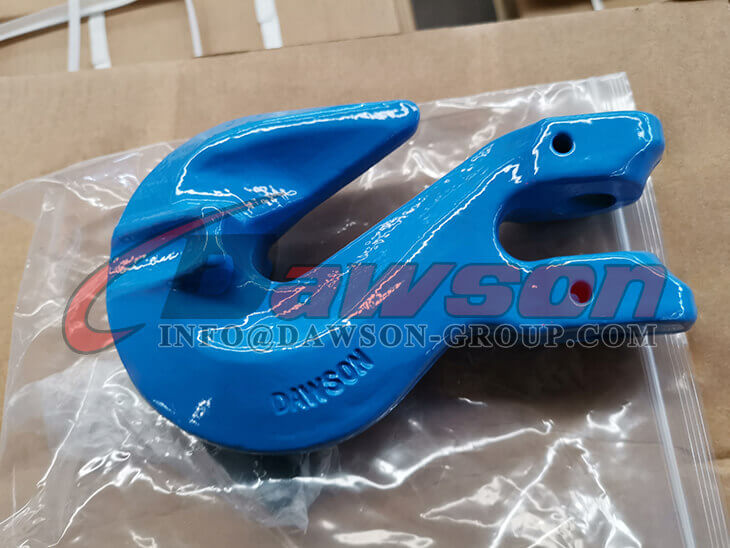

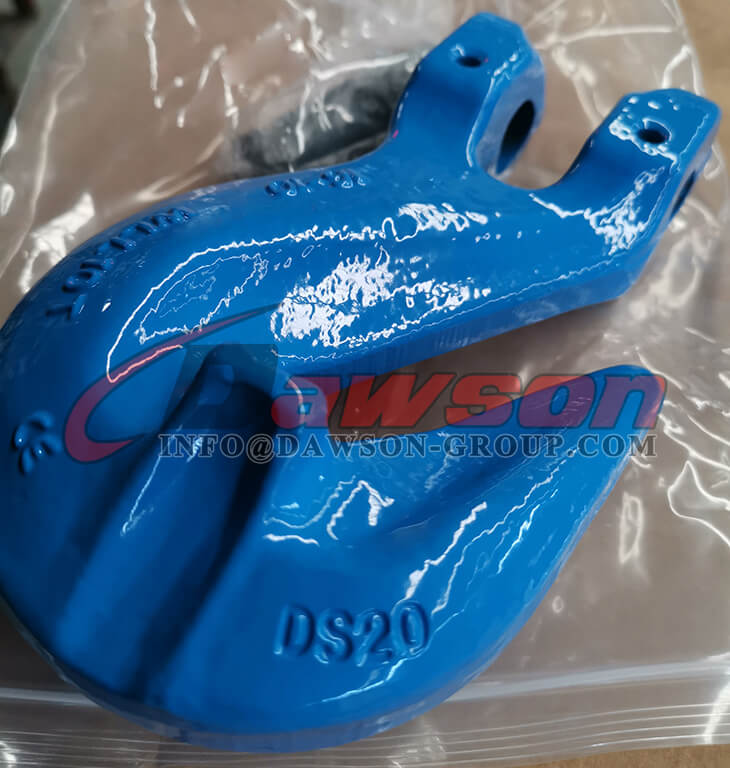

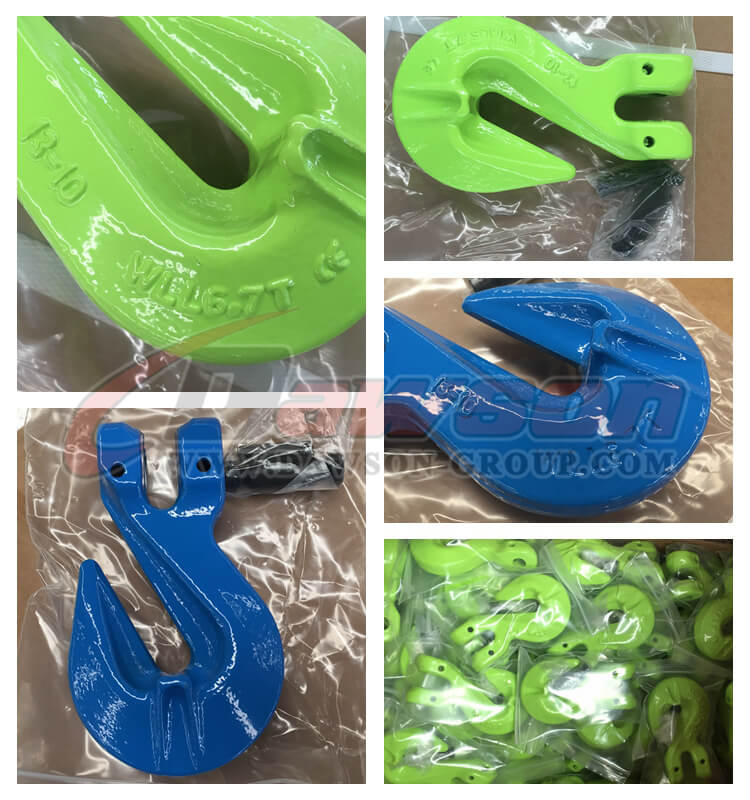

DS1009 G100 Clevis Shortening Grab Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

G100 Rigging Hardware

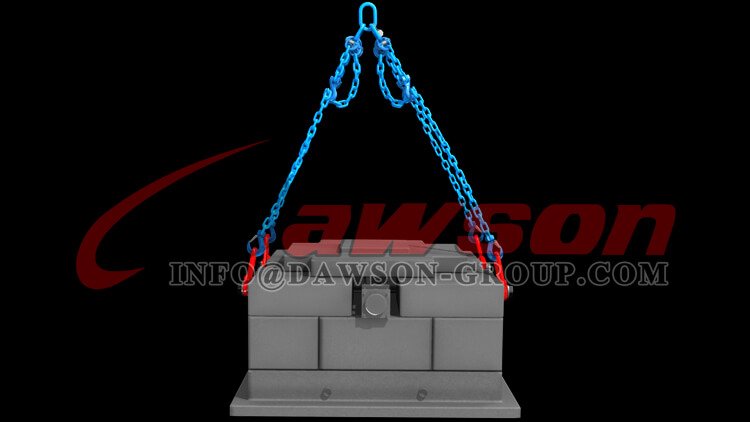

All the Grade 100 rigging hardware is forged or welded by special alloy steel. It can be matched with G100 chains. It can be used in situations such as oil field hoisting, mine hoisting, port hoisting, forest logging hoisting etc.

● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;

● It can be matched with G100 chain;

● The performance is increased by 25% compared with G80 products;

● Each workpiece should pass testing at 2.5 times of working load limit;

● We should carry out sampling and 20000 times of fatigue testing;

● We should carry out strict sampling and breakage testing for each batch of products;

● We should carry out 100% magnetic powder flaw detection;

● 100% of the pin should be tested to ensure that they have the same hardness;

● Surface treatment: plastics spraying;

● Color code: Blue RAL5015.

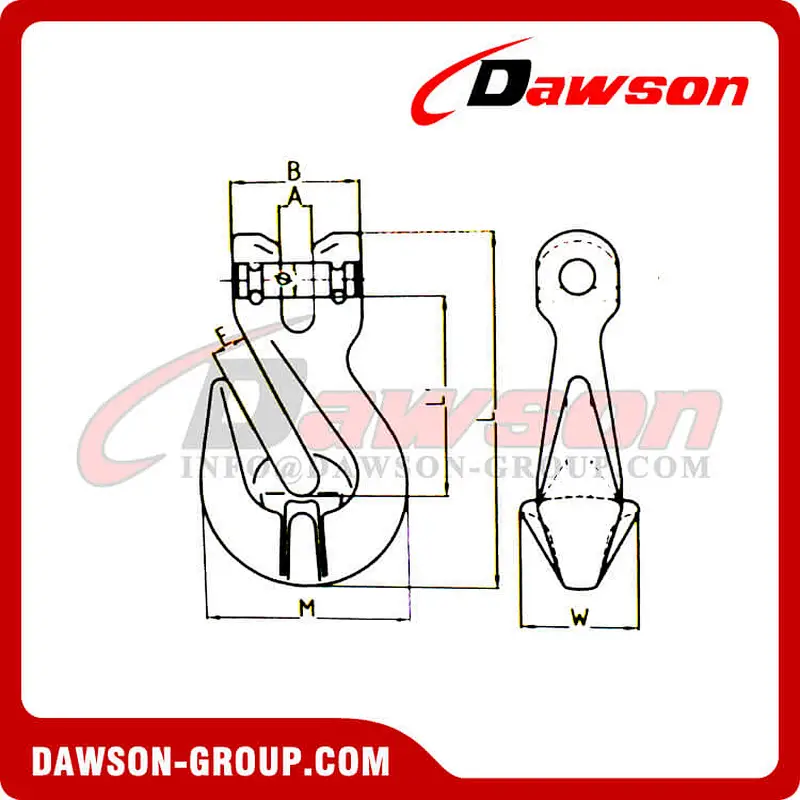

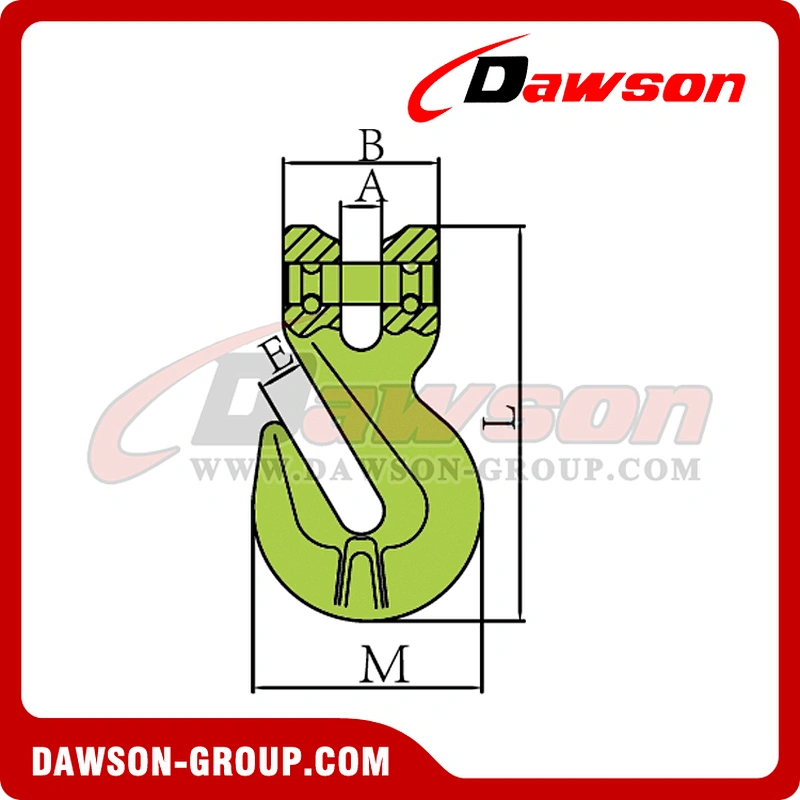

Item No.	Weight/kg	WLL/T	B.L/T	A±0.5	B±1.5	E±1	M±2	W±1	L’±2	L±2	Φ
10-DS1009-06	0.22	1.4	5.6	7.5	32	8	43.5	24	44.5	75	7.6
10-DS1009-08	0.34	2.5	10	9.8	36	11	54	30.5	53	93	9.8
10-DS1009-10	0.82	4	16	12.5	46	13.5	72	42	73	128	13
10-DS1009-13	1.75	6.7	26.8	15	59	15	96	53.5	92	166	15.8
10-DS1009-16	2.88	10	40	18.5	70	19	116	74	99	189	19.5
10-DS1009-20	4.84	16	64	24	85	24	143	74	133	224	24
10-DS1009-22	8.3	19	76	27	100	27	160.5	90	141	262	28

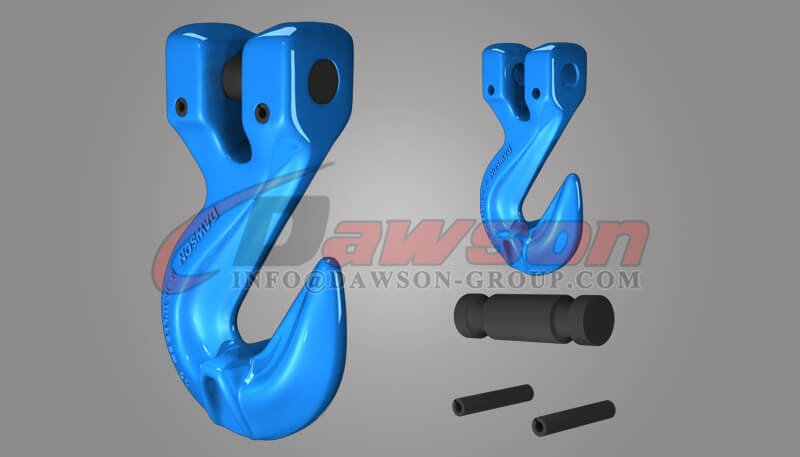

SP-DS1009-SPARE PART FOR DS1009(LOAD PIN)

Item No.	Size	Item No.	Size
SP-DS1009-6	6-10	SP-DS1009-20	20-10
SP-DS1009-8	8-10	SP-DS1009-22	22-10
SP-DS1009-10	10-10
SP-DS1009-13	13-10
SP-DS1009-16	16-10

1 SET = BLACK PIN + 2 BLACK SPRING TYPE STRAIGHT PINS

Welcome to buy the newest and competitive price DAWSON g100 clevis shortening cradle grab hook forged super alloy steel from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.

Other Related G100 COMPONENTS

Supply only on special request. Not for recommendation.

For further information, please contact us. Email:info@dawson-group.com
