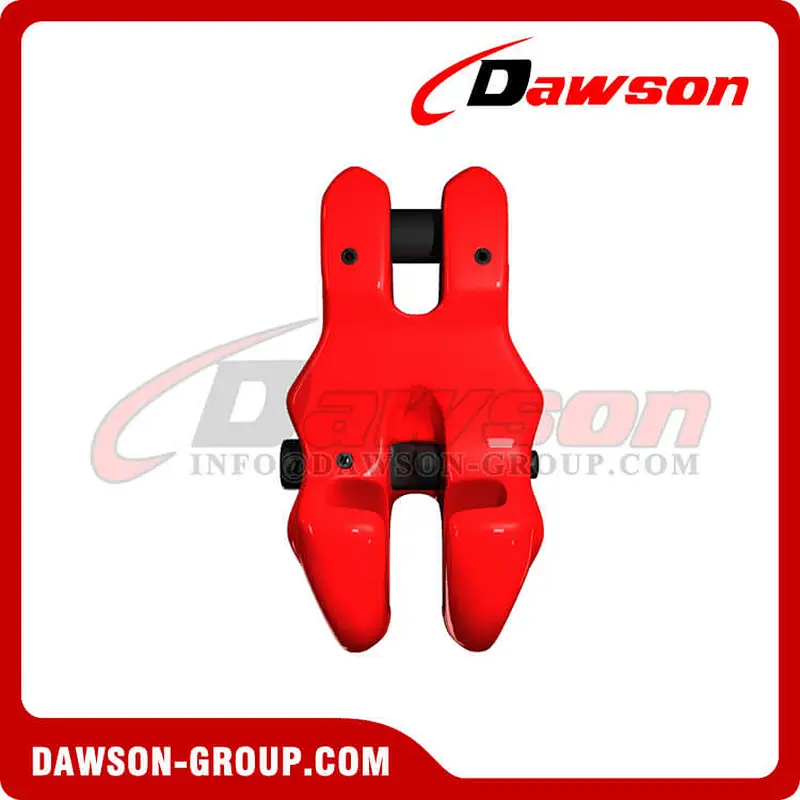

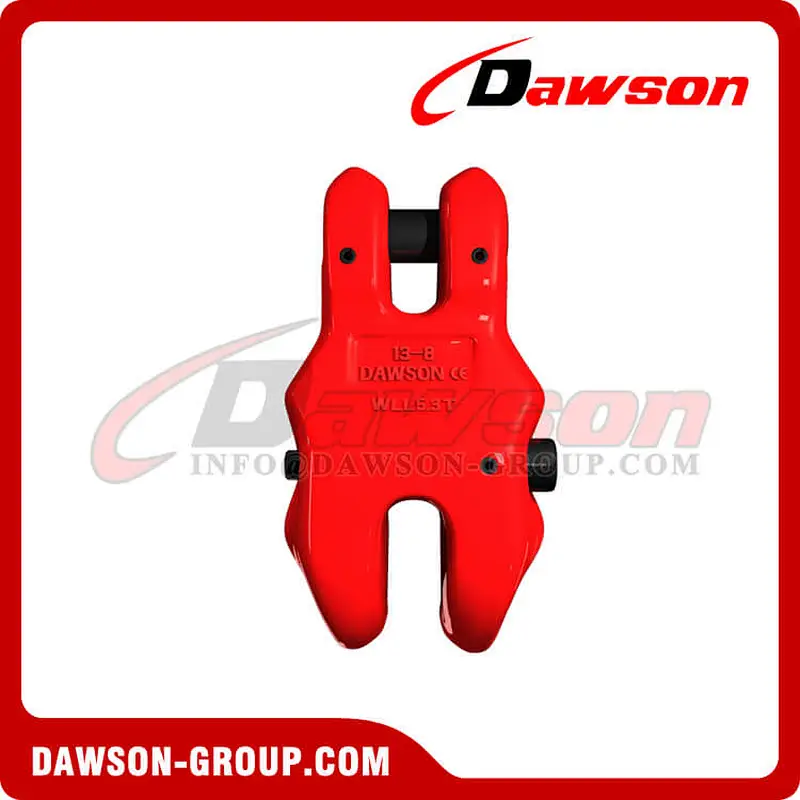

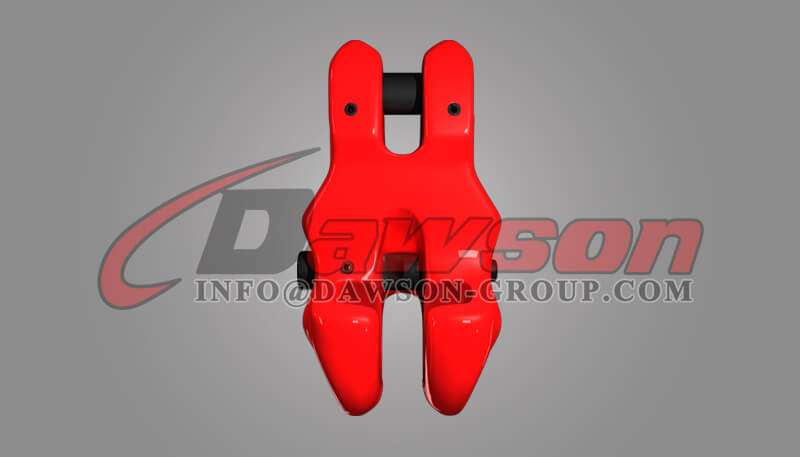

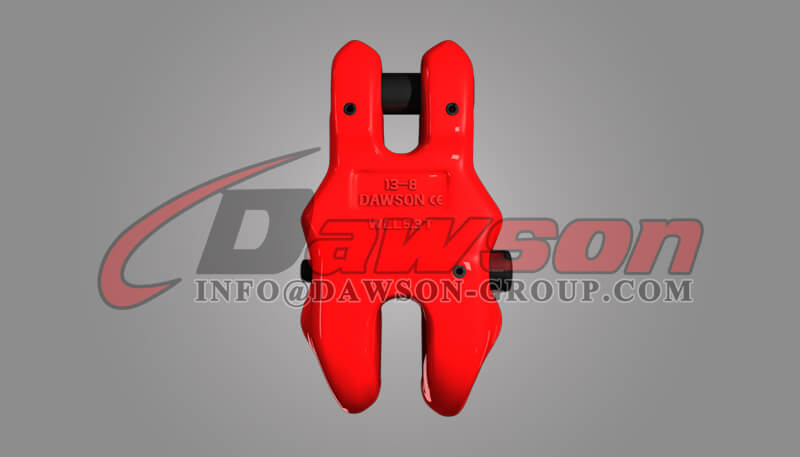

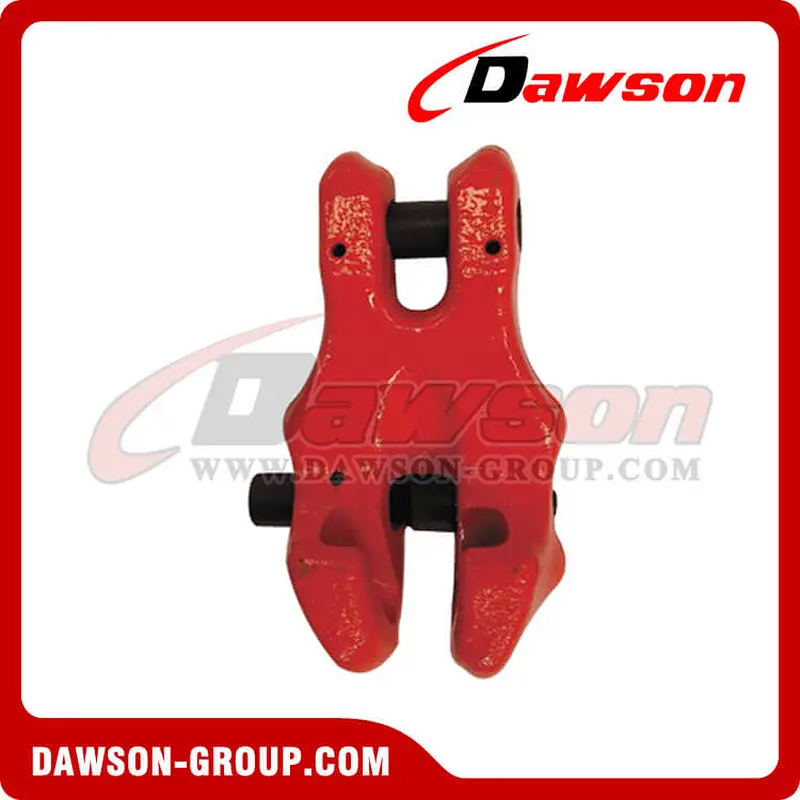

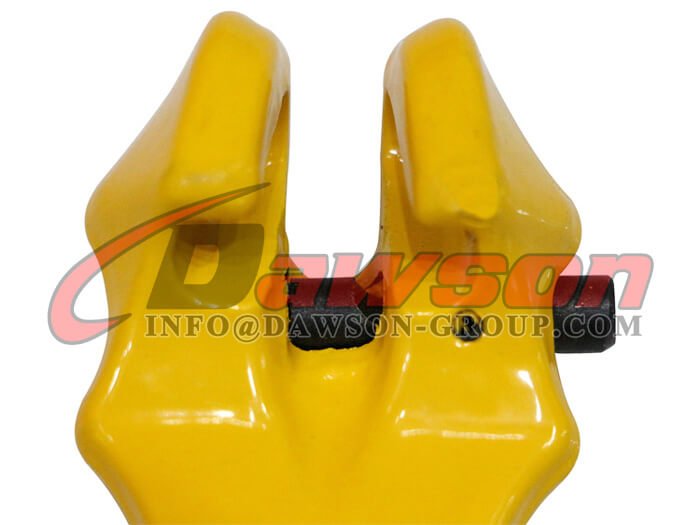

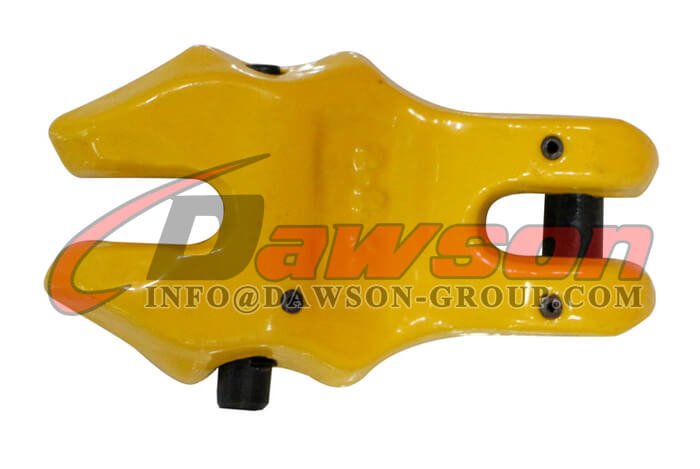

G80 / Grade 80 Clevis Chain Clutch with Safety Pin for Adjust Chain Length
DS638 G80 Clevis Cluth with Safety Pin
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% Magnaflux Crack Detection.
All load pins are 100% individually inspected and tested.
Surface finish: Power plastified

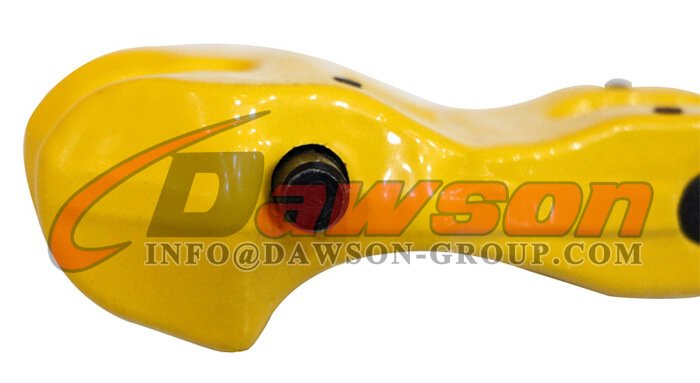

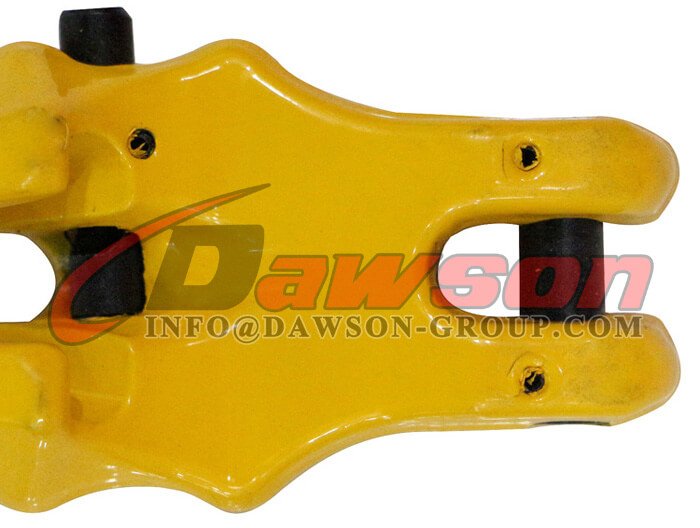

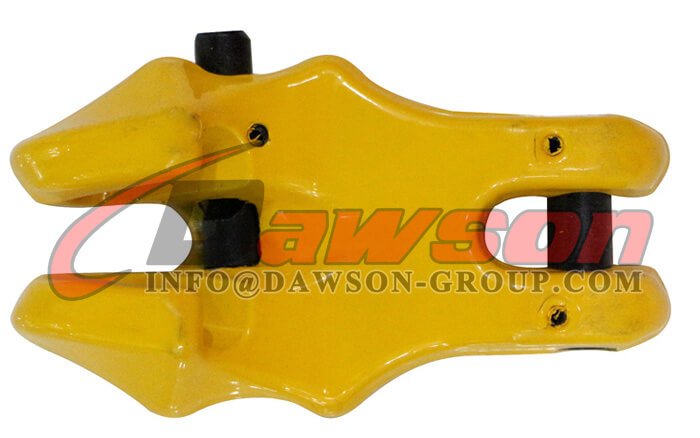

Colour: Yellow or Red RALcode: RAL1003 or RAL3020. Other colour is available as per request.

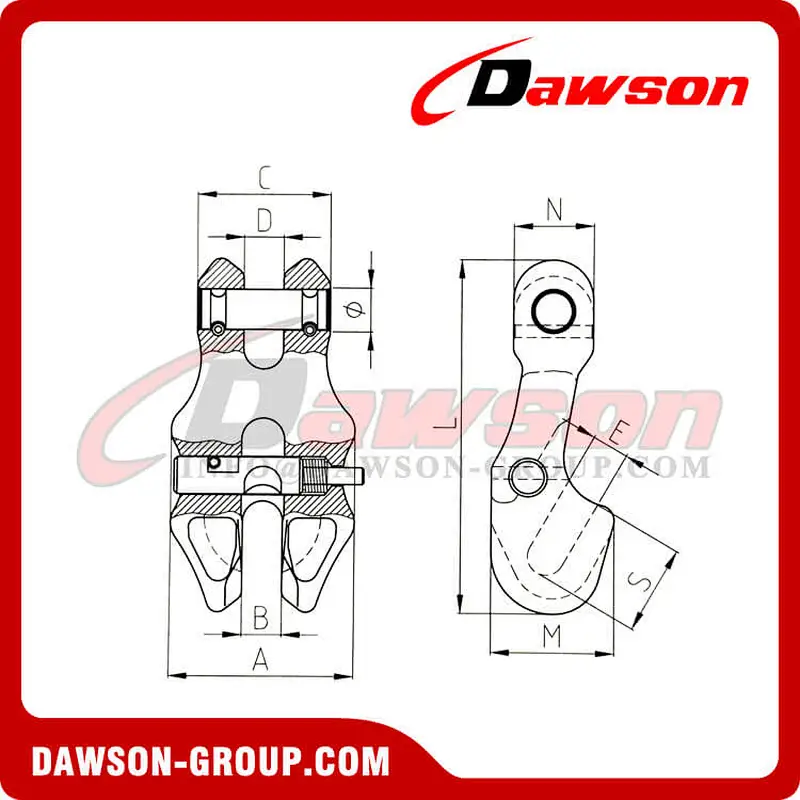

| Item No. | Weight/kg | WLL/T | B.L/T | A±2 | B±0.5 | C±1 | D±0.5 | E±0.3 | Φ±0.3 | L±3 | M±0.5 | N±0.5 | S±0.3 |
| 8-DS638-06 | 0.25 | 1.12 | 4.48 | 38 | 7.5 | 27 | 7.5 | 7.5 | 7.7 | 73 | 27 | 16 | 20.9 |
| 8-DS638-08 | 0.41 | 2 | 8 | 50 | 9.5 | 33 | 9.5 | 9.2 | 9.2 | 92 | 33 | 23 | 22.6 |
| 8-DS638-10 | 0.82 | 3.15 | 12.6 | 60 | 11.5 | 43 | 11.5 | 12 | 13.3 | 115 | 42.2 | 26 | 31 |
| 8-DS638-13 | 1.67 | 5.3 | 21.2 | 79 | 15 | 55 | 15 | 15.5 | 16.3 | 149 | 54 | 34 | 38.4 |
| 8-DS638-16 | 3.85 | 8 | 32 | 98 | 19 | 70 | 19 | 18.5 | 19.7 | 184 | 70 | 40 | 49.8 |
Ultimate load id 4 times the Working Load Limit.
Welcome to buy the newest and cheap DAWSON g80 clevis chain clutch from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
G80 GRAB HOOK & CLUTCH
Supply only on special request. Not for recommendation.
