G80 Eye Self-locking Hook for Lifting Chain Slings

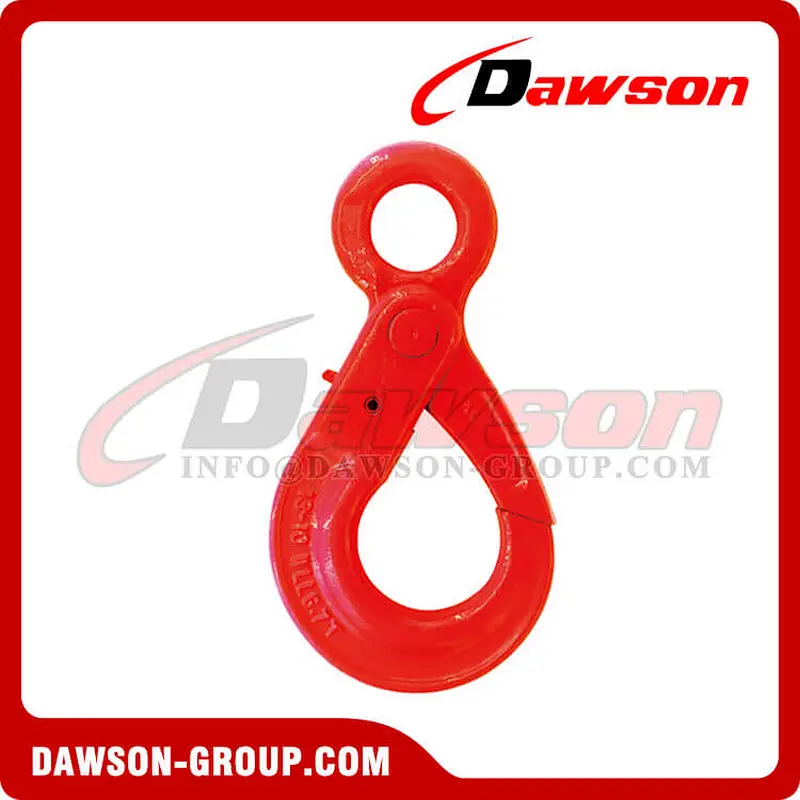

DS765 G80 / Grade 80 European Type Eye Self-lock Hook
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel - Quenched and Tempered.
Individually proof tested at 2.5 times Working Load Limit.
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles.
Breaking test.
100% Magnaflux Crack Detection.

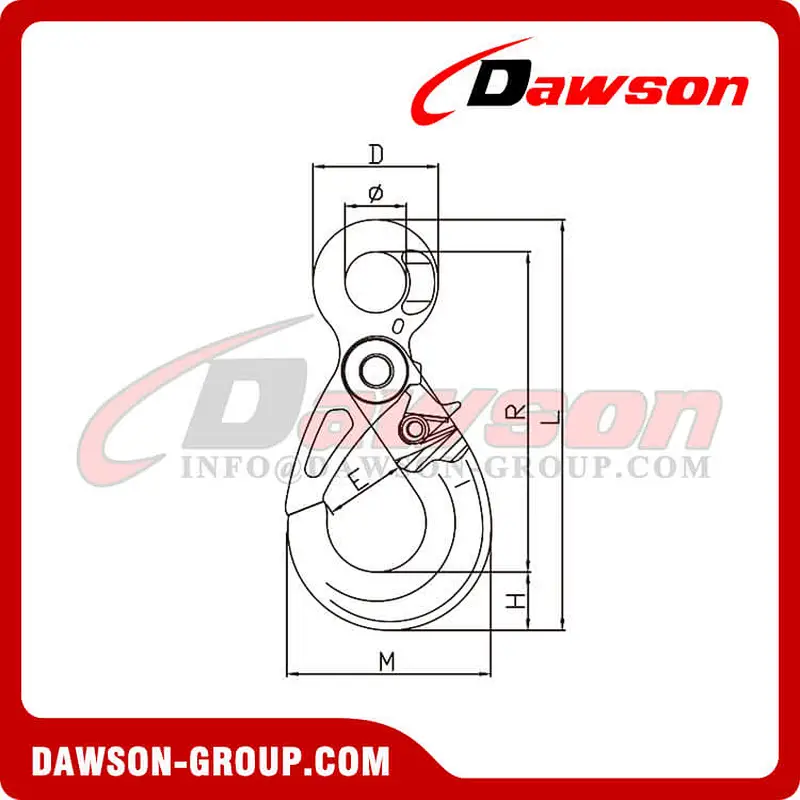

| Item No. | Weight/kg | WLL/T | BL/T | Φ | D±1 | E±1 | H±1 | R±2 | M±2 | L±3 |
| 8-DS765-06 | 0.5 | 1.4 | 5.6 | 21 | 43 | 29 | 20 | 110 | 70 | 143 |
| 8-DS765-08 | 0.9 | 2.5 | 10 | 27 | 51 | 35.5 | 26 | 137 | 90 | 175 |
| 8-DS765-10 | 1.5 | 4 | 16 | 34.5 | 64.5 | 45 | 30 | 169 | 108 | 212.5 |
| 8-DS765-13 | 2.7 | 6.7 | 26.8 | 40 | 80 | 53.5 | 40.5 | 209 | 138.5 | 270 |
| 8-DS765-16 | 5.7 | 10 | 40 | 50 | 104 | 62 | 50.5 | 254 | 170.5 | 331 |
| 8-DS765-20 | 7.9 | 16 | 64 | 60 | 120 | 76.5 | 62 | 277 | 192.5 | 369 |
| 8-DS765-22 | 11.2 | 19 | 76 | 70 | 134 | 80 | 66 | 319.5 | 205 | 417 |
Welcome to buy the newest and cheap DAWSON G80 / Grade 80 European Type Eye Self-lock Hook from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
G80 SELFLOCK HOOK
Supply only on special request. Not for recommendation.
