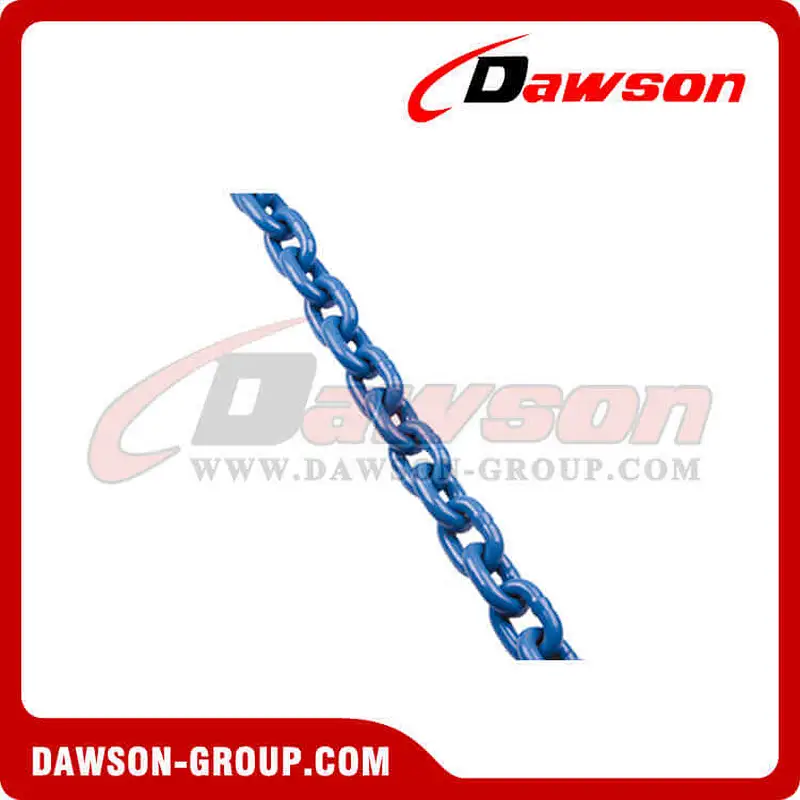

G100 / Grade 100 High Level Strength Alloy Lifting Chain for Hoist
Grade 100 Alloy Lifting Chain
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
NOTE : G100 LIFTING CHAIN -- 3.2×9MM, 4×12MM, 5×15MM, 6.3×19MM, 7.1×21MM, 7.9×23MM, 8.7×32.8MM, 9×27MM, 9.6×28.6MM, 10×28MM, 11.2×34MM, 14×42MM IS ALSO AVAILABLE

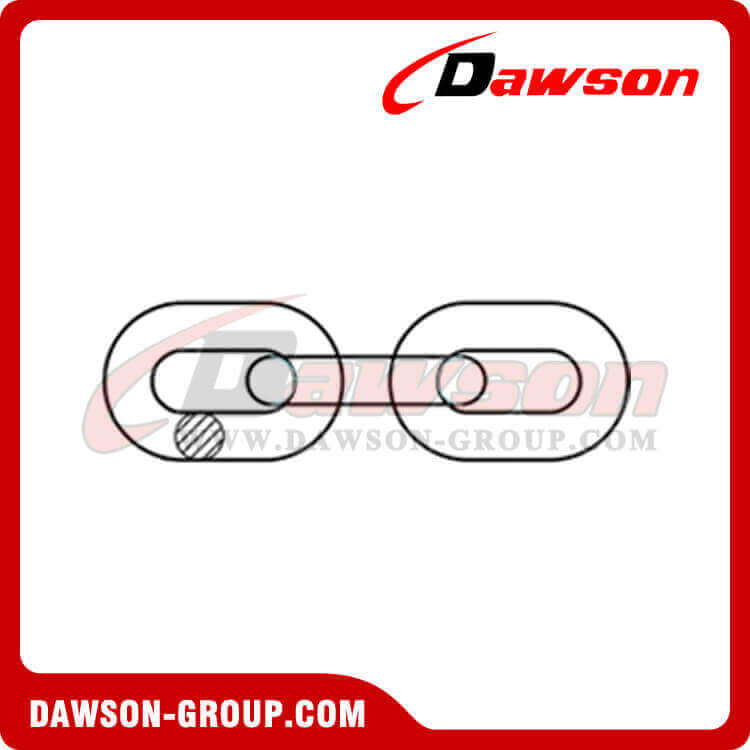

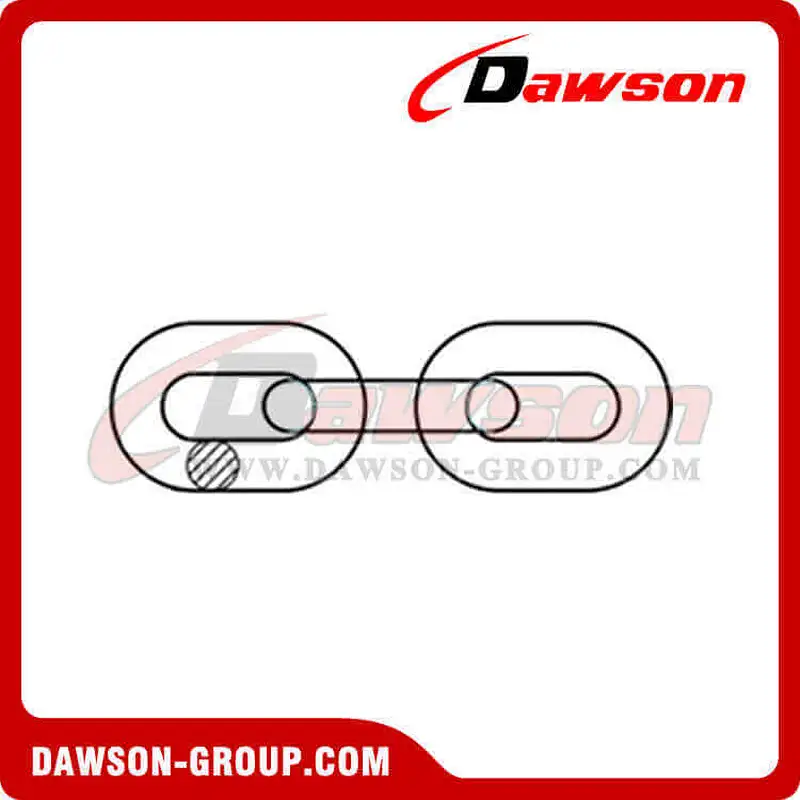

| Code No. | Size | DIA | Inside Length | Inside Width | Working Load Max | Proof Test Min | Breaking Force Min | Weight Per 100ft | Weight Per Meter |
| DS-C0013 | 6mm | 18mm | 9mm | 1400kg | 28.0kn | 56.5kn | 24.4kg | 0.80 | |
| DS-C0014 | 1/4 | 7mm | 21mm | 10.5mm | 1950kg | 38.5kn | 77.0kn | 33.1kg | 1.09 |
| DS-C0015 | 5/16 | 8mm | 24mm | 12mm | 2600kg | 51.0kn | 102.0kn | 43.7kg | 1.43 |
| DS-C0016 | 3/8 | 10mm | 30mm | 15mm | 4000kg | 79.0kn | 158.0kn | 68kg | 2.23 |
| DS-C0017 | 12mm | 36mm | 18mm | 5650kg | 111.0kn | 222.0kn | 97.9kg | 3.21 | |
| DS-C0018 | 1/2 | 13mm | 39mm | 19.5mm | 6800kg | 134.0kn | 268.0kn | 114.9kg | 3.77 |
| DS-C0019 | 5/8 | 16mm | 48mm | 24mm | 10300kg | 201.0kn | 402.0kn | 174kg | 5.71 |
| DS-C0020 | 18mm | 54mm | 27mm | 13000kg | 254.5kn | 509.0kn | 220.3kg | 7.23 | |
| DS-C0021 | 3/4 | 19mm | 57mm | 28.5mm | 14400kg | 283.0kn | 567.0kn | 244.9kg | 8.04 |
| DS-C0022 | 20mm | 60mm | 30mm | 16000kg | 315.0kn | 630.0kn | 272kg | 8.92 | |
| DS-C0023 | 7/8 | 22mm | 66mm | 33mm | 19400kg | 381.0kn | 762.0kn | 329.1kg | 10.80 |
For further information, please contact us. Email:info@dawson-group.com

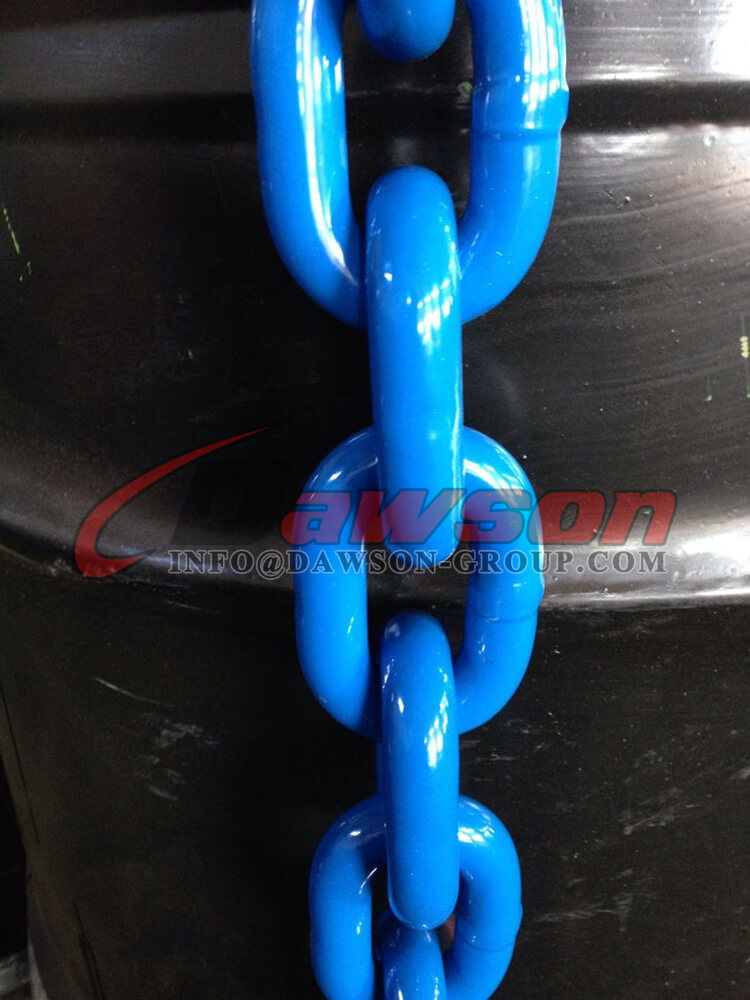

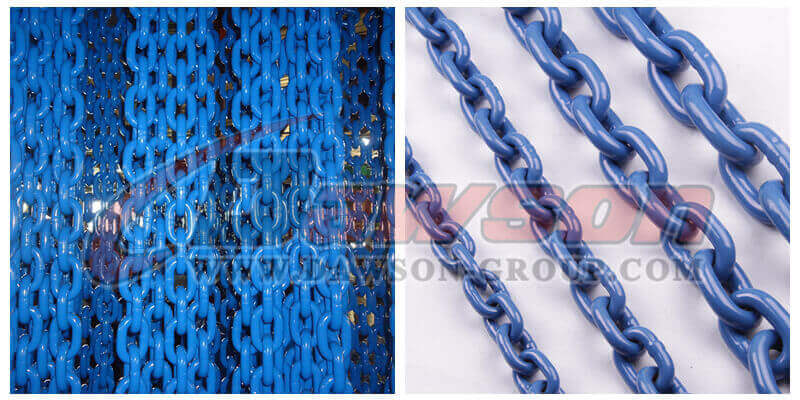

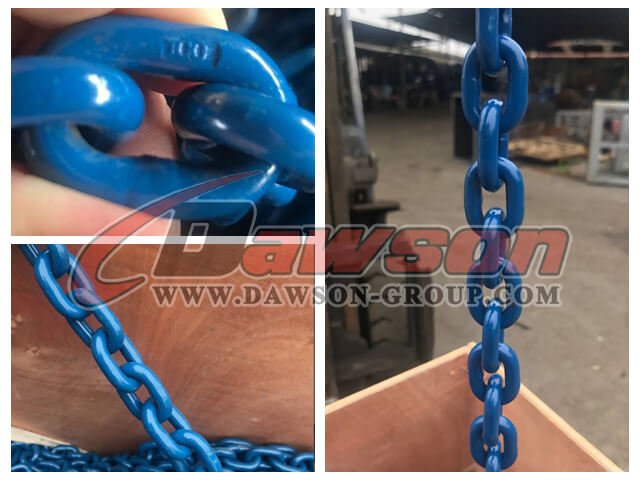

Products Show:
Hot Tags: Lifting Chain China Supplier, Alloy Steel Lifting Chain Factory, Hot Sale Alloy Lifting Chains, Customized Alloy Steel Lifting Chains, Buy Discount G100 Alloy Lifting Chain, Low Price Alloy Lifting Chains, EN818-8 Alloy Lifting Chain Manufacturer, Grade 100 Alloy Chain, G100 Alloy Chain for Lifting Use, NACM Alloy Lifting Chain, G100 Alloy Chain for Lifting In Stock, Alloy Lifting Chain Free Sample

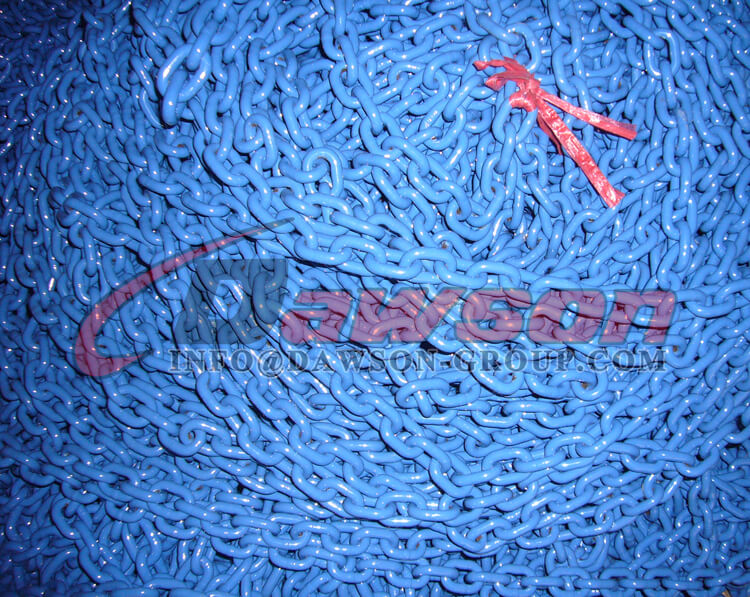

Factory & Package Show:
