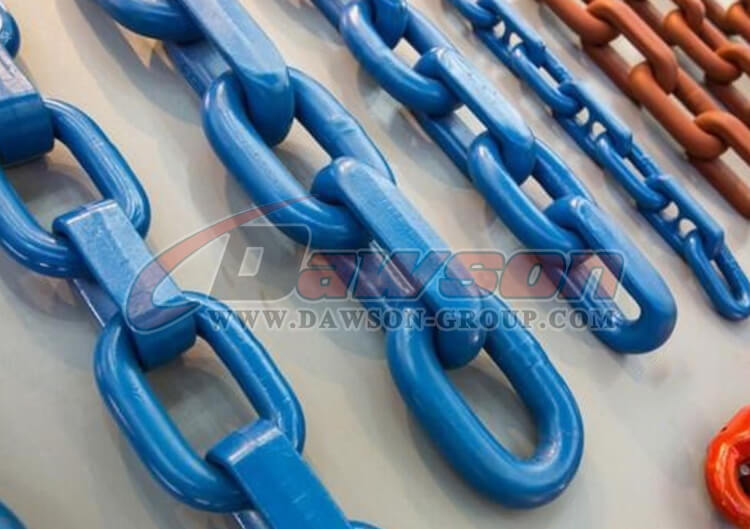

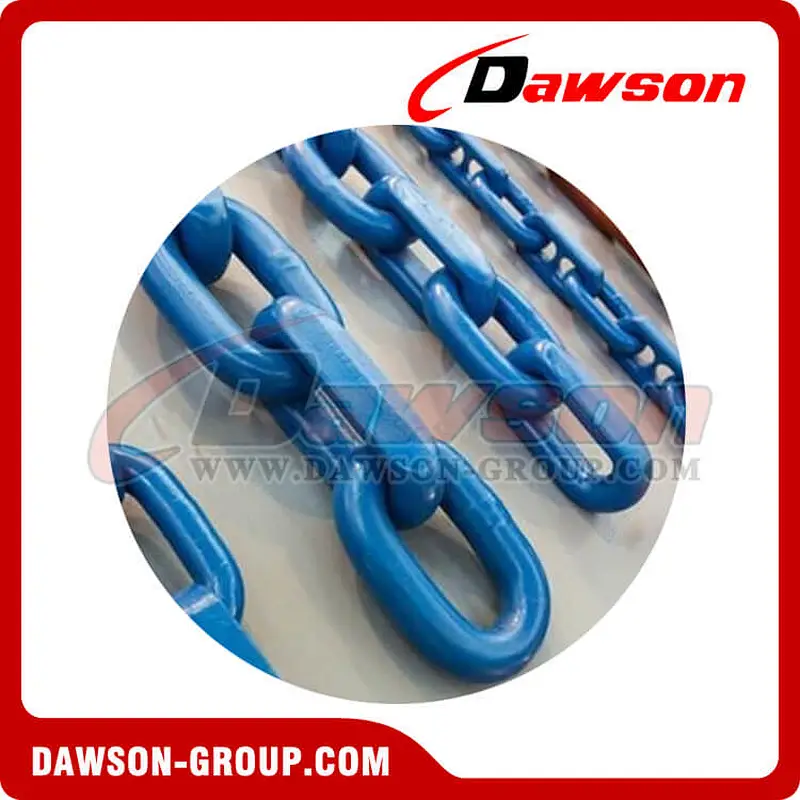

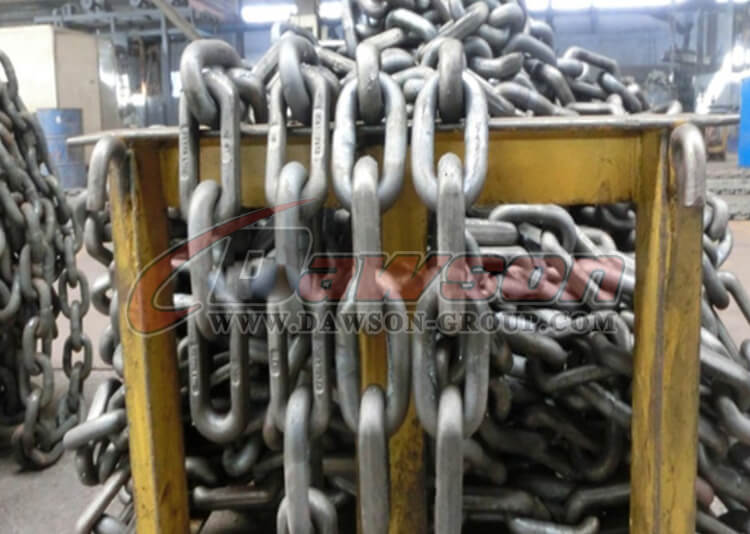

G100 / Grade 100 High Quality Welded Painted Steel Mining Chain / Grade C Alloy Steel Mining Chain for Conveyor

Quantity:

G100 Grade 100 High Quality Welded Painted Steel Mining Chain / Grade C Alloy Steel Mining Chain for Conveyor

(1)Grade:G100(Grade C)

(2)Size:10,14,18,22,26,30,34,38,42,48mm

(3)Material:Steel

(4)Function:Conveyor

(5)Surface:Painted

(6)Package:Drum on Pallet,Wooden Case

(7)Our Main Products:

US Standard:NACM90,NACM96,ASTM80 Standard G30,G43,G70

Germany Standard:DIN763,DIN764,DIN766,DIN5685A/C Chain

British Standard Short/Medium/Long Link Chain

EN818-2 G80 Chain

(8)Delivery:By Air,By Sea,By Express

Size of round link chain	Diameter of finished link straight side	Pitch	Min. Inside width	Max. Outside width	Radius of arc	Test Load(Kn)	Min. Breaking Load(Kn)	Max Elongation under test load	Min. Elongation under breaking load
10*40	10±0.4	40±0.5	12	34	15	85	110	1.4	12
						100	130	1.6	12
14*50	14±0.4	50±0.5	17	48	22	150	190	1.4	12
						200	250	1.6	12
18*64	18±0.5	64±0.6	21	60	28	260	320	1.4	12
						330	410	1.6	12
22*86	22±0.7	86±0.9	26	74	34	380	480	1.4	12
						490	610	1.6	12
26*92	26±0.8	92±0.9	30	86	40	540	670	1.4	12
						680	850	1.6	12
30*108	30±0.9	108±1.0	34	98	46	710	890	1.4	12
						900	1130	1.6	12
34*126	34±1.0	126±1.2	38	109	52	900	1140	1.4	12
						1160	1450	1.6	12
38*137	38±1.1	137±1.4	42	123	28	1450	1810	1.6	12
			42	110
42*146	42±1.3	146±1.5	46	135	64	1770	2220	1.6	12
			46	115
48*152	48±1.5	152±1.5	62	163	78	1850	2900	1.6	12
			56	127

For further information, please contact us. Email:info@dawson-group.com
