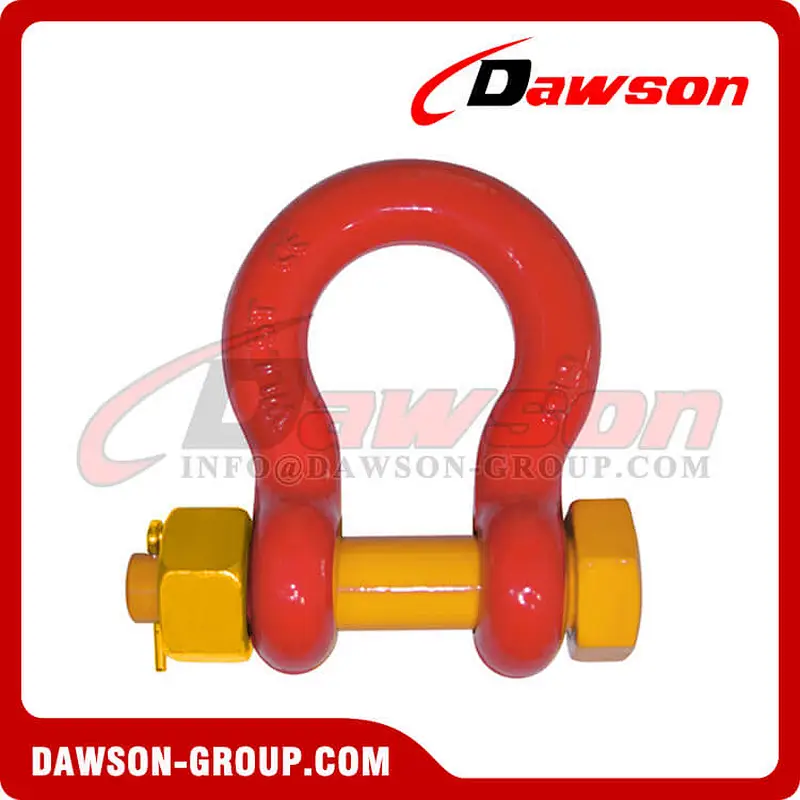

DS756 G8 Bolt Type Alloy Bow Shackle, Anchor Shackle with Safety Pin for Lifting
G8 Anchor Shackle with Safety Pin, Bolt Type Shackle for Lifting
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% magnaflux crack detection.
All load pins are 100% individually inspected and tested.
Surface finish:Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003.
(BODY AND BOLT)Super alloy steel-Quenched and Tempered
Breaking test
100% magnaflux crack detection.
Permitted useful temperature range: -40℃-200℃
According to standard:RR-C-271D Type IVA Class3 GradeB,SS-EN-13889+A1-2008

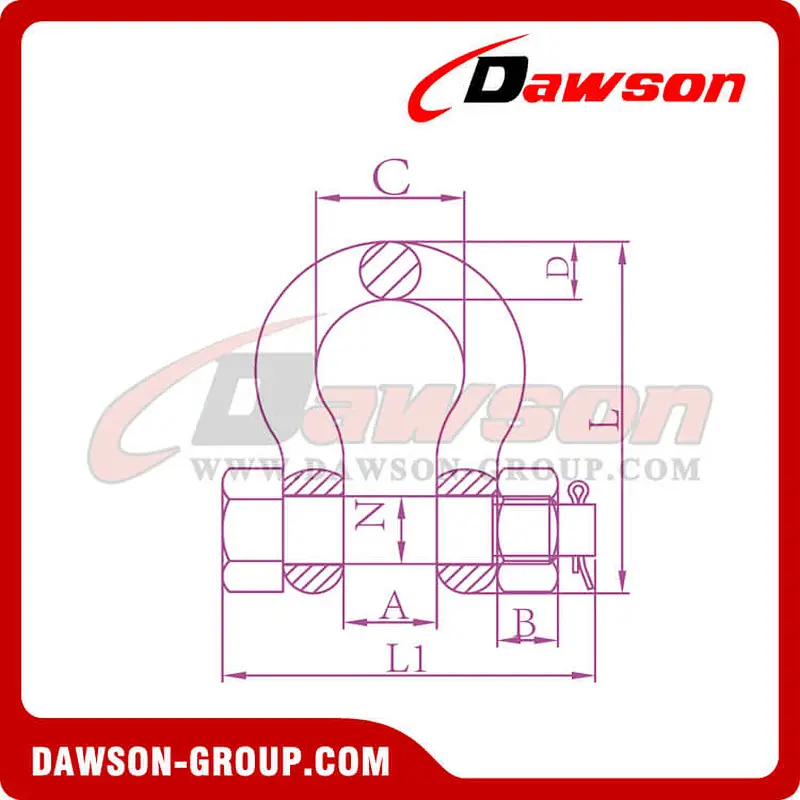

| ITEM NO. | WEIGHT/LBS | WLL/T | B.L/T | A±1.5 | C±1.5 | D±1 | L±3 | N | L1±3 | B |
| DS-756-5/16 | 0.22 | 1.2 | 6 | 13.5 | 21.3 | 8 | 53 | 9.5 | 50.5 | 8.4 |
| DS-756-3/8 | 0.33 | 1.6 | 8 | 16.8 | 25.9 | 9.7 | 63.2 | 11 | 62 | 10.8 |
| DS-756-7/16 | 0.49 | 2.5 | 12.5 | 19 | 29.5 | 11.2 | 74 | 13 | 70 | 12.8 |
| DS-756-1/2 | 1.01 | 3.3 | 16.5 | 20.6 | 33.3 | 12.7 | 83.3 | 16 | 79.5 | 14.8 |
| DS-756-5/8 | 1.60 | 5 | 25 | 27 | 42.9 | 17.5 | 106.4 | 19 | 101.5 | 18 |
| DS-756-3/4 | 2.42 | 7 | 35 | 32 | 50.8 | 20.6 | 126.2 | 22 | 117.5 | 19.4 |
| DS-756-7/8 | 3.95 | 9.5 | 47.5 | 36.6 | 57.9 | 24.6 | 148 | 25 | 136 | 21.5 |
| DS-756-1 | 5.66 | 12.5 | 62.5 | 43 | 68.3 | 27 | 166.6 | 28 | 153.5 | 23.8 |
| DS-756-1-1/8 | 8.27 | 15 | 75 | 46 | 74 | 31.75 | 190 | 32 | 171.5 | 25.6 |
| DS-756-1-1/4 | 11.71 | 18 | 90 | 51.6 | 82.5 | 35 | 210 | 35 | 192 | 31 |
| DS-756-1-3/8 | 15.83 | 21 | 105 | 57 | 92 | 36 | 232.7 | 38 | 202 | 33.4 |
| DS-756-1-1/2 | 20.8 | 30 | 150 | 60.5 | 98 | 41 | 254 | 42 | 222 | 34 |
| DS-756-1-3/4 | 33.91 | 40 | 200 | 73.2 | 126 | 57.2 | 313.7 | 51 | 278 | 38 |
| DS-756-2 | 52.25 | 55 | 275 | 82.5 | 146 | 61 | 347.5 | 57 | 307 | 45 |
Ultimate load is 5 times the Working Load Limit.
Welcome to buy the newest and competitive price DAWSON DS756 G8 Bolt Type Alloy Bow Shackle, Anchor Shackle with Safety Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
