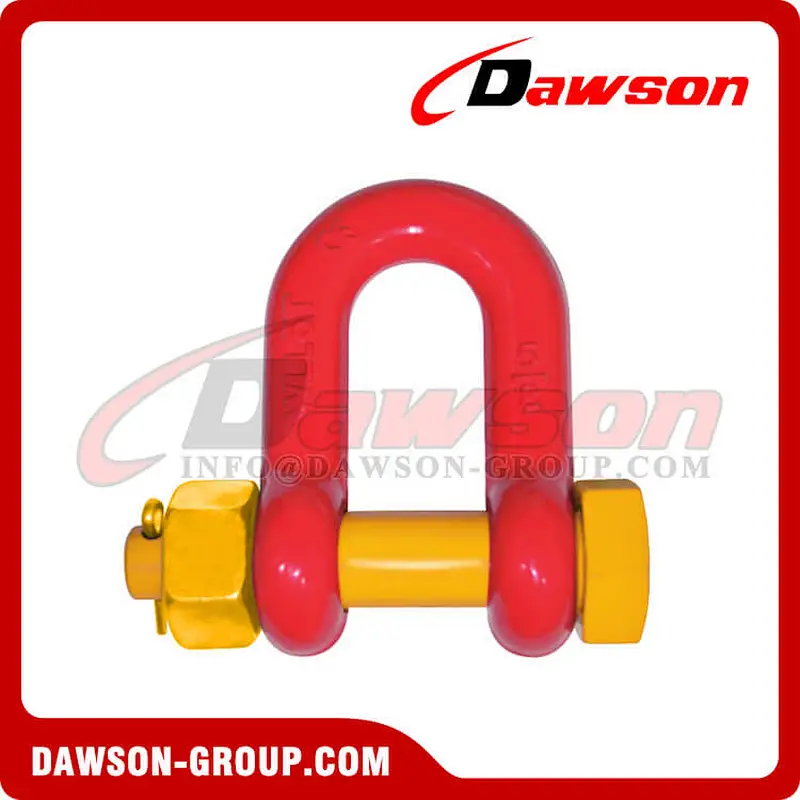

DS757 G8 Bolt Type Alloy Dee Shackle for Lifting, Chain Shackle with Safety Pin
G8 Chain Shackle, Bolt Type Shackle for Lifting
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel - Quenched and Tempered.
Suitable for EN818-2 G80 chain.
Individually proof test at 2.5 times Working Load Limit.
Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.
Breakage test.
100% magnaflux crack detection.
All load pins are 100% individually inspected and tested.
Surface finish:Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003.
(BODY AND BOLT)Super alloy steel-Quenched and Tempered
Breaking test
100% magnaflux crack detection.
Permitted useful temperature range: -40℃-200℃
According to standard:RR-C-271D Type IVA Class3 GradeB,SS-EN-13889+A1-2008

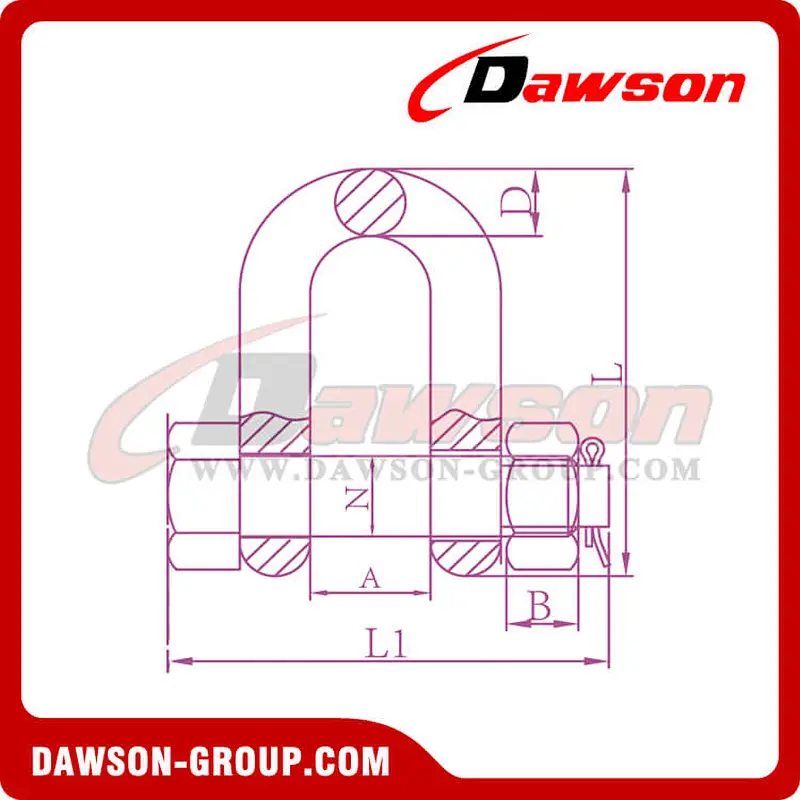

| ITEM NO. | WEIGHT/LBS | WLL/T | B.L/T | A±1.5 | D±1 | N | L±3 | L1±3 | B |
| DS-757-5/16 | 0.23 | 1.2 | 6 | 13.5 | 8 | 9.5 | 48.5 | 50.5 | 8.4 |
| DS-757-3/8 | 0.33 | 1.6 | 8 | 16.8 | 9.7 | 11 | 58.4 | 62 | 10.8 |
| DS-757-7/16 | 0.49 | 2.5 | 12.5 | 19 | 11.2 | 13 | 67.6 | 70 | 12.8 |
| DS-757-1/2 | 0.75 | 3.3 | 16.5 | 20.6 | 12.7 | 16 | 77 | 79.5 | 14.8 |
| DS-757-5/8 | 1.47 | 5 | 25 | 27 | 17.5 | 19 | 97.3 | 101.5 | 18 |
| DS-757-3/4 | 2.52 | 7 | 35 | 32 | 20.6 | 22 | 116.6 | 117.5 | 19.4 |
| DS-757-7/8 | 3.85 | 9.5 | 47.5 | 36.6 | 24.6 | 25 | 135.4 | 136 | 21.5 |
| DS-757-1 | 5.55 | 12.5 | 62.5 | 43 | 27 | 28 | 152.4 | 153.5 | 23.8 |
| DS-757-1-1/8 | 7.60 | 15 | 75 | 46 | 31.8 | 32 | 172.2 | 171.5 | 25.6 |
| DS-757-1-1/4 | 10.81 | 18 | 90 | 51.6 | 35 | 35 | 190.5 | 192 | 31 |
| DS-757-1-3/8 | 13.75 | 21 | 105 | 57 | 35 | 38 | 206.8 | 202 | 33.4 |
| DS-757-1-1/2 | 18.5 | 30 | 150 | 60.5 | 41 | 42 | 230.1 | 222 | 34 |
| DS-757-1-3/4 | 31.4 | 40 | 200 | 73.2 | 53.8 | 51 | 279 | 278 | 38 |
| DS-757-2 | 46.75 | 55 | 275 | 82.5 | 61 | 57 | 324.6 | 307 | 45 |
Ultimate load is 5 times the Working Load Limit.
Welcome to buy the newest and competitive price DAWSON DS757 G8 Bolt Type Alloy Dee Shackle for Lifting, Chain Shackle with Safety Pin from our factory. We're one of the leading China manufacturers and suppliers, offering you the wholesale service and the OEM service at a discount. With CE certification, our products made in China in stock are high in quality and low in price. Please be free to get the free sample from us.
For further information, please contact us. Email:info@dawson-group.com
Hot Tags: Chain Shackle, Alloy Steel Chain Shackle, Bolt Type Chain Shackle, Anchor Chain Shackle, Bolt Type Anchor Shackle, China G8 Dee Shackle Supplier, Dee Shackle with Safety Pin China Exporter, Bolt Alloy Dee Shackle with Safety Pin Factory China, Low Price G8 Alloy Chain Shackle, Buy Discount G8 Bolt Type Dee Shackle, Cheap Price G8 Alloy Dee Shackle, Hot Sale Dee Shackle with Bolt, Chain Shackle with Bolt In Stock, Wholesale Chain Shackle, China Dee Shackle Manufacturer, Dawson Brands G8 Chain Shackle, Dee Shackle Free Sample
Factory & Package Show:
