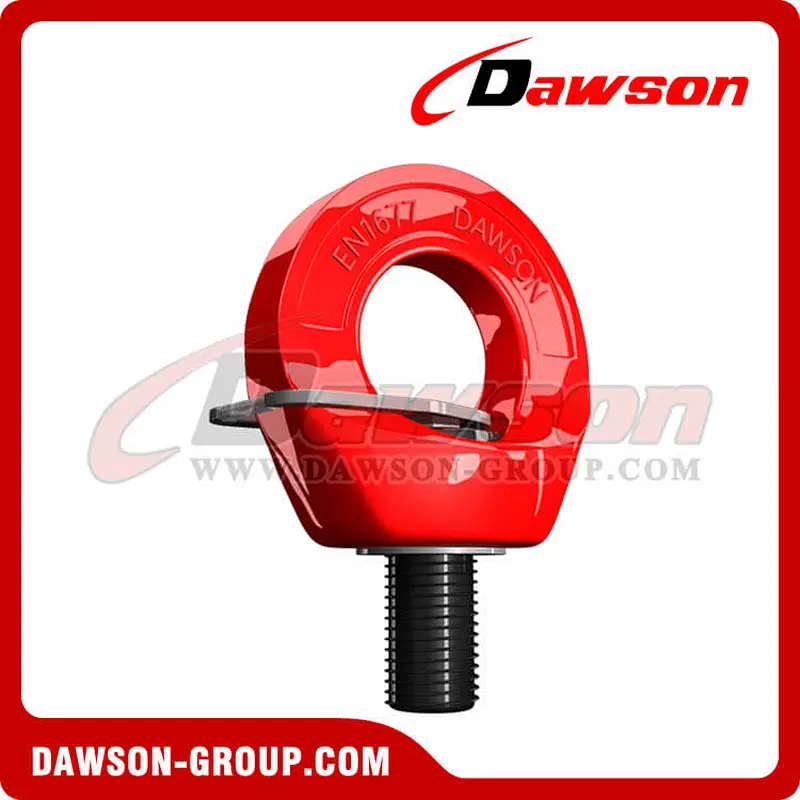

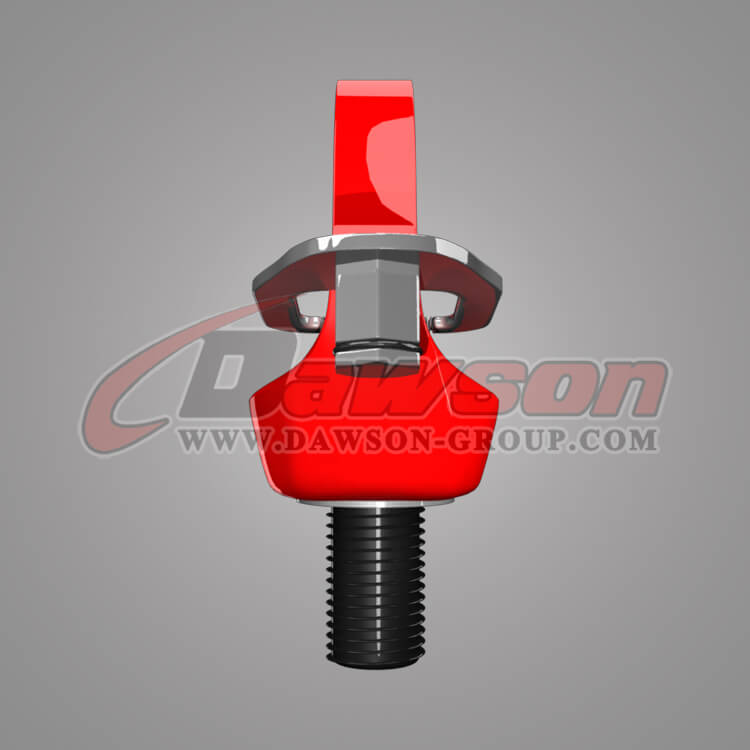

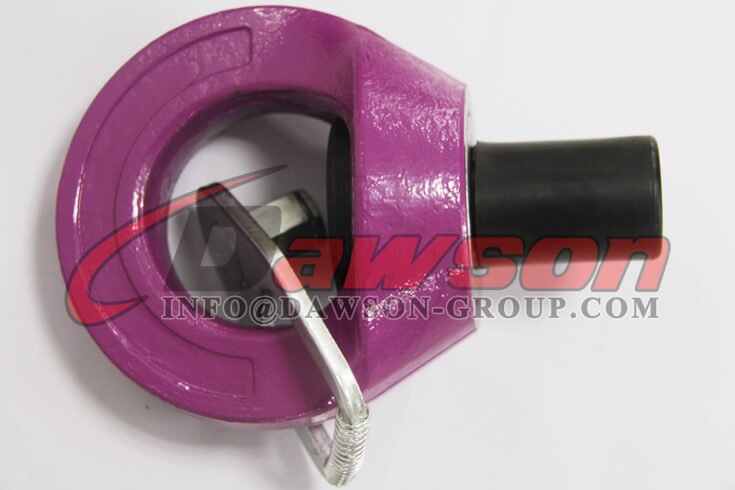

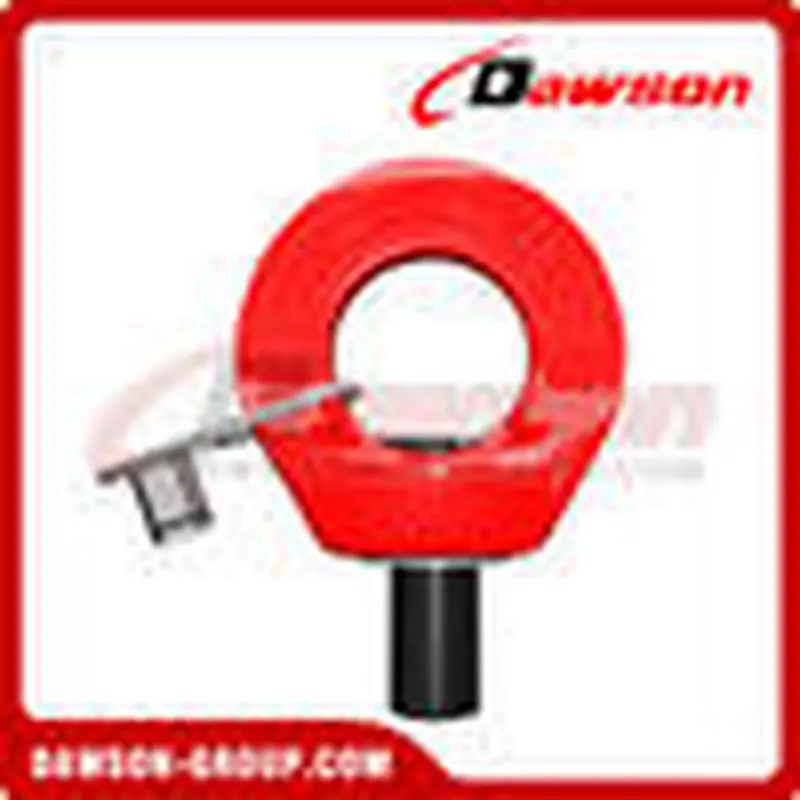

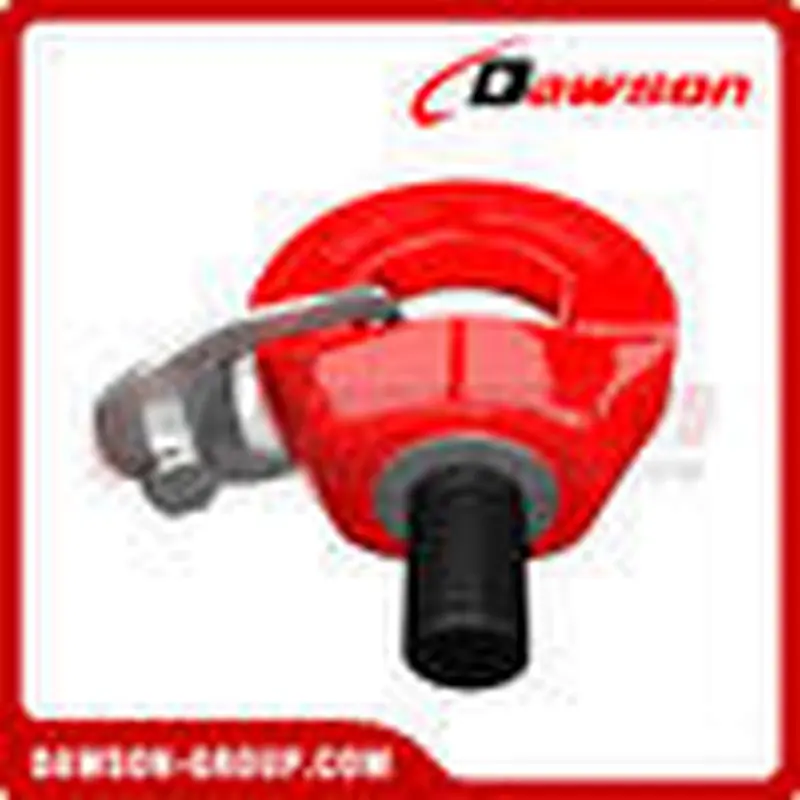

G80 Eye Type Rotating Ring, G80 / Grade 80 Lifting Anchor Eye Bolt
- Dawson Group Ltd. - China Manufacturer Supplier, Factory
| Item no | WLL/T | Thread M | Technical parameter/mm | Weight/kg | ||||||||

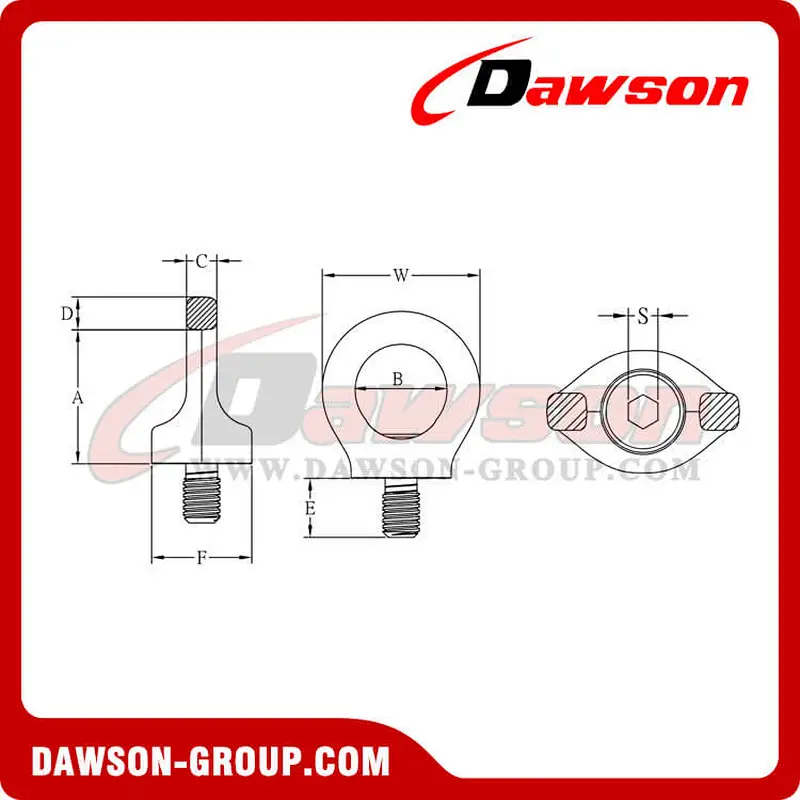

| X | (Z) | A | B | C | D | E | F | S | W | |||
| DS084-08 | 0.3 | (1) | 8 | 34 | 25 | 8.5 | 11 | 12 | 28 | 6 | 47 | 0.14 |
| DS084-10 | 0.4 | (1) | 10 | 34 | 25 | 8.5 | 11 | 15 | 28 | 6 | 47 | 0.14 |
| DS084-12 | 0.75 | (2) | 12 | 42 | 30 | 10 | 13 | 18 | 34 | 8 | 56 | 0.25 |
| DS084-14 | 0.75 | (2) | 14 | 42 | 30 | 10 | 13 | 18 | 34 | 8 | 56 | 0.30 |
| DS084-16 | 1.5 | (4) | 16 | 49 | 35 | 14 | 15 | 24 | 40 | 10 | 65 | 0.45 |
| DS084-18 | 1.5 | (4) | 18 | 49 | 35 | 14 | 15 | 24 | 40 | 10 | 65 | 0.5 |
| DS084-20 | 2.3 | (6) | 20 | 57 | 40 | 16 | 17 | 30 | 50 | 12 | 75 | 0.7 |
| DS084-22 | 2.3 | (6) | 22 | 57 | 40 | 16 | 17 | 30 | 50 | 12 | 75 | 0.8 |
| DS084-24 | 3.2 | (8) | 24 | 70 | 48 | 19 | 21 | 36 | 62 | 14 | 90 | 1.14 |
| DS084-27 | 3.2 | (8) | 27 | 70 | 48 | 19 | 21 | 36 | 62 | 14 | 90 | 1.2 |
| DS084-30 | 4.5 | (12) | 30 | 86 | 60 | 24 | 26 | 45 | 75 | 17 | 112 | 2.2 |
| DS084-33 | 4.5 | (12) | 33 | 86 | 60 | 24 | 26 | 45 | 75 | 17 | 112 | 2.4 |
| DS084-36 | 7 | (16) | 36 | 103 | 72 | 29 | 32 | 54 | 90 | 22 | 135 | 4 |
| DS084-42 | 9 | (24) | 42 | 120 | 82 | 34 | 38 | 63 | 105 | 24 | 158 | 6.43 |
| DS084-48 | 12 | (32) | 48 | 137 | 94 | 38 | 43 | 72 | 120 | 27 | 180 | 9.8 |
Note: Inch or non-standard lengthened bolts can be made according to customer's requirements.
Brief introduction

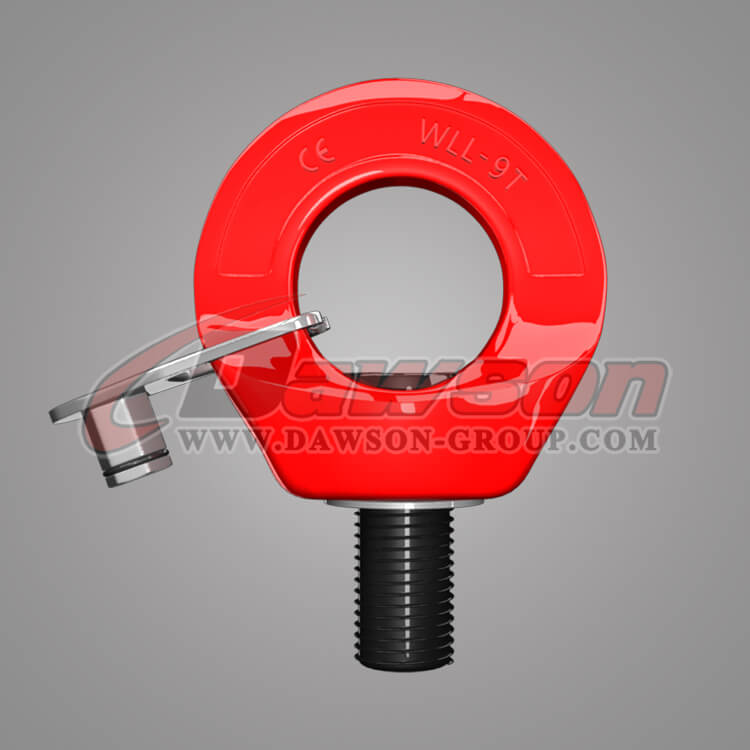

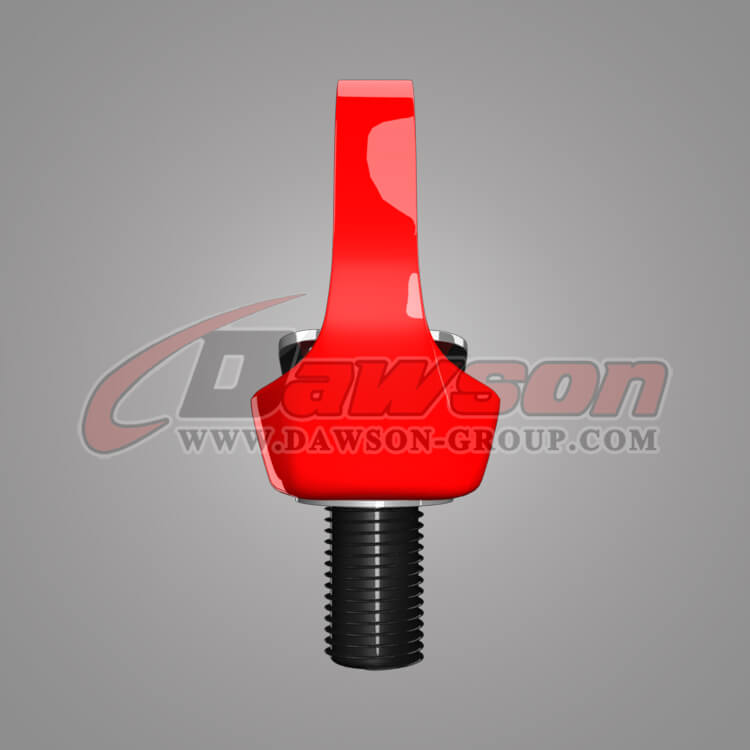

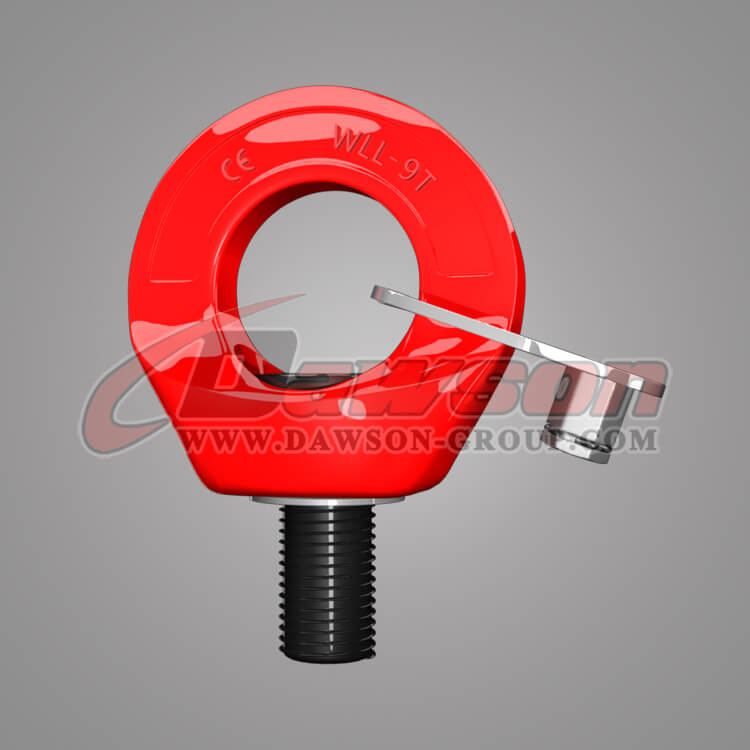

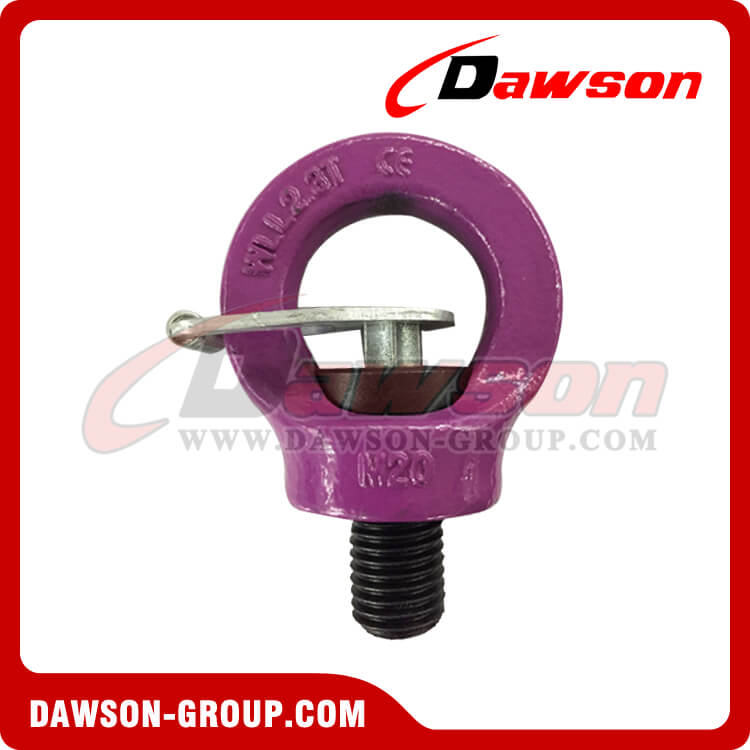

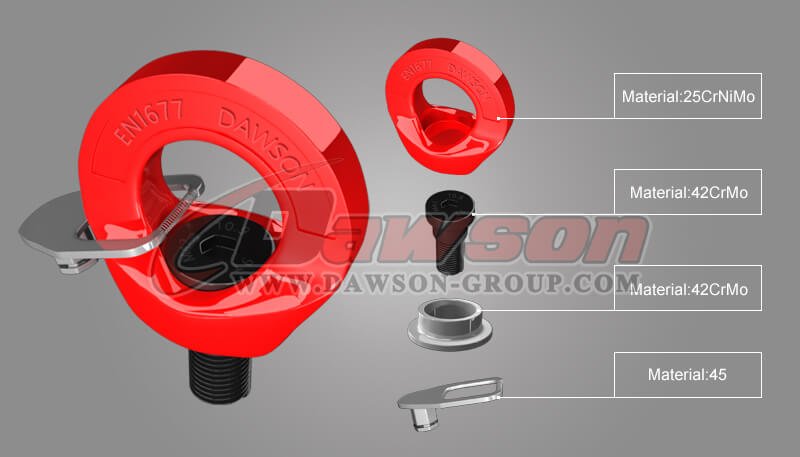

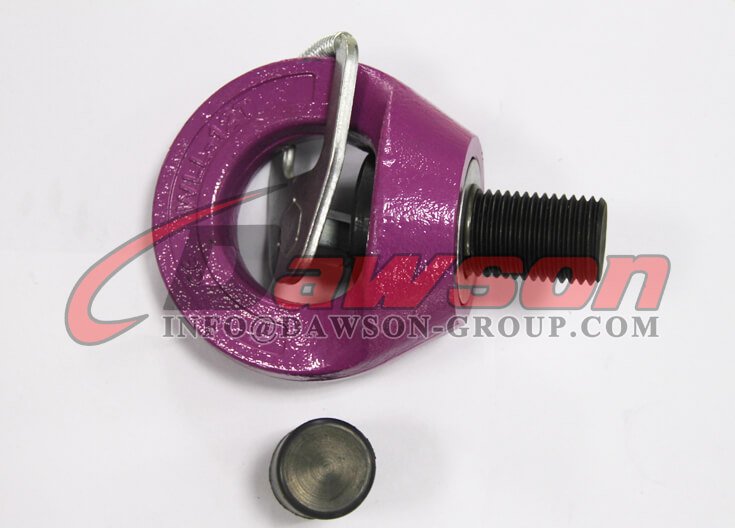

G80 eye type rotating rings the SAE8620H special alloy forging and high strength quenched and tempered after treatment, according to the standard of a EN1677-4.
And direction safety factor is 4 times.
The rated load than the tradition DIN580 ring screw is more than 5 times higher.

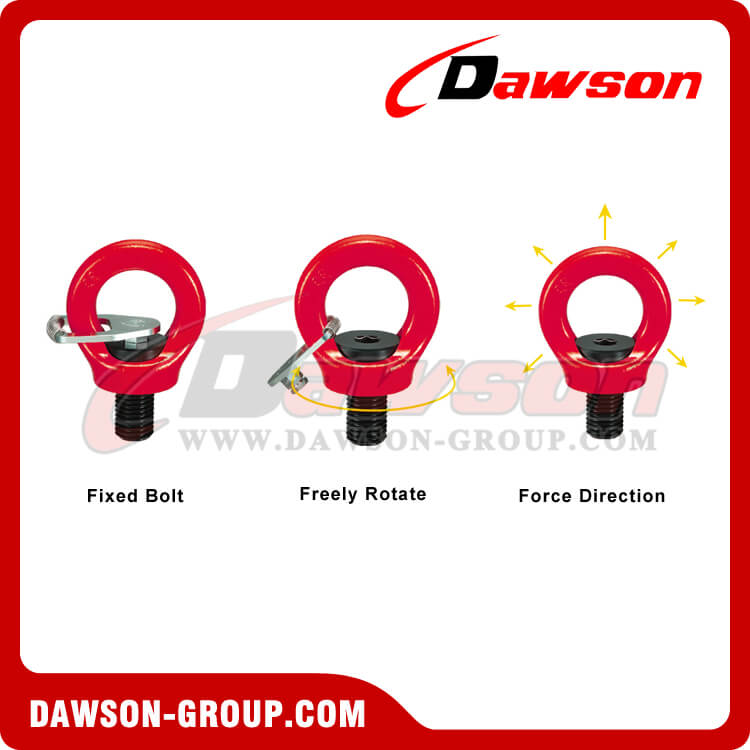

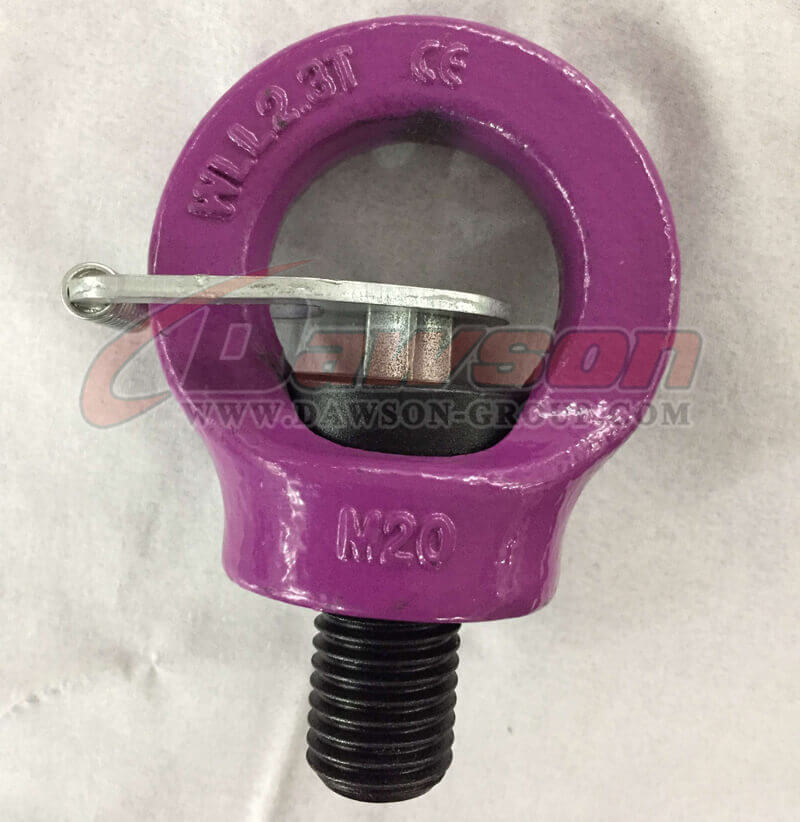

The locking bolt, the ring body can rotate 360 degrees.
In the case of multi limb lifting sling, ring body parts can be automatically adjusted with the direction of rotation or tensile stress angle.

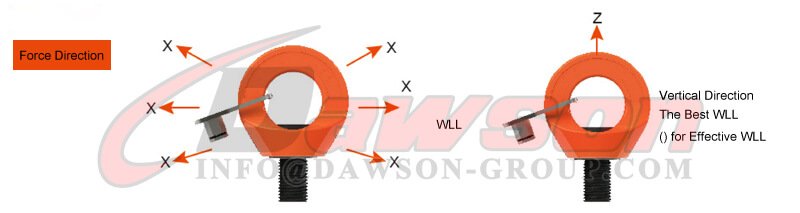

G80 Eye type rotary lifting force form
| Force form |  |  |  |  |  |  |  |  | |||
| Number of limb | 1 | 2 | 1 | 2 | 2 | 2 | 3-4 | 3-4 | |||
| Load direction | 0° | 0° | 90° | 90° | 0-45°45-60° | asymmetric | 0-45°45-60° | asymmetric | |||
| Item NO. | Thread M | WLL/T | |||||||||
| DS084-08 | 8 | 1 | 2 | 0.3 | 0.6 | 0.42 | 0.3 | 0.3 | 0.63 | 0.45 | 0.3 |
| DS084-10 | 10 | 1 | 2 | 0.4 | 0.8 | 0.56 | 0.4 | 0.4 | 0.8 | 0.6 | 0.4 |
| DS084-12 | 12 | 2 | 4 | 0.75 | 1.5 | 1 | 0.75 | 0.75 | 1.5 | 1.1 | 0.75 |
| DS084-14 | 14 | 2 | 4 | 0.75 | 1.5 | 1 | 0.75 | 0.75 | 1.5 | 1.1 | 0.75 |
| DS084-16 | 16 | 4 | 8 | 1.5 | 3 | 2.1 | 1.5 | 1.5 | 3.1 | 2.2 | 1.5 |
| DS084-18 | 18 | 4 | 8 | 1.5 | 3 | 2.1 | 1.5 | 1.5 | 3.1 | 2.2 | 1.5 |
| DS084-20 | 20 | 6 | 12 | 2.3 | 4.6 | 3.2 | 2.3 | 2.3 | 4.8 | 3.4 | 2.3 |
| DS084-22 | 22 | 6 | 12 | 2.3 | 4.6 | 3.2 | 2.3 | 2.3 | 4.8 | 3.4 | 2.3 |
| DS084-24 | 24 | 8 | 16 | 3.2 | 6.4 | 4.5 | 3.2 | 3.2 | 6.7 | 4.8 | 3.2 |
| DS084-27 | 27 | 8 | 16 | 3.2 | 6.4 | 4.5 | 3.2 | 3.2 | 6.7 | 4.8 | 3.2 |
| DS084-30 | 30 | 12 | 24 | 4.5 | 9 | 6.3 | 4.5 | 4.5 | 9.4 | 6.7 | 4.5 |
| DS084-33 | 33 | 12 | 24 | 4.5 | 9 | 6.3 | 4.5 | 4.5 | 9.4 | 6.7 | 4.5 |
| DS084-36 | 36 | 16 | 32 | 7 | 14 | 9.8 | 7 | 7 | 14.7 | 10.5 | 7 |
| DS084-42 | 42 | 24 | 48 | 9 | 18 | 12.6 | 9 | 9 | 18.9 | 13.5 | 9 |
| DS084-48 | 48 | 32 | 64 | 12 | 24 | 16.8 | 12 | 12 | 25 | 18 | 12 |
Products Show:
Other Related Products:

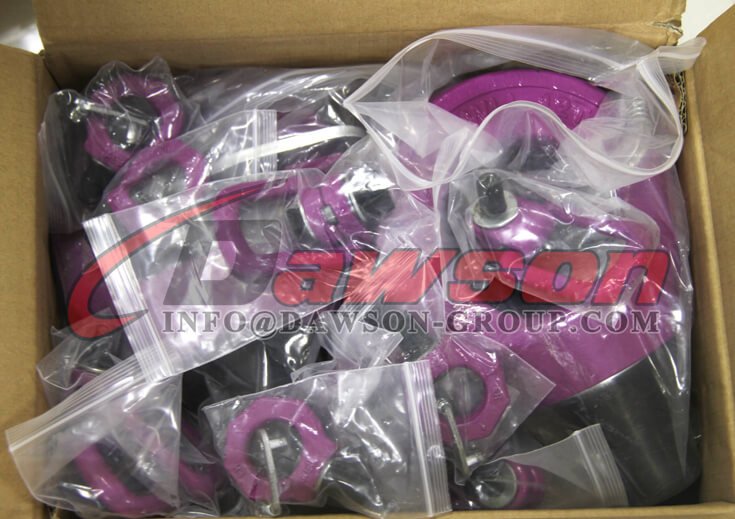

Package of G80 Lifting Points:

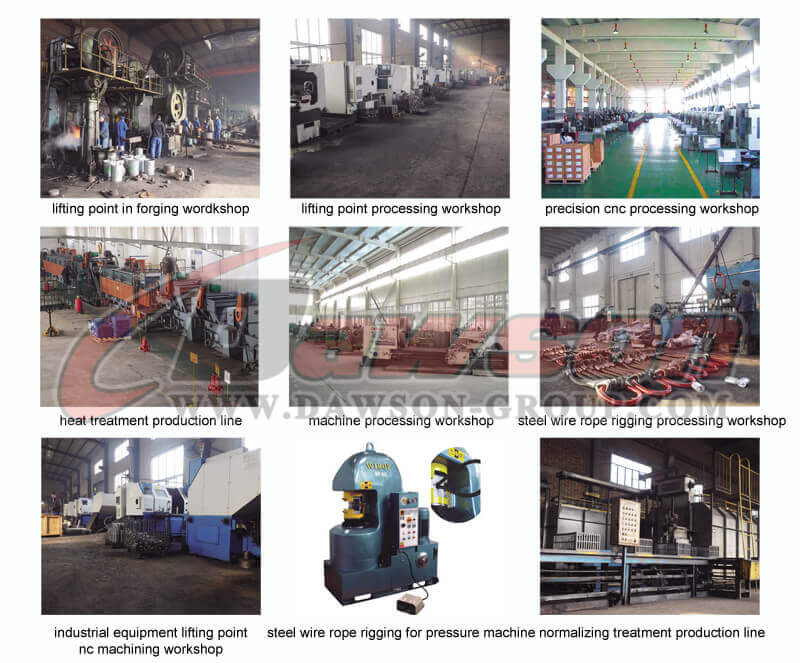

Production Equipment:

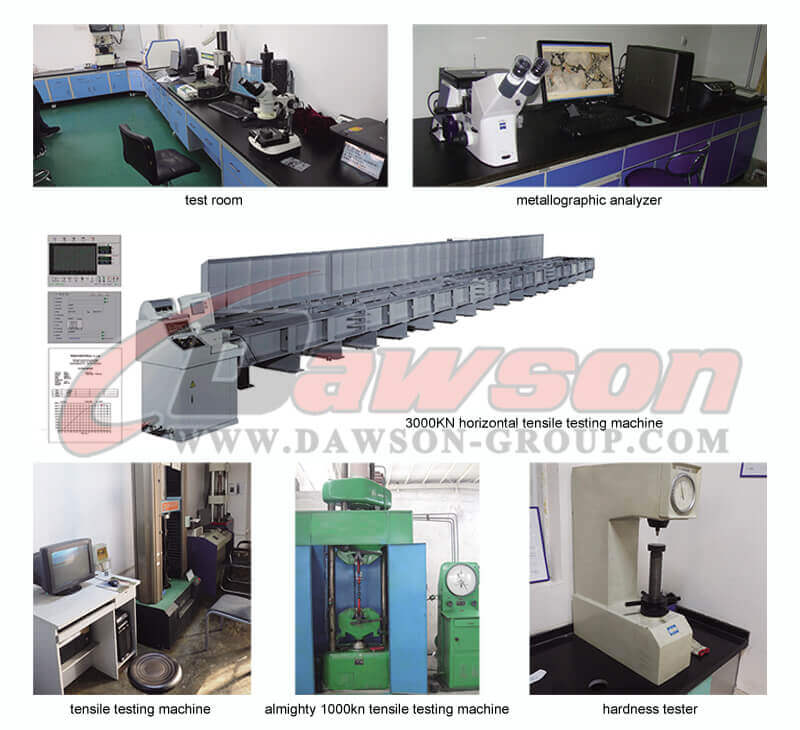

Test Equipment:

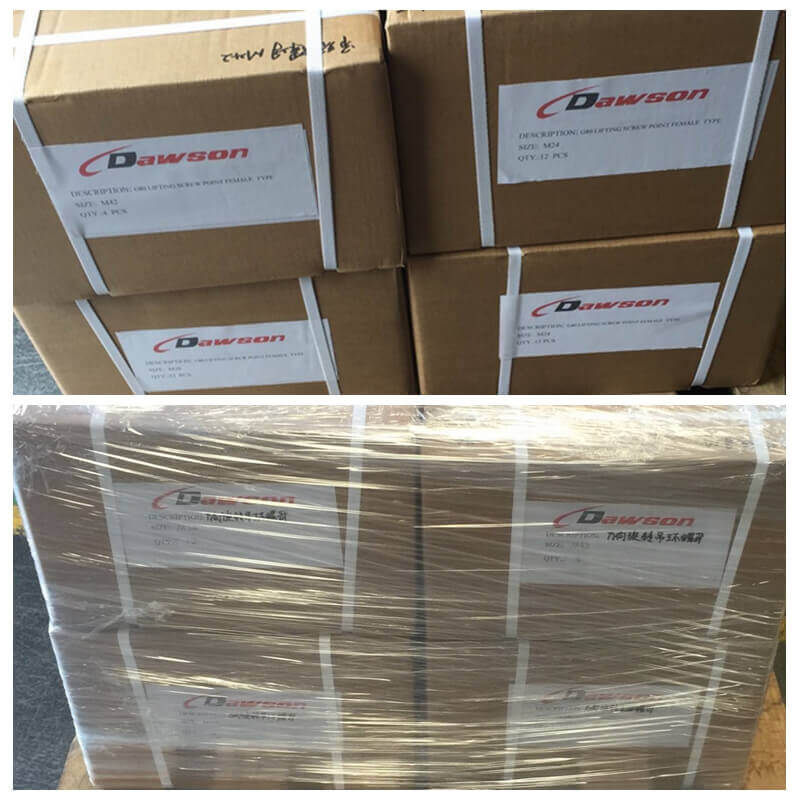

Package of G80 Eye Type Rotating Ring, Lifting Points:

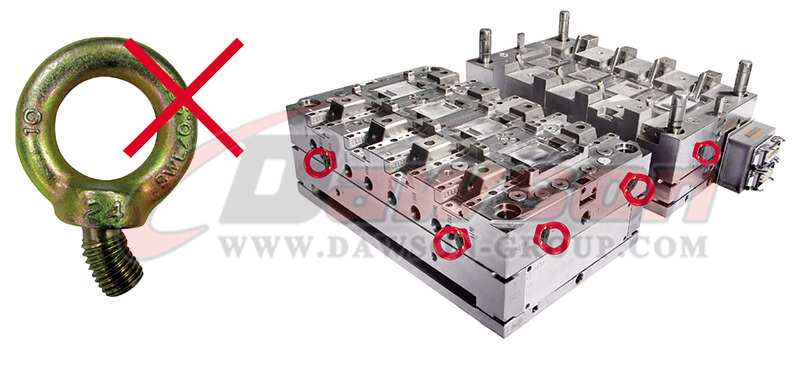

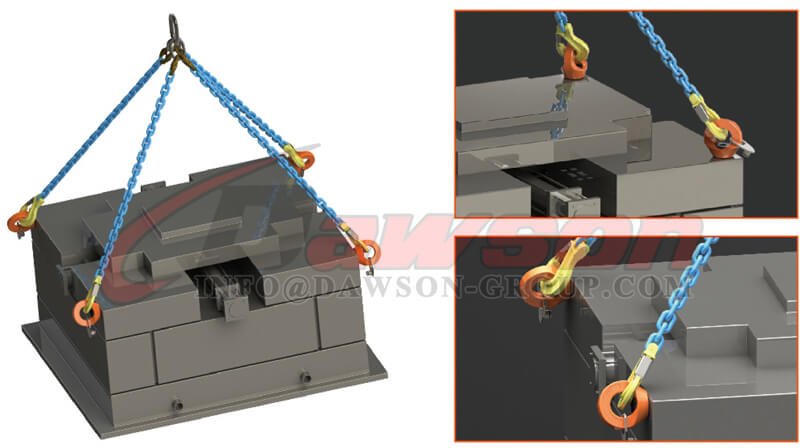

Application of G80 Eye Type Lifting Screw Points:
