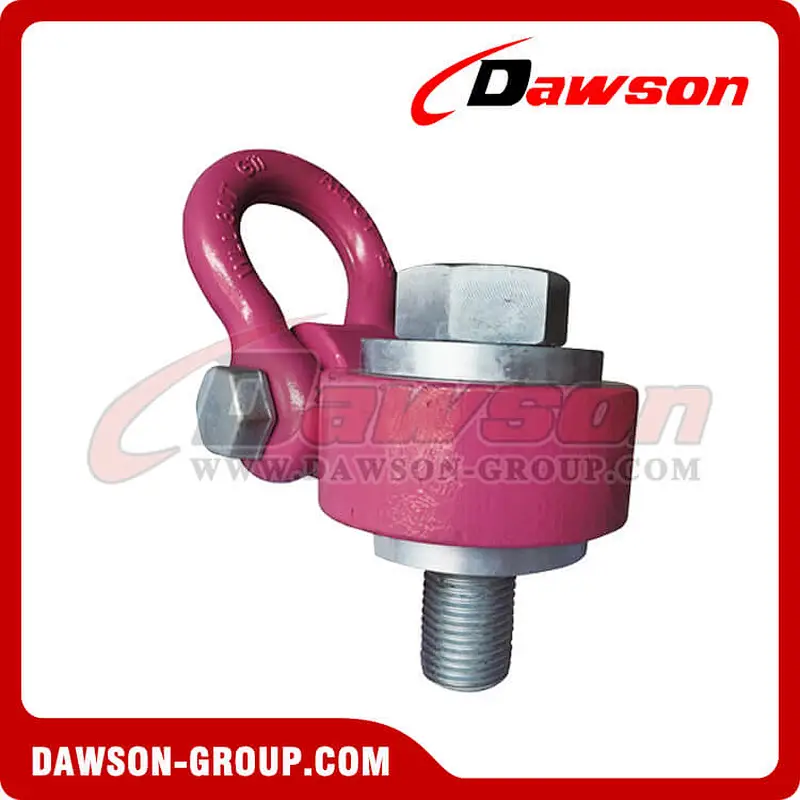

G80 Heavy Duty Swivel Hoist Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting
- Dawson Group Ltd. - China Manufacturer Supplier, Factory

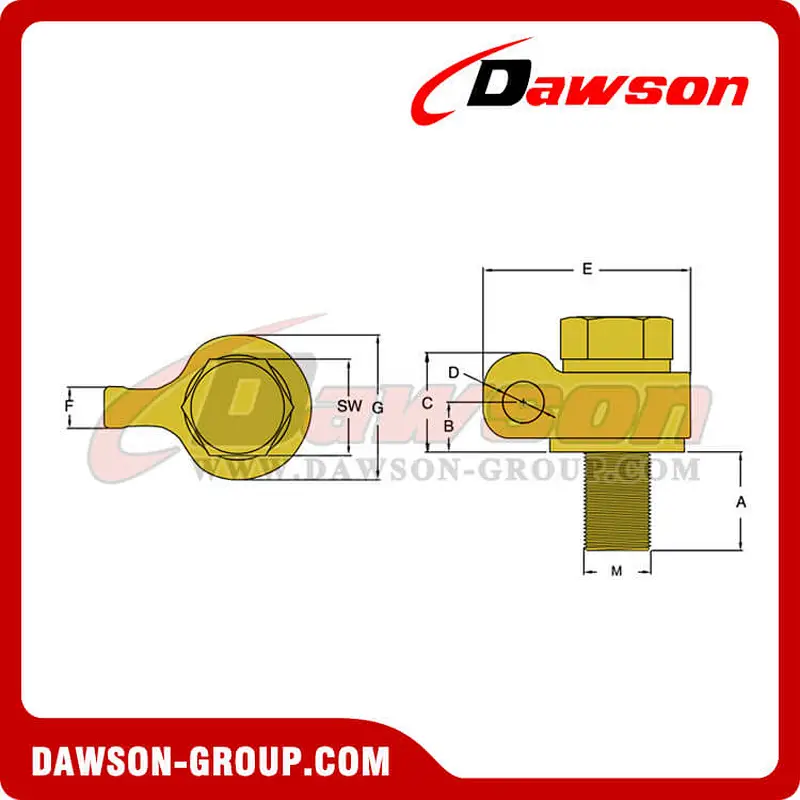

| Item no | size | W/t | Technical parameter/mm | Weight/kg | |||||||
| A | B | C | D | E | F | G | SW | ||||
| DS-882-056 | M56x170L | 22 | 85 | 57 | 117 | 50 | 250 | 50 | 175 | 85 | 41 |
| DS-882-064 | M64x185L | 22 | 100 | 57 | 117 | 50 | 250 | 50 | 175 | 95 | 43 |
| DS-882-072 | M72x215L | 30 | 110 | 57 | 117 | 50 | 250 | 50 | 175 | 105 | 46 |
| DS-882-080 | M80x255L | 35 | 120 | 76 | 151 | 63 | 310 | 63 | 220 | 115 | 68 |
| DS-882-090 | M90x270L | 40 | 135 | 76 | 151 | 63 | 310 | 63 | 220 | 130 | 71 |
| DS-882-100 | M100x285L | 40 | 150 | 76 | 151 | 63 | 310 | 63 | 220 | 145 | 74 |
| DS-882-110 | M110x325L | 50 | 165 | 85 | 180 | 78 | 390 | 78 | 275 | 155 | 87 |
| DS-882-125 | M125x345L | 50 | 190 | 85 | 180 | 78 | 390 | 78 | 275 | 180 | 90 |
Note: Inch or non-standard lengthened bolts can be made according to customer's requirements.
Brief Introduction:
Forged super alloy steel-Quenched Tempered.
Individually proof test at 2.5 times working load limit.
Fatigue tested at 1.5 times working load limit for 20000 cycles.
Breaking test magnaflux crack detection.
All load pins are 100% individually inspected and tested.
Grade 100 lifting point are 360°rotation with 90°pivot function.
Rated at 100% at 90°angle.

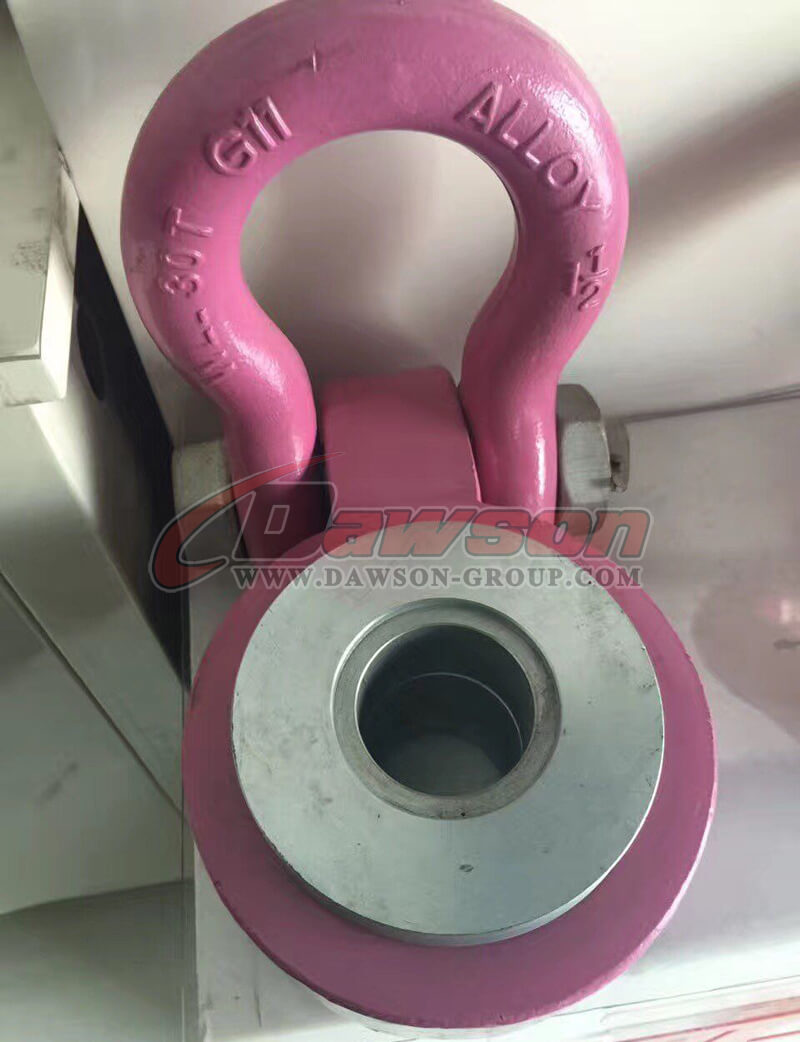

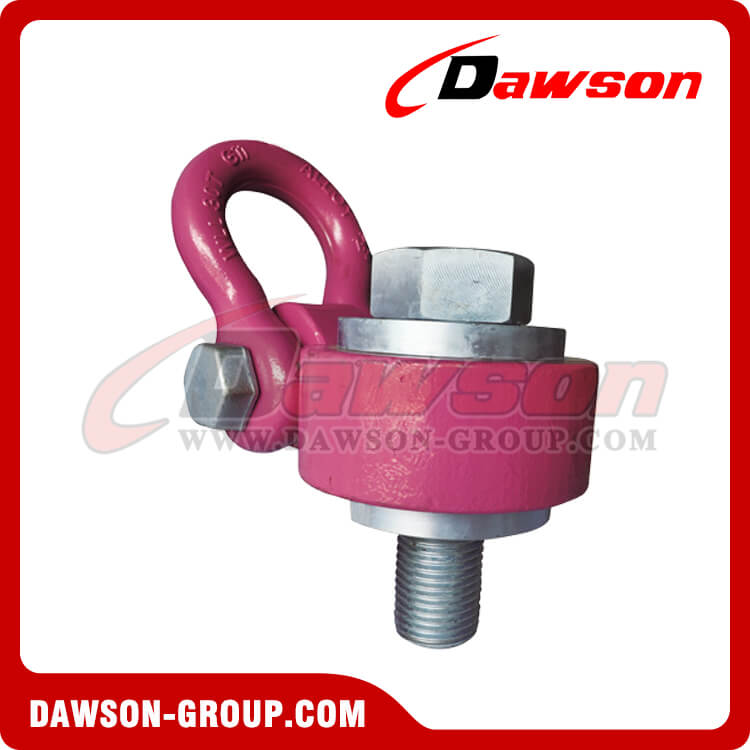

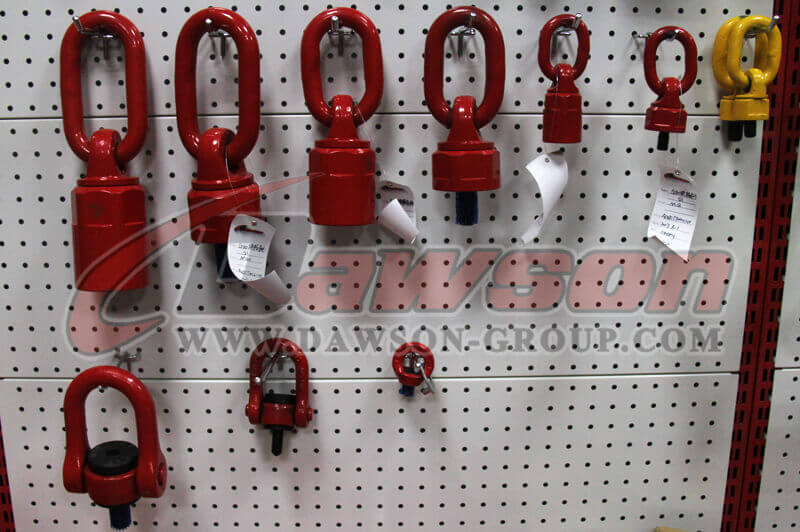

Products Show:

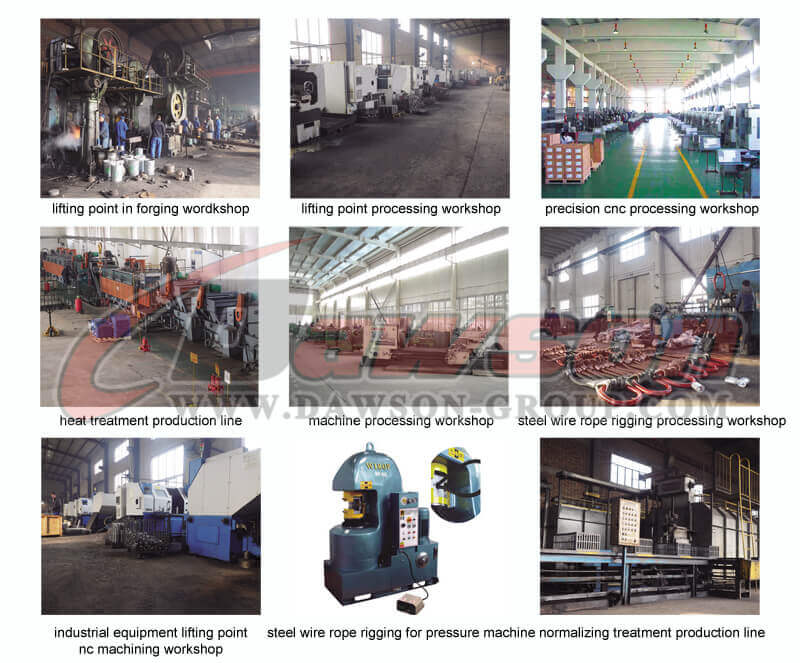

Production Equipment:

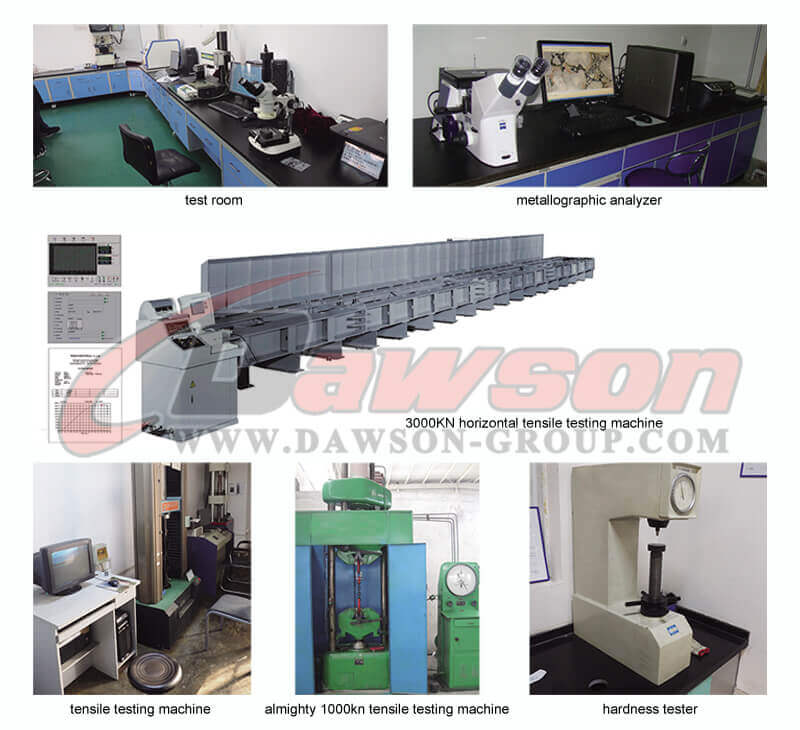

Test Equipment:
Package of G80 Lifting Screw Points:

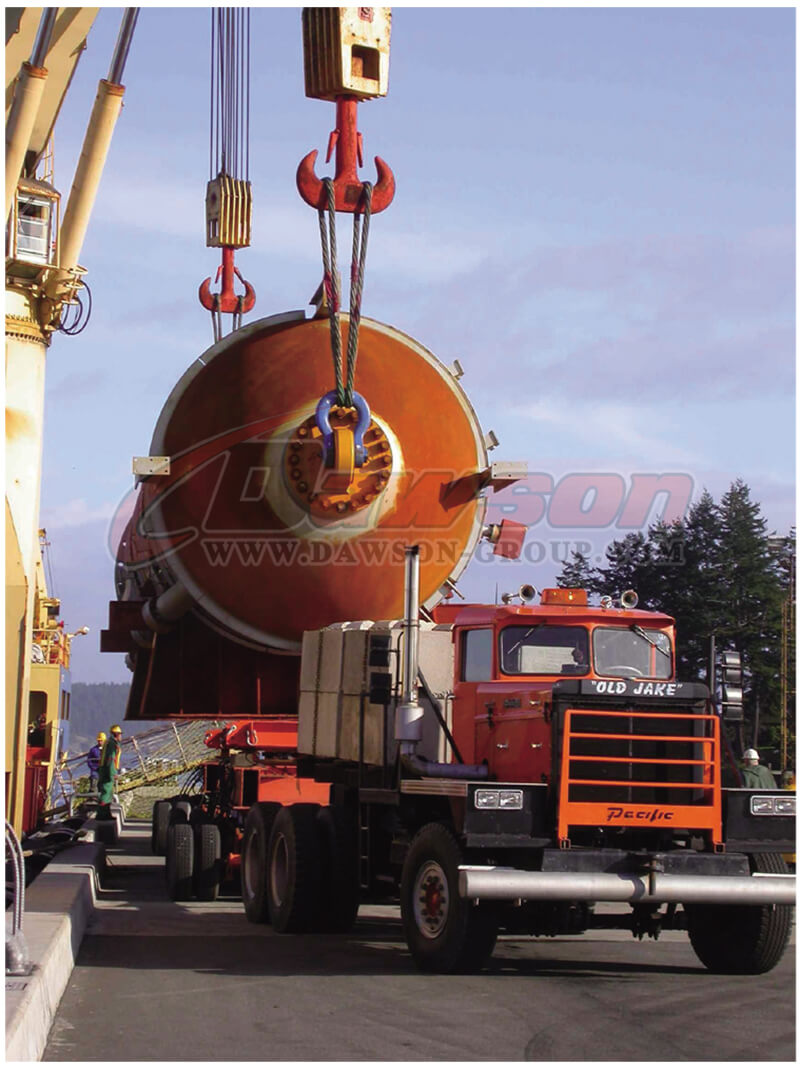

Application of G80 Heavy Duty Sievel Hoist Ring:
We have any other related products, if you have any intrest, please contact us, info@dawson-group.com!
