G80 Lifting Screw Point Female Type, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point
- Dawson Group Ltd. - China Manufacturer Supplier, Factory

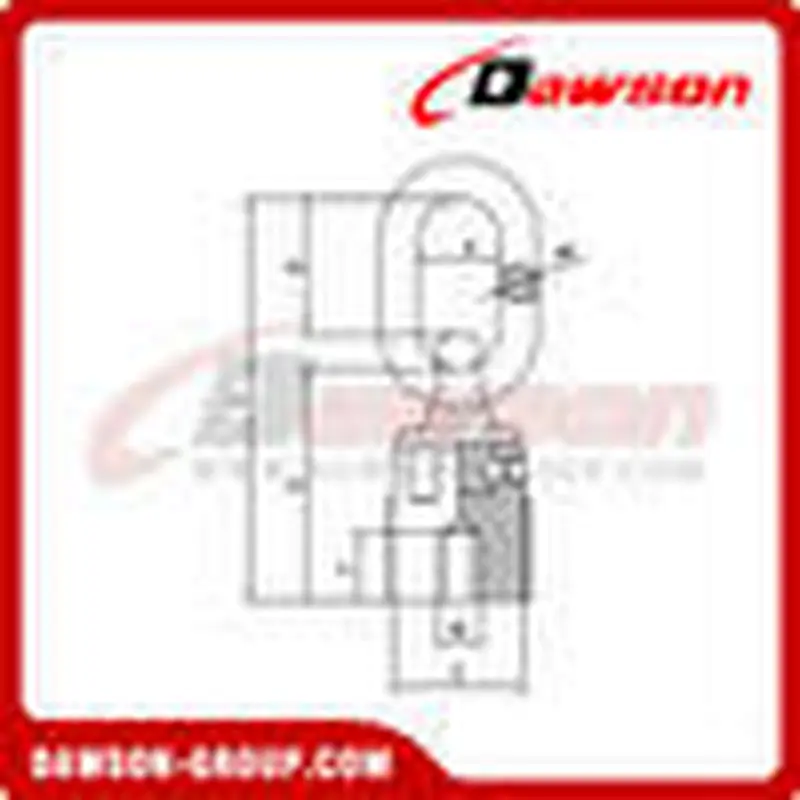

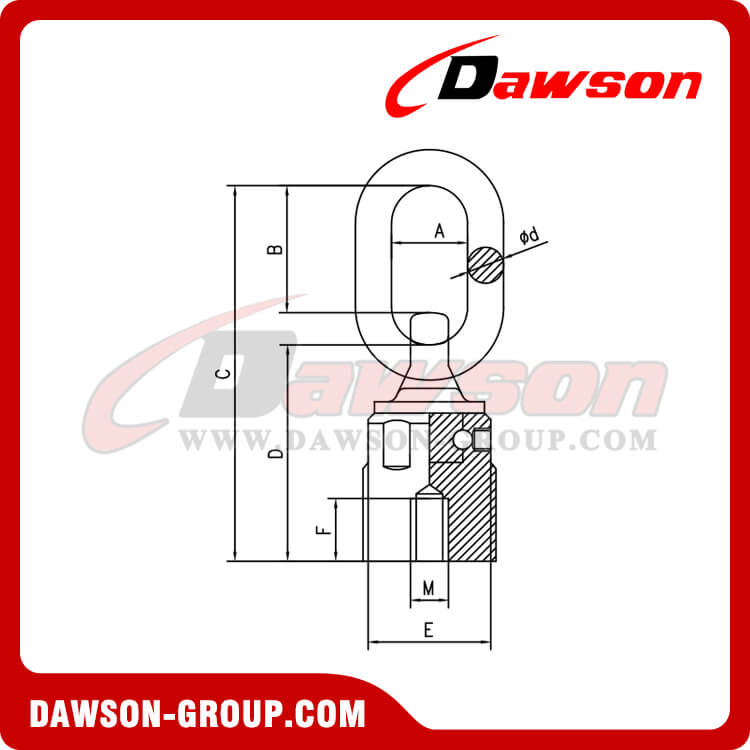

| Item no | Size | WLL/kg | Technical parameter/mm | Weight/kg | ||||||
| A | B | C | D | E | Φ d | F | ||||
| DS-0832-008 | M8x1.25-6g | 400 | 30 | 42 | 96 | 44 | 37 | 13 | 13 | 0.41 |
| DS-0832-010 | M10x1.5-6g | 500 | 30 | 42 | 96 | 44 | 37 | 13 | 19 | 0.43 |
| DS-0832-012 | M12x1.75-6g | 1050 | 30 | 42 | 96 | 44 | 37 | 13 | 19 | 0.70 |
| DS-0832-014 | M14x2.0-6g | 1150 | 30 | 42 | 96 | 44 | 37 | 13 | 31.8 | 0.75 |
| DS-0832-016 | M16x2.0-6g | 1900 | 30 | 42 | 96 | 44 | 37 | 13 | 31.8 | 1.90 |
| DS-0832-020 | M20x2.5-6g | 2150 | 40 | 67 | 198 | 114 | 64.3 | 19.1 | 38.1 | 2.21 |
| DS-0832-022 | M22x2.5 | 2250 | 40 | 67 | 198 | 114 | 64.3 | 19.1 | 38.1 | 2.21 |
| DS-0832-024 | M24x3.0-6g | 4200 | 40 | 67 | 198 | 114 | 64.3 | 19.1 | 38.1 | 2.21 |
| DS-0832-030 | M30x3.5-6g | 5000 | 50.8 | 95 | 255 | 140 | 74 | 22.2 | 50 | 3.86 |
| DS-0832-033 | M33x3.5-6g | 7000 | 50.8 | 95 | 255 | 140 | 74 | 22.2 | 50 | 3.86 |
| DS-0832-036 | M36x4.0-6g | 8000 | 50.8 | 95 | 259 | 144 | 74 | 22.2 | 54 | 3.86 |
| DS-0832-039 | M39x4.0-6g | 8000 | 50.8 | 95 | 263 | 148 | 74 | 22.2 | 58 | 3.86 |
| DS-0832-042 | M42x4.5-6g | 10000 | 63 | 108 | 293 | 163 | 85 | 25 | 63 | 6.08 |
| DS-0832-045 | M45x4.5-6g | 10000 | 63 | 108 | 298 | 168 | 85 | 25 | 68 | 6.08 |
| DS-0832-048 | M48x5.0-6g | 10000 | 63 | 108 | 298 | 168 | 85 | 25 | 68 | 6.08 |
| DS-0832-052 | M52x5.0-6g | 15000 | 70 | 120 | 362 | 216 | 95 | 32 | 84 | 10.80 |
| DS-0832-056 | M56x5.5-6g | 15000 | 70 | 120 | 362 | 216 | 95 | 32 | 84 | 10.80 |
| DS-0832-060 | M60x5.5-6g | 15000 | 70 | 120 | 368 | 222 | 95 | 32 | 90 | 10.80 |
| DS-0832-064 | M64x6.0-6g | 15000 | 70 | 120 | 373 | 227 | 95 | 32 | 95 | 10.80 |
| DS-0832-072 | M72x6.0-6g | 25000 | 80 | 125 | 439 | 274 | 130 | 40 | 108 | 22.80 |
| DS-0832-080 | M80x6.0-6g | 30000 | 80 | 125 | 451 | 286 | 130 | 40 | 120 | 23.90 |
| DS-0832-090 | M90x6.0-6g | 35000 | 80 | 125 | 466 | 301 | 130 | 40 | 135 | 25.90 |
Note: Thread depth and non-standard thread can be made as required.

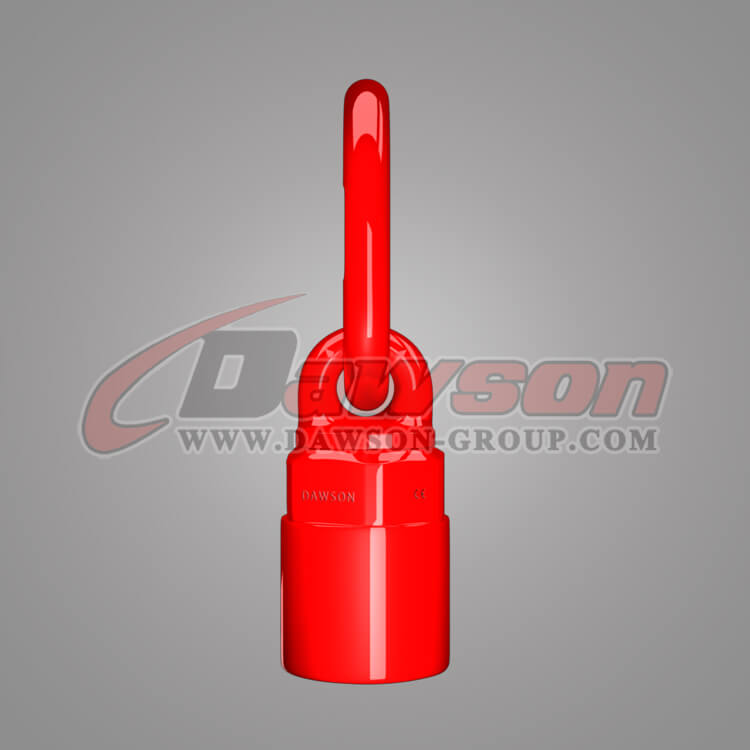

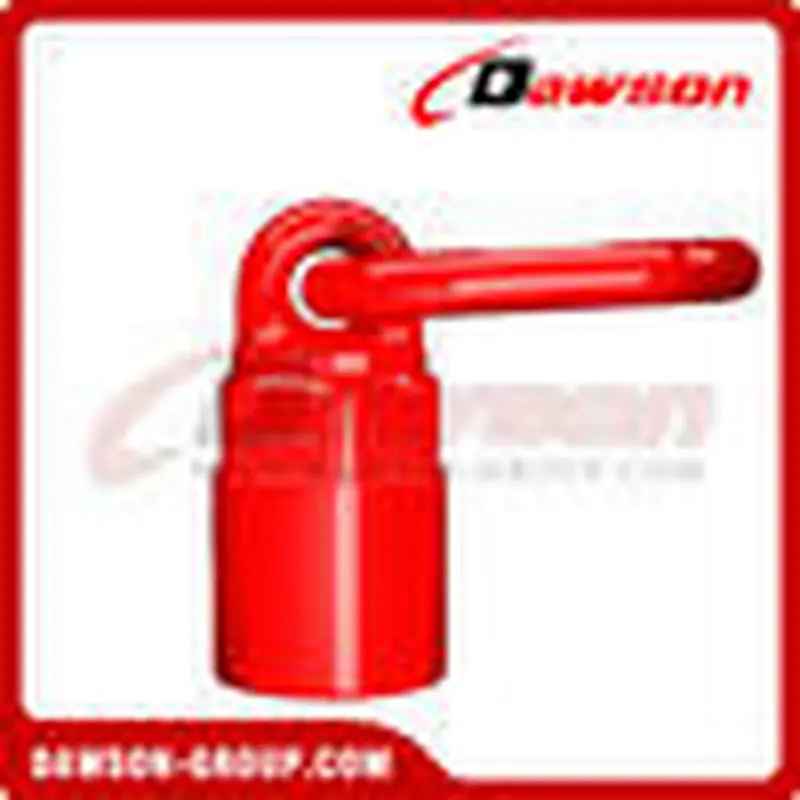

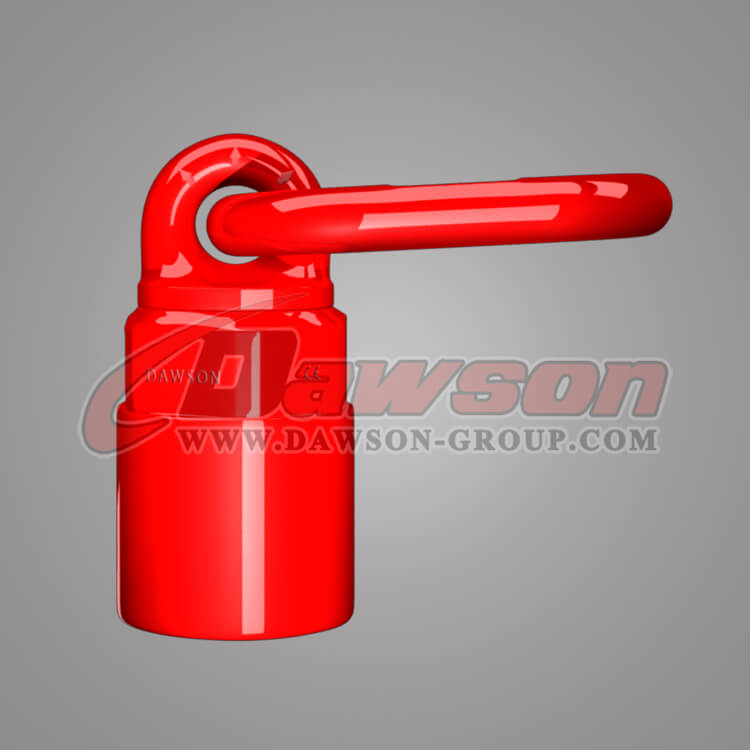

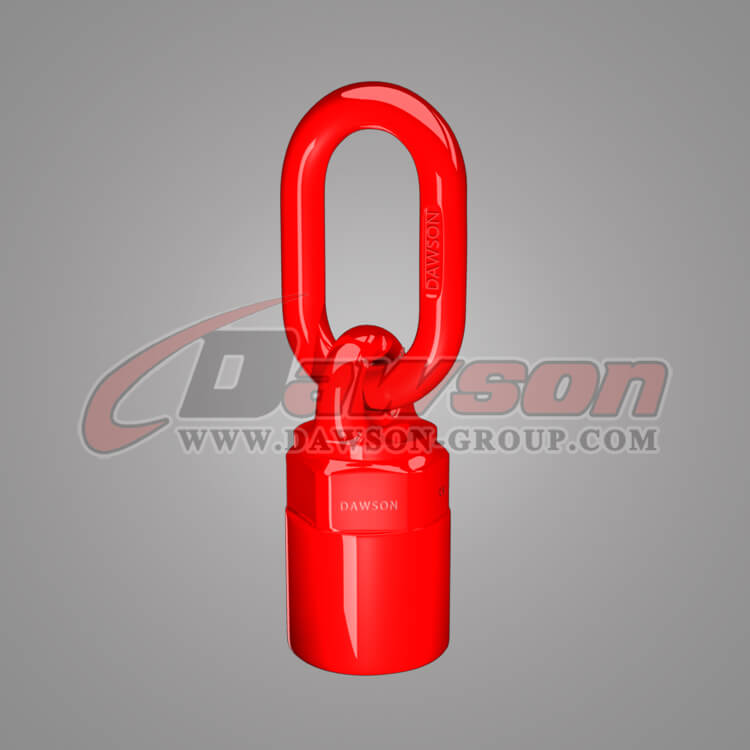

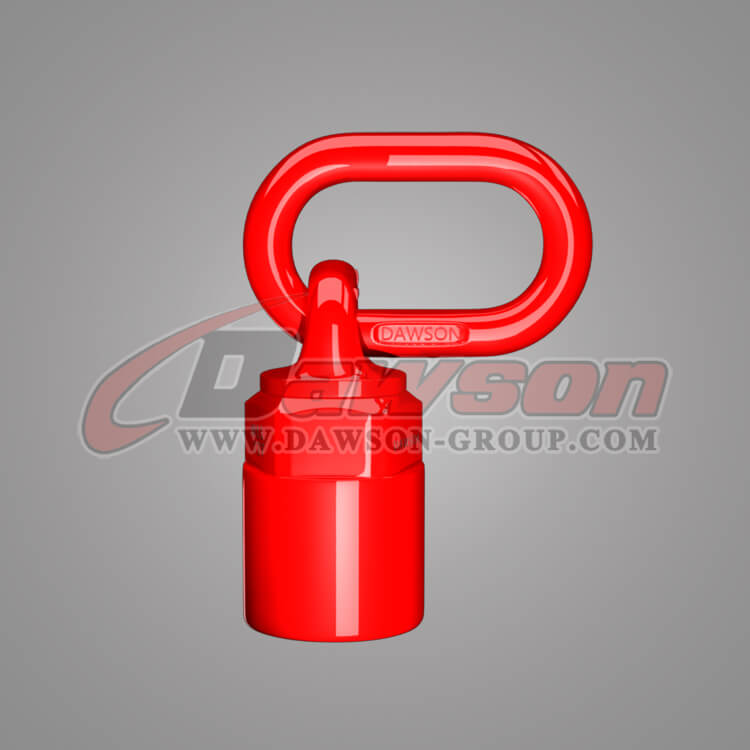

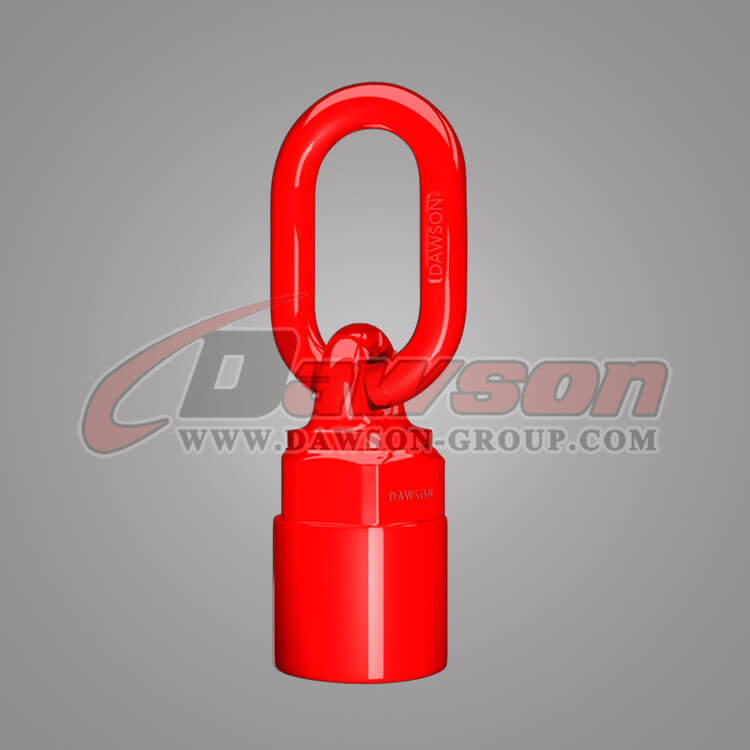

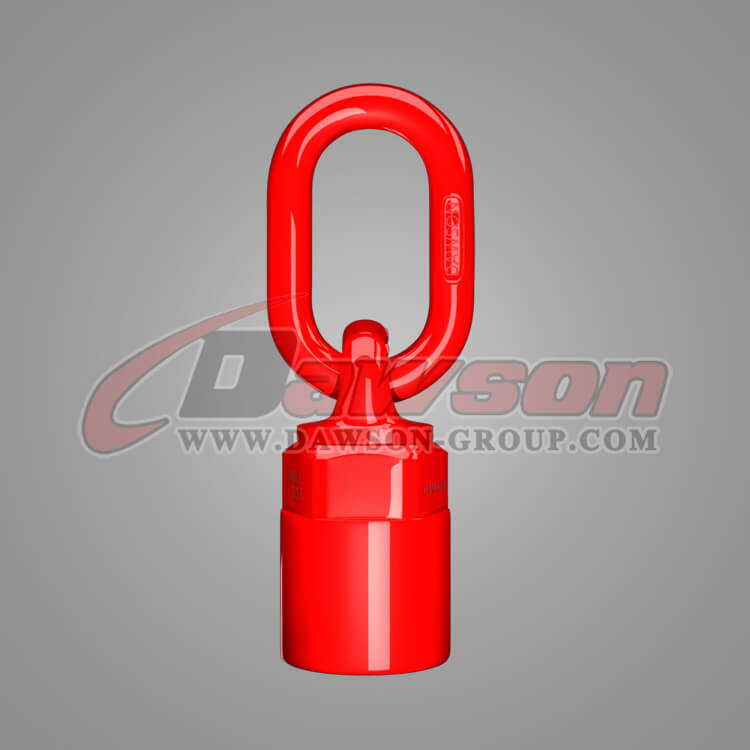

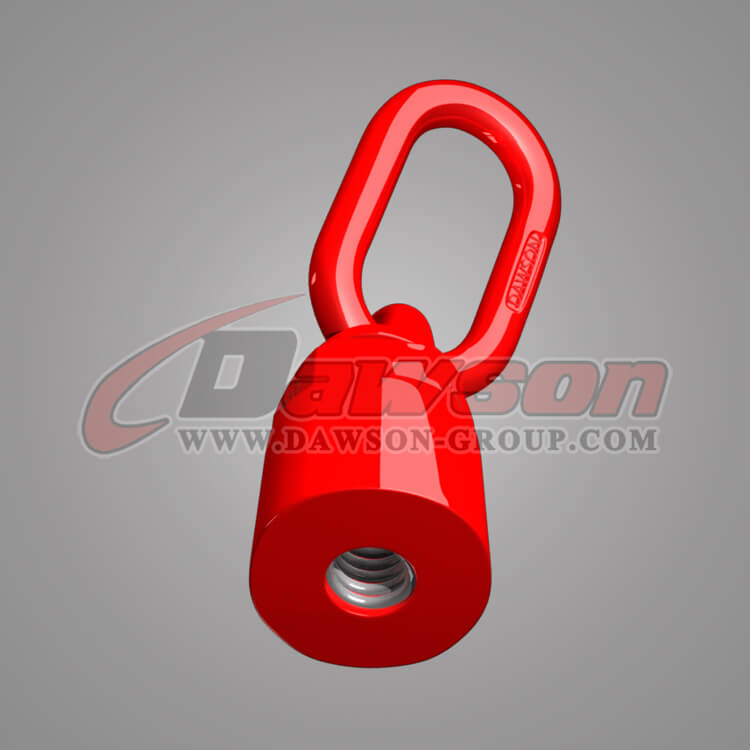

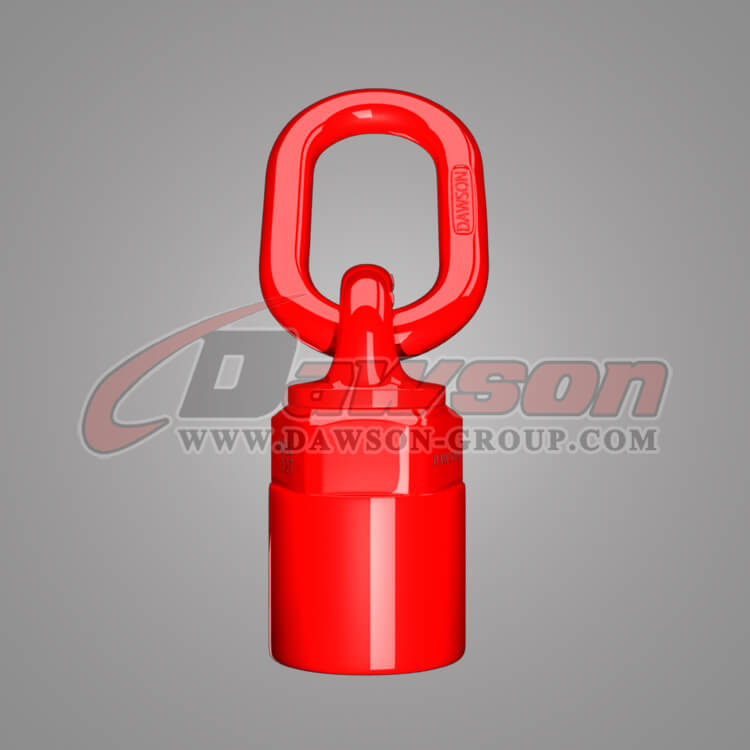

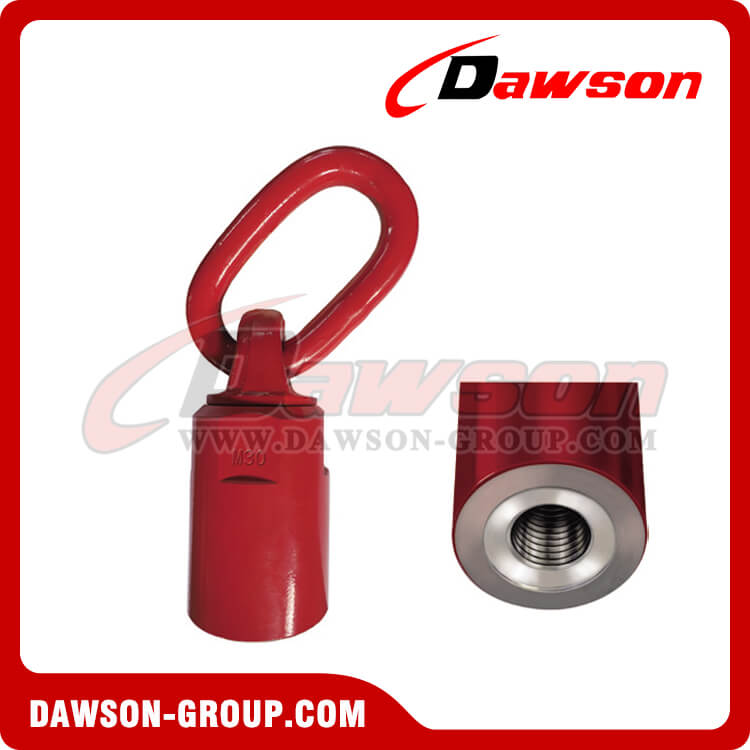

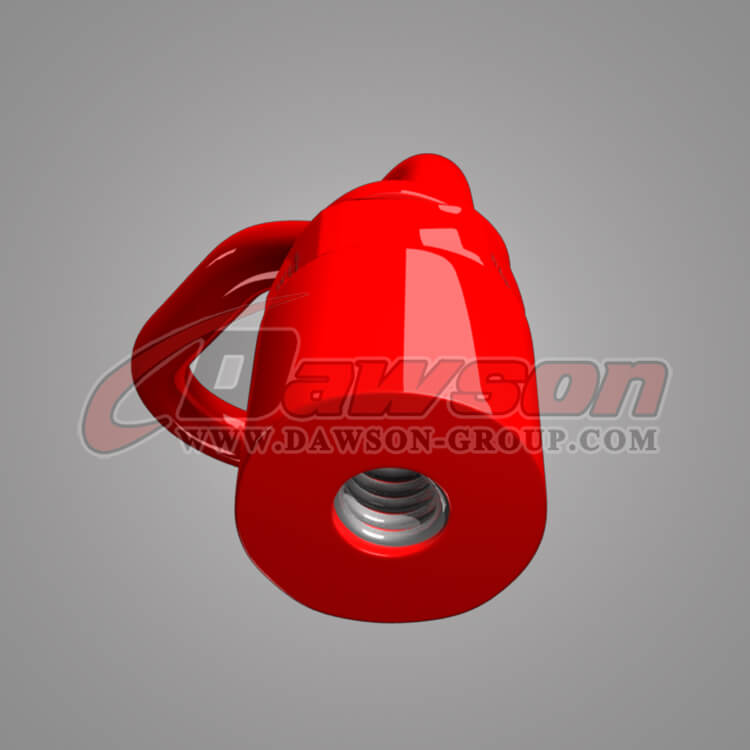

Products Show:

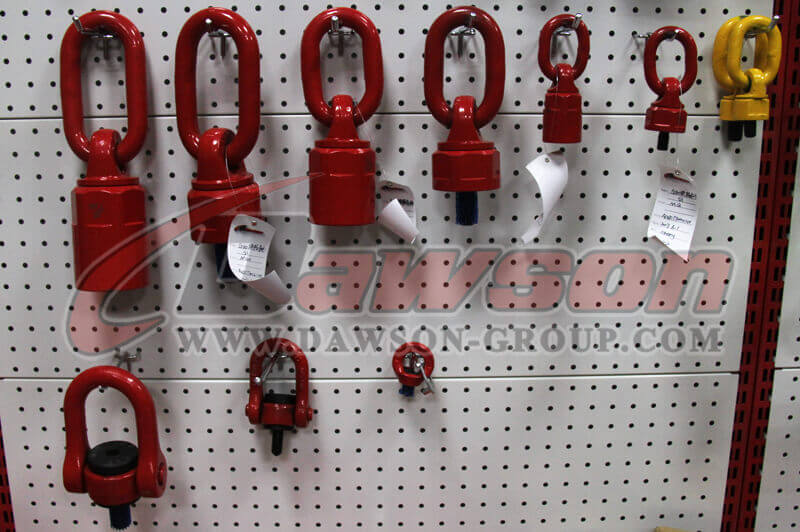

Other Related Products Show:

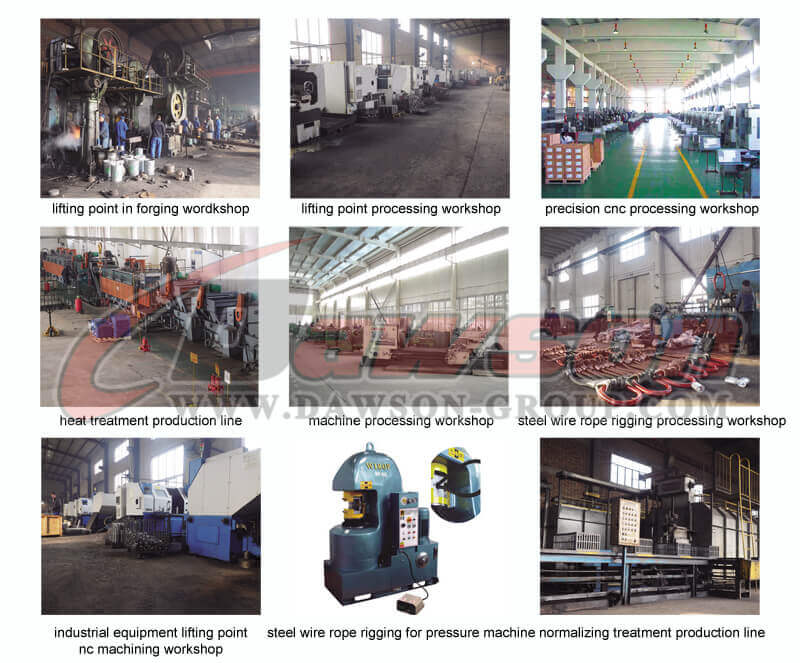

Production Equipment:

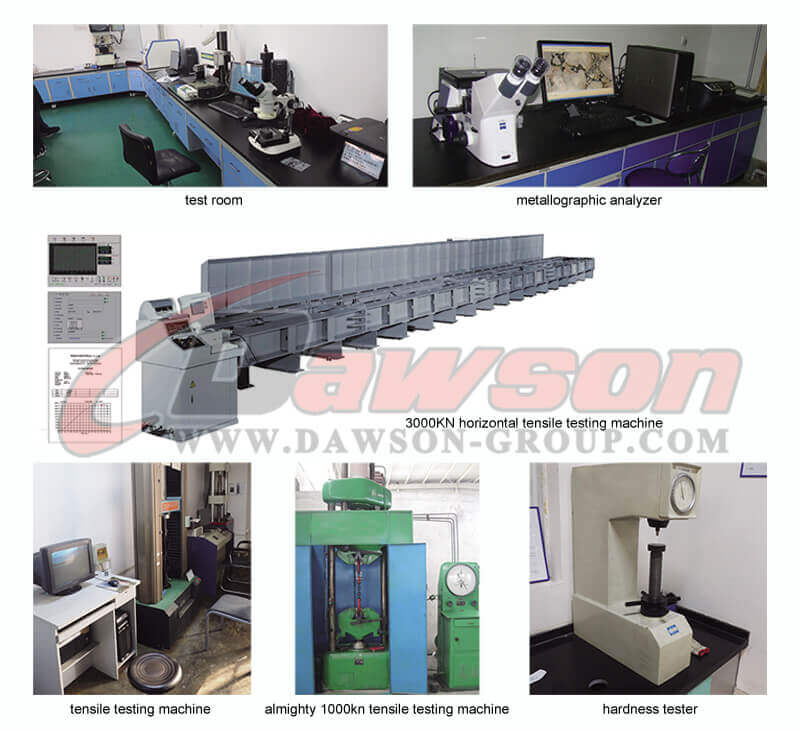

Test Equipment:

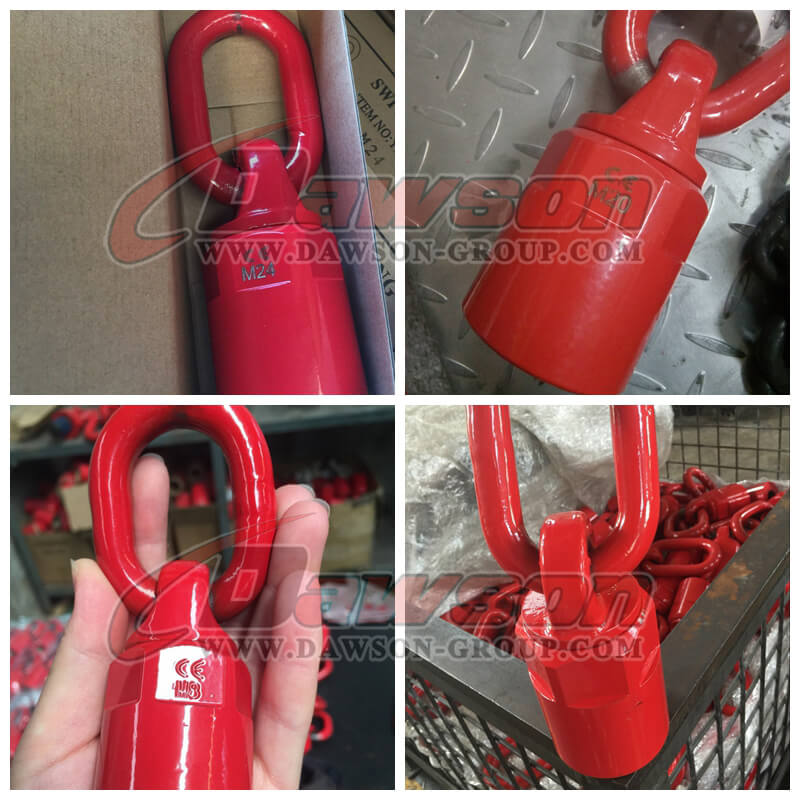

Package of G80 Lifting Screw Points:

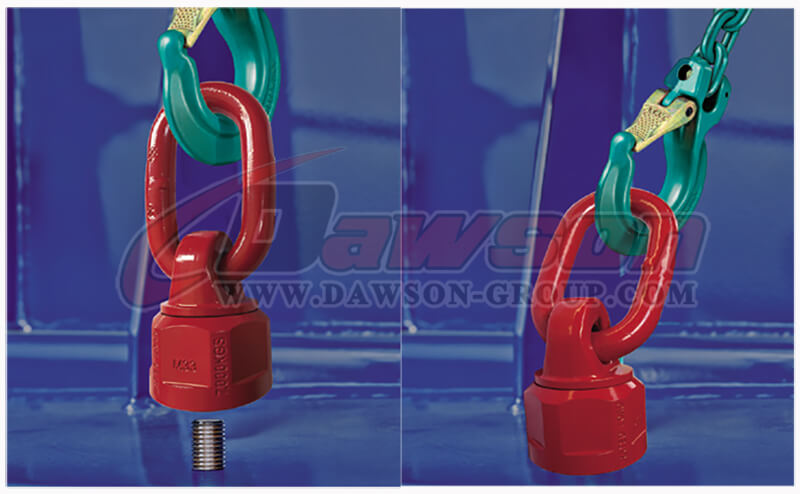

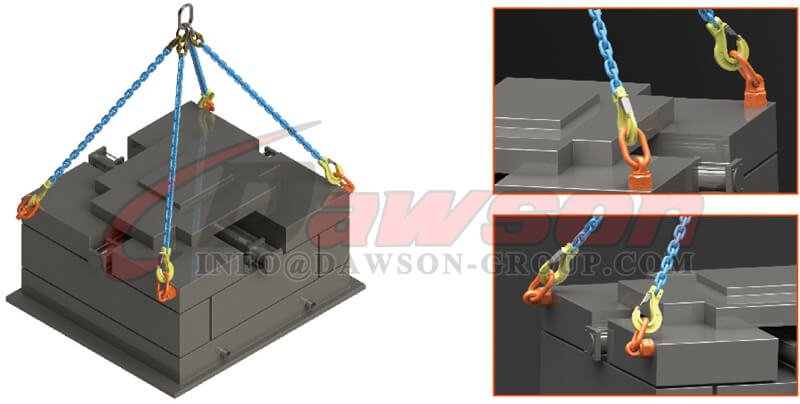

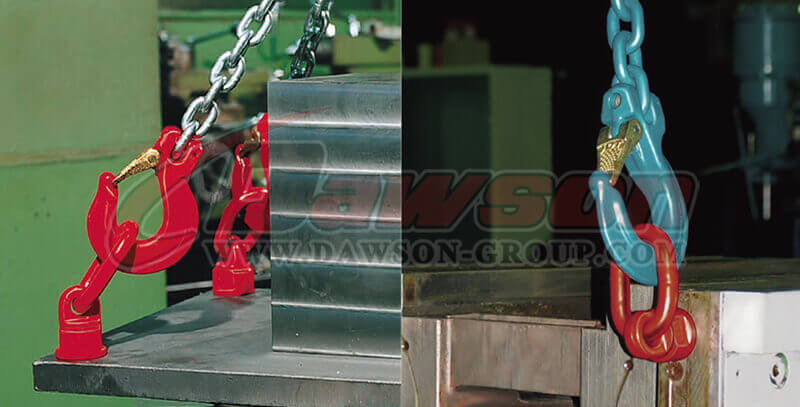

Application of G80 Lifting Points:
We have any other related products, if you have any intrest, please contact us, info@dawson-group.com!
