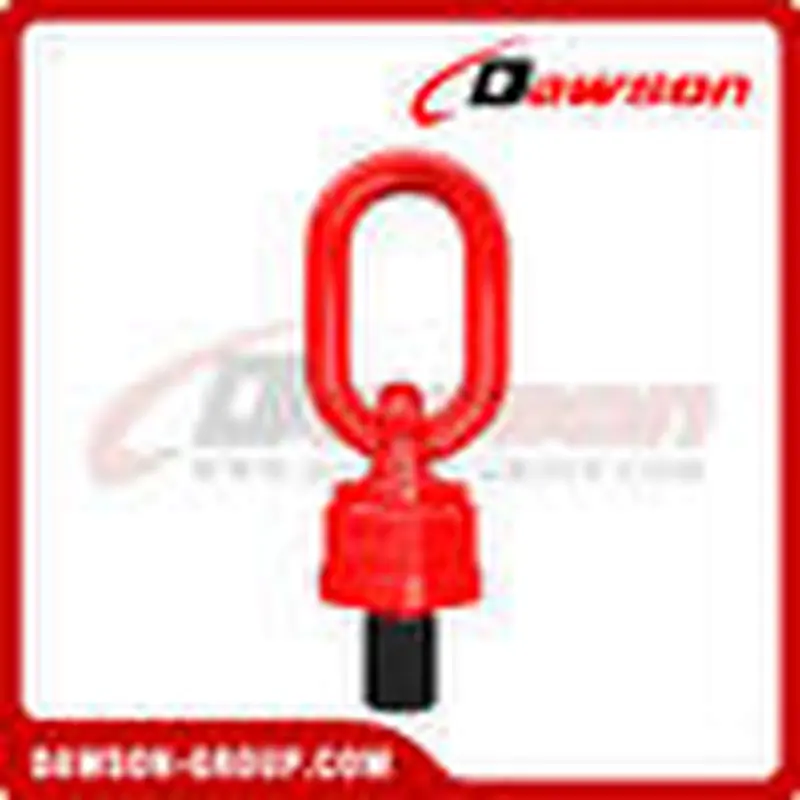

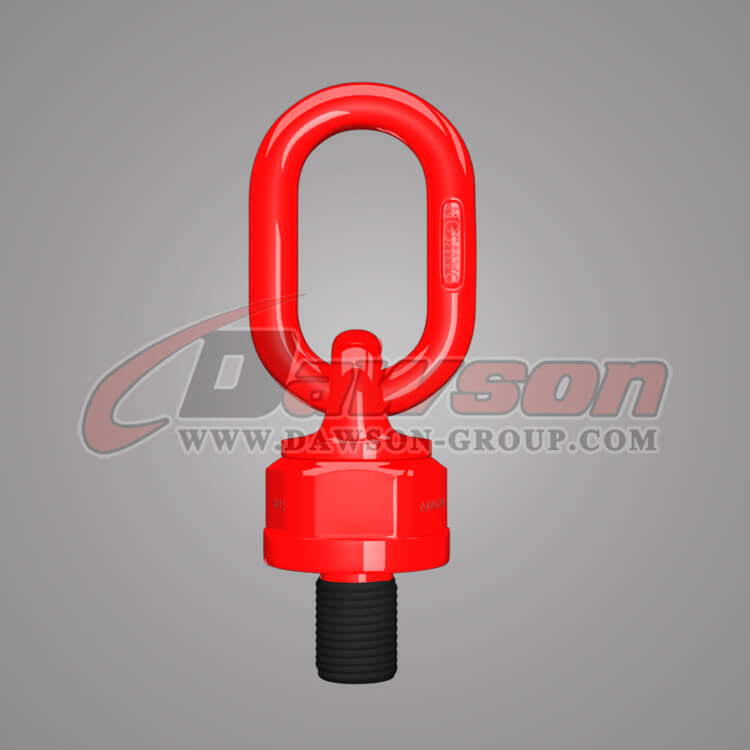

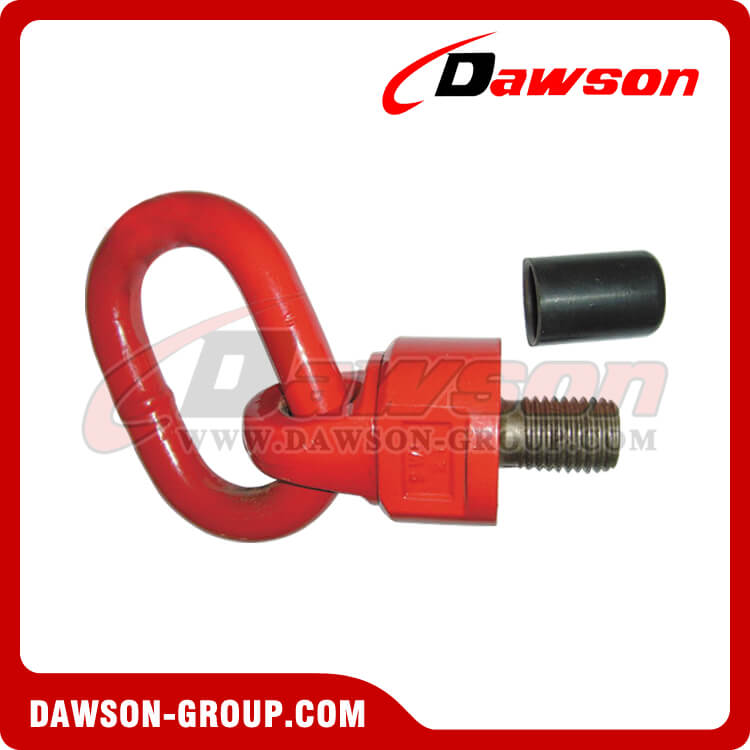

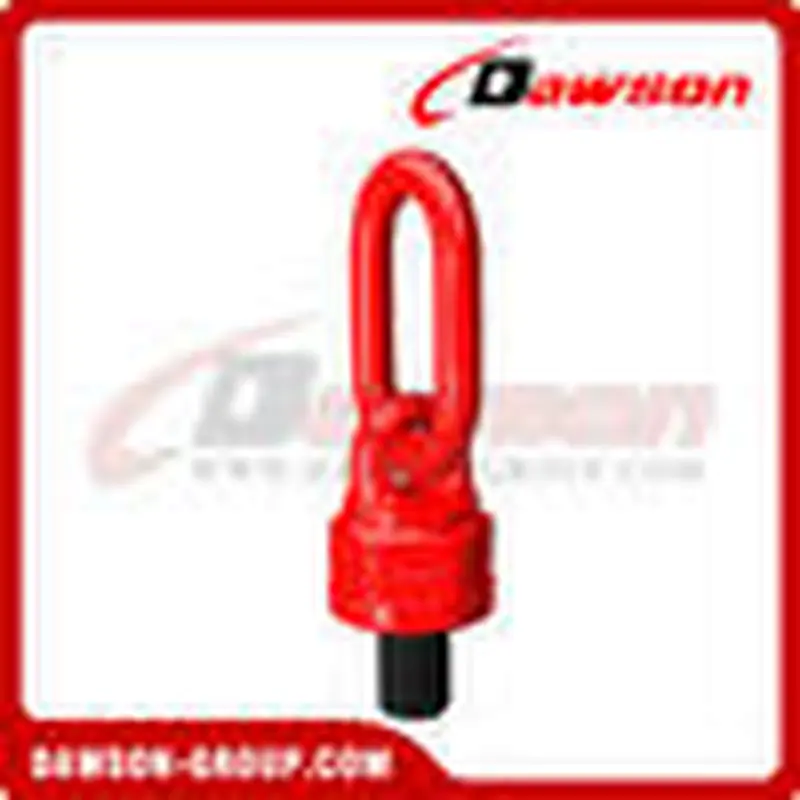

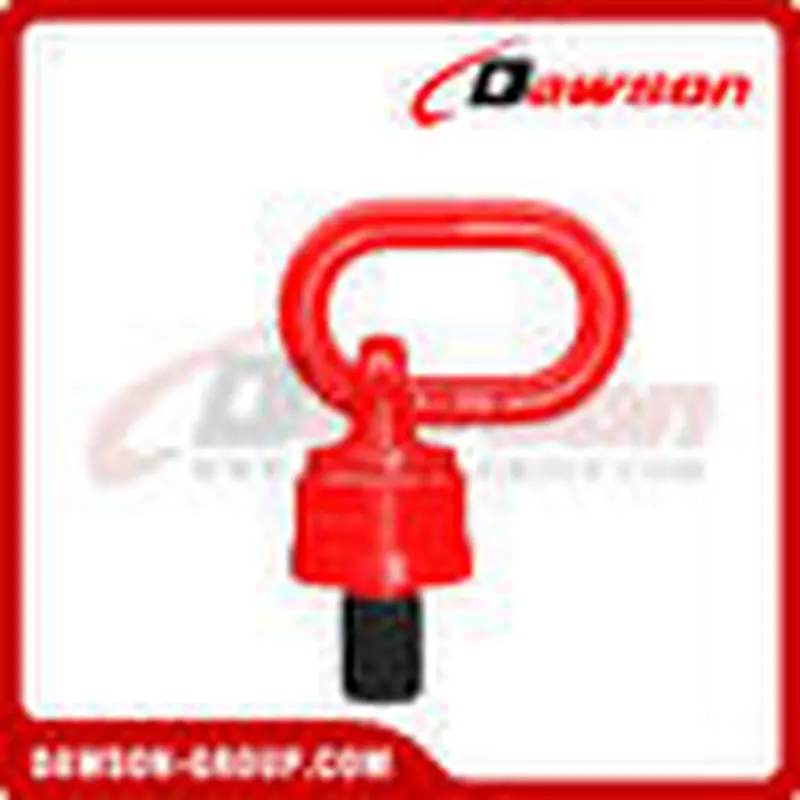

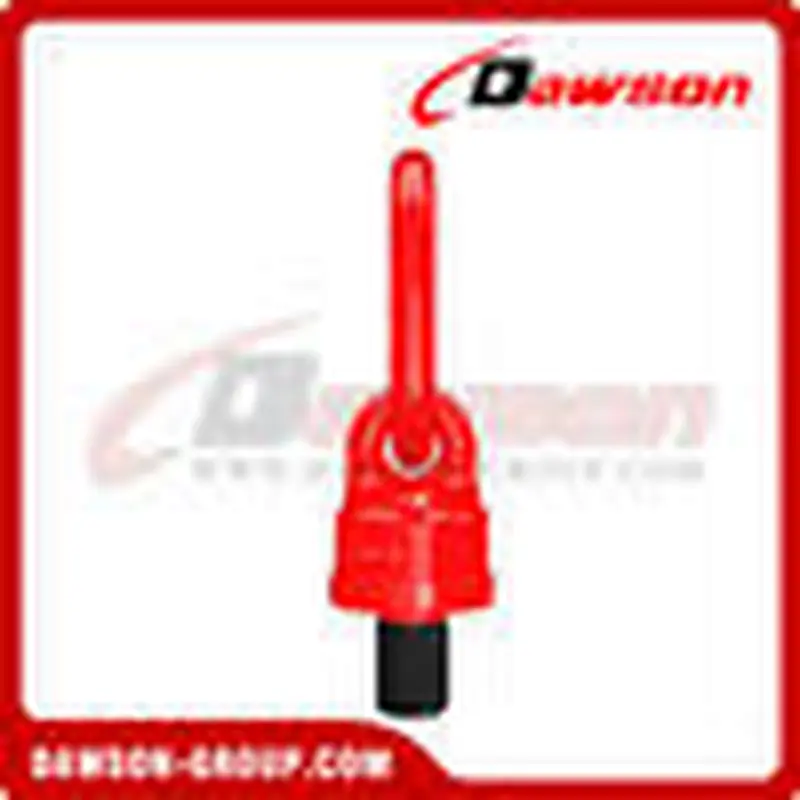

G80 Lifting Screw Point

Model NO.: DS303

Quantity:

Product Description

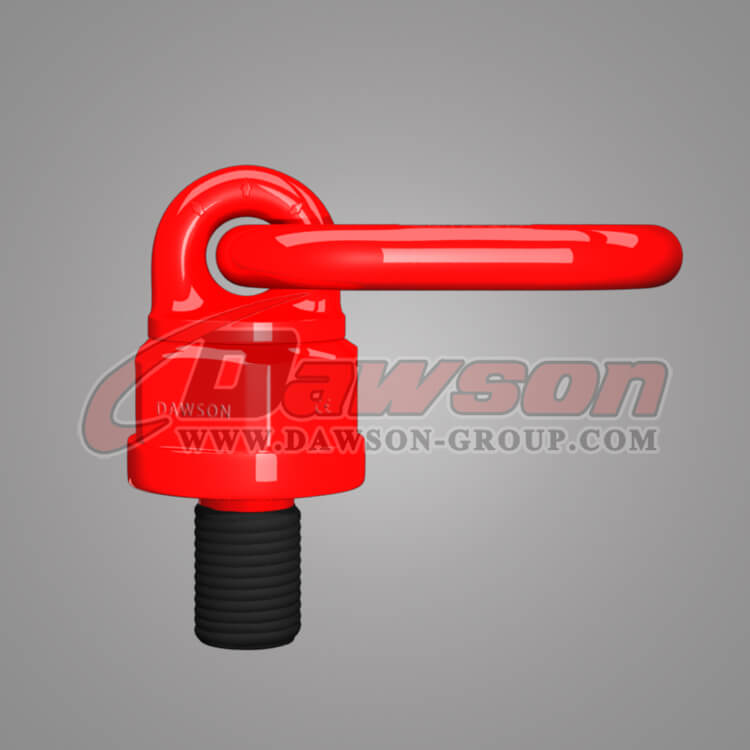

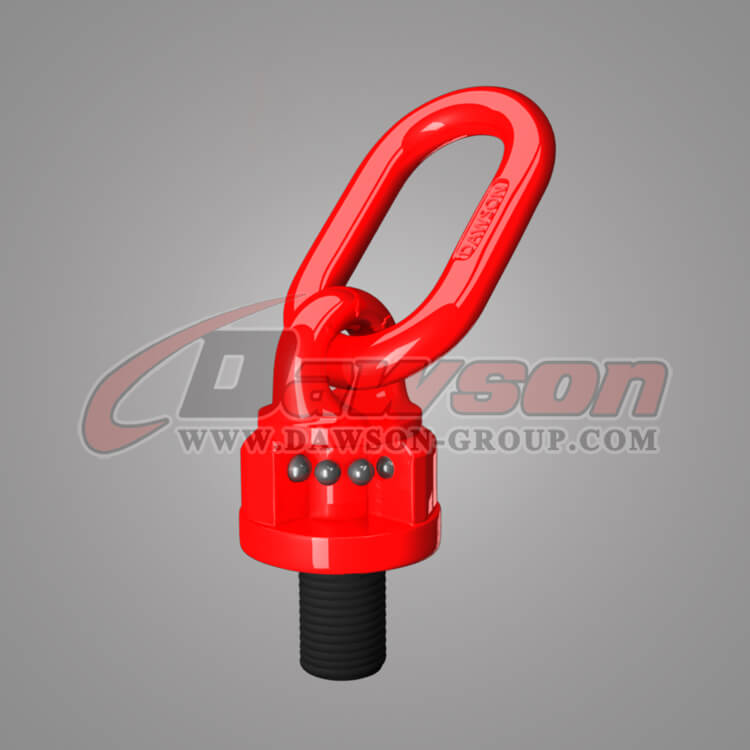

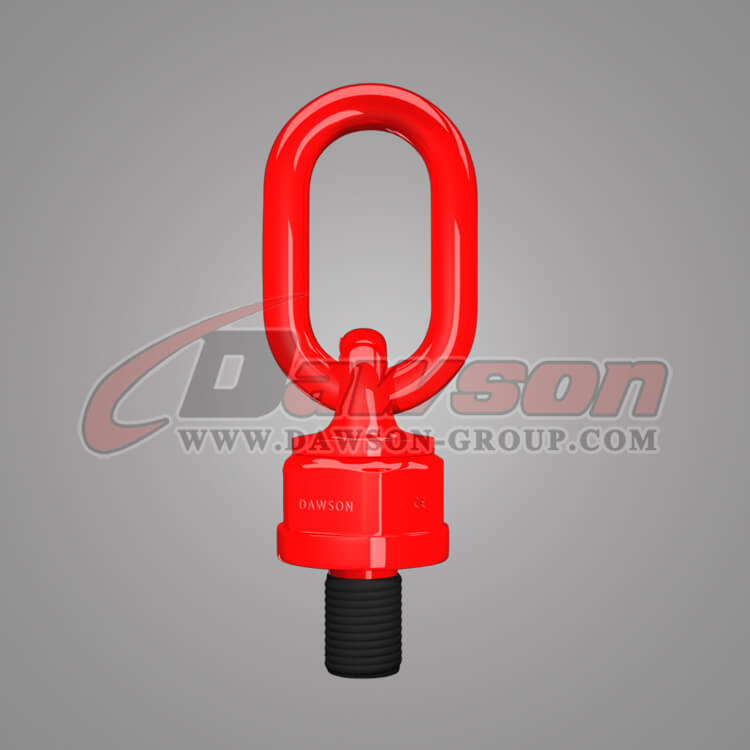

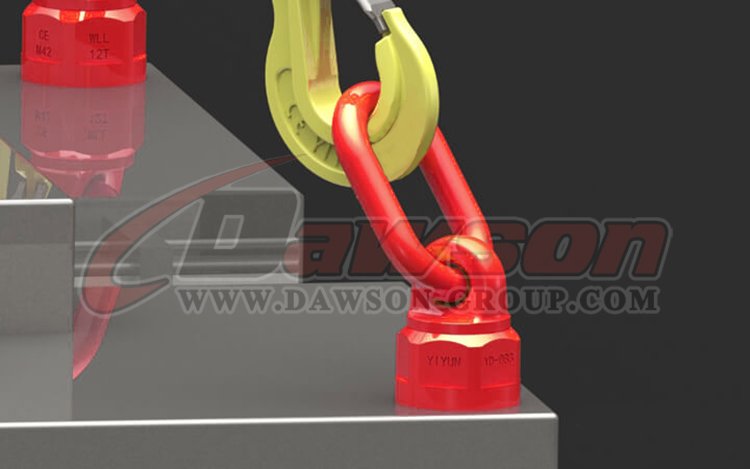

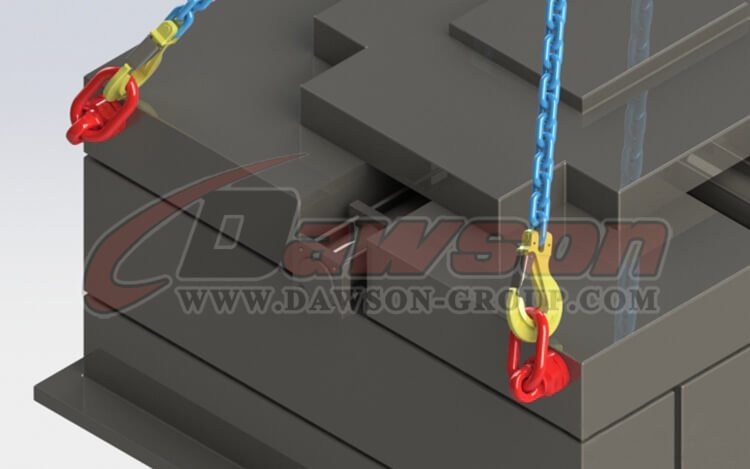

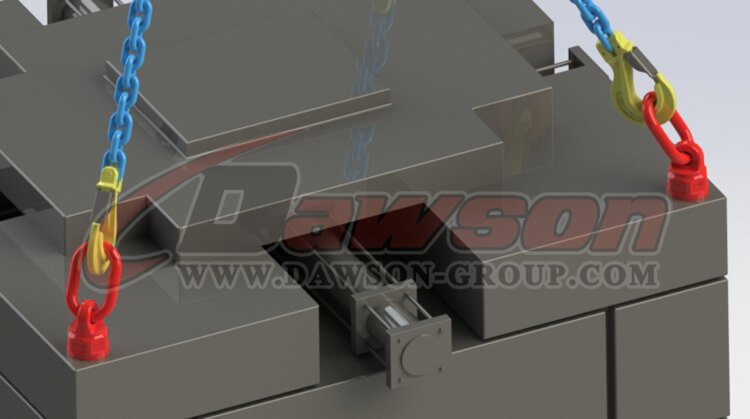

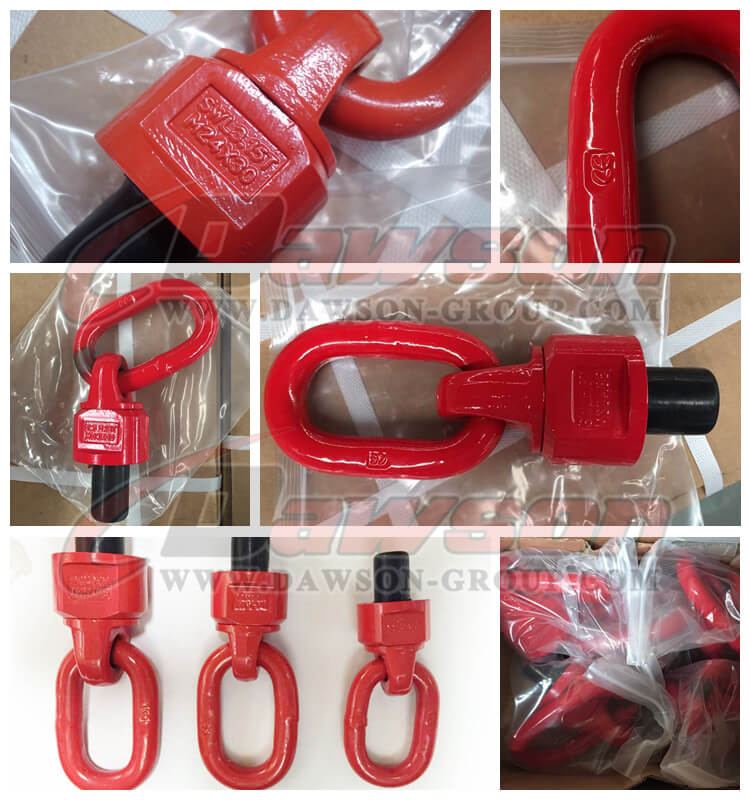

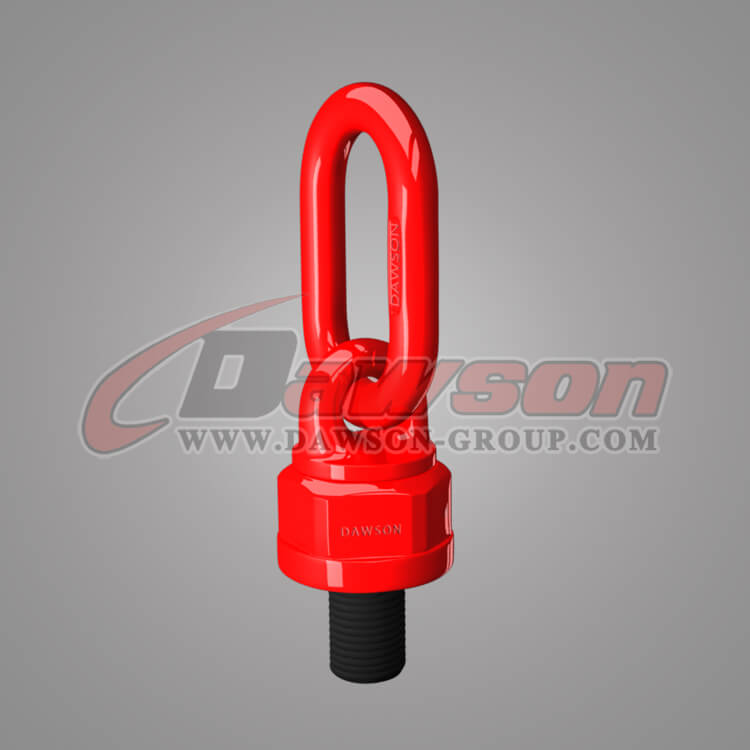

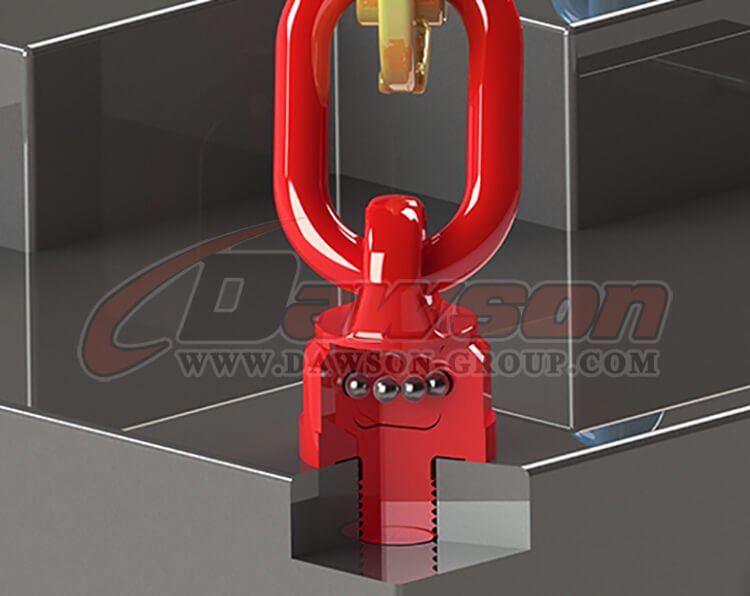

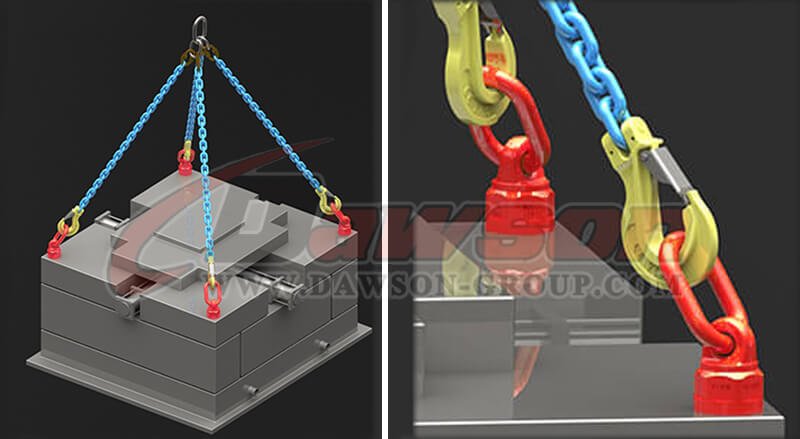

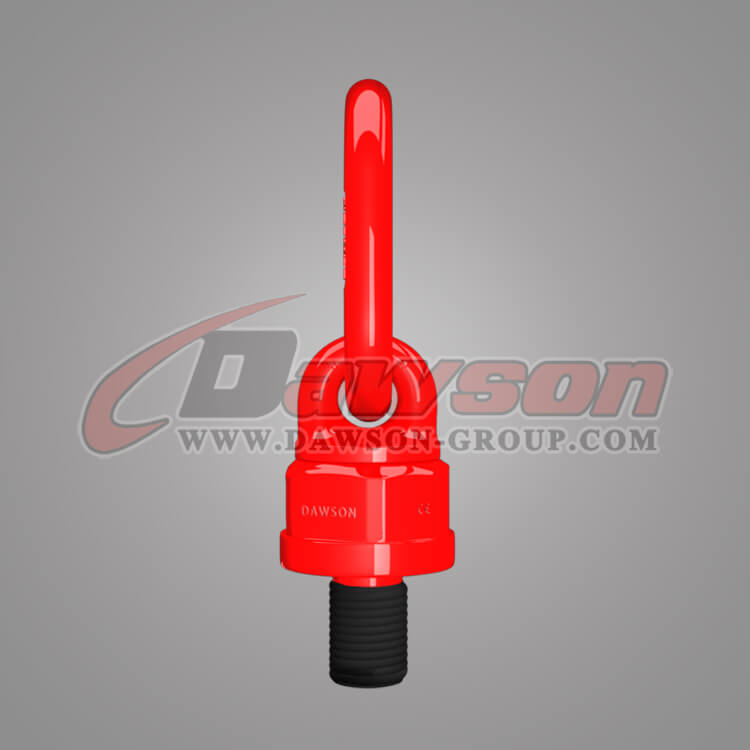

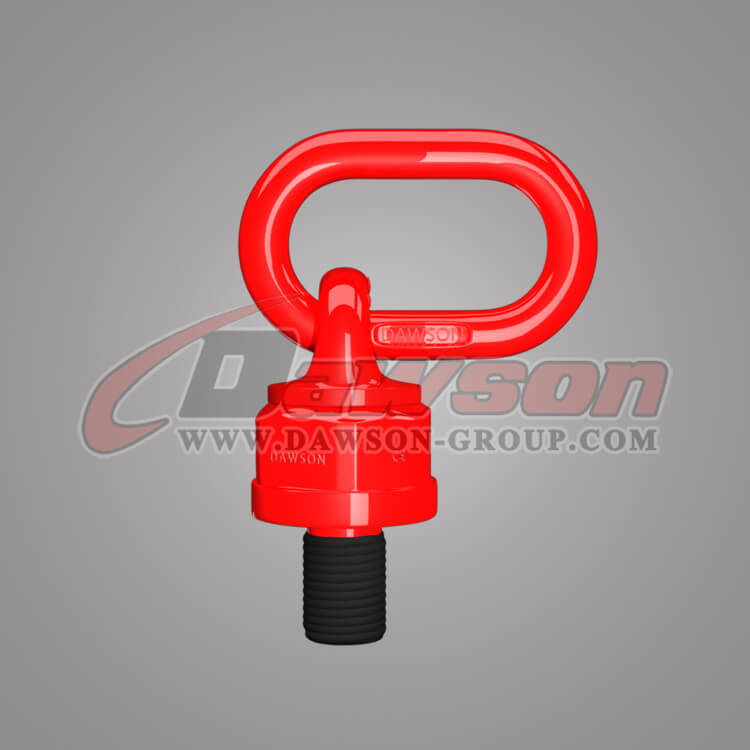

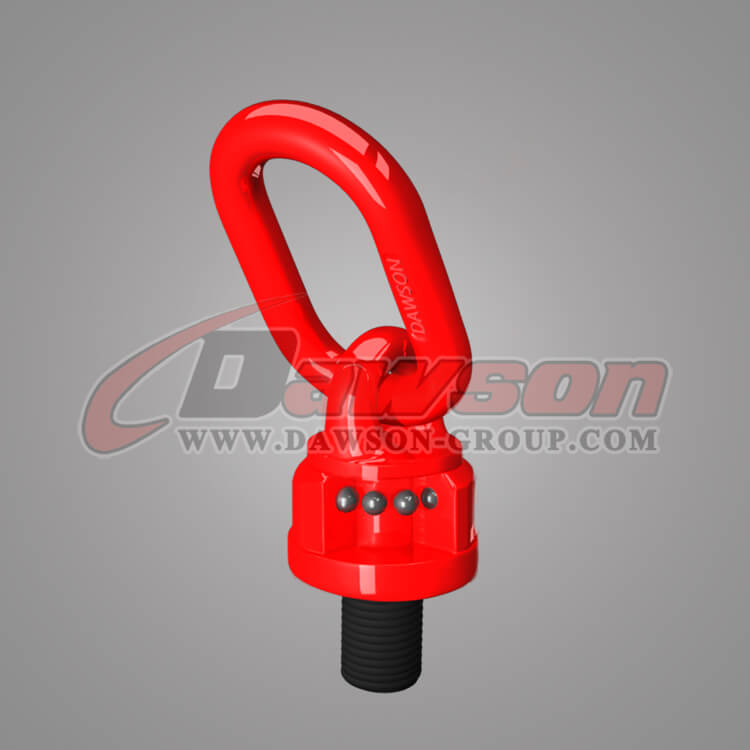

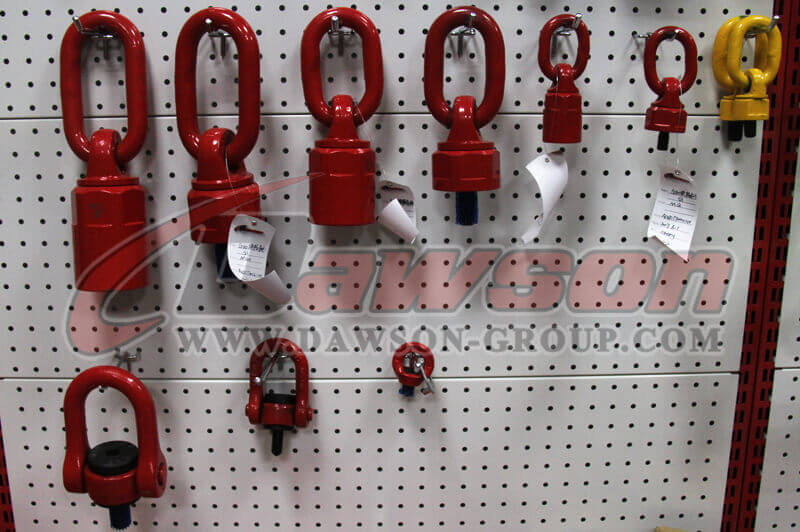

DS303 G80 Lifting Screw Point, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

Forged super alloy steel - Quenched and Tempered.

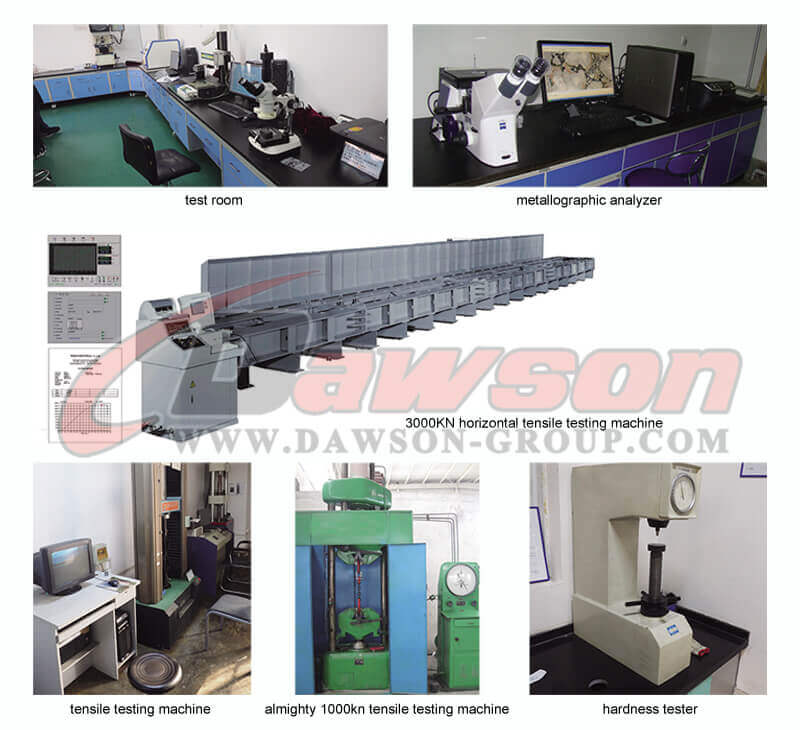

Individually proof test at 2.5 times Working Load Limit.

Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.

Breakage test.

100% magnaflux crack detection.

Surface finish: Powder plastified.

Colour code:Red RAL3020/Yellow RAL1003

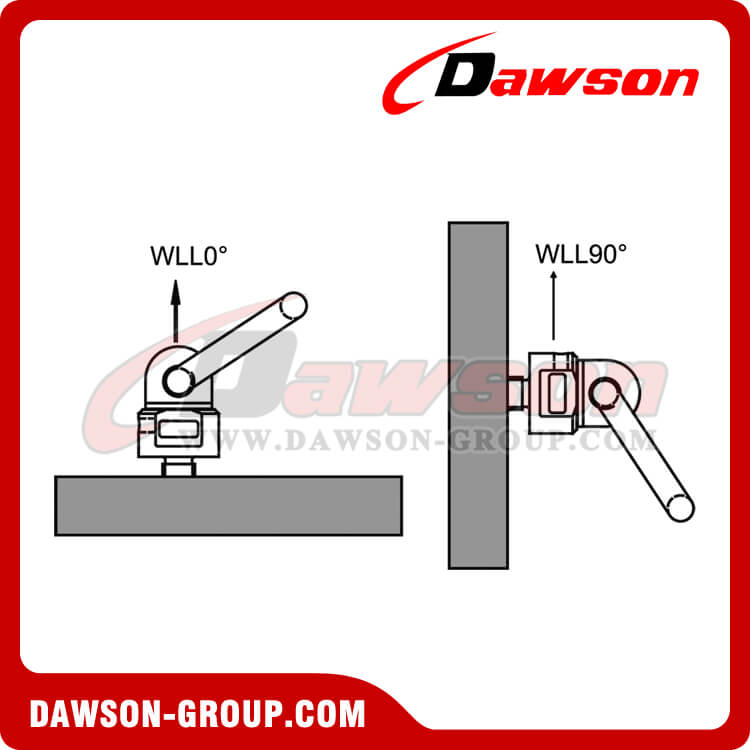

WLL at 0° and WLL 90°.

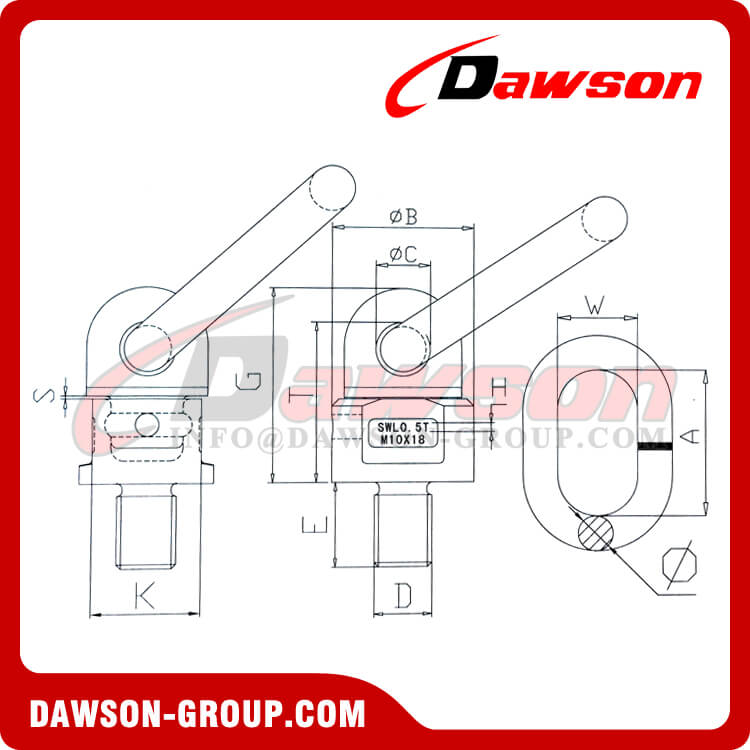

Item No.	Weight/kg	WLL/T 90°	B.L/T 0°	D×E	B±0.5	C	G±1.5	T±1.5	A±5	W±5	Φ±2	G±1	S±0.8
8-DS303-M8×13	0.45	0.3	0.6	M8×13	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M8×18	0.45	0.3	0.6	M8×18	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M8×20	0.45	0.3	0.6	M8×20	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M8×23	0.45	0.3	0.6	M8×23	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M8×30	0.45	0.3	0.6	M8×30	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M8×32	0.45	0.3	0.6	M8×32	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M8×43	0.46	0.3	0.6	M8×43	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×10	0.45	0.5	1	M10×10	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×15	0.45	0.5	1	M10×15	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×18	0.45	0.5	1	M10×18	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×20	0.45	0.5	1	M10×20	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×25	0.45	0.5	1	M10×25	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×27	0.46	0.5	1	M10×27	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×30	0.46	0.5	1	M10×30	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×40	0.46	0.5	1	M10×40	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×50	0.47	0.5	1	M10×50	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M10×90	0.5	0.5	1	M10×90	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×18	0.46	0.5	1	M12×18	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×20	0.46	0.5	1	M12×20	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×27	0.46	0.5	1	M12×27	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×30	0.47	0.5	1	M12×30	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×31	0.47	0.5	1	M12×31	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×35	0.47	0.5	1	M12×35	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×40	0.47	0.5	1	M12×40	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×45	0.48	0.5	1	M12×45	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×48	0.48	0.5	1	M12×48	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M12×110	0.54	0.5	1	M12×110	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M14×20	0.49	1.12	2	M14×20	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×20	0.47	1.12	2	M16×20	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×24	0.48	1.12	2	M16×24	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×27	0.49	1.12	2	M16×27	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×30	0.49	1.12	2	M16×30	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×35	0.49	1.12	2	M16×35	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×40	0.50	1.12	2	M16×40	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×46	0.51	1.12	2	M16×46	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×50	0.52	1.12	2	M16×50	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×64	0.54	1.12	2	M16×64	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×80	0.57	1.12	2	M16×80	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×100	0.60	1.12	2	M16×100	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×120	0.63	1.12	2	M16×120	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M16×300	0.91	1.12	2	M16×300	36	16.5	52	42.8	55	30	14	30	1
8-DS303-M18×30	0.95	2	4	M18×30	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×20	0.97	2	4	M20×20	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×30	0.99	2	4	M20×30	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×35	1.01	2	4	M20×35	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×40	1.02	2	4	M20×40	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×43	1.02	2	4	M20×43	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×50	1.04	2	4	M20×50	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×55	1.05	2	4	M20×55	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×75	1.10	2	4	M20×75	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×80	1.12	2	4	M20×80	49.5	19	69	57	70	35	16	41	1
8-DS303-M20×120	1.21	2	4	M20×120	49.5	19	69	57	70	35	16	41	1
8-DS303-M24×30	1.33	3.15	6.3	M24×30	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×36	1.35	3.15	6.3	M24×36	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×38	1.36	3.15	6.3	M24×38	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×40	1.36	3.15	6.3	M24×40	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×45	1.38	3.15	6.3	M24×45	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×50	1.4	3.15	6.3	M24×50	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×73	1.48	3.15	6.3	M24×73	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×90	1.54	3.15	6.3	M24×90	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×96	1.56	3.15	6.3	M24×96	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×120	1.65	3.15	6.3	M24×120	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M24×300	2.29	3.15	6.3	M24×300	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M27×35	1.47	3.15	6.3	M27×35	57	22	79.5	67	85	40	18	46	1.5
8-DS303-M30×35(5T)	2.3	5.3	10.6	M30×35	66	23.5	98	82	85	40	20	54	1.5
8-DS303-M30×38(5T)	2.32	5.3	10.6	M30×38	66	23.5	98	82	85	40	20	54	1.5
8-DS303-M30×45(5T)	2.36	5.3	10.6	M30×45	66	23.5	98	82	85	40	20	54	1.5
8-DS303-M30×60(5T)	2.49	5.3	10.6	M30×60	66	23.5	98	82	85	40	20	54	1.5
8-DS303-M30×75(5T)	2.53	5.3	10.6	M30×75	66	23.5	98	82	85	40	20	54	1.5
8-DS303-M30×120(5T)	2.78	5.3	10.6	M30×120	66	23.5	98	82	85	40	20	54	1.5
8-DS303-M30×160(5T)	3	5.3	10.6	M30×160	66	23.5	98	82	85	40	20	54	1.5
8-DS303-M30×35(8T)	3.73	8	11.8	M30×35	80	28	114	94	115	50	22	64	2
8-DS303-M30×38(8T)	3.75	8	11.8	M30×38	80	28	114	94	115	50	22	64	2
8-DS303-M30×45(8T)	3.79	8	11.8	M30×45	80	28	114	94	115	50	22	64	2
8-DS303-M30×50(8T)	3.82	8	11.8	M30×50	80	28	114	94	115	50	22	64	2
8-DS303-M30×55(8T)	3.84	8	11.8	M30×55	80	28	114	94	115	50	22	64	2
8-DS303-M30×98(8T)	4.08	8	11.8	M30×98	80	28	114	94	115	50	22	64	2
8-DS303-M30×120(8T)	4.21	8	11.8	M30×120	80	28	114	94	115	50	22	64	2
8-DS303-M30×140(8T)	4.32	8	11.8	M30×140	80	28	114	94	115	50	22	64	2
8-DS303-M36×50	3.88	8	11.8	M36×50	80	28	111	92	115	50	22	65	2
8-DS303-M36×53	3.9	8	11.8	M36×53	80	28	111	92	115	50	22	65	2
8-DS303-M36×60	3.96	8	11.8	M36×60	80	28	111	92	115	50	22	65	2
8-DS303-M36×90	4.2	8	11.8	M36×90	80	28	111	92	115	50	22	65	2
8-DS303-M36×128	4.5	8	11.8	M36×128	80	28	111	92	115	50	22	65	2
8-DS303-M36×140	4.6	8	11.8	M36×140	80	28	111	92	115	50	22	65	2
8-DS303-M36×160	4.76	8	11.8	M36×160	80	28	111	92	115	50	22	65	2
8-DS303-M36×220	5.24	8	11.8	M36×220	80	28	111	92	115	50	22	65	2
8-DS303-M36×300	5.88	8	11.8	M36×300	80	28	111	92	115	50	22	65	2
8-DS303-M36×330	6.12	8	11.8	M36×330	80	28	111	92	115	50	22	65	2
8-DS303-M36×400	6.67	8	11.8	M36×400	80	28	111	92	115	50	22	65	2
8-DS303-M39×50	3.95	8	11.8	M39×50	80	28	111	92	115	50	22	65	2
8-DS303-M39×60	4.04	8	11.8	M39×60	80	28	111	92	115	50	22	65	2
8-DS303-M39×90	4.32	8	11.8	M39×90	80	28	111	92	115	50	22	65	2
8-DS303-M42×50	4.46	10	15	M42×50	80	28	111	92	115	50	22	65	2.5
8-DS303-M42×60	4.57	10	15	M42×60	80	28	111	92	115	50	22	65	2.5
8-DS303-M42×63	4.6	10	15	M42×63	80	28	111	92	115	50	22	65	2.5
8-DS303-M42×130	5.33	10	15	M42×130	80	28	111	92	115	50	22	65	2.5
8-DS303-M42×160	5.66	10	15	M42×160	80	28	111	92	115	50	22	65	2.5
8-DS303-M42×180	5.87	10	15	M42×180	80	28	111	92	115	50	22	65	2.5
8-DS303-M45×60	4.7	10	15	M45×60	80	28	111	92	115	50	22	65	2.5
8-DS303-M48×50	4.63	10	15	M48×50	80	28	111	92	115	50	22	65	2.5
8-DS303-M48×60	4.77	10	15	M48×60	80	28	111	92	115	50	22	65	2.5
8-DS303-M48×70	4.91	10	15	M48×70	80	28	111	92	115	50	22	65	2.5
8-DS303-M48×72	4.94	10	15	M48×72	80	28	111	92	115	50	22	65	2.5
8-DS303-M48×110	5.48	10	15	M48×110	80	28	111	92	115	50	22	65	2.5
8-DS303-M48×160	6.19	10	15	M48×160	80	28	111	92	115	50	22	65	2.5
8-DS303-M48×245	7.39	10	15	M48×245	80	28	111	92	115	50	22	65	2.5
8-DS303-M56×84	11.8	15	25	M56×84	117	42	166	134	152	70	32	95	2.5
8-DS303-M64×95	12.5	15	25	M64×95	117	42	166	134	152	70	32	95	2.5
