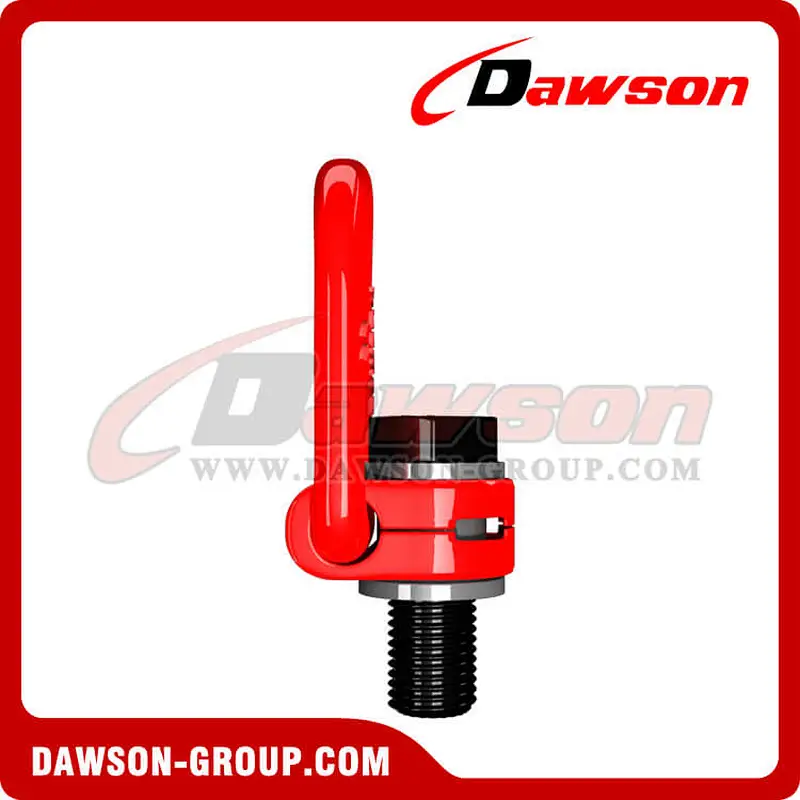

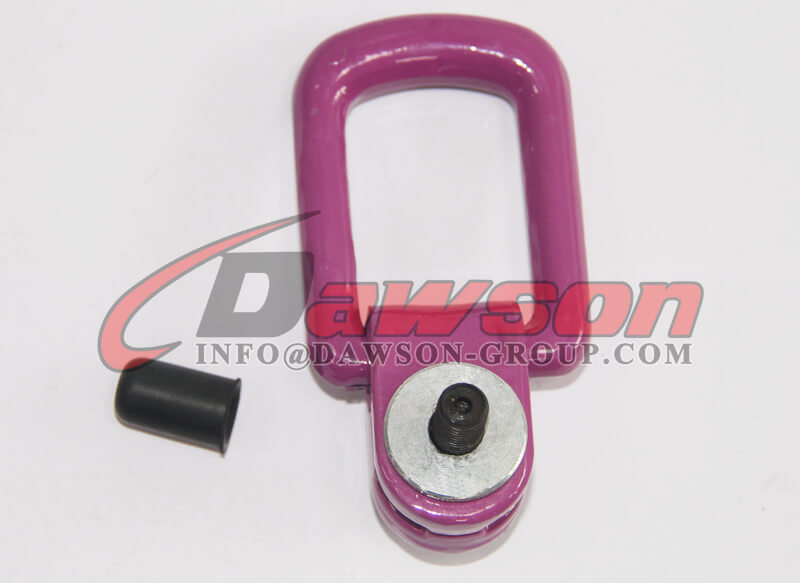

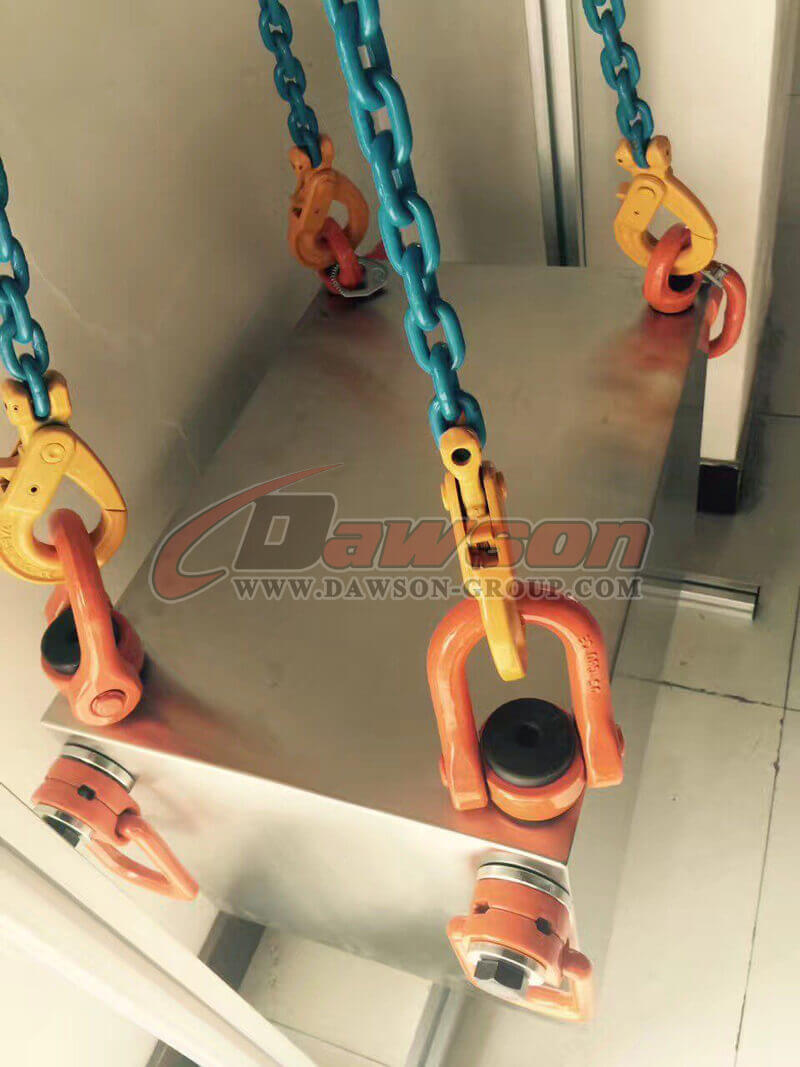

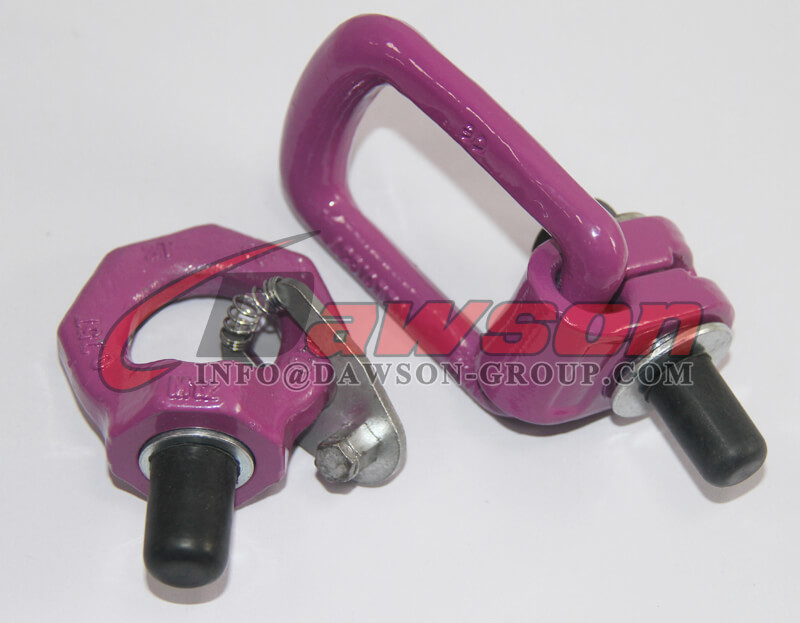

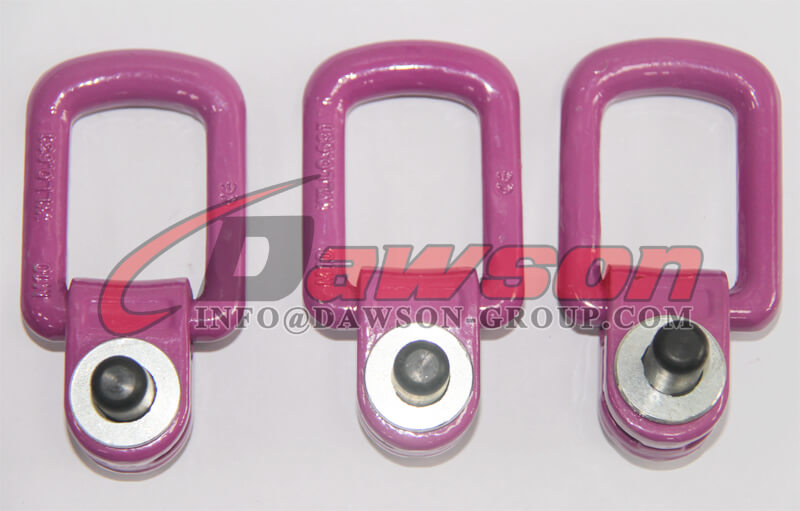

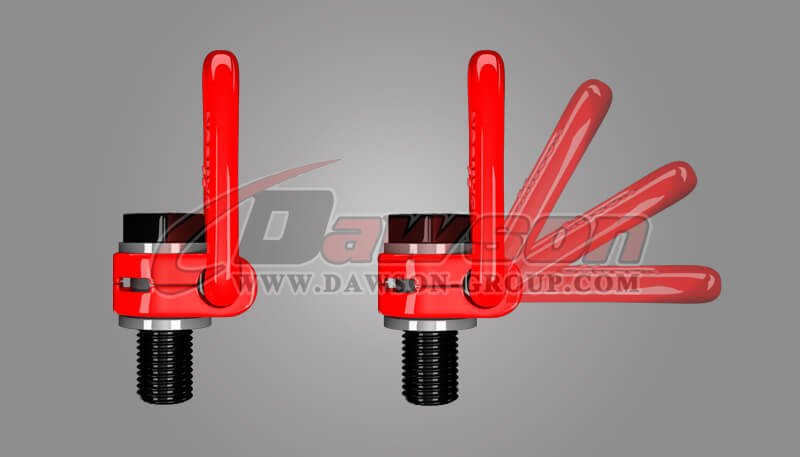

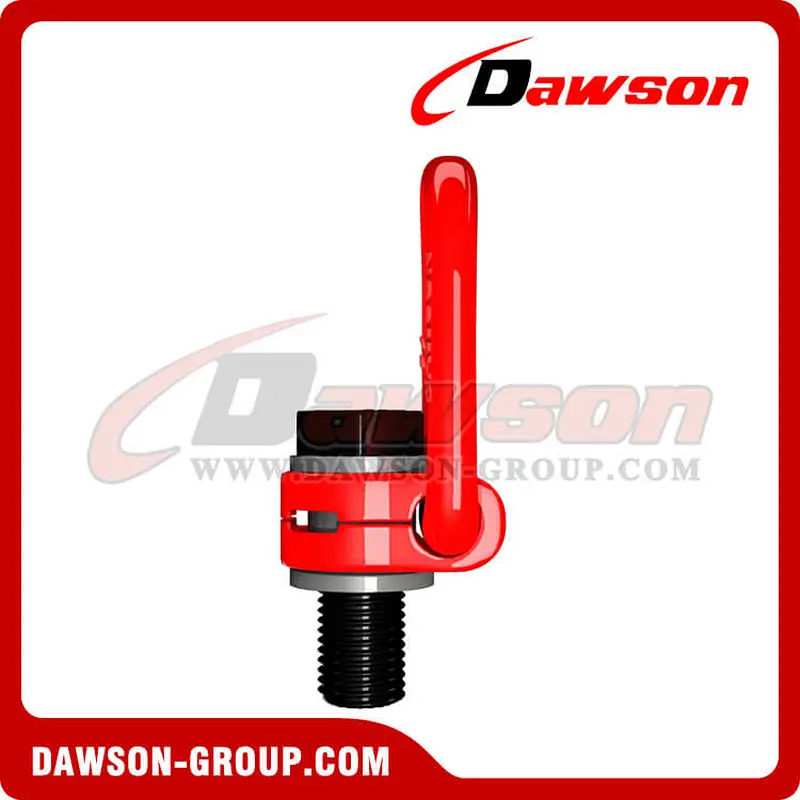

G80 Pivoting Lifting Screw

Model NO.: DS173

Quantity:

Product Description

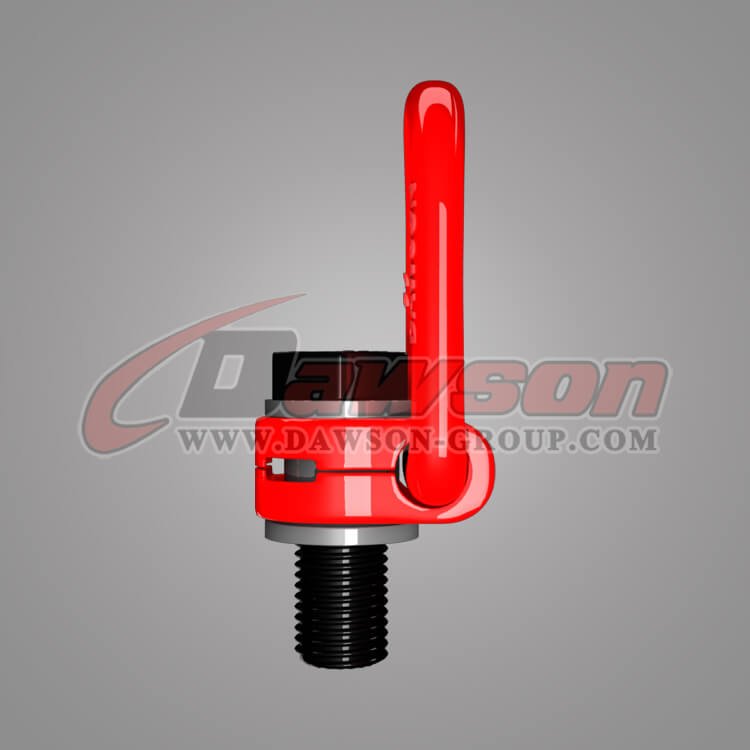

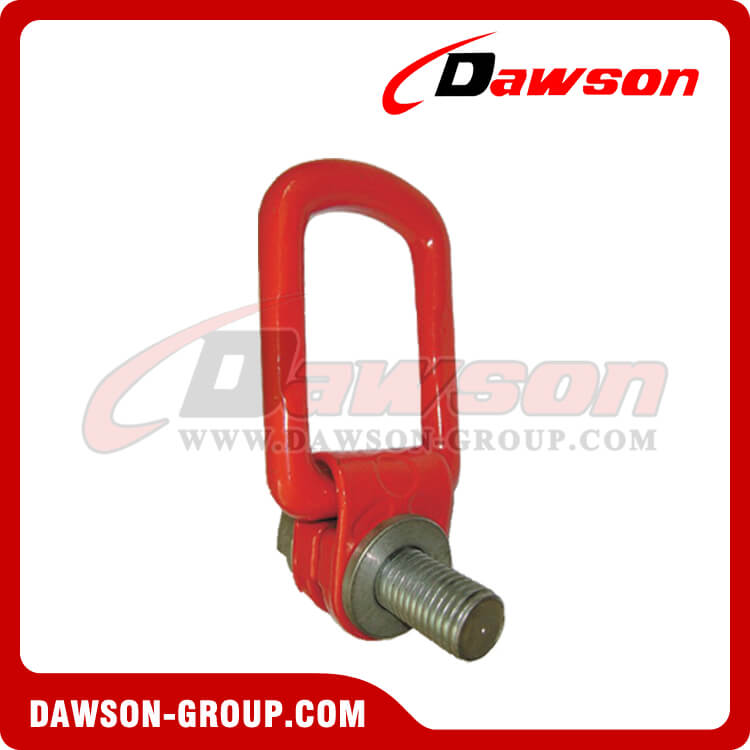

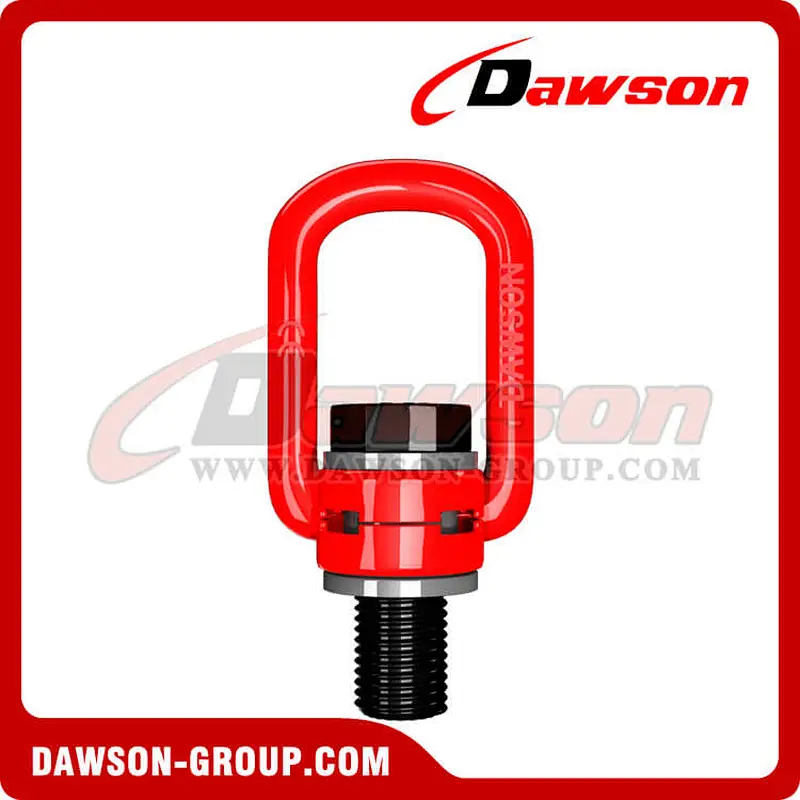

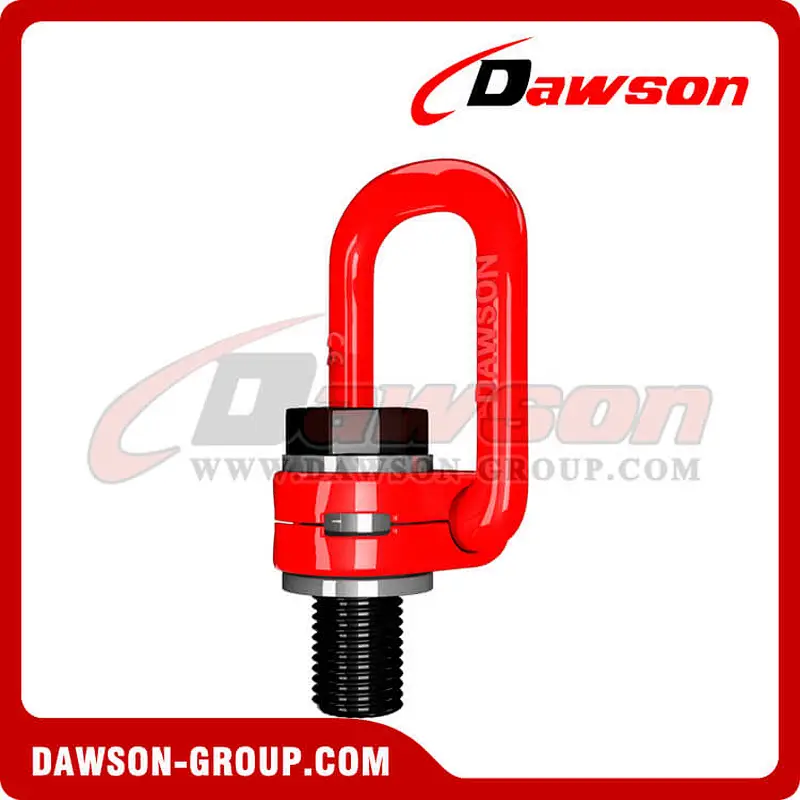

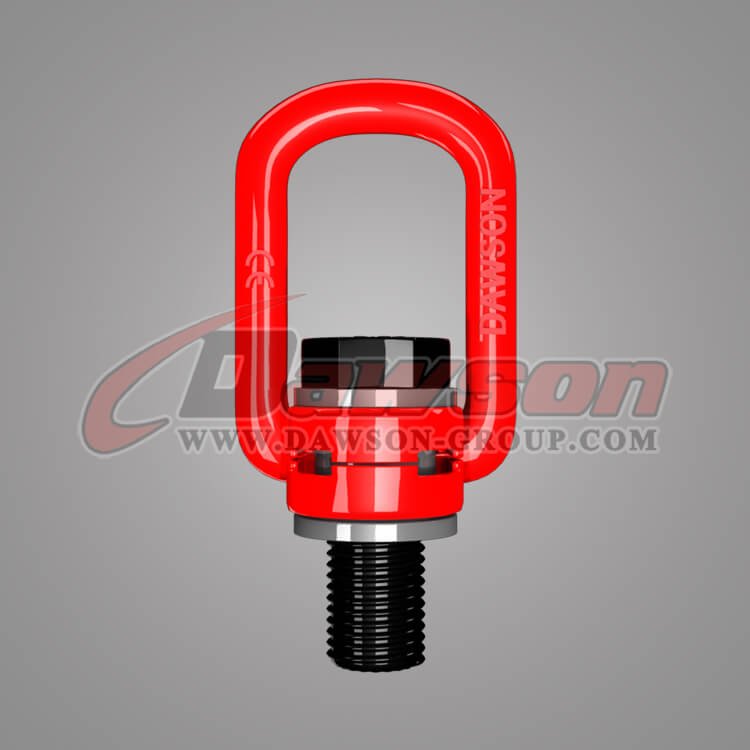

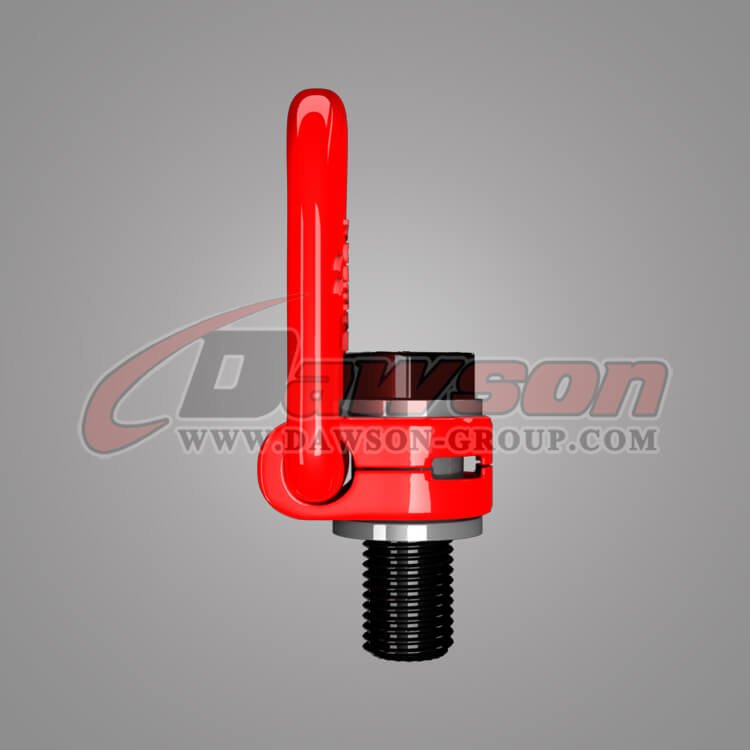

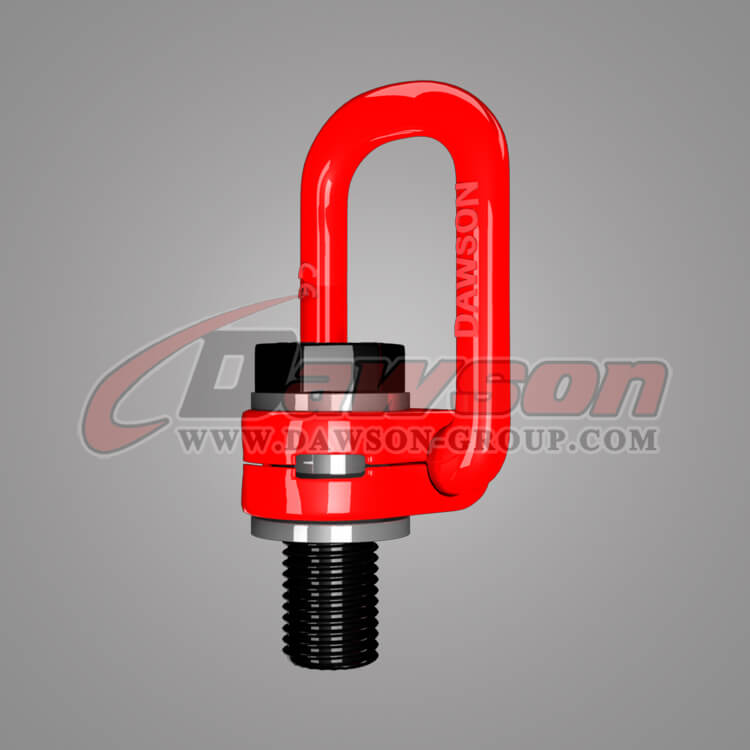

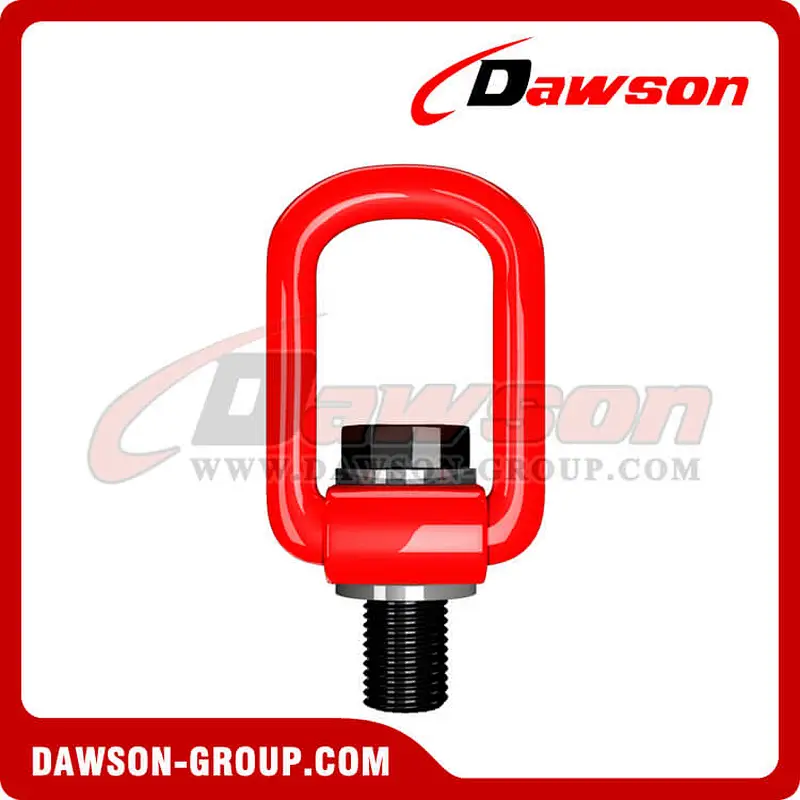

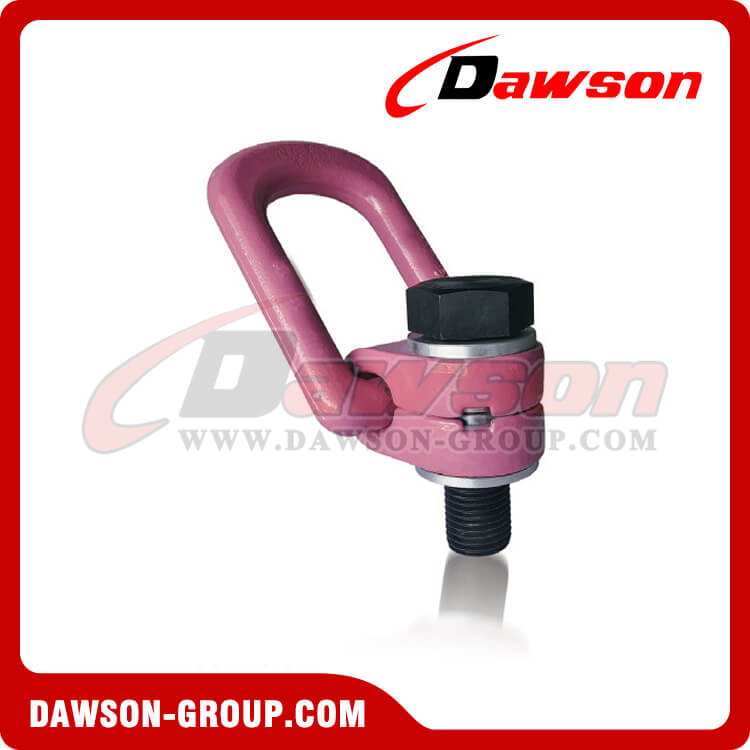

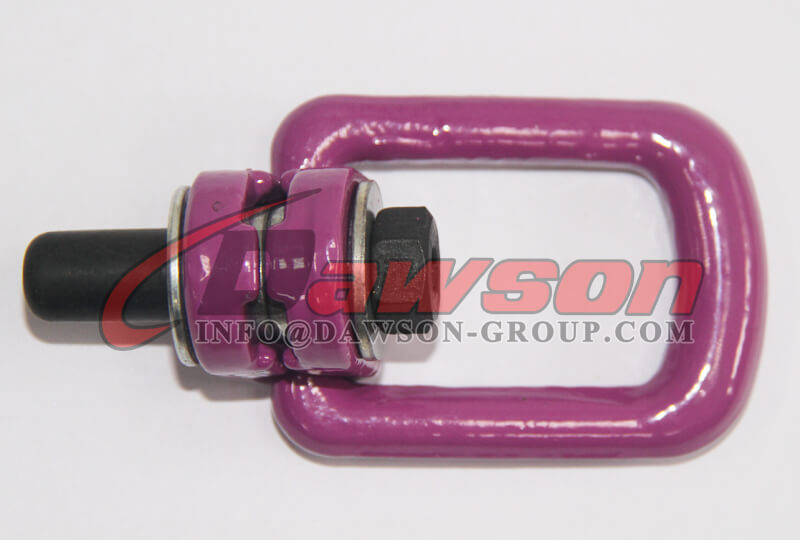

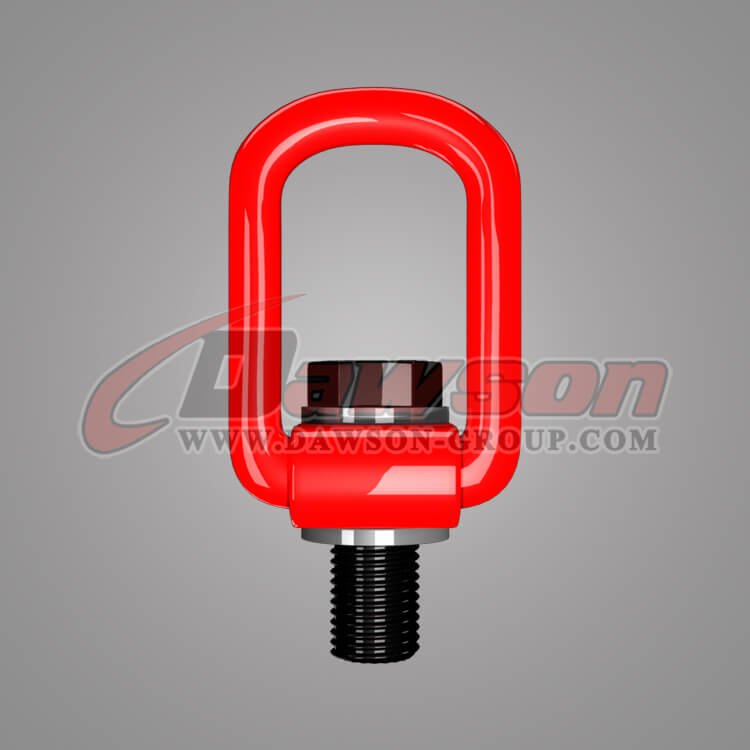

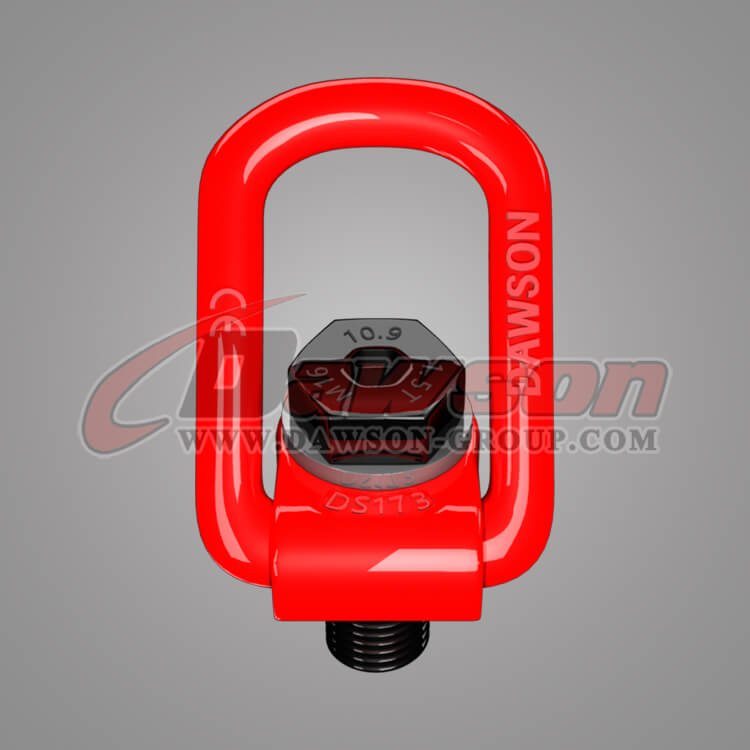

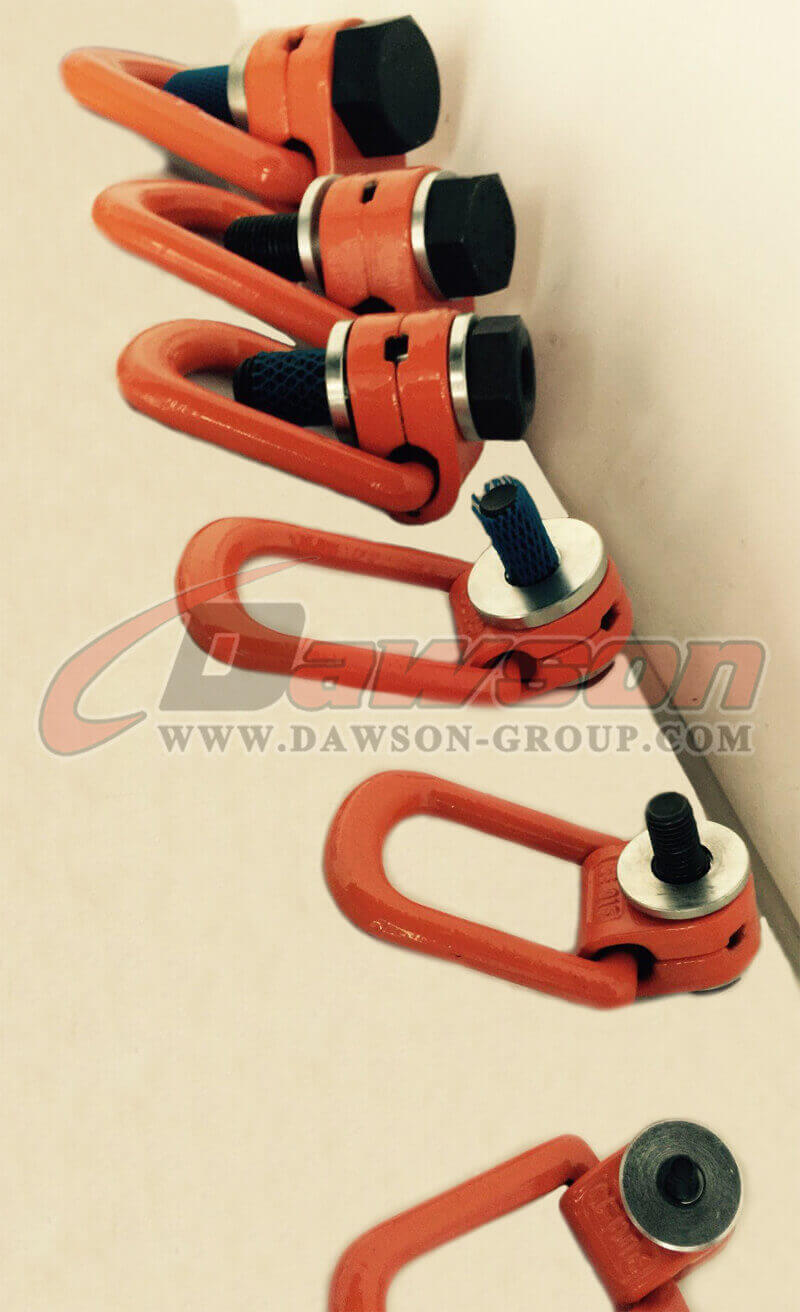

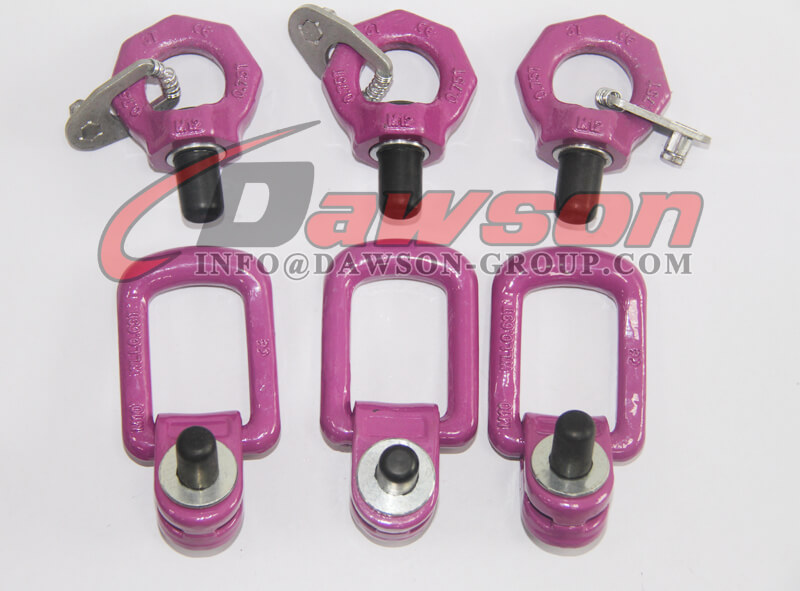

DS173 G80 Pivoting Lifting Screw, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point

- Dawson Group Ltd. - China Manufacturer, Supplier, Factory

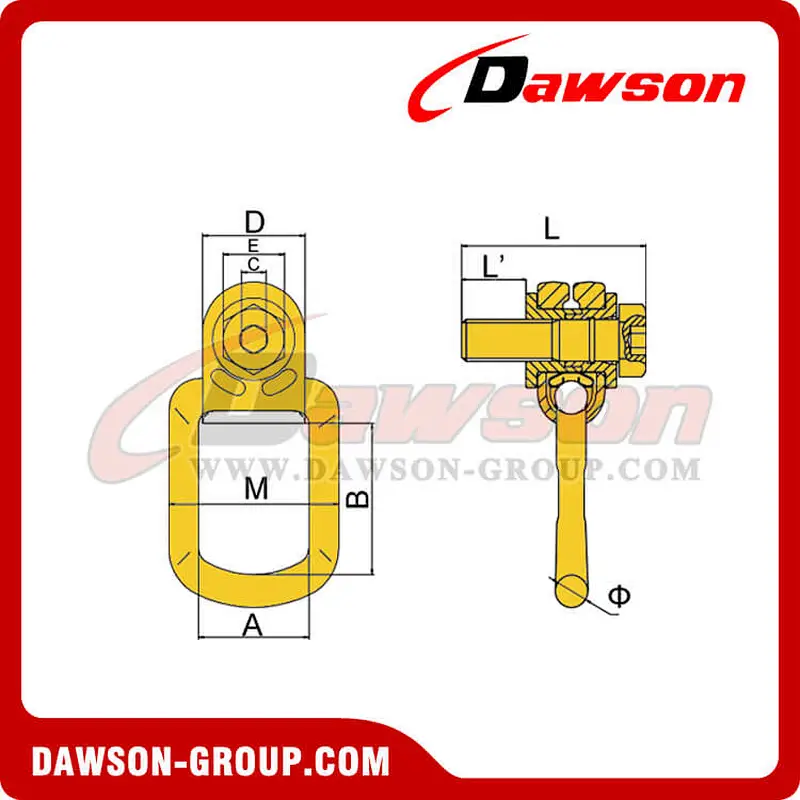

ITEM NO.	WEIGHT/kg	WLL/T	B.L/T	A±1	B±1	C	D	E	M±1.5	L±1.5	L’ ±1.5	Φ±0.5
8-DS173-M8	0.36	0.3	1.2	35	52.5	6	30	13	45	46	10.4	14
8-DS173-M8×76	0.39	0.3	1.2	35	52.5	6	30	13	45	46	76	14
8-DS173-M10	0.38	0.63	2.52	35	52.5	6	30	17	45	52	16	14
8-DS173-M10×96	0.43	0.63	2.52	35	52.5	6	30	17	45	52	96	14
8-DS173-M12	0.71	1	4	40	54	8	36	19	68	62	18	18
8-DS173-M12×114	0.8	1	4	40	54	8	36	19	68	158	114	18
8-DS173-M14	0.72	1.2	4.8	40	54	8	36	19	68	66	21	18
8-DS173-M14×140	0.86	1.2	4.8	40	54	10	36	22	68	185	140	18
8-DS173-M16	0.74	1.5	6	40	54	8	36	19	68	70	24	18
8-DS173-M16×30	0.74	1.5	6	40	54	8	36	19	68	70	30	18
8-DS173-M16×40	0.75	1.5	6	40	54	8	36	19	68	70	40	18
8-DS173-M16×100	0.85	1.5	6	40	54	10	36	24	68	146	100	18
8-DS173-M16×149	0.92	1.5	6	40	54	10	36	24	68	195	149	18
8-DS173-M16×194	0.99	1.5	6	40	54	10	36	24	68	240	194	18
8-DS173-M18×26	1.16	2	8	54	80	12	50	30	83	83	26	16
8-DS173-M18×180	1.47	2	8	54	80	12	50	30	83	237	180	16
8-DS173-M20	1.19	2.5	10	54	80	12	50	30	83	88	30	16
8-DS173-M20×55	1.21	2.5	10	54	80	12	50	30	83	113	55	16
8-DS173-M20×60	1.25	2.5	10	54	80	12	50	30	83	118	60	16
8-DS173-M20×100	1.57	2.5	10	54	80	12	50	30	83	156	100	16
8-DS173-M20×187	2.27	2.5	10	54	80	12	50	30	83	118	187	16
8-DS173-M24×35	1.35	4	16	54	94	14	50	36	83	95	35	18
8-DS173-M24×40	1.38	4	16	54	94	14	50	36	83	100	40	18
8-DS173-M24×60	1.46	4	16	54	94	14	50	36	83	120	60	18
8-DS173-M24×80	1.54	4	16	54	94	14	50	36	83	138	80	18
8-DS173-M24×100	1.62	4	16	54	94	14	50	36	83	158	100	18
8-DS173-M24×222	2.11	4	16	54	94	14	50	36	83	120	222	18
8-DS173-M27	4.18	4	16	73	106	17	68	41	120	120	38	27
8-DS173-M27×270	5.22	4	16	73	106	17	68	41	120	352	270	27
8-DS173-M30	4.4	5	20	73	106	17	68	41	120	132	48	27
8-DS173-M30×70	4.19	5	20	73	106	17	68	41	120	154	70	27
8-DS173-M30×279	5.35	5	20	73	106	17	68	41	120	154	279	27
8-DS173-M36×54	4.65	7	28	73	106	17	68	41	120	142	54	27
8-DS173-M36×62	7.6	8	32	94	140.5	22	86	55	156	163	62	31
8-DS173-M36×70	4.8	7	28	73	106	17	68	41	120	158	70	27
8-DS173-M36×223	8.94	8	32	94	140.5	22	86	55	156	324	223	31
8-DS173-M42	8.2	10	40	94	140.5	24	86	65	156	176	72	31
8-DS173-M42×63	12.4	15	60	104	155	24	95	65	176	179	63	40
8-DS173-M42×263	14.6	15	60	104	155	24	95	65	176	379	263	40
8-DS173-M48×74	13	20	80	104	155	24	95	75	176	194	74	40
8-DS173-M48×295	16.1	20	80	104	155	24	95	75	176	194	295	40

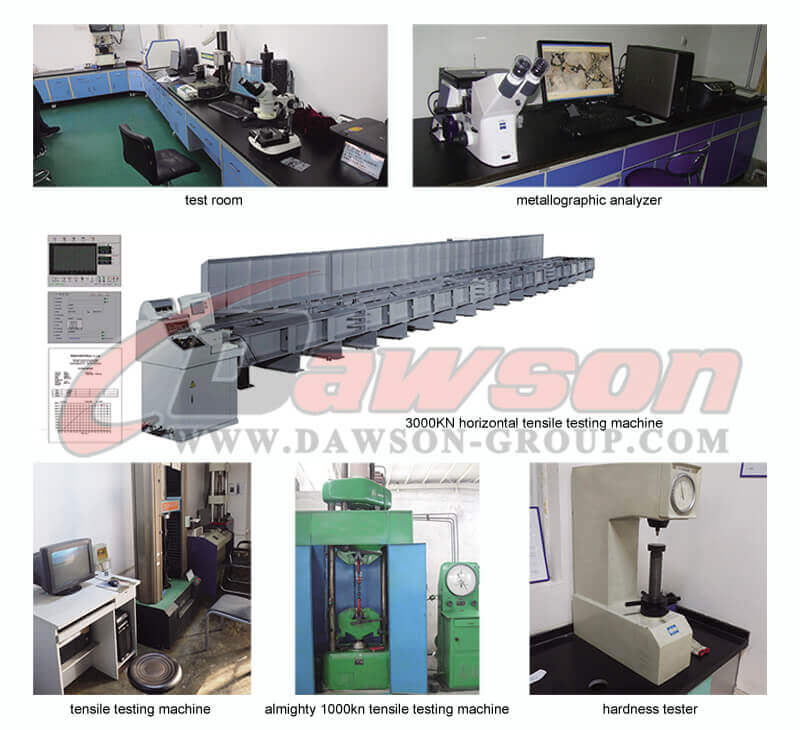

Ultimate load is 4 times the Working Load Limit.

Forged super alloy steel - Quenched and Tempered.

Individually proof test at 2.5 times Working Load Limit.

Fatiuge tested at 1.5 times Working Load Limit for 20000 cycles.

Breakage test.

100% magnaflux crack detection.

Surface finish: Powder plastified.

Colour code:Red RAL3020/Yellow RAL1003

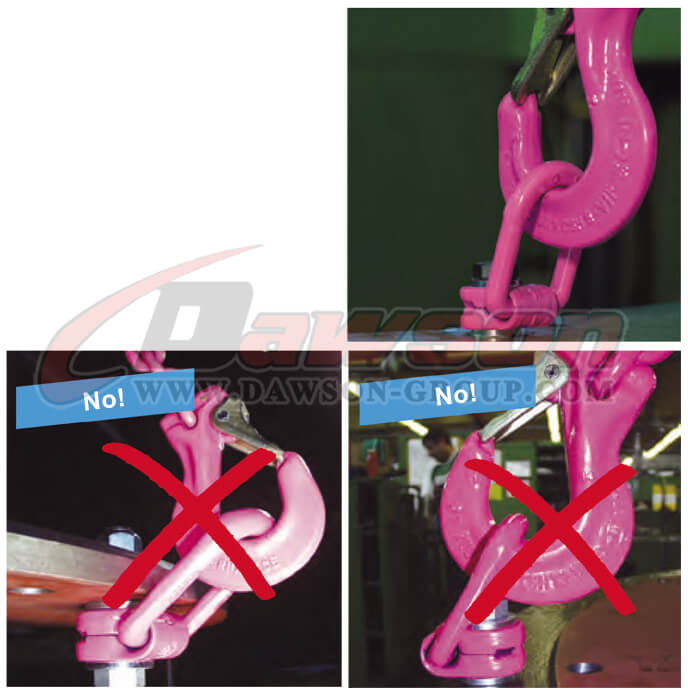

Attension:

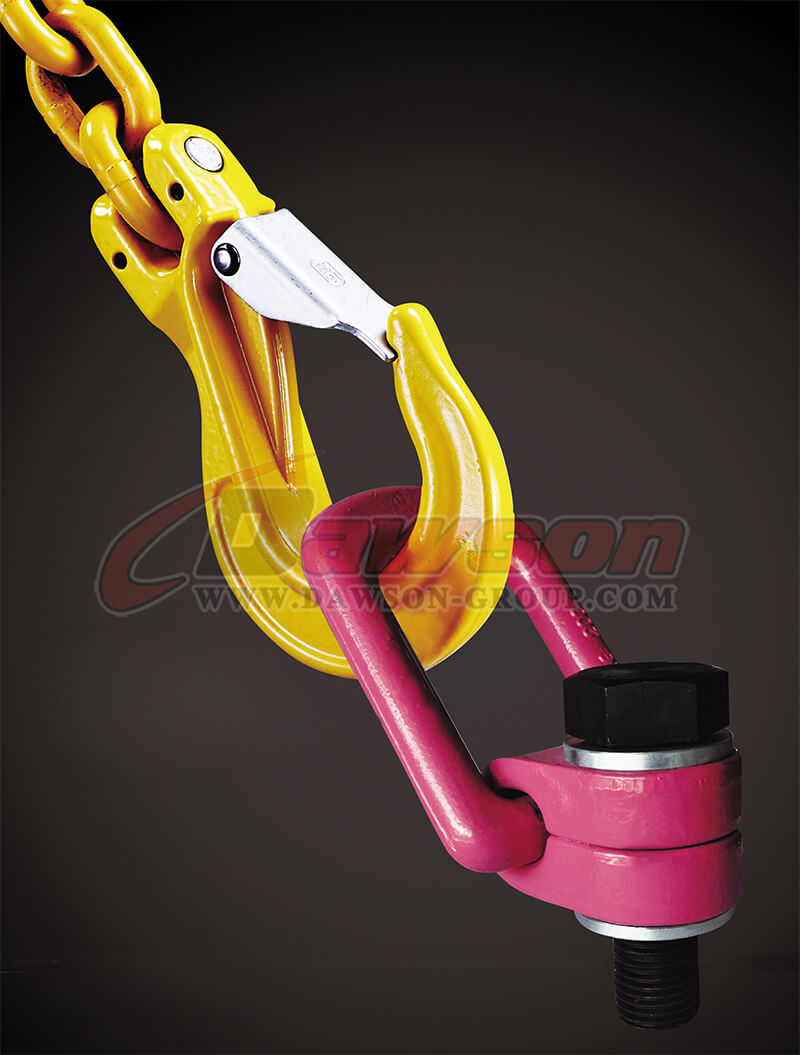

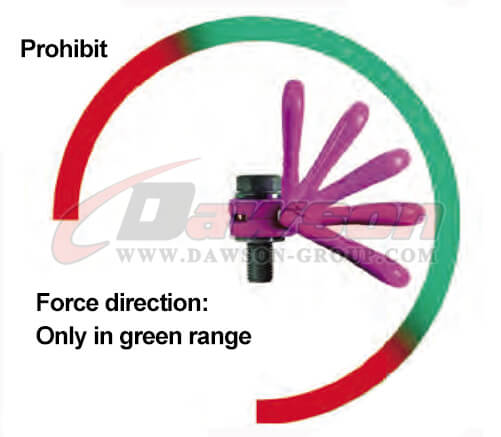

The side pull force form rotating rings:

Force form
Number of limb		1	2	1	2	2		2	3-4		3-4
Load direction		0°	0°	90°	90°	0-45°45-60°		asymmetric	0-45°45-60°		asymmetric
Item NO.	Thread M	WLL/T
DS173-08	8	0.3	0.6	0.3	0.6	0.42	0.3	0.3	0.63	0.45	0.3
DS173-10	10	0.63	1.26	0.63	1.26	0.88	0.63	0.63	1.32	0.95	0.63
DS173-12	12	1	2	1	2	1.4	1	1	2.1	1.5	1
DS173-14	14	1.2	2.4	1.2	2.4	1.7	1.2	1.2	2.5	1.8	1.2
DS173-16	16	1.5	3	1.5	3	2.1	1.5	1.5	3.1	2.2	1.5
DS173-18	18	2	4	2	4	2.8	2	2	4.2	3	2
DS173-20	20	2.5	5	2.5	5	3.5	2.5	2.5	5.2	3.7	2.5
DS173-24	24	4	8	4	8	5.6	4	4	8.4	6	4
DS173-27	27	4	8	4	8	5.6	4	4	8.4	6	4
DS173-30	30	5	10	5	10	7	5	5	10.5	7.5	5
DS173-36	36	7	14	7	14	9.8	7	7	14.7	10.5	7
DS173-36	36	8	16	8	16	11.2	8	8	16.8	12	8
DS173-42	42	10	20	10	20	14	10	10	21	15	10
DS173-42	42	15	30	15	30	21	15	15	31.5	22.5	15
DS173-48	48	20	40	20	40	28	20	20	42	30	20
