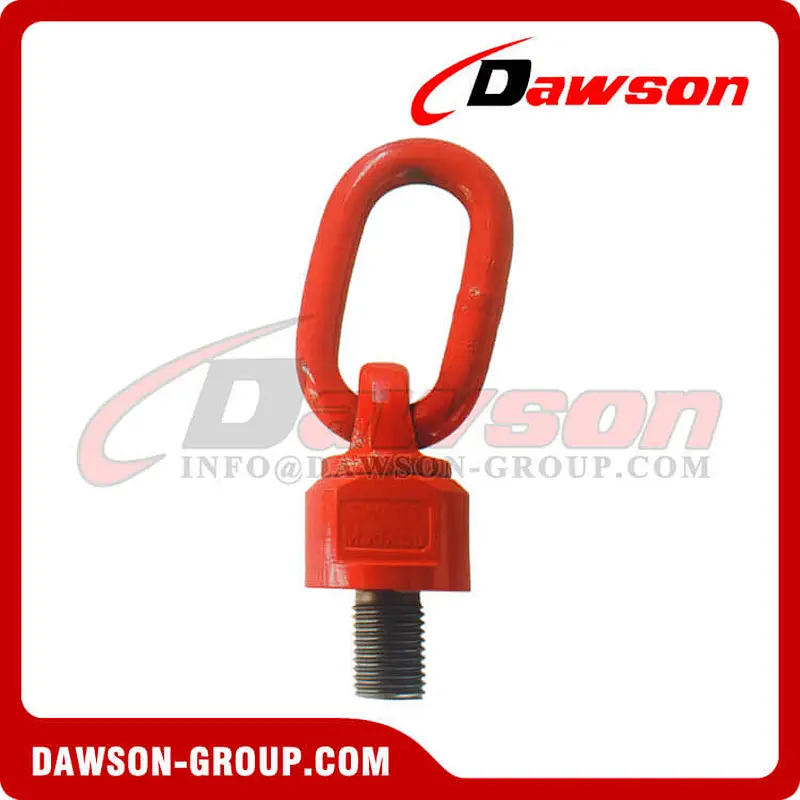

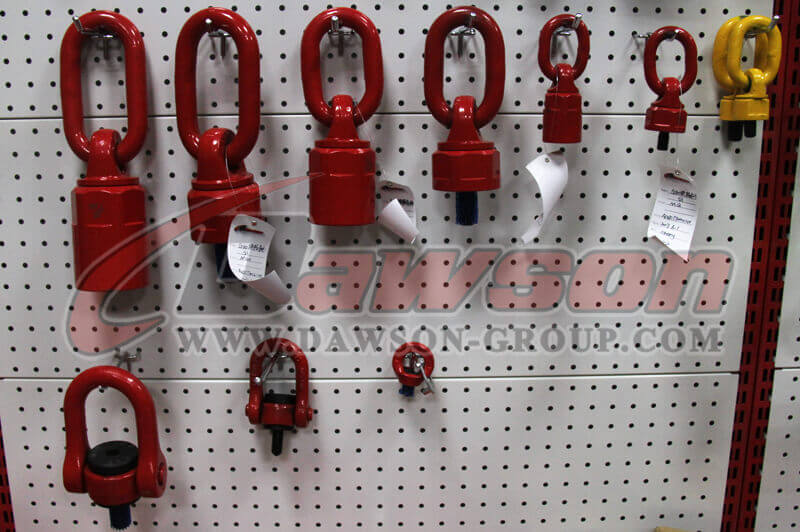

DS912 G80 Universal Revolving Ring, G80 Alloy Steel Swivel Hoist Ring for Lifting, Grade 80 Screw Type Swivel Lifting Point
- Dawson Group Ltd. - China Manufacturer, Supplier, Factory
Forged super alloy steel - Quenched and Tempered.
Breakage test.
100% magnaflux crack detection.
Surface finish: Powder plastified.
Colour code:Red RAL3020/Yellow RAL1003

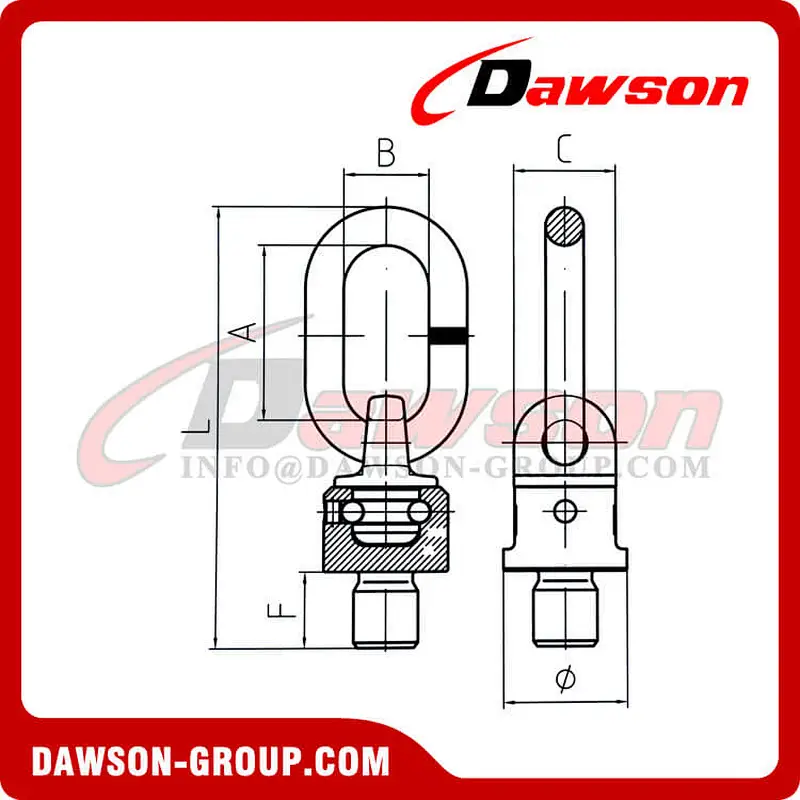

| Item No. | Weight/kg | WLL/T | B.L/T | A±3 | B±3 | C±2 | Φ±1 | L±4 | F |
| 8-DS912M8×18 | 0.57 | 0.3 | 1.2 | 55 | 30 | 32.5 | 38 | 137 | 18 |
| 8-DS912M8×22 | 0.57 | 0.3 | 1.2 | 55 | 30 | 32.5 | 38 | 141 | 22 |
| 8-DS912M10×18 | 0.57 | 0.3 | 1.2 | 55 | 30 | 32.5 | 38 | 137 | 18 |
| 8-DS912M12×18 | 0.58 | 0.5 | 2 | 55 | 30 | 32.5 | 38 | 137 | 18 |
| 8-DS912M12×25 | 0.58 | 0.5 | 2 | 55 | 30 | 32.5 | 38 | 144 | 25 |
| 8-DS912M14×20 | 0.58 | 0.5 | 2 | 55 | 30 | 32.5 | 38 | 139 | 20 |
| 8-DS912M16×20 | 0.59 | 1.12 | 4.48 | 55 | 30 | 32.5 | 38 | 139 | 20 |
| 8-DS912M16×30 | 0.61 | 1.12 | 4.48 | 55 | 30 | 32.5 | 38 | 149 | 30 |
| 8-DS912M20×30 | 1.21 | 2 | 8 | 70 | 35 | 42.5 | 50 | 177 | 30 |
| 8-DS912M20×40 | 1.23 | 2 | 8 | 70 | 35 | 42.5 | 50 | 187 | 40 |
| 8-DS912M20×50 | 1.255 | 2 | 8 | 70 | 35 | 42.5 | 50 | 197 | 50 |
| 8-DS912M20×70 | 1.305 | 2 | 8 | 70 | 35 | 42.5 | 50 | 217 | 70 |
| 8-DS912M24×30(1.12T) | 0.63 | 1.12 | 4.48 | 55 | 30 | 32.5 | 38 | 149 | 30 |
| 8-DS912M24×30 | 1.731 | 3.15 | 12.6 | 85 | 40 | 48 | 58 | 201 | 30 |
| 8-DS912M24×45 | 1.785 | 3.15 | 12.6 | 85 | 40 | 48 | 58 | 216 | 45 |
| 8-DS912M24×50 | 1.802 | 3.15 | 12.6 | 85 | 40 | 48 | 58 | 221 | 50 |
| 8-DS912M30×35(3.15T) | 1.82 | 3.15 | 12.6 | 85 | 40 | 48 | 58 | 206 | 35 |
| 8-DS912M30×35(5.3T) | 3.67 | 5.3 | 21.2 | 80 | 50 | 68 | 75 | 196 | 35 |
| 8-DS912M30×45(5.3T) | 3.72 | 5.3 | 21.2 | 80 | 50 | 68 | 75 | 206 | 45 |
| 8-DS912M30×35(8T) | 5.1 | 8 | 32 | 115 | 50 | 78 | 84 | 248 | 35 |
| 8-DS912M30×45(8T) | 5.11 | 8 | 32 | 115 | 50 | 78 | 84 | 258 | 45 |
| 8-DS912M36×54 | 5.3 | 8 | 32 | 115 | 50 | 78 | 84 | 267 | 54 |
Ultimate load is 4 times the Working Load Limit.

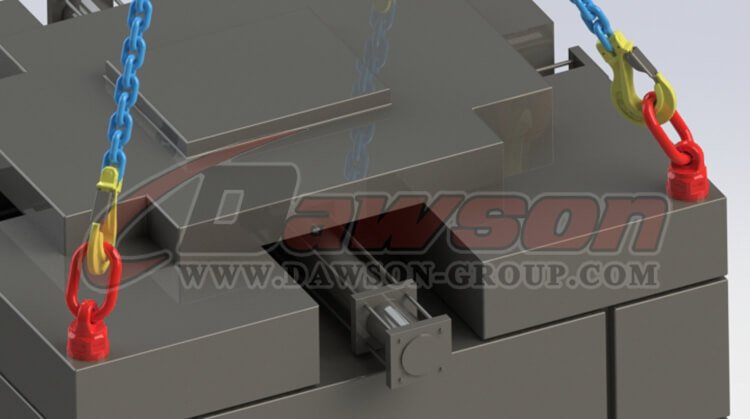

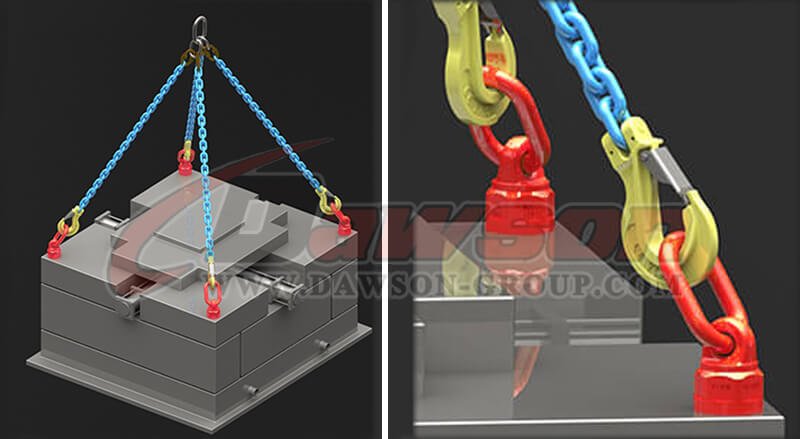

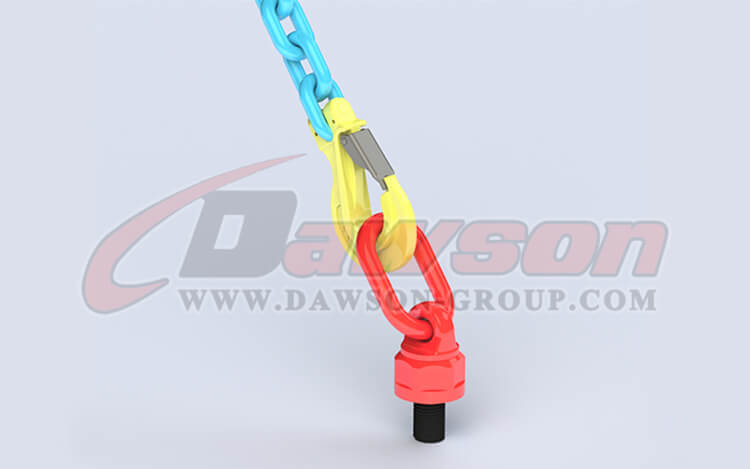

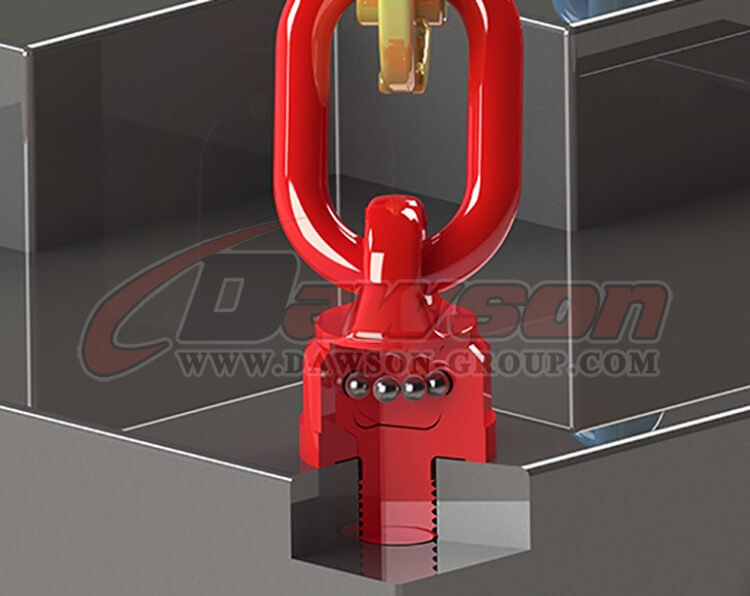

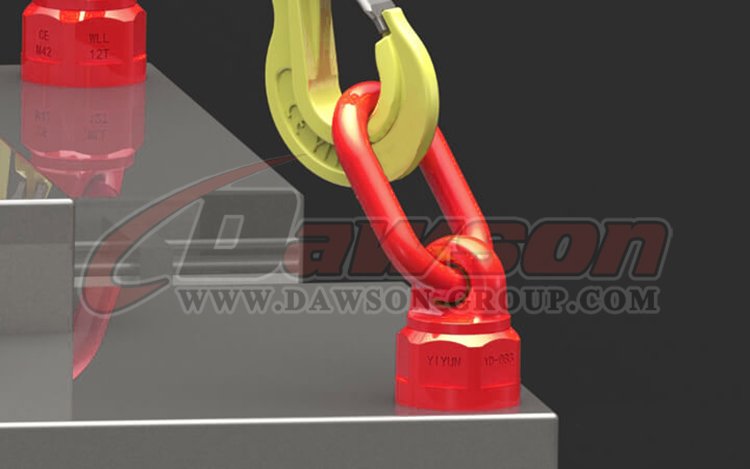

Application Of Lifting Screw Point:
Other related products:
Production Equipment:

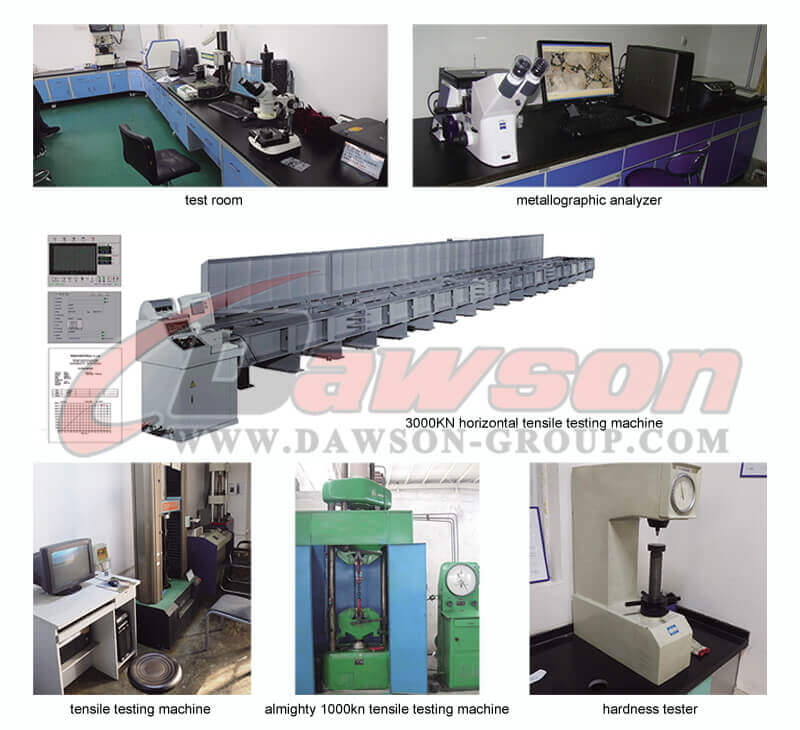

Test Equipment:

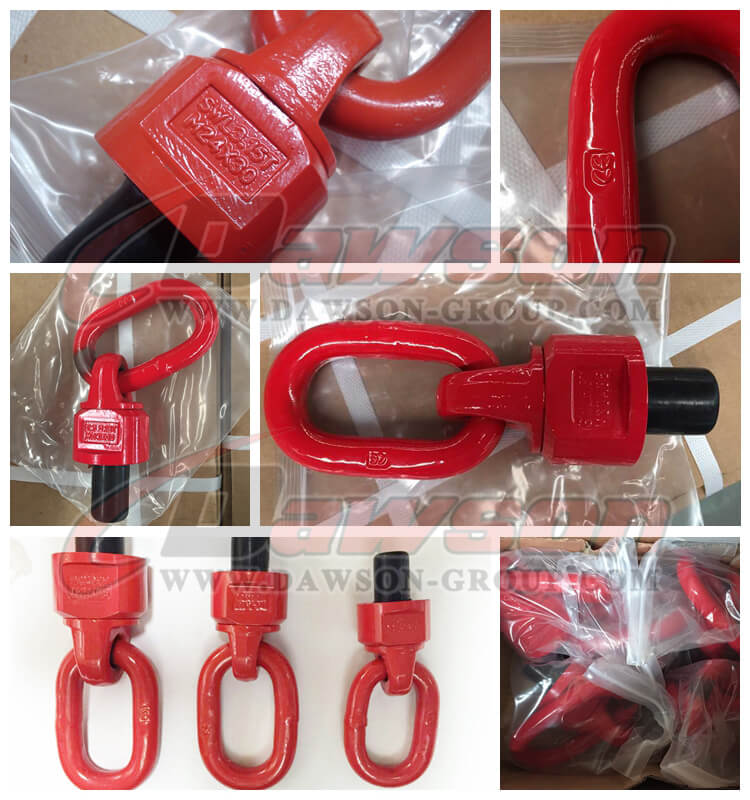

Factory & Package Show:
We have any other related products, if you have any intrest, please contact us, info@dawson-group.com!
