Metric Thread and UNC Thread Type G80 Swivel Hoist Ring

Metric Thread and UNC Thread Type G80 Swivel Hoist Ring

- Dawson Group Ltd. - China Manufacturer Supplier, Factory

Metric thread Lifting Points:

UNC thread LIfting Points:

Brief Introduction:

Forged super alloy steel-Quenched Tempered.

Individually proof test at 2.5 times working load limit.

Fatigue tested at 1.5 times working load limit for 20000 cycles.

Breaking test magnaflux crack detection.

All load pins are 100% individually inspected and tested.

Grade 100 lifting point are 360°rotation with 90°pivot function.

Rated at 100% at 90°angle.

Swivel Hoist Ring Lifting Force Form:

Force form	Number of limb	Load direction	M8	M10	M12	M14	M16	M20	M24	M30	M33	M36	M39	M42	M48	M52	M56	M64	M72	M80	M90	M100
	1	0°	0.3	0.45	0.5	1.12	1.12	2.15	4.2	5	7	8	8	10	10	15	15	15	25	30	35	49
	2	0°	0.6	0.9	1	2.2	2.2	4.4	4.5	10	14	16	16	20	20	30	30	30	50	60	70	98
	1	90°	0.3	0.45	0.5	1.12	1.12	2.15	2.25	5	7	8	8	10	10	15	15	15	25	30	35	49
	2	90°	0.6	0.9	1	2.2	2.2	4.4	4.5	10	14	16	16	20	20	30	30	30	50	60	70	98
	2	0-45°	0.42	0.6	0.7	1.6	1.6	3	5.8	7	9.8	11.2	11.2	14	14	21	21	21	35	42	49	68
	2	45-60°	0.3	0.45	0.5	1.12	1.12	2.15	2.25	5	7	8	8	10	10	15	15	15	25	30	35	49
	2	asymmetric	0.3	0.45	0.5	1.12	1.12	2.15	2.25	5	7	8	8	10	10	15	15	15	25	30	35	49
	3-4	0-45°	0.63	1.9	1	2.3	2.3	4.5	8.8	10.5	14.7	16.8	16.8	21	21	31.5	31.5	31.5	52.5	63	73.5	102
	3-4	45-60°	0.45	0.67	0.75	1.68	1.68	3.22	6.3	7.5	10.5	12	12	15	15	22.5	22.5	22.5	37.5	45	52.5	73.5
	3-4	asymmetric	0.3	0.45	0.5	1.12	1.12	2.15	2.25	5	7	8	8	10	10	15	15	15	25	30	35	49

Products Show:

Production Equipment:

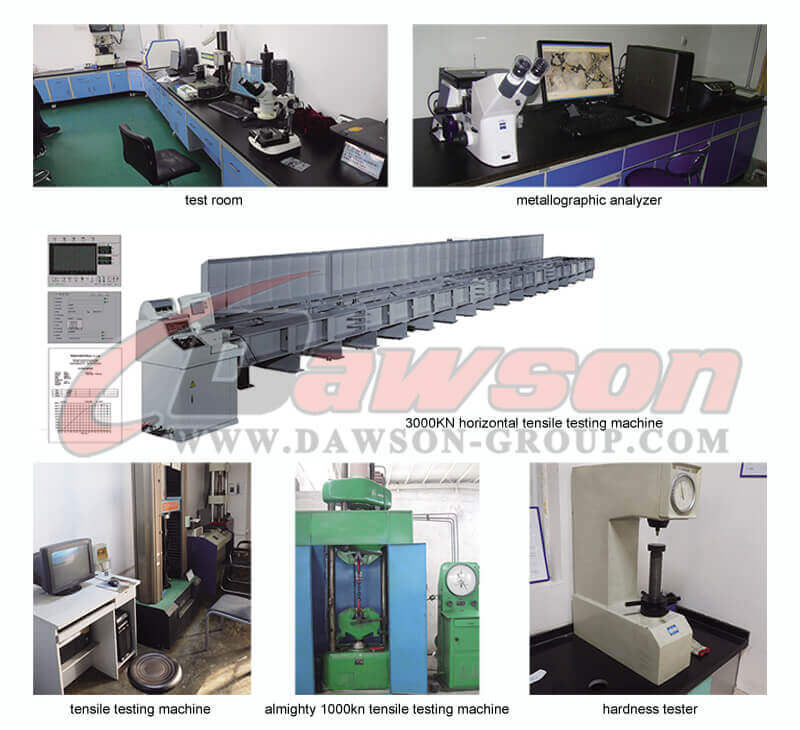

Test Equipment:

Package of G80 Lifting Screw Points:

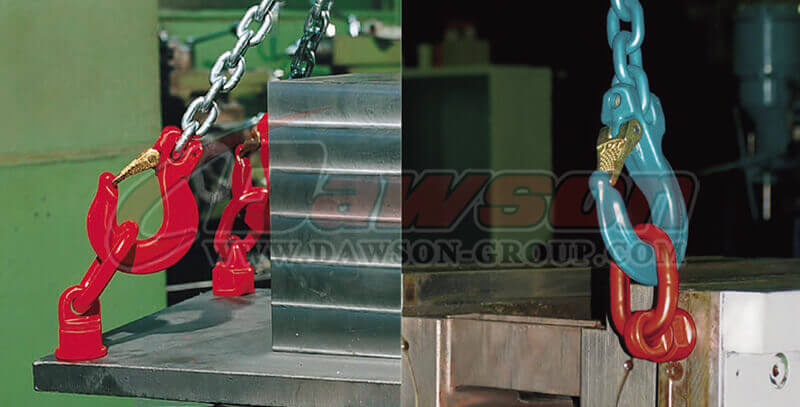

Application of G80 Lifting Points:
